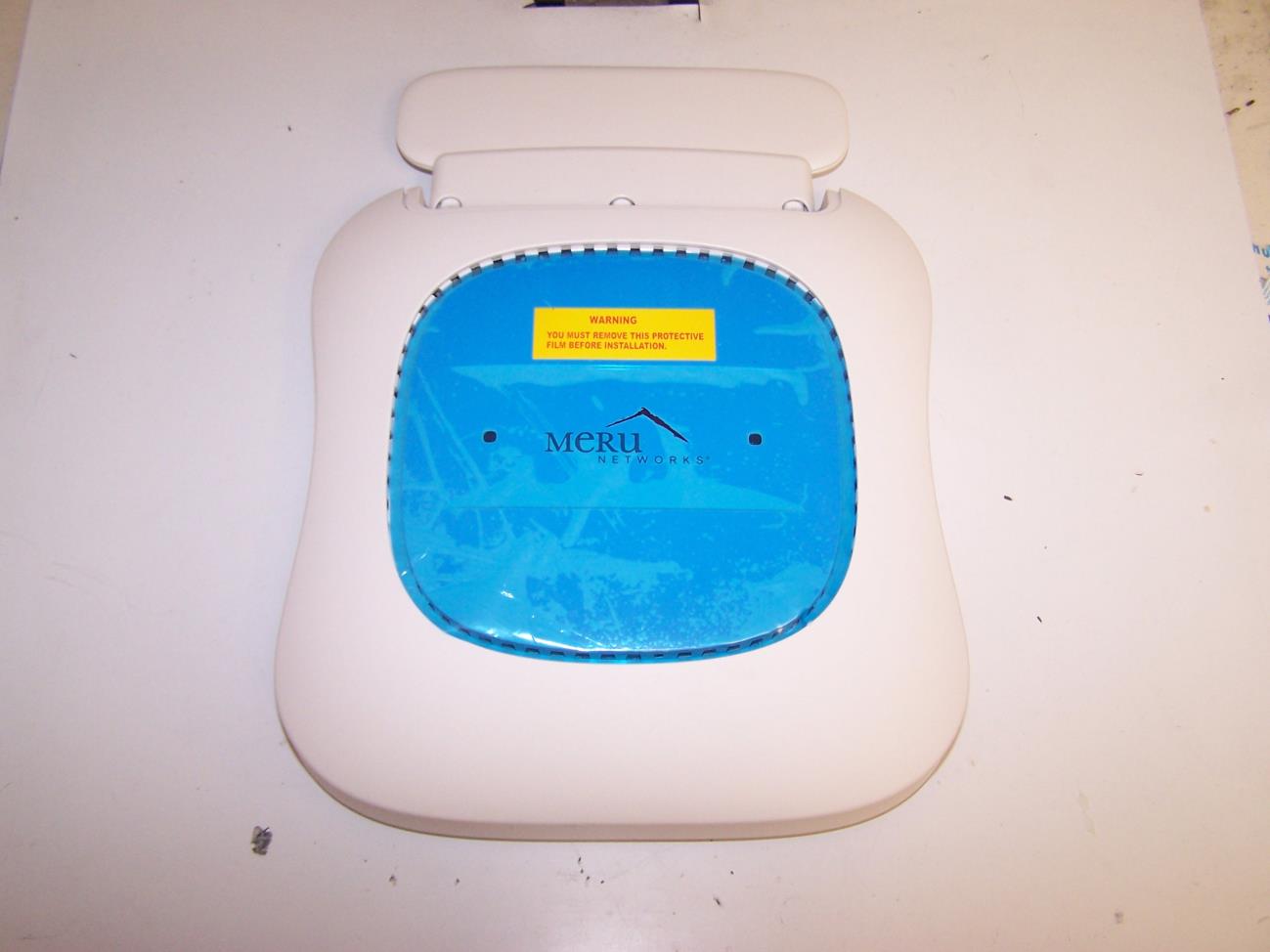

RE7-AP433ISTriple Radio Access Point

Meru Networks AP433 Installation Guide MERU NETWORKS, INC. Limited Product Warranty This Limited Product Warranty applies to the original end(user customer of the Meru product which you purchased for your own use, and not for resale (“Product”), from Meru Networks, Inc. (“Meru”) or its authorized reseller (“Reseller”). Limited Warranties One(year limited hardware warranty: Meru warrants to you that Meru hardware (other than Third Party Products as described below) will be free from defects in materials and work( manship for a one(year period after the date of delivery of the applicable product to you from Meru or its Reseller (the “Hardware Warranty Period”). If Meru receives written notice from you of such defects during the Hardware Warranty Period, Meru will, at its option, either repair or replace Meru hardware that Meru determines to be defective. Replacement products may be remanufactured units, and will be warranted for the remainder of the origi( nal Hardware Warranty Period, or if greater, for thirty days from delivery of such replace( ment. Should Meru be unable to repair or replace the Meru hardware, Meru (or its Reseller, as applicable) will refund to you the purchase price of the Product. 90(Day Limited Software Warranty: Meru warrants to you that, for a 90(day period after the date of delivery of the applicable product to you from Meru or its Reseller (the “Software Warranty Period”), when properly installed and used, (a) the media on which the Meru soft( ware is provided will be free from defects in materials or workmanship; and (b) the Meru software will substantially conform to the functional specifications in the applicable docu( mentation. If Meru receives written notice from you of a breach of this warranty during the Software Warranty Period and is able to reproduce the defect, Meru will, at its option, either repair or replace the defective Meru software. Should Meru be unable to repair or replace the Meru software, Meru (or its Reseller, as applicable) will refund to you the purchase price of the Product. Exclusions The warranty on the Product shall not apply to defects resulting from the following: Alteration or modification of the Product in any way, including without limitation configura( tion with software or components other than those supplied by Meru or integration with parts other than those supplied by Meru. Abuse, damage or otherwise being subjected to problems caused by negligence or misap( plication (including without limitation improper or inadequate maintenance or calibration), relocation of the products (including without limitation damage caused by use of other than Meru shipping containers), or use of the products other than as specified in the applicable Meru product documentation (including without limitation incompatible operating environ( ments and systems), or improper site preparation or maintenance. Damage as a result of accidents, extreme power surge, extreme electromagnetic field, acts of nature or other causes beyond the control of Meru. Use of the Product with software, interfacing, parts or supplies not supplied by Meru. The warranty on the Product does not apply if the Product is sold, or in the case of software, licensed, for free for evaluation or demonstration purposes. Meru expressly disclaims any warranty or obligation to support the Product for all operating environments – for example, as illustration and not limitation, Meru does not warrant or ensure interoperability of the Product with future telecommunication systems or other future software or hardware. You understand and acknowledge that the Products may generate, use or radiate radio fre( quency energy and may interfere with radio communications and/or radio and television receptions if is not used and/or installed in accordance with the documentation for such prod( ucts. WHILE MERU USES COMMERCIALLY REASONABLE EFFORTS TO ENSURE COM( PLIANCE OF THE PRODUCTS WITH APPLICABLE UNITED STATES FEDERAL COMMUNICATIONS COMMISSION AND PROTECT AGAINST HARMFUL INTERFER( ENCES, YOU ACKNOWLEDGE AND AGREE THAT INTERFERENCES WITH RADIO COM( MUNICATIONS AND/OR RADIO AND TELEVISION RECEPTIONS MAY OCCUR AND THAT MERU WILL NOT BE LIABLE FOR ANY DAMAGES OR INCONVENIENCE BASED ON SUCH INTERFERENCES. Third Party Products ( The above Limited Warranties are exclusive of products manufac( tured by third parties (“Third Party Products”). If such third party manufacturer provides a sep( arate warranty with respect to the Third Party Product, Meru will include such warranty in the packaging of the Meru Product. Return procedures To obtain warranty service you must: (a) obtain a return materials authorization number (“RMA#”) from Meru by contacting [email protected], and (b) deliver the Prod( uct, in accordance with the instructions provided by Meru, along with proof of purchase in the form of a copy of the bill of sale including the Product’s serial number, contact information, RMA# and detailed description of the defect, in either its original package or packaging provid( ing the Product with a degree of protection equivalent to that of the original packaging, to Meru at the address below. You agree to obtain adequate insurance to cover loss or damage to the Product during shipment. If you obtain an RMA# and return the defective Product as described above, Meru will pay the cost of returning the Product to Meru. Otherwise, you agree to bear such cost, and prior to receipt by Meru, you assume risk of any loss or damage to the Product. Meru is responsible for the cost of return shipment to you if the Meru Product is defective. Returned products which are found by Meru to be not defective, returned out(of( warranty or otherwise ineligible for warranty service will be repaired or replaced at Meru’s standard charges and shipped back to you at your expense. At Meru’s sole option, Meru may perform repair service on the Product at your facility, and you agree to provide Meru with all reasonable access…

Text truncated - open the document above for the full version.

Long Term Confidentiality Request Letter 03/01/13 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Dual Radio Access Point, Model # AP433IS and FCC ID # RE7-AP433IS To Whom It May Concern This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Block Diagrams, Schematics, PCB Layouts, BOM, Tune-Up Procedure and Operational Descriptions required to be submitted with this application be permanently withheld from public review. The reason for confidentiality is the Block Diagrams, Schematics, PCB Layouts, BOM, Tune-Up Procedure and Operational Descriptions are Meru’s proprietary information and not to disclose to any of the Meru’s competitors. Please contact me if there is any information you may need. Sincerely, Rajendran V. Chary Engineering Architect 408-215-5338

Short Term Confidentiality Request Letter 11/11/13 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For Dual Radio Access Point, Model # AP433IS and FCC ID # RE7-AP433IS To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, Meru Networks, Inc. requests short- term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which Meru Networks, Inc considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Meru Networks, Inc feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Rajendran V. Chary Engineering Architect 408-215-5338

1 DO NOT SCALE THIS DRAWING ±.010 ±.05 ±1.5° 3 PLCS 2 PLCS ANG UNLESS OTHERWISE NOTED DIMENSIONS ARE IN INCHES C2/A1R DWG SIZE REV/REL SHEET USE PURSUANT TO COMPANY INSTRUCTIONS THIRD ANGLE PROJECTION P TITLE DESCRIPTION DATE REV DRAWING NUMBER PROE FILE NAME HS 12/12/13 MERU NETWORKS PROPRIETARY 845-00588 C 1 11/16/11 Initial Release 2 12/2/11 Updated FCC, IC and Giteki certs A 1/27/12 Release to Production Label, Regulatory 1, AP433is SCALE 1:1 RECT 40.8 x 29.8 mm Rad 2.0mm IC: 6749A-AP433IS FCC ID: RE7-AP433IS Triple Radio Access Point AP400Model No. AP433isPower Over Ethernet: -48 V /750 mA MADE IN CHINA NOTES: UNLESS OTHERWISE SPECIFIED) 1. MUST CONFORM TO UL969 MARKING & LABELING SYSTEM PGDQ2; VAL-THERM-D OR EQUIVALENT. 2. ALL TEXT AND GRAPHICS ARE BLACK.3. CE, GITEKI & KOREAN MARK HAVE MINIMUM HEIGHT OF 5mm4. Factory Code: Shanghai = “S”, Shenzhen = “SZ” E239453 SZ /750/750/750 1313 I.T.E. ACCESSORY R 211WWAPIS433211GZAPIS433211XWAPIS433 B 8/1/12 Update factory code to “SZ” See Note 4 C 12/12/13 Update FCC and IC IDs

Meru Part Number Manufacturer P/N Manufacturer Description Gain Access Point ANT-ABGN23O-W Dual band omnidirectional dipole antenna 2/3 dBi AP433e, OAP433e ANT-01ABGN-0406-O Dual band omnidirectional dipole antenna 4/6 dBi AP433e, OAP433e ANT-ABGN47O ANT-DB1-RAF-RPS Linx Technologies Dual band high gain dipole omnidirectional antenna 4.7/4.7 dBi AP433e, OAP433e ANT-ABGN-23 S24493TS Laird Technologies Dual band ceiling mount omnidirectional 3-lead antenna 3/4 dBi AP433e, OAP433e ANT-6ABGN-24 M6025040MO1D3620P Terrawave Dual band ceiling mount omnidirectional 6-lead antenna 2.5/4 dBi AP433e, OAP433e ANT-I2ABGN-0304-O M6030040O1D3620DP Terrawave Dual band ceiling mount omnidirectional 2-lead antenna 3/4 dBi AP433e, OAP433e ANT-I3ABGN-0304-O M6030040O1D1820MP Terrawave Dual band ceiling mount omnidirectional 3-lead antenna 3/4 dBi AP433e, OAP433e ANT-O6ABGN-0606-O M6060060MO1D3620O Terrawave Dual band omnidirectional 6-lead antenna 6/6 dBi AP433e, OAP433e ANT-O4ABGN-0606-O M6060060MO1D43607 Terrawave Dual band omnidirectional 4-lead antenna, N-type connector 6/6 dBi AP433e, OAP433e ANT-BG08O-NM SAA04-054270 SmartAnt Omnidirectional antenna, 2400 - 2500 MHz 8 dBi OAP433e ANT-A08O-NM-1 SAA04-202130 SmartAnt Omnidirectional antenna, 5150 - 5350 MHz 8 dBi OAP433e ANT-A08O-NM-2 SAA04-090380 SmartAnt Omnidirectional antenna, 5470 - 5875 MHz 8 dBi OAP433e ANT-O4ABGN-0607-PT M6060070P23607 Terrawave Dual band wall mount patch 4-lead antenna, N-type connector 6/7 dBi AP433e, OAP433e ANT-O6ABGN-0607-PT M6060070MP13620 Terrawave Dual band wall mount patch 6-lead antenna 6/7 dBi AP433e, OAP433e AP433 and OPA433 Antennas

§ 15.247(i) Maximum Permissible Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. Test Results: The EUT was compliant with the requirements of this section. Highest Antenna gain in 2.4 & 5 GHz bands is 6 dBi Directional gain since 3x3 MIMO = 6+10log(3) = 10.77 dBi 2.4 GHz Band 5.8 GHz 5. 1 GHz S = PG/4πR² S = PG/4πR² S = PG/4πR² (559.8 mW)(10) (453.9 mW)(10) (39.4 mW)(10) 4π(30)² 4π(30)² 4π(30)² S1 = 0.495 mW/cm 2 S2 = 0.401 mW/cm 2 S3 = 0.03 mW/cm 2 All 2 radios operating in 2.4 GHz band: S Power density (mW/cm²) General Population Limit (mW/cm²) S as a fraction of the limit (%) S1 0.495 1 49.5 S1 0.495 1 49.5 All 2 radios operating in 5.8 GHz band: S Power density (mW/cm²) General Population Limit (mW/cm²) S as a fraction of the limit (%) S2 0.401 1 40.1 S2 0.401 1 40.1 Any combinations would also meet the requirement. The total percentages do not exceed 100 % per OET 65 requirements when the spectral power density is calculated at least 30cm away from the unit. Therefore, the EUTs meet the Uncontrolled Exposure limit. Test Engineer(s): Ben Taylor

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15B/ ICES-003 CLASS B TEST AND MEASUREMENT REPORT For Meru Networks, Inc. 894 Ross Drive Sunnyvale, CA 94089, USA Model: AP433e, AP433i, AP433is and OAP433e Report Type: Original Report Product Type: Access Point Test Engineer: Jerry Huang Report Number: R1110122 Report Date: 2012-01-27 Reviewed By: Victor Zhang EMC/RF Lead Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Meru Networks Model Number: AP433e, AP433i, AP433is, OAP433e Report Number: R1110122 Page 2 of 63 FCC Part 15B/ICES-003 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 5 1.2 MECHANICAL DESCRIPTION OF EUT ................................................................................................................. 5 1.3 OBJECTIVE......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 6 1.5 TEST METHODOLOGY........................................................................................................................................ 6 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................... 6 1.7 TEST FACILITY................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 7 2.1 JUSTIFICATION................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE................................................................................................................................7 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 7 2.4 LOCAL SUPPORT EQUIPMENT............................................................................................................................. 7 2.5 POWER SUPPLY LIST AND DETAILS.................................................................................................................... 7 2.6 EXTERNAL I/O CABLING LIST AND AC CORD.................................................................................................... 7 2.7 EUT INTERNAL CONFIGURATIONS..................................................................................................................... 8 3 SUMMARY OF TEST RESULTS........................................................................................................................ 9 4 FCC §15.107 & IC ICES-003 §5.3 – CONDUCTED EMISSIONS.................................................................. 10 4.1 APPLICABLE STANDARDS................................................................................................................................10 4.2 TEST SETUP..................................................................................................................................................... 11 4.3 TEST PROCEDURE............................................................................................................................................ 11 4.4 TEST SETUP BLOCK DIAGRAM......................................................................................................................... 11 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION....................................................................................... 12 4.6 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 12 4.7 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 12 4.8 SUMMARY OF TEST RESULTS........................................................................................................................... 13 4.9 CONDUCTED EMISSION TEST PLOTS AND DATA.............................................................................................. 14 5 FCC § 15.109 & IC ICES-003 §5.5 – RADIATED EMISSIONS ..................................................................... 20 5.1 APPLICABLE STANDARD.................................................................................................................................. 20 5.2 TEST SETUP..................................................................................................................................................... 21 5.3 TEST PROCEDURE............................................................................................................................................ 21 5.4 TEST SETUP BLOCK DIAGRAM......................................................................................................................... 21 5.5 CORRECTED…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.407 IC RSS-210, ISSUE 8, DEC 2010 TEST AND MEASUREMENT REPORT For Meru Networks, Inc. 894 Ross Drive, Sunnyvale, CA 94089, USA FCC ID: RE7-AP433 IC: 6749A-AP433 Report Type: Original Report Product Type: 802.11 a/b/g/n Wireless Module Test Engineers: Ning Ma Report Number: R1110122-407 Report Date: 2012-01-23 Reviewed By: Victor Zhang EMC/RF Lead Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 Meru Networks, Inc. FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-407 Page 2 of 111 FCC Part 15.407 & IC RSS-210 Test Report TABLE OF CONTENTS 1 GENERAL DESCRIPTION......................................................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)................................................................................. 6 1.2 MECHANICAL DESCRIPTION OF EUT ....................................................................................................................... 6 1.3 OBJECTIVE............................................................................................................................................................... 6 1.4 RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 6 1.5 TEST METHODOLOGY.............................................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY...............................................................................................................................6 1.7 TEST FACILITY........................................................................................................................................................ 7 2 EUT TEST CONFIGURATION .................................................................................................................................. 8 2.1 JUSTIFICATION......................................................................................................................................................... 8 2.2 EUT EXERCISE SOFTWARE...................................................................................................................................... 8 2.3 EQUIPMENT MODIFICATIONS................................................................................................................................... 8 2.4 SPECIAL ACCESSORIES............................................................................................................................................ 8 2.5 LOCAL SUPPORT EQUIPMENT.................................................................................................................................. 8 2.6 EUT INTERNAL CONFIGURATION............................................................................................................................ 8 3 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 4 FCC §15.407(F), §2.1091 & IC RSS-102 - RF EXPOSURE INFORMATION ...................................................... 10 4.1 APPLICABLE STANDARDS...................................................................................................................................... 10 4.2 MPE PREDICTION.................................................................................................................................................. 11 4.3 MPE RESULTS....................................................................................................................................................... 11 5 FCC §15.203 & IC RSS-GEN §7.1.4 – ANTENNA REQUIREMENTS ................................................................. 12 5.1 APPLICABLE STANDARD........................................................................................................................................ 12 5.2 ANTENNAS LIST..................................................................................................................................................... 12 6 FCC §15.207 & IC RSS-GEN §7.2.2 – AC LINE CONDUCTED EMISSIONS .................................................... 13 6.1 APPLICABLE STANDARDS...................................................................................................................................... 13 6.2 TEST SETUP........................................................................................................................................................... 13 6.3 TEST PROCEDURE.................................................................................................................................................. 13 6.4 TEST SETUP BLOCK DIAGRAM...............................................................................................................................14 6.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................. 14 6.6 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................... 15 6.7 TEST ENVIRONMENTAL CONDITIONS..........................................................................…

Text truncated - open the document above for the full version.

Photograph 1. Conducted Emissions, 15.207(a), Test Setup Photograph 2. Radiated Spurious Emissions, Test Setup, 30 MHz – 1 GHz Photograph 3. Radiated Spurious Emissions, Test Setup, Above 1 GHz
