RE7-OAP180WLAN ENTERPRISE AP

Meru OAP180 Rugged Access Point Special Release Notes Beta Release 3.4-SR2 Copyright © Meru Networks, Inc., 2003–2007. All rights reserved. Other names and brands may be claimed as the property of others. Document Number: 3.4-SR2 Rev. 1 2 of 24 Introduction © 2007 Meru Networks, Inc. Contents zIntroduction zOAP180 Access Point Features zOAP180 Hardware Installation Instructions zLimitations and Advisories zDocumentation for this Release zContacting Meru Introduction This special release note introduces the Meru OAP180 Access Point, a new outdoor addition to the Meru Wireless LAN (WLAN) System. Read this note before installing or using the OAP180 Access Point and the corresponding System Director version 3.4-SR2. The release notes for System Director release 3.4-83 (March 2007) also apply to this release for known issues. Please read both release notes prior to installing or using this release. OAP180 Access Point Features The OAP180 Rugged Access Point is an outdoor AP with these features: zDesigned for Harsh Conditions zBest-in-class Meru AirShield Security zOperation with all Meru Controllers and Access Points zMultiple Antennas Supported for Specific Needs OAP180 Access Point Features 3 of 24 © 2007 Meru Networks, Inc. Designed for Harsh Conditions The OAP180 Access Point with dual-radio is designed to provide secure Wi-Fi connec- tivity to outdoor locations such as campuses, parking lots, and pole tops, or to harsh indoor locations such as breweries, food processing plants or warehouses. The OAP180 includes basic Voice over WLAN (VoWLAN) support. Other features include: zAutomatic AP discovery and configuration zNo channel planning required with single channel installations zController in the distribution or core layer extends VLAN trunks to the edge of the network zIntelligent load balancing of clients zPoE (Power over Ethernet) support zRoHS compliant Best-in-class Meru AirShield Security All Meru APs provide these multi-layered security policies that protect the data, the network and the users simultaneously: zLocal and RADIUS MAC Filtering zWPA2, WPA, 802.1x, and WEP zNo security information contained within access point zOperates only with Meru controllers zMultiple static or automatic security zones with individual security policies help ensure separation of different user groups or dynamic VLAN assignments per user based on Radius credentials - includes guest access security zone. zThe OAP 180 also has a locking mechanism to secure it when mounted in public areas. Operation with all Meru Controllers and Access Points The OAP180 operates with all currently supported Meru controllers and APs. zCentralized dashboard monitors and troubleshoots the entire WLAN, including OAP180 access points zComplete support of release 3.4 standard and optional features such as N+1 Redundant Controller, Dual-Ethernet, and Per-User Firewall 4 of 24 Special Release Software for Meru Controllers © 2007 Meru Networks, Inc. Multiple Antennas Supported for Specific Needs WLAN Client Support The following WLAN clients are supported: zDual 802.11a and 802.11b/g radios zSimultaneous support for 802.11a, 802.11b, and 802.11g clients zCo-channel interference management for reliable WLAN access zBasic VoWLAN QoS support for small density deployments of voice clients Special Release Software for Meru Controllers Target Build Details The following list describes the size and checksums for the system images, based on the model of controller in use. Do not load onto your controller an image that is intended for another controller model, or problems will occur. zmeru-3.4.SR2-10-MC500-rpm.tar Checksum: 3958546189 Size: 43581440 zmeru-3.4.SR2-10-MC1000-rpm.tar Checksum:1023491239 Size:43663360 zmeru-3.4.SR2-10-MC1100-rpm.tar Checksum:1359995275 Size:43663360 zmeru-3.4.SR2-10-MC3000-rpm.tar Checksum:1023491239 Size:43663360 Install the Special Release Image on Your Controller The installation of the special release image is performed with the normal Meru upgrade procedure, summarized in the following steps. 1.Obtain the system image. In this example, the special release image for the MC500, meru-3.4.SR2-10-MC500- rpm.tar 3958546189 43581440, is retrieved using FTP from the images directory on the server named myserver using the username user1 and password userpass. Use the upgrade system command to upgrade the system. To configure the system so that you do not need to type the FTP username and password when transferring files, use the OAP180 Hardware Installation Instructions 5 of 24 © 2007 Meru Networks, Inc. ip ftp|sftp|scp|tftp username and ip ftp|sftp|scp password commands. (Using these commands is optional. If you do not set the username and password before trans- ferring files, you must provide the username and password when prompted.) mc500# configure terminal mc500(config)# ip ftp username user1 mc500(config)# ip ftp password userpass mc500(config)# ^Z mc500# dir ftp://myserver/images/ total 134576 -rw-rw-r-- 1 root root 21790720 Jul 14 17:03 meru-3.2SR2-9- MC500.tar mc500# cd images mc150# copy ftp://myserver/images/meru-3.4.SR2-10-MC500- rpm.tar 2.If you see an error message stating that there is not enough free disk space, use the show flash command to see if there are previous images on the flash. Delete the previous image using the delete flash version command. Then try the copy command again. 3.After the image transfer is complete, use show flash to verify the system is on the flash. 4.Enter the upgrade system version command to update the controller and OAP software: mc500# upgrade system 3.4.SR2-10 The system is now upgraded. Log in as admin to access the system. OAP180 Hardware Installation Instructions Perform the procedures in the following sections to install the OAP180 and configure the controller to use this special release. Unpack the OAP180 Plan the Location Test Basic Link Operation Mount the Unit Connect External Antennas and Ground Wire to OAP180 Connect Cables to the Unit Connect the Power…

Text truncated - open the document above for the full version.

voice.Data.'Wireless.Becomeone. JMe~ NETWORKS ConfidentialityRequestLetter Date:April24,2007 FederalCommunicationsCommission AuthorizationandEvaluationDivision FCCID: RE7-0AP180 Confidentiality.Request PursuanttoSections0.457and0.459oftheCommission'sRules,theApplicantherebyrequests confidentialtreatmentofinformationaccompanyingthisApplicationasoutlinedbelow: 1. 2. 3. BlockDiagrams CircuitDiagrams OperationalDescriptions Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.ThepublicdisclosureofthesemattersmightbeharmfultotheApplicantandprovide unjustifiedbenefitstoitscompetitors. TheApplicantunderstandsthatpursuanttoRule0.457,disclosureofthisApplicationandall accompanyingdocumentationwillnotbemadebeforethedateof theGrantforthisapplication Sincerely, Applicant'scompanyname .MeruNetworksInc. Applicant'scompanyaddress .1309SouthMaryAvenue,Sunnyvale,CA94087U.S.A. Signature JobTitleandDept. 1309SouthMaryAvenue Sunnyvale,CA94087 USA Main:4082155300 Fax:408215530] www.lnerunetworks.com

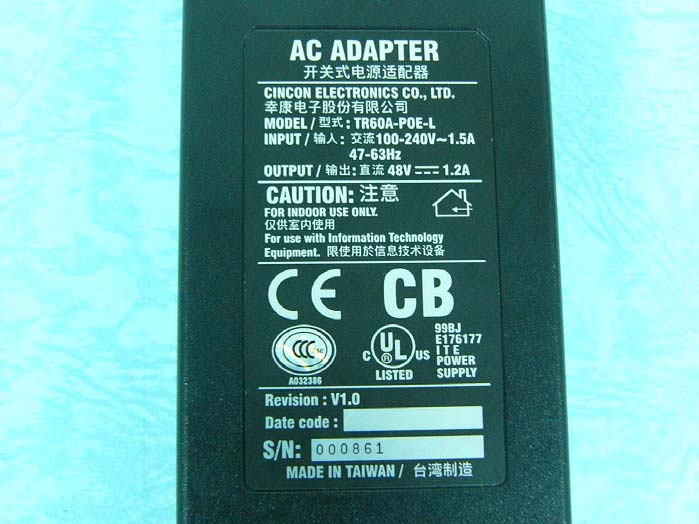

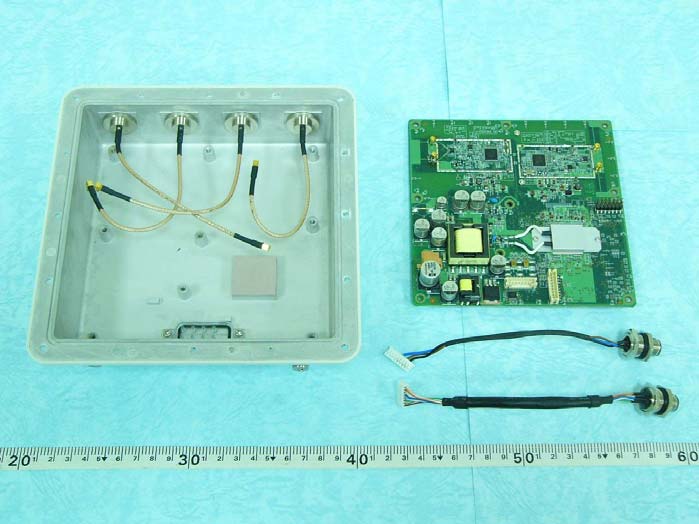

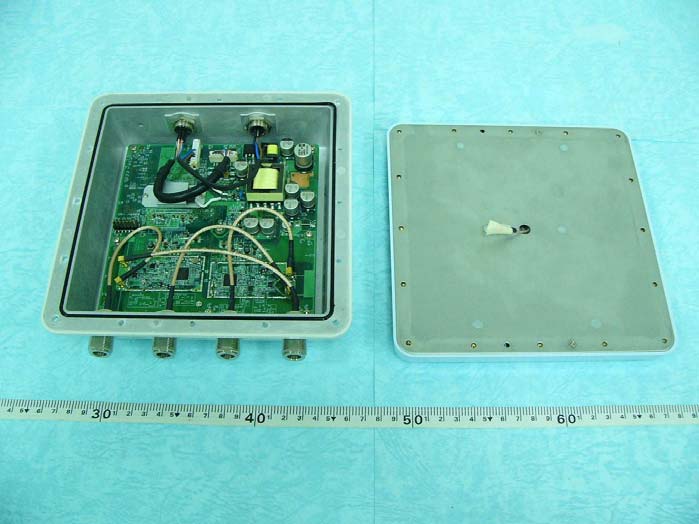

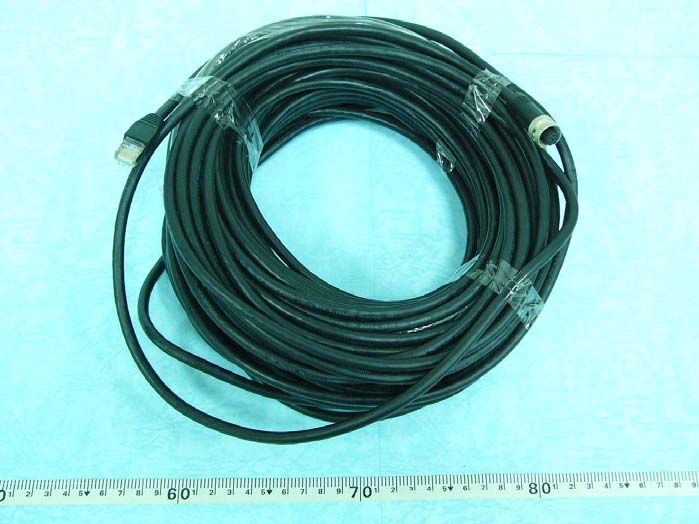

SPORTON International Inc. PAGE NUMBER : A1 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A12 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 Antenna 1/2 SPORTON International Inc. PAGE NUMBER : A13 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A14 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A15 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 Antenna 3 SPORTON International Inc. PAGE NUMBER : A16 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A17 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 Antenna 4 SPORTON International Inc. PAGE NUMBER : A18 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A19 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A20 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 Antenna 5 SPORTON International Inc. PAGE NUMBER : A21 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A22 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A23 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 Antenna 8/9 SPORTON International Inc. PAGE NUMBER : A24 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A25 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 Antenna 10 SPORTON International Inc. PAGE NUMBER : A26 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A27 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A28 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 Antenna 11 SPORTON International Inc. PAGE NUMBER : A29 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A30 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A31 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 Antenna 12 SPORTON International Inc. PAGE NUMBER : A32 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A33 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A34 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 Antenna 13 SPORTON International Inc. PAGE NUMBER : A35 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A36 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A37 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A38 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A39 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A40 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A41 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A42 OF A42 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A12 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A13 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2007 FAX : 886-2-2696-2255

Report No.: FR741616 FCC ID: RE7-OAP180 Page No. : 1 of 4 Appendix C. Maximum Permissible Exposure Report No.: FR741616 FCC ID: RE7-OAP180 Page No. : 2 of 4 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR741616 FCC ID: RE7-OAP180 Page No. : 3 of 4 1.3. Calculated Result and Limit Antenna Type : Omni-Directional Ant. / Ant. 1/2 Max Conducted Power for IEEE 802.11b/g : 20.23dBm Antenna Gain (dBi) Antenna Gain (numeric) Cable lose (dB ) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8 6.3096 14 20.2300 105.4387 0.005272 1 Complies Antenna Type : Omni-Directional Ant. / Ant. 3 Max Conducted Power for IEEE 802.11b/g : 20.23dBm Antenna Gain (dBi) Antenna Gain (numeric) Cable lose (dB ) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 10 10.0000 18 20.2300 105.4387 0.003326 1 Complies Antenna Type : Omni-Directional Ant. / Ant. 4 Max Conducted Power for IEEE 802.11b/g : 20.23dBm Antenna Gain (dBi) Antenna Gain (numeric) Cable lose (dB ) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 18 63.0957 18 20.2300 105.4387 0.020987 1 Complies Antenna Type : Patch Ant. / Ant. 5 Max Conducted Power for IEEE 802.11b/g : 13.73dBm Antenna Gain (dBi) Antenna Gain (numeric) Cable lose (dB ) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 14.5 28.1838 0.9 13.7300 23.6048 0.107634 1 Complies Antenna Type : Omni-Directional Ant./ Ant. 8/9 Max Conducted Power for IEEE 802.11a : 21.85dBm Antenna Gain (dBi) Antenna Gain (numeric) Cable lose (dB ) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8 6.3096 12 21.8500 153.1087 0.012133 1 Complies Report No.: FR741616 FCC ID: RE7-OAP180 Page No. : 4 of 4 Antenna Type : Embedded Ant./ Ant. 10 Max Conducted Power for IEEE 802.11a : 24.85dBm Antenna Gain (dBi) Antenna Gain (numeric) Cable lose (dB ) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 13.5 22.3872 2 24.8500 305.4921 0.858915 1 Complies Antenna Type : Embedded Ant./ Ant. 11 Max Conducted Power for IEEE 802.11a : 10.54dBm Antenna Gain (dBi) Antenna Gain (numeric) Cable lose (dB ) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 17 50.1187 0 10.5400 11.3240 0.112967 1 Complies Antenna Type : Directional Panel Ant./ Ant. 12 Max Conducted Power for IEEE 802.11a : 14.57dBm Antenna Gain (dBi) Antenna Gain (numeric) Cable lose (dB ) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 23 199.5262 2 14.5700 28.6418 0.717712 1 Complies Antenna Type : Wideband Panel / Ant. 13 Max Conducted Power for IEEE 802.11a: 14.31dBm Antenna Gain (dBi) Antenna Gain (numeric) Cable lose (dB ) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 13 19.9526 1.8 14.3100 26.9774 0.070786 1 Complies

Report No.: FR741616 Report Format Version: 01 Page No. : i of ii FCC ID: RE7-OAP180 Issued Date : May 4, 2007 FCC RADIO TEST REPORT Applicant’s company Meru Networks Inc. Applicant Address 1309 South Mary Avenue, Sunnyvale, CA 94087 U.S.A. FCC ID RE7-OAP180 Manufacturer’s company Accton Technology Corporation Manufacturer Address No. 1 Creation Rd., III, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Product Name WLAN ENTERPRISE AP Brand Name Meru, Foundry Model Name OAP180 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Receive Date Feb. 8, 2006 Test Date May 17, 2006 Submission Type Original Equipment Multiple Listing Please refer to section 3.7 Statement Test result included is only for the 802.11b/g part and 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR741616 Report Format Version: 01 Page No. : ii of ii FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Multiple List...........................................................................................................................................................................7 3.8. Table for Supporting Units ...................................................................................................................................................................7 3.9. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.10. Test Configurations ...........................................................................................................................................................................10 4. TEST RESULT ................................................................................................................................................... 20 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................20 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................26 4.3. Power Spectral Density Measurement ..............................................................................................................................................34 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................63 4.5. Radiated Emissions Measurement ....................................................................................................................................................92 4.6. Band Edge Emissions Measurement ...............................................................................................................................................220 4.7. Antenna Requirements ...................................................................................................................................................................277 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 278 6. SPORTON COMPANY PROFILE ...................................................................................................................... 280 6.1. Test Location...................................................................................................................................................................................280 7. TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 281 APPENDIX A. P…

Text truncated - open the document above for the full version.

Report No.: FR741616 Report Format Version: 01 Page No. : 98 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Temperature 24°C Humidity 64% Test Engineer Rush Kao Configurations 802.11g Channel 6 / Ant. 3 Vertical Report No.: FR741616 Report Format Version: 01 Page No. : 99 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Horizontal Note: The amplitude of spurious emissions which are attenuated by more than 20 dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR741616 Report Format Version: 01 Page No. : 100 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Temperature 24°C Humidity 64% Test Engineer Rush Kao Configurations 802.11g Channel 6 / Ant. 4 Vertical Report No.: FR741616 Report Format Version: 01 Page No. : 101 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Horizontal Note: The amplitude of spurious emissions which are attenuated by more than 20 dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR741616 Report Format Version: 01 Page No. : 102 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Temperature 24°C Humidity 64% Test Engineer Rush Kao Configurations 802.11g Channel 6 / Ant. 5 Vertical Report No.: FR741616 Report Format Version: 01 Page No. : 103 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Horizontal Note: The amplitude of spurious emissions which are attenuated by more than 20 dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR741616 Report Format Version: 01 Page No. : 104 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Temperature 24°C Humidity 64% Test Engineer Rush Kao Configurations 802.11a Channel 157 / Ant. 8/9 Vertical Report No.: FR741616 Report Format Version: 01 Page No. : 105 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Horizontal Note: The amplitude of spurious emissions which are attenuated by more than 20 dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR741616 Report Format Version: 01 Page No. : 106 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Temperature 24°C Humidity 64% Test Engineer Rush Kao Configurations 802.11a Channel 157 / Ant. 10 Vertical Report No.: FR741616 Report Format Version: 01 Page No. : 107 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Horizontal Note: The amplitude of spurious emissions which are attenuated by more than 20 dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR741616 Report Format Version: 01 Page No. : 108 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Temperature 24°C Humidity 64% Test Engineer Rush Kao Configurations 802.11a Channel 157 / Ant. 11 Vertical Report No.: FR741616 Report Format Version: 01 Page No. : 109 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Horizontal Note: The amplitude of spurious emissions which are attenuated by more than 20 dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR741616 Report Format Version: 01 Page No. : 110 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Temperature 24°C Humidity 64% Test Engineer Rush Kao Configurations 802.11a Channel 157 / Ant. 12 Vertical Report No.: FR741616 Report Format Version: 01 Page No. : 111 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Horizontal Note: The amplitude of spurious emissions which are attenuated by more than 20 dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR741616 Report Format Version: 01 Page No. : 112 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Temperature 24°C Humidity 64% Test Engineer Rush Kao Configurations 802.11a Channel 157 / Ant. 13 Vertical Report No.: FR741616 Report Format Version: 01 Page No. : 113 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 Horizontal Note: The amplitude of spurious emissions which are attenuated by more than 20 dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR741616 Report Format Version: 01 Page No. : 114 of 281 FCC ID: RE7-OAP180 Issued Date : May 4, 2007 4.5.9. Results for Radiated Emissions (1GHz~10th Harmonic) Temperature 24°C Humidity 64% Test Engineer Rush Kao Configuratio…
