RE7-RS4000Wireless Radio Switch, Model RS4000

Meru Radio Switch RS4000 Reference Guide Copyright © Meru Networks, Inc., 2003–2005. All rights reserved. Other names and brands may be claimed as the property of others. Document Number: 882-80000 Rev A Contentsiii Contents About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi In This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi Other Sources of Information . . . . . . . . . . . . . . . . . . . . . . . . xi Typographic Conventions . . . . . . . . . . . . . . . . . . . . . . . . . xii Contacting Meru . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii Customer Services and Support . . . . . . . . . . . . . . . . . . . . . . xii Chapter 1About the Radio Switch RS4000 . . . . . . . . . . . . . . . . . . . . . . 1 Hardware Features and Specifications . . . . . . . . . . . . . . . . . . . 2 WLAN Features and Specifications . . . . . . . . . . . . . . . . . . . . 4 Management and Monitoring . . . . . . . . . . . . . . . . . . . . . . . 4 Chapter 2Installing the RS4000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Planning the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Prerequisites and System Requirements. . . . . . . . . . . . . . . . . . . 5 Check Product Package Contents . . . . . . . . . . . . . . . . . . . . . 5 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . 7 Performing the Installation . . . . . . . . . . . . . . . . . . . . . . . . . 9 Installation Summary . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Initial Configuration of the RS4000 . . . . . . . . . . . . . . . . . . . . 9 Wall Mounting the RS4000 . . . . . . . . . . . . . . . . . . . . . . . 11 Hoffman Enclosure RS4000 Installation . . . . . . . . . . . . . . . . . . 14 Power On Components . . . . . . . . . . . . . . . . . . . . . . . . . 15 Checking LED Activity . . . . . . . . . . . . . . . . . . . . . . . . . 16 Chapter 3Configuring the Meru RS4000 . . . . . . . . . . . . . . . . . . . . . . 19 Determine How the RS4000 Is To Be Managed . . . . . . . . . . . . . . . . . 19 Using the CLI with a Telnet/SSH Connection . . . . . . . . . . . . . . . . 19 Using SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Configuring of the Radio Switch with the CLI Commands . . . . . . . . . . . . . 21 Configuring the WLAN Parameters . . . . . . . . . . . . . . . . . . . . 21 Configuring an ESSID . . . . . . . . . . . . . . . . . . . . . . . . . 24 Configuring System Security . . . . . . . . . . . . . . . . . . . . . . . 24 Configuring Radio Parameters . . . . . . . . . . . . . . . . . . . . . . 24 Activating and Saving Changes . . . . . . . . . . . . . . . . . . . . . . . 25 ivMeru Radio Switch RS4000 Reference Guide Chapter 4Managing and Monitoring the RS4000 . . . . . . . . . . . . . . . . . 27 Managing the RS4000 . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Saving the Configuration to a Remote Server . . . . . . . . . . . . . . . . 27 Upgrading the System Software . . . . . . . . . . . . . . . . . . . . . 27 Monitoring the RS4000 . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Checking System Details . . . . . . . . . . . . . . . . . . . . . . . . 28 Checking Syslog Messages . . . . . . . . . . . . . . . . . . . . . . . 29 Checking Security Options . . . . . . . . . . . . . . . . . . . . . . . 30 Checking Network Settings . . . . . . . . . . . . . . . . . . . . . . . 30 Checking Wireless Statistics . . . . . . . . . . . . . . . . . . . . . . . 31 Appendix ACommand Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Appendix BMIB Definition Reference . . . . . . . . . . . . . . . . . . . . . . . . 93 RFC 1212 MIB—System Group . . . . . . . . . . . . . . . . . . . . . . . 93 RFC 1213 MIB—Interface Group . . . . . . . . . . . . . . . . . . . . . . 95 IEEE 802.11 MIB—Dot11 Counter Table (Statistics) . . . . . . . . . . . . . . 97 Meru Enterprise MIB—AP System Entry . . . . . . . . . . . . . . . . . . . 98 Meru Enterprise MIB—Network Configuration MIB. . . . . . . . . . . . . . . 99 Meru Enterprise MIB—Load Balancing MIB. . . . . . . . . . . . . . . . . . 100 Meru Enterprise MIB—Global Radius Profile Configuration MIB . . . . . . . . . 100 Meru Enterprise MIB—Meru Interface Table. . . . . . . . . . . . . . . . . . 101 Meru Enterprise MIB—Trap Community Interface . . . . . . . . . . . . . . . 104 Meru Enterprise MIB—SNMP Community Interface . . . . . . . . . . . . . . 104 Meru Enterprise MIB—SNMP Traps Flag . . . . . . . . . . . . . . . . . . . 105 Meru Enterprise MIB—Global Entry . . . . . . . . . . . . . . . . . . . . . 105 Meru Enterprise MIB—Syslog Table . . . . . . . . . . . . . . . . . . . . . 106 Meru Enterprise MIB—File Transfer Table . . . . . . . . . . . . . . . . . . 107 Meru Enterprise MIB—Upgrade Flag. . . . . . . . . . . . . . . . . . . . . 109 Meru Enterprise MIB—Upgrade Status Flag . . . . . . . . . . . . . . . . . . 109 Appendix CSpecifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 FCC Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111 Wireless Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 Ethernet Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 Appendix DRegulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . 113 Federal Communications Commission (FCC) Declaration of Conformity (DoC) and Instructions . . . . . . . . . . . . . . . . . . . . . . . . 113 Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . 113 Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114 List of Regulatory Compliance Certifications Summary by Country . . . . . . . . . 115 Contentsv Appendix EChannels . .…

Text truncated - open the document above for the full version.

voice. Data. wireless. Become one. NETWORKS Date: 2005-12-12 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: RE7-RS4000 Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application as outlined below: - Schematics - Block Diagram - Theory of Operation & Operational Description - Internal Pictures (Short-term confidentiality) - Users manual (Short-term confidentiality) - Data sheet (Short-term confidentiality) The 'a.bove materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mohammad Sa-id Senior Regulatory Compliance Manager Meru Networks 1309 S. Mary Avenue Sunnyvale, CA 94087, USA Phone: 408-215-5300 Fax: 408-215-5301 1 309 South Mary Avenue Sunnyvale, CA 94087 Main: 408 2 15 5300 Fax: 4082155301 www.merunetworks.com voice. Ilata. wireless. Become one. NETWORKS Date: 2005-12-12 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: RE7-RS4000 Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application as outlined below: - Schematics - Block Diagram - Theory of Operation & Operational Description - Internal Pictures (Short-term confidentiality) - Users manual (Short-term confidentiality) - Data sheet (Short-term confidentiality) The 'a,bove materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, A Mohammad Sa-id Senior Regulatory Compliance Manager Merll Networks 1309 S. lblary Avenue Sunnyvale, CA 94087, USA Phone: 408-215-5300 Fax: 408-215-5301 1309 South Mary AVCIILIC Sunnyvale, CA 94087 Main: 408 2 15 5300 Fax: 408 215 5301 www.merunetworks.co~n

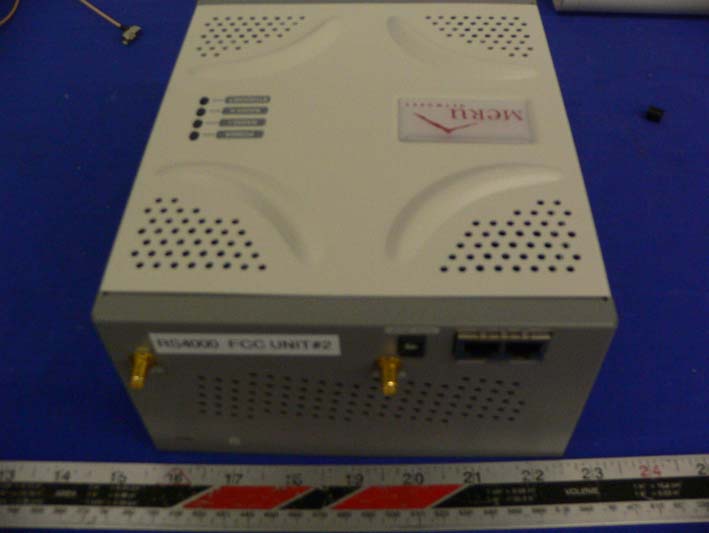

EXHIBIT C - EUT PHOTOGRAPHS EUT Front View EUT Rear View

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Proposed Label Location on EUT Front View of EUT / Label Location FCC ID: RE7-RS4000 This device complies with Part 15 o the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

EUT Cover off View Antenna 1 Front View Antenna 1 Bottom View Antenna 2 Front View Antenna 2 Bottom View TX Board 1 – Component View 1 TX Board 1 – Solder View TX Board – Component View TX Board 2 – Solder View Board 3 – Component View Board 3 – Solder View Board 4 – Component View Board 4 – Solder View EUT – Port View 1 EUT – Power Supply Front View EUT – Power Supply Rear View EUT – Power Supply Port View

RS-4000, #750-00003, 180 Degree/ Half-Omni-directional Dualband Antenna Datasheet 2.4 GHz patterns: Azimuth, 2.4 GHz Band -25 -20 -15 -10 -5 0 5 10 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265 270 275 280 285 290 295 300 305 310 315 320 325 330 335 340 345 350 355 2.40 GHz 2.44 GHz 2.48 GHz dBi HPBW = 86 Deg Nominal Peak Gain for 2.4 GHz = +6 dBi 5 GHz patterns: Azimuth, 5 GHz Band -30 -25 -20 -15 -10 -5 0 5 10 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265 270 275 280 285 290 295 300 305 310 315 320 325 330 335 340 345 350 355 5.0 GHz 5.4 GHz 5.8 GHz dBi HPBW = 85 Deg Nominal Peak Gain for 5 GHz = +7 dBi

RS-4000, #750-00002, 360 Degree/Omni-directional Dualband Antenna Datasheet 2.4 GHz patterns: Azimuth Pattern, 2.4 GHz Band -25 -20 -15 -10 -5 0 5 10 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265 270 275 280 285 290 295 300 305 310 315 320 325 330 335 340 345 350 355 2.40 GHz 2.44 GHz 2.48 GHz dBi Nominal Peak Gain for 2.4 GHz = +3 dBi 5 GHz patterns: Azimuth Pattern, 5 GHz Band -25 -20 -15 -10 -5 0 5 10 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265 270 275 280 285 290 295 300 305 310 315 320 325 330 335 340 345 350 355 5.0 GHz 5.35 GHz 5.80 GHz dBi Nominal Peak Gain for 5 GHz = +5 dBi

Meru Radio Switch, RS4000 High Capacity Wireless LAN Access with Multi-mode & Multi-radio, Radio Switch Meru Networks' Radio Switch, RS4000 is the only way to add capacity to your enterprise WLAN without adding complexity. WLAN capacity problems can be addressed in University auditoriums and hospitals with voice and data Wi-Fi devices, high-density offices and other areas where multiple devices need access simultaneously. The Radio Switch is a plug-and-play upgrade to existing WLANs without the need to re-plan the wireless network. Built on standard, proven wireless networking technology, the Radio Switch uses Meru's industry leading RF intelligence and 802.11 technologies to re-write the rulebooks for enterprise WLAN deployments. The Radio Switch is unique in its simplicity. Just like wireless access points, the Radio Switch can be installed wherever wireless coverage is needed. For large buildings with multiple rooms and floors, more than one Radio Switch can be installed to cover the desired area. But, different than a typical access point, Radio Switch, RS4000 allows corporations to simultaneously deploy and use four 802.11 channels, resulting in a 400% increase of your WLAN network capacity. With Meru Networks, the unwired enterprise is a reality today. Four Radio Omni-directional Coverage The Radio Switch is ideal for indoor applications. Using Meru’s patent-pending wideband omnidirectional antenna, the Radio Switch can simultaneously serve multiple 802.11b/g and 802.11a channels throughout every square foot of the coverage area. With the Radio Switch, WLANs are no longer bound to density/performance trade-off rules governing the traditional access points. Upgrade Performance Without Changing Your Network Due to the limitations of other access points, WLAN performance and price were always thought to be tied together. If you wanted higher density coverage, you had to deploy more access points in order to serve more channels. The Radio Switch shatters this model by providing the performance of multiple access points in a single product. This results in a savings of over 70% in enterprise deployment and ongoing management costs. The Radio Switch’s omni- directional antenna enable enterprise IT departments to upgrade network capacity without ever worrying about changing the coverage area. The antenna is capable of serving all available channels simultaneously to every square foot of coverage area providing unprecedented voice and data performance at a fraction of the cost of traditional WLAN access points. Lower Operational Overhead With Better Application Performance Given the shared and random nature of the wireless medium, adding access points for capacity does not always work and often causes application failures which in turn increase IT helpdesk expenses. Meru’s Air Traffic Control technology furthers the innovation of the high-capacity Radio Switch by ensuring application performance. The Radio Switch monitors wireless clients and the associated traffic, and then spreads the load across its radios and different channels for better application performance. Combining the load-balancing techniques for superior traffic management with higher bandwidth from multiple radios, the Radio Switch is an ideal choice for high user-density WLANs. Investment Protection With Modular Architecture The Radio Switch is designed to grow with your bandwidth requirements. The modular “card-cage” chassis allows for simple & cost-effective field upgradeability to add up to 4 more 802.11a & 802.11b/g radios and a path to 802.11n radios (when available). The same wideband omni-directional antenna will extend to support the additional 802.11a & 802.11b/g radios. Wireless Specifications Wireless Interfaces 4 radios. IEEE 802.11a and IEEE 802.11b/g Power Management Optimal power control in 1 dBm increments RP F SMA jacks on housing for external antennas for specific coverage requirements, or 5 dBi omnidirectional for indoor use (included) Antenna Wideband antenna for simultaneous use of 802.11a (5GHz) and 802.11b/g (2.4GHz) operation Wireless Medium Access Wi-Fi Compliant 802.11 MAC standard Peak frame size of <2250 bytes Frame Size Fragmentation and Reassemnly of 802.11/Ethernet frames supported All Wi-Fi compatible clients Power Save clients Client Support Clients that perform active and passive scanning 802.11a 5.180 – 5.240 GHz 8 channels (34, 36, 38, 40, 42, 44, 46, 48) 5.280 – 5.320 GHz; 4 channels (52, 56, 60, and 64) NOTE: FCC certification methods still pending, these channels may not be legally available in US at FCS Frequency Band 5.745 – 5.825 GHz; 5 channels (149, 153, 157, 161, and 165) Operating Channels Configurable nased on country regulations Data Rates 54, 48, 36, 24, 18, 12, 9 and 6 Mbps with automatic rate adaptation Transmit Power ~ +16 dBm (40 mW) nominal; transmit power, indoor/outdoor usage, antenna type and gain are country regulations dependent Receive Sensitivity -70 dBm at 54 Mbps, -86 dBm at 6 Mbps 802.11b/g Frequency Band Hardware supports 2.40-2.50 GHz 2.4 GHz - 2.4835 GHz 2.4 GHz - 2.497 GHz Japan only 802.11b/g for rogues Operating Channels 1-11 US/Canada, 1-13 Europe, and 1-14 (Japan) 3 non-overlapping channels Transmit Power ~+20 dBm (100 mW) nominal, country regulations dependent 802.11b Data Rates 11, 5.5, 2 and 1 Mbps with automatic rate adaptation 802.11g Data Rates 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps 802.11b Receiver Sensitivity -85 dBm at 11 Mbps, -93 dBm at 1 Mbps with BER 10E-5 802.11g Receiver Sensitivity -73 dBm at 54 Mbps, -85 dBm at 6 Mbps Network Specifications Forwarding 802.3/802.11 bridging Network Interfaces 2 Auto-sensing 10/100 Base-TX Ethernet (RJ-45) 1 IP address per RS4000. DHCP or Manual Assignment Addressing DHCP Passthrough for Wireless clients VLAN 802.1Q Tagging Support Performance Load Balancing of clients across channels based on traffic load Management Administrative Access SSH, Telnet, Console Over Ethernet Configuration IOS-lik…

Text truncated - open the document above for the full version.

§1.1307(b)(1) & §2.1091 - RF EXPOSURE According to §15.247(e)(1) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 802.11b/g Maximum peak output power at antenna input terminal: 17.95(dBm ) Maximum peak output power at antenna input terminal: 62.37 (mW) Predication frequency: 2400 (MHz) Antenna Gain (typical): 6 (dBi) antenna gain: 4 (numeric) Prediction distance: 20(cm) Power density at predication frequency at 20 cm: 0.0496(mW/cm 2 ) 802.11a Maximum peak output power at antenna input terminal: 13.55(dBm ) Maximum peak output power at antenna input terminal: 22.65 (mW) Predication frequency: 5800 (MHz) Antenna Gain (typical): 7 (dBi) antenna gain: 5 (numeric) Prediction distance: 20(cm) Power density at predication frequency at 20 cm: 0.0225(mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) Test Result The EUT is a mobile device. The worst power density levels at 20 cm for the maximum output power is 0.00496 mW/cm, which is below the uncontrolled limit of 1.0mW/cm 2 .

Note: The test report is specially limited to the use of the above client company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. FCC PART 15.247 & 15.407 EMI MEASUREMENT AND TEST REPORT For Meru Networks 1309 S. Mary Avenue Sunnvyale, CA 94087, USA FCC ID: RE7-RS4000 This Report Concerns: Original Report Equipment Type: Multi-mode Multi-radio Wireless Radio Switch, Model RS4000 Test Engineer: Snell Leong Report No.: R0510271 Report Date: 2005-11-1 Reviewed By: Richard Lee Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Meru Networks FCC ID: RE7-RS4000 Report # R0510271Rpt Page 2 of 129 FCC Part 15.247 & 15.407 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 SCHEMATICS / BLOCK DIAGRAM..................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................7 POWER SUPPLY INFORMATION.....................................................................................................................................7 EXTERNAL I/O CABLING LIST AND DETAILS................................................................................................................7 CONFIGURATION OF TEST SYSTEM..............................................................................................................................8 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................8 SUMMARY OF TEST RESULTS ...............................................................................................................................9 §15.203 - ANTENNA REQUIREMENT....................................................................................................................10 STANDARD APPLICABLE............................................................................................................................................10 §15.205, §15.209(A), §15.407(B)(5), §15.407(B)(6) - SPURIOUS RADIATED EMISSION..................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 EUT SETUP................................................................................................................................................................12 SPECTRUM ANALYZER SETUP....................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................13 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................13 SUMMARY OF TEST RESULTS.....................................................................................................................................13 §15.207(A) - CONDUCTED EMISSIONS.................................................................................................................14 MEASUREMENT UNCERTAINTY..................................................................................................................................14 EUT SETUP................................................................................................................................................................14 RECEIVER SETUP..............................................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT B - TEST SETUP PHOTOGRAPHS Conducted Emission Radiated Setup Antenna #1 Antenna # 2
