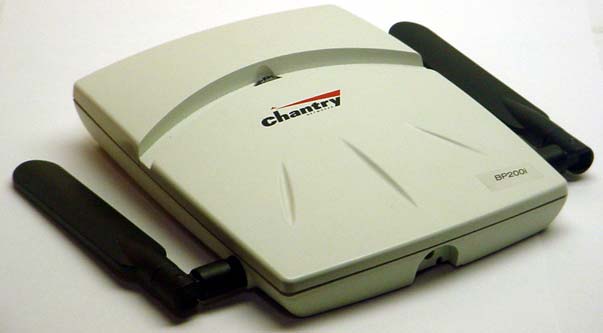

REB-BP200EAccess Point with WLAN and UNII

Chantry Networks Inc. Copyright 2004. All rights reserved. BeaconWorks Rel 1.1 (Jan 30/04) Page 1 of 92 Chantry BeaconWorks User Guide Chantry’s next generation of wireless networking devices provide a truly scalable WLAN solution. Chantry’s BeaconPoints are thin access points that are controlled through a sophisticated network device, the BeaconMaster. This solution provides the security and manageability required by enterprises and service providers alike. BeaconMaster BeaconPoint BeaconWorks Release 1.1 BeaconWorks User Guide – In this document Chantry Networks Inc. Copyright 2004. All rights reserved. BeaconWorks Rel 1.1 (Jan 30/04) Page 2 of 92 In this document The Chantry BeaconWorks Solution .............................................. 4 What is the Chantry BeaconWorks System?.............................. 4 Conventional Wireless LANS ..................................................... 4 The Chantry BeaconWorks Solution .......................................... 5 BeaconWorks and Your Enterprise Network .................................. 8 Network traffic flow in the BeaconWorks System ....................... 8 Network security ......................................................................... 9 Interaction with Wired Networks: Virtual Network Service ....... 10 Static Routing and Routing Protocols....................................... 10 Policy: Packet Filtering ............................................................. 10 Mobility and Roaming ............................................................... 11 Availability ................................................................................. 11 BeaconMaster: Startup ................................................................. 12 BeaconMaster Features and Installation.................................. 12 First-Time Setup of BeaconMaster........................................... 13 The Graphical User Interface (GUI): Overview ........................ 17 BeaconWorks Configuration Steps: Overview ............................. 19 BeaconWorks Configuration: Data Port and Routing Setup ........ 20 Setting Up the Data Ports ......................................................... 20 Setting up Static Routes ........................................................... 22 Setting up OSPF Routing ......................................................... 24 BeaconPoint: Startup.................................................................... 27 BeaconPoint Features – BP100 and BP200 :.......................... 27 Installing the BeaconPoints ...................................................... 29 BeaconPoint: Registering ......................................................... 30 BeaconPoint: Configuring Properties and Adding Manually..... 33 Virtual Network Service: Overview ............................................... 38 What is a Virtual Network Service? .......................................... 39 Topology of a VNS: Overview .................................................. 39 Network Assignment and Authentication for a VNS ................. 40 Filtering for a VNS: How it works .............................................. 40 Privacy on a VNS: Overview .................................................... 41 Setting up a new Virtual Network Service (VNS) ..................... 42 Virtual Network Service: A VNS for Captive Portal ...................... 44 Topology for Captive Portal ...................................................... 44 Authentication for Captive Portal .............................................. 46 Filtering Rules for Captive Portal.............................................. 49 Privacy using WEP for a Captive Portal VNS........................... 52 Virtual Network Service: A VNS for AAA...................................... 54 Topology for an AAA VNS ........................................................ 54 Authentication for AAA.............................................................. 55 Filtering Rules for a Named Filter ID ........................................ 56 Setting up Default Filtering Rules ............................................. 58 Filtering Rules: Special Circumstances .................................... 60 Privacy using WEP for an AAA VNS ........................................ 60 BeaconMaster Configuration: Mobility and the VN Manager ....... 62 BeaconMaster Configuration: Management Users ...................... 64 BeaconMaster Configuration: Network Time................................ 65 Setting up Third-Party Access Points ........................................... 66 Ongoing Operation: BeaconPoint Maintenance ........................... 69 BeaconPoint Software Upgrade ............................................... 69 Disassociating a Client from its BeaconPoint ........................... 70 Ongoing Operation: BeaconMaster.............................................. 71 BeaconMaster System Maintenance........................................ 71 BeaconWorks Log and Data Files ............................................ 72 Logs of Events, Trace Messages and Audits ........................... 72 Reports and Displays................................................................ 75 BeaconMaster Configuration: Setting up SNMP.......................... 76 BeaconWorks User Guide – In this document Chantry Networks Inc. Copyright 2004. All rights reserved. BeaconWorks Rel 1.1 (Jan 30/04) Page 3 of 92 SNMP: Background.................................................................. 76 SNMP: Enabling on the BeaconMaster.................................... 77 Appendix 1: BeaconWorks System States and LEDs .................. 79 Appendix 2: Glossary of Terms and Acronyms ............................ 81 Appendix 3: Index of Procedures, Screens and Figures .............. 90 BeaconWorks User Guide – The Chantry BeaconWorks Solution Chantry Networks Inc. Copyright 2004. All rights reserved. BeaconWorks Rel 1.1 (Jan 30/04) Page 4 of 92 The Chantry …

Text truncated - open the document above for the full version.

Chantry Beaconworks Addendum to Quick start Guide Release 1.1 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: There should be at least 9 inches (20 cm) separation between the BeaconPoint and users. Any changes or modifications not expressly approved by Chnatry Networks could void the user’s authority to operate the equipment. The BeaconPoints shall be powered by UL approved limited power source adapter or UL approved limited power source power over ethernet (P.O.E.). The BP200 product will automatically discontinue transmission in case of either absence of information(no frames transmitted trough Ethernet) to transmit or operational failure.

Chantry BeaconW orks Quick Star t Gu ide BeaconMaster Beacon P o i nt In this document Unpacking the B eaconMast er ................................. 2 Mounting the B eaconMast er .................................... 3 BeaconMaster Po w e r Supply .................................. 4 Connecting the BeaconM aster Data Ports .............. 5 Unpacking and Mounting the Beacon Point ............. 6 Connecting and Po w e ri ng the Beac onPoint ............ 7 BeaconWorks Confi guration Stages ........................ 8 First- T i me Setup of the BeaconM aster .................... 8 BeaconMaster Configurati on: Data Port Setup ...... 10 BeaconMaster Configurat ion: Static Routes .......... 11 BeaconPoint: Regist erin g and Confi guring ............ 12 Virtual Net w ork Serv ice: Over vie w ........................ 13 Virtual N e t w ork Service: A VNS for Captive P o rtal 15 BeaconWorks Ongoi ng Oper at ions ....................... 16 Bea c o n W o r ks Qu ick Start Gu id e page 2 Chantr y Net w ork s Inc Cop y right 2 002-2004. All rights reserved. Unpacking the BeaconMaster Lift the Beaco n M aster, in its protective foa m casing, strai ght up out of the carto n . La y it on a flat surface. Slid e off the foam packi ng. T he carton con t ains the foll o w ing: 1. One Beaco n M aster control l er ( w it h mou n ting brackets pre- in stalle d at front) 2. Extra mou n ti ng brack e ts: one pa ir 3. Scre w s : e i g h t 6-32 X 3/8 c ounters unk machi ne scre w s (not pictured) 4. One po w e r c o rd (or t w o for dual po w e r supp l y v e rsio n) 5. One crossov e r ethern e t cabl e (for installation). 6. BeaconW or ks soft w a re CD. 7. BeaconW or ks User Guide b ook C A UTION : T h is unit ma y hav e more than on e po w e r sup p l y cord. Discon nect al l po w e r supp l y c o rds befor e ser v icing, to avo i d electrica l shock. SEE MANUAL BEFORE USE C A UTION : T he motherb oar d in the Beac on Master uses a l i thium batter y . R epl ac e w i t h the corr ect type of b a tter y (Sa n y o C R 203 2 or equ ival ent) coi n cell lit hium b a tter y , 22 0 mAh). T here is risk of exp l osi on if replac ed b y a n incorr ect t y p e . Dispos e of u s ed batteri es a ccordi ng to the manufact u r e r’s instructi o n s . Bea c o n W o r ks Qu ick Start Gu id e page 3 Chantr y Net w ork s Inc Cop y right 2 002-2004. All rights reserved. Mounting the Beacon M aster Ra ck -Mount – Front T he BeaconMa s ter is shipp ed w i t h the bas ic front-mou n t brackets alr e a d y i n stal led. Attach these to the rack. Rear rack-mo u n t holes ↓ ↑ Centre rack-m ount ho les Ra ck -Mount – Re a r For rear-rack support, attach the add ition a l br ac kets, using the rear ho le p o siti ons in the Beaco n Master. Ra ck -Mount – Ce nte r For center-rack support, attach the add itio nal b r ackets, using the central h o l e positi ons i n the Beaco n Master. Ta ble Mou n t: Ensure at le ast 2 inches clear ance o n al l sides for effective ventilati on. Ca bine t Moun t: T he built-in ha ndl es of the Be aconM aster ma y pr eve n t cabi net do ors from closi ng. T o offset the mounti ng further to the rear, repl ace the i n stalle d mou n tin g brackets w i th the e x tra brack e ts w i t h 3 sets of mountin g hol es. C A UTION: Ensure that ad eq uate venti l ati o n is provid ed in a cabi net or rack mount. Do not obstruct the air intake v ent on the front , or the side or rear ventil ation grill s of the Beaco n Master. Bea c o n W o r ks Qu ick Start Gu id e page 4 Chantr y Net w ork s Inc Cop y right 2 002-2004. All rights reserved. BeaconMaster Pow e r Suppl y At the rear of the Beaco n Master, connect the po w e r sup p l y , as dep icted b e lo w. Sta nda rd Po w e r Supply Con nect the po w e r cord (supp lie d) to the Beaco n Master. Re dunda nt Po w e r Su pply Con nect the t w o po w e r cords (supp lie d) to the Beaco n Mast er. T he LEDs on the po w e r su ppl y w i ll be lit gre en. CAUT ION: Both cords must be conn ected. If onl y on e po w e r cord is conn ected, the po w e r su ppl y soun ds a w a r n i ng an d its main LED turns from green to re d. C A UTION : T h is unit ma y h a ve more tha n one p o w e r s u p p l y c o rd. Disc o nnect al l po w e r supply c o rds befor e ser v icing, to avoid electrical shoc k. SEE MANUAL BEFORE USE. Rea d the spec i f ications of e a c h t y p e of po w e r suppl y, as de scribe d in the Beaco n W o rks User Guide – Pow e r Suppl y Appen dix to ensur e that all co nditi ons a r e met. In the case of unit fail ure of o ne of the po w e r suppl y mo dul es in the Red und ant Po w e r Sup p l y ver s ion, the mod u l e can be re pl a c ed w i th out interru ption of po w e r to the Beaco n Master. Ho w e v e r, this proce dure must be carrie d out w i th ca uti on. See the Be aconW orks Us er Guide – Pow e r Supply Appe ndix for i n structions. W ear glov es to avoid co ntact w i t h the mod u l e , w h ich w i ll b e extreme l y hot. Bea c o n W o r ks Qu ick Start Gu id e page 5 Chantr y Net w ork s Inc Cop y right 2 002-2004. All rights reserved. Connectin g the BeaconMaster Data Ports T he BeaconMa s ter comes in 4 - port and 2- por t versions. ↑ ↑ Po w e r supply Pow e r On/Off sw itch (singl e or du al) ← Data ports (2 or 4) ← Managem e n t ports ↑ ↑ RJ45 Ethernet DB9 Console Mana geme n t Port Manag ement Port Con nect the Mana geme n t Port of Beaco n Master to enterpr ise n e tw o r k. Use the RJ4 5 ethern e t mana geme n t p o rt or the DB9 cons ol e port. Con nect the da ta → ports: 4-port R J 45 version (BM100) 10/10 0 BaseT Con nect the da ta cabl es to the appr opri a te por ts. T hese cables a r e not supp lie d w i th the Beaco n Master. ← Conn ect dat a ports: 2-port M T RJ version (BM1000) GigE Con nect the da ta cabl es to the appr opri a te por ts. T hese cables a r e not supp lie d w i th the Beaco n Master. Bea c o n W o r ks Qu ick Start Gu id e page 6 Chantr y Net w ork s Inc Cop y right 2 002-2004. All rights reserved. Unpacking and Mo…

Text truncated - open the document above for the full version.

Caution: • There should be at least 9 inches (20 cm) separation between the BeaconPoint and users. • Any changes or modifications not expressly approved by Chantry Networks could void the user’s aut hority to operate the equipment. • The BeaconPoints shall be powered by UL approved limited power source adapter or UL approved limited po wer source power over ethernet (P.O.E.). • The BP200 product will automatically di scontinue transmission in case of either absence of information (no frame s transmitted through Ethernet) to transmit or operational failure. Chantry Beaconworks Addendum to Quick Start Guide Release 1.1 Updated June 17 th , 2004 Warning: • When the BP200E is enabled in th e 5.15 to 5.25 GHz band, it is authorized for indoor deployment only. • When the BP200E is enabled in the 5.15 to 5.25 GHz band, the antennas are permanently attached to the access point. Do not attempt to disconnect. Note: The BP200 has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Ru les. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiat e radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Ho wever, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experien ced radio/TV technician for help. • Install ferrite bead onto the BeaconPoint 200 data cord as illustrated below. • Install ferrite beads onto the BeaconMaster power and data cords as illustrated below. Power Cord , RJ45 Data Cord , Steward 28A2024-0A0 Steward 28A5776-0A2 RJ45 Data Cord , Ferrico K1 NF-65 BK 2

Chantry Networks 1900 Minnesota Court ON L5N 3C9 March 12, 2004 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Request for withholding from public disclosure of proprietary information submitted pursuant to an Application for Equipment Authorization Applicant: Chantry Networks Inc. Product: Wireless Access Point Model: BP200E FCC ID: REB-BP200E Dear Sir or Madam: We, Chantry Networks, requests that the following information submitted with the application for Equipment Authorization be withheld from public disclosure as per Section 0.459 of the Commission's Rules: 1. Block Diagram 2. Schematics 3. Operational Description 4. Parts List This request is made under the provisions of Section 0.457(d) of the Commission's Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize withholding from public inspection materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. Yours truly, Beng-Fai Siew Director, Program & Projects

ANNEX 2 – EXTERNAL PHOTOGRAPHS Chantry Networks Inc. Wireless Access Point, Model BP200E FCC ID: REB-BP200E A2 - 1 ANNEX 2 – EXTERNAL PHOTOGRAPHS Chantry Networks Inc. Wireless Access Point, Model BP200E FCC ID: REB-BP200E A2 - 2

BeaconPointChantry Networks Corp.200 West StreetWalthamMA 02451 Radio Unit 2.4 & 5.22 GHzINPUT: +/- 6 V dc 1.5 A P.O.E. +/-48 V dc 250 mA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. BeaconPoint BP200 For Home or Office Use 1.10” 4.830 BeaconPoint 200, Compliance Label, Draft Listed I.T.E. 16GDE206296 FCC ID: REB-BP200EIC: 4702A-BP200E BP200 Certification Label Placement Certification Label (FCC & UL)

ANNEX 3 – INTERNAL PHOTOGRAPHS Chantry Networks Inc. Wireless Access Point, Model BP200E FCC ID: REB-BP200E A3 - 1 ANNEX 3 – INTERNAL PHOTOGRAPHS Chantry Networks Inc. Wireless Access Point, Model BP200E FCC ID: REB-BP200E A3 - 2 ANNEX 3 – INTERNAL PHOTOGRAPHS Chantry Networks Inc. Wireless Access Point, Model BP200E FCC ID: REB-BP200E A3 - 3 ANNEX 3 – INTERNAL PHOTOGRAPHS Chantry Networks Inc. Wireless Access Point, Model BP200E FCC ID: REB-BP200E A3 - 4 ANNEX 3 – INTERNAL PHOTOGRAPHS Chantry Networks Inc. Wireless Access Point, Model BP200E FCC ID: REB-BP200E A3 - 5

FCC Part 15, Subpart C, Section 15.247 – Digital Modulation Transmitters Page 21 FCC Part 15, Subpart E / FCC Docket No.: FCC 03-287 – U-NII Devices Wireless Access Point, Model BP200E FCC ID: REB-BP200E ULTRATECH GROUP OF LABS File #: CLS-129FCC15CE 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 March 31, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 7.3. RF EXPOSURE REQUIRMENTS [§§ 15.247(b)(4), 1.1310 & 2.1091] 7.3.1. Limits ƒ FCC 15.247(b)(4): Systems operating under provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See @ 1.1307(b)(1). ƒ FCC 1.1310:- The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational/Control Exposures 1500-100,000 ... ... 5 6 (B) Limits for General Population/Uncontrolled Exposure 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 7.3.2. Method of Measurements In order to demonstrate compliance with MPE requirements (see Section 2.1091), the following information is typically needed: (1) Calculation that estimates the minimum separation distance (20 cm or more) between an antenna and persons required to satisfy power density limits defined for free space. Calculation Method of RF Safety Distance : S = PG/4Πr 2 =EIRP/4Πr 2 Where: P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm r = PG/4ΠS (2) Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement (3) Any caution statements and/or warning labels that are necessary in order to comply with the exposure limits (4) Any other RF exposure related issues that may affect MPE compliance FCC Part 15, Subpart C, Section 15.247 – Digital Modulation Transmitters Page 22 FCC Part 15, Subpart E / FCC Docket No.: FCC 03-287 – U-NII Devices Wireless Access Point, Model BP200E FCC ID: REB-BP200E ULTRATECH GROUP OF LABS File #: CLS-129FCC15CE 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 March 31, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 7.3.3. Test Data Frequency (MHz) Highest Conducted Peak Power at the Antenna Terminal (dBm) Maximum Antenna Gain (dBi) Maximum Measured Total EIRP (dBm) Minimum RF Safety Distance r (cm) 2412 – 2462 20.2 2.0 22.2 3.6 Note : RF EXPOSURE DISTANCE LIMITS: r = (PG/4ΠS) 1/2 = (EIRP/4ΠS) 1/2 Limits for General Population/Uncontrolled Exposure: S = 1.0 mW/cm 2 Evaluation of RF Exposure Compliance Requirements RF Exposure Requirements Compliance with FCC Rules Minimum calculated separation distance between antenna and persons: 3.6 cm Manufacturer’ instruction for separation distance between antenna and persons required: 20 cm. Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement N/A Caution statements and/or warning labels that are necessary in order to comply with the exposure limits Refer to user’s manual for RF Exposure information. Any other RF exposure related issues that may affect MPE compliance N/A

ENGINEERING TEST REPORT Wireless Access Point Model No.: BP200E FCC ID: REB-BP200E Applicant: Chantry Networks 1900 Minnessota Court, Suite 125 Mississauga, Ontario Canada, L5N 3C9 In Accordance With FEDERAL COMMUNICATIONS COMMISSION (FCC) Part 15, Subpart C, Section 15.247 - Digital Modulation Transmitters Operating in the Frequency Band 2400 - 2483.5 MHz & Part 15, Subpart E / FCC Docket No.: FCC 03-287 Unlicensed National Information Infrastructure Devices Operating in Frequency Band 5.15-5.25 GHz (indoor operation only) 5.25-5.35 GHz and 5.725-5.825 GHz UltraTech's File No.: CLS-129FCC15CE This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: March 31, 2004 Report Prepared by: Tri Luu, P.Eng. & Dan Huynh Issued Date: March 31, 2004 Tested by: Mr. Hung Trinh, RFI Technologist Test Dates: Jan. 25 - Mar. 29, 2004 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC Part 15, Subpart C, Section 15.247 – Digital Modulation Transmitters Contents i FCC Part 15, Subpart E / FCC Docket No.: FCC 03-287 – U-NII Devices Wireless Access Point, Model BP200E FCC ID: REB-BP200E ULTRATECH GROUP OF LABS File #: CLS-129FCC15CE 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 March 31, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST ........................................................................................................................................ 1 EXHIBIT 2. INTRODUCTION .......................................................................................................................................................... 2 2.1. SCOPE .......................................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL(S)/GRANT(S)..................................................................................................................................... 2 2.3. NORMATIVE REFERENCES ..................................................................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT ............................................................................................................................... 3 3.1. CLIENT INFORMATION ............................................................................................................................................................ 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION............................................................................................................... 3 3.3. EUT’S TECHNICAL SPECIFICATIONS.................................................................................................................................... 4 3.4. LIST OF EUT’S PORTS............................................................................................................................................................... 5 3.5. ANCILLARY EQUIPMENT ........................................................................................................................................................ 6 3.6. GENERAL TEST SETUP............................................................................................................................................................. 6 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS................................................. 7 4.1. CLIMATE TEST CONDITIONS ................................................................................................................................................. 7 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS............................................................................... 7 EXHIBIT 5. SUMMARY OF TEST RESULTS................................................................................................................................ 8 5.1. LOCATION OF TESTS................................................................................................................................................................ 8 5.2. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES.......................................................... 8 5.3. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS @ FCC 15.247....................................................... 8 5.4. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS @ FCC 15.407....................................................... 9 EXHIBIT 6. TEST DATA @ FCC 15, SUBPART C – GENERAL REQUIREMENTS ............................................................. 10 6.1. COMPLIANCE WITH FCC PART 15 – GENERAL TECHNICAL REQUIREMENTS .......................................................... 10 EXHIBIT 7. TEST DATA [§15.247 – OPERATION IN 2.4-2.4835 GHz] .............................................................................. ...... 11 7.1. 6 dB BANDWIDTH [§ 15.247(a)(2)] ......................................................................................................................................... 11 7.2. PEAK OUTPUT POWER (CONDUCTED) [§ 15.247(b)] .............................................................................…
