Wireless Mouse User Guide Thank you for your persistent support and trust for NEWTONE Mouse. Nowadays, in order to make you all be out of cord, our company develops a sort of wireless mouse which adapts reliable radio wave to carry floating signal of mouse. As a result that you can freely use your wireless mouse wherever you want. The product is compatible with IBM PC and DOSWindows95/98/2000/ME/NT/XP etc. INSTALLATION Hardware Installing Shut down and turn off the computer. Plug the round PS2 or USB connector into the computer’s round PS2 or USB port. Battery Installing: 1) Push down the indented area on the top cover of mouse and slide it backwards. 2) Insert two “AAA” batteries correctly into the mouse battery compartment. Turn on the computer. Channel Setting 1) Turn on the computer. 2) Gently press the key “connect” on the top of receiver after the windows operation system is fully running. 3) Press the key “connect” on the button of mouse and then test the connection by rotating the scroll of mouse. If it works properly, the lights on the receiver with flash indicating a strong signal. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Warmly Reminding : 1)Please repeat step 2)&3) if you found the mouse is clashed by other products. 2)Please repeat step 2)&3) to reset the communication channel whenever you change the batteries. 2. Software Installing Place the driver into your floppy drive. Click “run” of “start” menu bar, working window will appear. Input “A:\setup” and select the confirm button to install. Follow the setup instructions on your screen, restart your computer after installing completely. Software operating Function setting Please double click the mouse icon on windows desktop taskbar, open mouse attribute setting. (Refer to picture) Make the setting according to your own taste or need. There are following functions supply. 1 Middle button(Default) 2 Auto Scroll 3 Back Space 4 Close Application 5 Copy 6 Ctrl 7 Cut 8 Delete 9 Double Click 10 Drag 11 Enter 12 EscEscape 13 Explorer 14 F1Help 15 F2 16 F3 17 F4 18 F5 19 F6 20 F7 21 F8 22 F9 23 F10 24 F11 25 F12 26 Find Document > 27 Maximize 28 Minimize 29 Ms Internet Explorer 30 Netscape WEBNetscape Navigator 31 Paste 32 Page Down 33 Page Up 34 CDlay CD 35 Print Screen 36 Print Screen+Alt 37 Restore Application 38 Run 39 Shift 40 Space 41 Start Menu 42 Tab 43 Undo 44)Zooming Mouse Trouble shooting : 1. Computer can’t get the mouse registered on the receiver. l Check the connection and ensure that the mouse port of the receiver is correctly plugged into the computer. l Ensure that the PS/2 port setting is correct.(Refer to the pc instruction) 2. Mouse can not work after installing completely. l Check the mouse and ensure the batteries correctly plugged into the battery compartment. l Check and ensure the mouse projector and the receiver rein the same channel. 3) If the cursor become slow, jumping or even quit working. l Check the tracking ball and scan wheel of the mouse, clean them if there are sundries around. l Check and change a new battery if the old one is in the low power situation. l It will be form a barrier prohibiting smooth operation that the receiver is around high-radiancy area, check and make it far from that. l Check and ensure that you already correctly remove the existing mouse software in your computer. Maintenance of the mouse a) Open the ball cover anti clockwise and remove the ball. b) Clean the ball with a dry, clean cloth. c) Clean the roller using a cotton swab dipped with clean water. d) Reinstall the ball and cover carefully. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: Note: This equipment has been tested and found to comply with the limit of part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help

External Photos

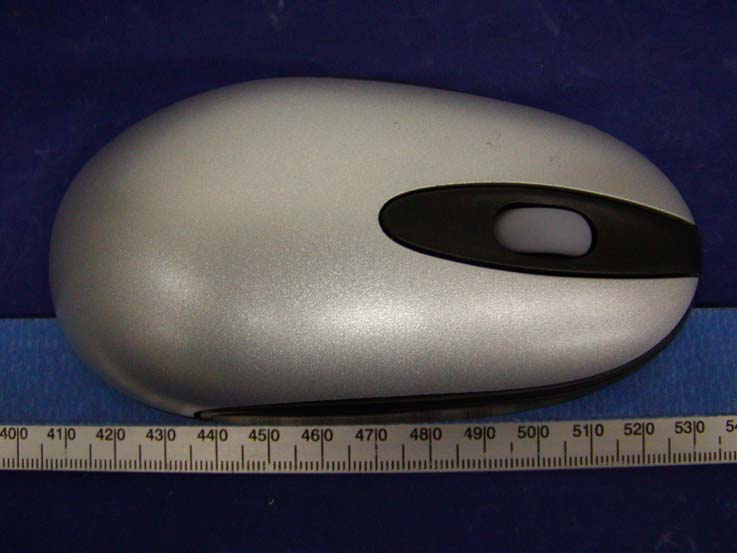

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS Chassis - Top View Chassis - Bottom View

ID Label/Location Info

EXHIBIT A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications: Text is black in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing and shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT Chassis Rear of EUT/FCC ID Label Proposed Location FCC ID: RETH84C0180 This device complies with Part 15 of the FCC Operation is subject to the following two (1) this device may not cause harmful interference, and this device must accept any interference received, interference that may cause undesired 2.1875" 1.0"

Operational Description

Circuit Description Switching on the power controller, sensor and MCU can get the power to be stand by. Set up ID code via SW6, and then input an electric signal into the MCU to have the data process. MCU will output a relevant signal to make the optical sensors and keys working after data processed. Please reset the ID code via SW6 after changed the batteries

Parts List/Tune Up Info

H84C0180 pcb55*50.5*1.6 MM REV:0.0 FR4 fiber/ double pcs1 H84C0180 pcb1 53.5*41*1.6 MM REV:0.0 FR4 fiber/ double pcs1 Stick an electric resistance10 M O 1/10 W 0603 type J class pcs1 R1 Stick an electric resistance680 K O 1/10 W 0603 type J class pcs1 R4 Stick an electric resistance220 K O 1/10 W 0603 type J class pcs1 R5 Stick an electric resistance100 K O 1/10 W 0603 type J class pcs1 R6 Stick an electric resistance1.2 M O 1/10 W 0603 type J class pcs1 R3 Stick an electric resistance15 K O 1/10 W 0603 type J class pcs1 R8 Stick an electric resistance10 O 1/10 W 0603 type J class pcs1 R7 Stick an electric resistance0 O 1/10 W 0603 type J class pcs1 RJ1 Electrolysis electric capacity100 UFs/6.3s V f 5*5 M 105 ?s/ mini pcs1 C20 Electrolysis electric capacity220 UFs/6.3s V f 6*5 M 105 ?s/ mini pcs1 C16C13 Electrolysis electric capacity2.2 UFs/16s V f 4*5 M 105 ?s/ mini pcs1 C17 Stick an electric capacity Many layer porcelain and ceramics/104 PFs/50ses V 0603 type J class/ NPO pcs6 C3 C14 C15 C18 C19 C21 Stick an electric capacityMany layer porcelain and ceramics/22 PFs/50ses V 0603 type J class/ NPO pcs4 C1 C2 C9 C10 Stick an electric capacityMany layer porcelain and ceramics/33 PFs/50ses V 0603 type J class/ NPO pcs3 C4C5C11 Stick an electric capacity Many layer porcelain and ceramics/20 PFs/50ses V 0603 type J class/ NPO pcs1 C12 Stick an electric capacity Many layer porcelain and ceramics/103 PFs/50ses V 0603 type J class/ NPO pcs1 CR6 Stick an electric capacity Many layer porcelain and ceramics/47 PFs/50ses V 0603 type J class/ NPO pcs1 C7 Stick the diodeRB421 pcs1 D1 crystal oscillator 76.8 KHz ± 20 ppm vibration mode: 2*6 mmpcs1 X1 crystal oscillator 27.042 MHz ± 20 ppm vibration mode: 49 S typepcs1 X2 crystal oscillator18.432 MHzs, P=5 mm/ two feet pcs1 X3 inductance 82 UHs/ EC-24 ± 5% MAXRDC=1.5 O Q = 50 db pcs1 L3 inductance 1.8 UHs/ EC-24 ± 5% MAXRDC=0.25 O Q = 50 db pcs1 L1 inductance 0.82UH/EC-24 ± 5% Q = 40 db pcs1 L2 Stick an IC MA6221-S7K pcs1 U2 ICA2030 pcs1 U1 Coder F=30 g 11 mms are high pcs1SW-Z Give out light the diode5 f circular H=7.5/ red/ high and bright degree pcs1 LED1 It is tiny to move the switch70 ± 10 gram,12.6*5.7*9.8 pcs 3 SW-L SW-R SW-M touch switch 6.0*4.5*2.5 MM plug-in type pcs1 SW-ID The Du Pont line ups the needle 2.54*2.54 row needle 4 PIN high 2.54 mm pcs2 CN1 CN2 The Du Pont line ups the mother 2.54*2.54 row mother 4 PIN high 8.00 mm pcs2 CN1 CN2

Schematics

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A3 Date: 28-Jul-2004 Sheet of File: D:\SUN\design document\S851-302\S851-302.Ddb Drawn By: SCLK 1 XA 2 XB 3 YB 4 YA 5 XY-LED 6 RefA 7 RefB 8 OSCIN 9 GND 10 OSCOUT 11 GND 12 VDD 13 R-BIN 14 POWER-DOWN 15 SDIO 16 IC2ADNS2030 SDIO SCLK PD R815K GND GND X3 18.432MHz C180.1UF C172.2UF/6.3V LED1LED R710 C190.1UF C20 10UF/6.3V GND GND Y1 76.8KHz GND C2 20PF C120PF GND SW2 BR SW3 BMSW4 BL Y227.042MHz OSC1 1 VSS 2 OSC2 3 VDD 4 BR 5 BM 6 BL 7 RFOUT 8 ORFIN0 9 ORFIN1 10 ORFO 11 TXD 12 POWER-DOWN 13 WA 14 WB 15 Z2IN 16 Z1IN 17 SDIO 18 SCLK 19 BAT-LED 20 TYPE 21 TX-Connect 22 PreBUT 23 NextBUT 24 SVD-IN 25 DCVref 26 VL 27 VL-NM 28 IC1MA6221S7K C3 100nF C533PF C80PF C9 22PF GND C4 33PF L1 1.8uH L2 0.82uH C747PF C11 20PF C1022PF C12 33PF B 2 A 1 COM 3 SW5ENCODER1 SW1CONNECT R10NC R110 GND SCLKSDIO C6 10nF PD 12 CN3Battery AAA*2 C13220UF C14 0.1UF GND GND GND R31.2MR4680K GND L382uH ZD1RB421 C16 220UF C15100nF GND GND R5220K R6100K GND R110M CONTBRBMBL Z1IN Z2IN BRBMBL ANT Z1INZ2INCONT R12 0 R91K R2560 LED2LED GND

Test Report

Note: The test report is specially limited to the above company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.227 EMI MEASUREMENT AND TEST REPORT For PANYU ELITE CENTURY ELECTRONIC CO., LTD. Yaodong Industrial Area, Dongchong Town, PanYu, Guangzhou City, Guangdong, P.R. China FCC ID: RETH84C0180 This Report Concerns: Original Report Equipment Type: Transmitter, Wireless Mouse Test Engineer: Jerry Wang Report No.: R0408022 Report Date: 2004-08-09 Reviewed By: Ling Zhang Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732-9164 PANYU ELITE CENTURY ELECTRONIC CO., LTD. FCC ID: RETH84C0180 Report # R0408022Rpt.doc Page 2 of 13 FCC ID Per 15.227 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 SCHEMATICS AND BLOCK DIAGRAM............................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 TEST SETUP CONFIGURATION......................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 §15.205, §15.209, §15.227(B) - RADIATED EMISSIONS TEST ..............................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 TEST PROCEDURE........................................................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................10 SUMMARY OF TEST RESULTS.....................................................................................................................................10 RADIATED EMISSIONS TEST RESULT DATA...............................................................................................................10 §15.227(B) - OUT OF BAND EMISSION .................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST RESULT.............................................................................................................................................................12 PANYU ELITE CENTURY ELECTRONIC CO., LTD. FCC ID: RETH84C0180 Report # R0408022Rpt.doc Page 3 of 13 FCC ID Per 15.227 Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The PANYU ELITE CENTURY ELECTRONIC CO., LTD ’s product, FCC ID: RETH84C0180 or the "EUT" as referred to in this report is a transmitter, Wireless Mouse. The EUT is measured approximately 120mm L x 53mmW x 33mm H. * The test data gathered are from production sample, serial number: EM2086125, provided by the manufacturer. Objective This Type approval report is prepared on behalf of PANYU ELITE CENTURY ELECTRONIC CO., LTD in accordance with Part 2, Subpart J, and Part 15, Subparts A, B and C of the Federal Communication Commissions rules. The objective to determine compliance with FCC rules, sec 15.203, 15.205, 15.209 and sec 15.227. Related Submittal(s)/Grant(s) No Related Submittals. Test Methodology All measurements contained in this report were conducted with ANSI C63.4-2001, American National Standard for Methods of Measurement of Radio-Noise Emissions from…

Text truncated - open the document above for the full version.

Test Setup Photos

EXHIBIT B - TEST SETUP PHOTOGRAPHS Transmitter Radiated Emission
