RFARTD210XDIGITAL 5.8GHz WIRELESS SPEAKER

©2003 RadioShack Corporation. All Rights Reserved. RadioShack and RadioShack.com are trademarks used by RadioShack Corporation. OWNER’S MANUAL — Please read before using this equipment. www.radioshack.com SM This wireless transmitter and receiver system use the latest 5.8 GHz technology that travels through walls, floors, ceilings and other obstacles, delivering high quality sound for your home theater system’s rear surround speakers. Using this wireless system, you will experience movie theater quality sound in your own home using your current home theater surround system. We have designed this system for use with your surround sound home theater system to enhance the quality of the sound and balance coming from your speakers. You can now eliminate running long speaker wires through your rooms, while enhancing the sound coming from those speakers. How It Works The transmitter converts the audio signal from your audio source into a 5.8GHz radio frequency and transmits it to the receiver. The receiver will pick up the best signal from one of its two antennas and convert the signal back to its original form. Using a powerful amplifier, the signal is passed to your connected rear surround speakers. The result is an enhanced sound quality resulting in a theater quality surround sound experience. This system is compatible with most audio sources such as televisions, VCRs, stereo receivers/amplifiers, CD players, and personal stereos. This unit allows you to listen to wired speakers in any room in the house when a two-channel source is connected to the transmitter. The audio link system also tracks the volume setting of your audio source, so that when you increase or decrease the volume on the audio source, the link’s connected speakers respond accordingly. Some of this system’s other features include: • 6 user-adjustable channels • 2 diversity receiver antennas for optimal audio reception. • Adjustable speaker and line level input control • 256 option personal ID Code • Ideal for Dolby 5.1 Digital, Pro Logic II, DTS, SCAD and DVD Audio Systems • Provides digital transmission for superb audio clarity • Immunetointerferencefrommicrowave ovens and other popular 2.4GHz equipment • Signal range of 30 feet RECEIVER TRANSMITTER STANDBY / ON/OFF —Press to toggle between standby mode and power on. LED —Lights red when the transmitter is in power on mode, and turns green when in standby mode. POWER/PUSH OFF — Press to power the receiver on or off. Power LED —Lights red when the receiver is powered on. Signal LED —This green LED flashes when the receiver is searching for a signal from the transmitter. It glows steadier and brighter as the signal strength increases. VOLUME —Turn to adjust sound level of the connected surround speakers. You may need to adjust your A/V receiver’s volume for balance. PACKAGE CONTENTS • Transmitter • Speaker wire (for transmitter only) • Receiver • AC adapter • Adjustable stand • Owner’s Manual • Warranty The lightning symbol is intended to alert you to the presence of uninsulated dangerous voltage within this product’s enclosure that might be of sufficient magnitudetoconstituteariskofelectricshock.Donot open the product’s case. The exclamation symbol is intended to inform you that important operating and maintenance instructions are included in the literature accompanying this product. WARNING:Toreducetheriskoffireorshockhazard, do not expose this product to rain or moisture. CAUTION CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK. NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. RISK OF ELECTRIC SHOCK DO NOT OPEN ! ! ! IMPORTANT ! If an icon appears at the end of a paragraph, go to the box on that page with the corresponding icon for pertinent information. o —Warning ! —ImportantÔ—Note Wireless 5.8 GHz Digital Audio Link 15-1974 15-1974.fm Page 1 Tuesday, September 9, 2003 3:14 PM 2 IMPORTANT SAFETY INFORMATION FOR YOUR SAFETY, READ AND RETAIN ALL SAFETY AND OPERATING INSTRUCTIONS. HEED ALL WARNINGS IN THIS MANUAL AND ON THE UNIT. POWER SOURCE To avoid any malfunctions of the unit, and to protect against electric shock, fire or personal injury, please observe the following • This system has been designed to work with 120-volt AC current. Connection to a line voltage other than that may create a safety and fire hazard and may damage the system. If you are unsure of the type of power supply to your home, consult your local dealer or power company. • Hold the plug firmly when connecting or disconnecting the power cord to the wall outlet. • Do not run power cords under rugs or carpets or place heavy objects on them. • Damaged or deformed power cords are hazardous and should be replaced immediately by a qualified service technician. LOCATION • Air vents are provided in the cabinet to prevent excessive temperatures inside the unit. Do not place this unit in closed spaces, cover it, or otherwise block the vents. • Do not place this unit in direct sunlight, or near heat sources. • Keep this unit away from strong magnetic objects. • Do not use the unit in a car. The operation can not be guaranteed. CARE • Do not insert or drop anything into this unit through the air vents as this could cause serious damage, possibly resulting in fire. • Do not place any object containing water or other liquids on this unit. In the event that liquid should enter the cabinet, unplug this unit immediately and contact the retailer or service center immediately. • Do not remove the cabinet. Touching parts inside the cabinet could result in electric shock and damage to the unit. NONUSE PERIODS • When the unit is not being used, turn the power off. • When left unused for a long period of time, the unit should be unplugged from the household AC outlet. VOLUME CONTROL • Do not turn up the volume while listening to a portion with very low level input or no audio signal. The speaker may be damaged when a peak level portion is played. CLEANING • Unplug the un…

Text truncated - open the document above for the full version.

Eastech Electronic Taiwan Inc. AUG. 10, 2004 Federal Communications Commission Authorization and Evaluation Division FCC IDRFA RTD210X Confidentiality Request Pursuant to Sections 0..457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparrting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, 2004/8/10 Charlotte.Chen / PM&D TW Applicant: Eastech Electronic Taiwan Inc. ADDRESS: 13FI.No.99,Sec.1,NankanRoad,LuchuShiang,TaoyuanHsien338,Taiwan,R.O.C. TEL: 886-3-3116686 EXT 216 FAX: 886-3-3116690

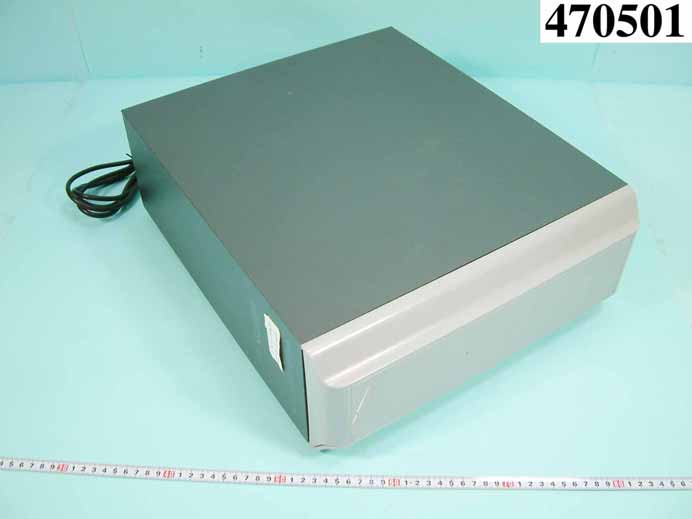

REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A1 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A2 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255

FCC ID: RFARTD210X Label Location

REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A3 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A4 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A5 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A6 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A7 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A8 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A9 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A10 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A11 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A12 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A13 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A14 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A15 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A16 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A17 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A18 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A19 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A20 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A21 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A22 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A23 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A24 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A25 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A26 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A27 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A28 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F470501 SPORTON International Inc. PAGE NUMBER : A29 OF A29 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 26, 2004 FAX : 886-2-2696-2255

FCC ID: RFARTD210X Product Description This product using an audio transceiver chipset which is a low-cost 5-GHz radio that provides a high bit rate link of 6 Mbps for wireless audio applications, such as wireless speaker. This radio solution consists of high performance all-CMOS RF transmitter (GPE110), RF receiver (GPA110), and baseband modem chips (GPE112 and GPA112) to provide the lowest cost solution. GPA110 is a highly integrated radio receiver chip that includes LNA, down conversion mixer, baseband filter, DC offset cancellation loop, VGA and synthesizer. Only a few external RF components are needed, such as bandpass filter and RF switch. This wireless transmitter and receiver system use the latest 5.8 GHz technology that travels through walls, floors, ceilings and other obstacles, delivering high quality sound for your home theater system’s rear surround speakers. Using this wireless system, you will experience movie theater quality sound in your own home using your current home theater surround system. We have designed this system for use with your surround sound home theater system to enhance the quality of the sound and balance coming from your speakers. You can now eliminate running long speaker wires through your rooms, while enhancing the sound coming from those speakers. How It Works The transmitter converts the audio signal from your audio source into a 5.8GHz radio frequency and transmits it to the receiver. The receiver will pick up the best signal from one of its two antennas and convert the signal back to its original form. Using a powerful amplifier, the signal is passed to your connected rear surround speakers. The result is an enhanced sound quality resulting in a theater quality surround sound experience. This system is compatible with most audio sources such as televisions, VCRs, stereo receivers/amplifiers, CD players, and personal stereos. This unit allows you to listen to wired speakers in any room in the house when a two-channel source is connected to the transmitter. The audio link system also tracks the volume setting of your audio source, so that when you increase or decrease the volume on the audio source, the link’s connected speakers respond accordingly. Some of this system’s other features include: • 6 user-adjustable channels • 2 diversity receiver antennas for optimal audio reception. • Adjustable speaker and line level input control • 256 option personal ID Code • Ideal for Dolby 5.1 Digital, Pro Logic II, DTS, SCAD and DVD Audio Systems • Provides digital transmission for superb audio clarity • Immune to interference from microwave ovens and other popular 2.4GHz equipment • Signal range of 30 feet

FCC ID: RFARTD210X Issued on July 26, 2004 Report No.: F470501 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT CATEGORY : Mobile End Product PRODUCT NAME : Digital 5.8Ghz Wireless Speaker FCC ID. : RFARTD210X FILING TYPE : Certification MODEL NAME : RTD210 / DR3610 BRAND NAME : RCA APPLICANT : Eastech Electronics (Taiwan) Inc. 13 FI. No. 99, Sec. 1, Nankan Road, Luchu Shiang, Taoyuan Hsien 338, Taiwan, R.O.C. MANUFACTURER : Eastech Electronics (Hui Yang) Co., Ltd. Dong Fong District, Xinxu, Hui- Yang, Guangdong, P.R.China ISSUED BY : SPORTON INTERNATIONAL INC. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., His Chih, Taipei Hsien, Taiwan, R.O.C. Statements: The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Certificate or Test Report could not be used by the applicant to claim the product endorsement by CNLA, NVLAP or any agency of U.S. government. The test equipment used to perform the test are calibrated and traceable to NML/ROC or NIST/USA. Dr. Alan Lane Vice General Manager Sporton International Inc. Lab Code: 200079-0 FCC ID: RFARTD210X Issued on July 26, 2004 Report No.: F470501 SPORTON International Inc. FCC ID. : RFARTD210X TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Jul. 26, 2004 Table of Contents History of this test report..................................................................................................................ii 1. General Description of Equipment under Test.............................................................................................1 1.1 Applicant ......................................................................................................................................................................................... 1 1.2 Manufacturer.....................................................................................................................................................................................1 1.3 Basic Description of Equipment under Test......................................................................................................................................1 1.4 Features of Equipment under Test ...................................................................................................................................................1 2. Test Configuration of the Equipment under Test.........................................................................................2 2.1 Description of the Test ......................................................................................................................................................................2 2.1 Frequency Range Investigated .........................................................................................................................................................2 2.2 Description of Test Supporting Units ................................................................................................................................................2 2.3 Connection Diagram of Test System ................................................................................................................................................2 2.4 Test Software....................................................................................................................................................................................3 3. Test Location and Standards .........................................................................................................................4 3.1 Test Location ....................................................................................................................................................................................4 3.2 Test Conditions .................................................................................................................................................................................4 3.3 Standards for Methods of Measurement...........................................................................................................................................4 3.4 DoC Statement .................................................................................................................................................................................4 4. List of Measurements......................................................................................................................................5 4.1 Summary of the Test Results............................................................................................................................................................5 5. Test Result .......................................................................................................................................................6 5.1 Carrier Field Strength........................................................................................................................................................................6 5.2 AC Power Line Conducted Emission ..............................................................................................................................................11 5.3 Frequency Tolerance ......................................................................................................................................................................16 5.4 Test of Radiated Emission ..............................................................................................................................................................18 6 Antenna Requirements .................................................................................................................................28 7 List of Measuring Equipments Used ......................…
