RFD-CT100Remote Control Radio

User Manual For CT100 29. Aug. 2012 1 of 8 1 INTRODUCTION ................................................................................................................................................... 2 2 ELECTRICAL INTERFACE .................................................................................................................................. 3 2.1 Maximum Ratings ...................................................................................................................................................... 3 2.2 Operating Conditions ................................................................................................................................................. 3 2.3 Connector .................................................................................................................................................................... 3 3 UART CONFIGURATION ..................................................................................................................................... 4 4 MODULE MOUNTING .......................................................................................................................................... 4 5 RADIO MODULE COMMAND SET ...................................................................................................................... 5 6 RADIO MODULE CONFIGURATION ................................................................................................................... 7 7 CERTIFICATION ................................................................................................................................................... 8 7.1 FCC Certification ....................................................................................................................................................... 8 CONFIDENTIAL Date / Editor Version / Comment 5-JULY-12 / WMART Document creation User Manual For CT100 29. Aug. 2012 2 of 8 1 INTRODUCTION The CT100 radio facilitates a IEEE 802.15.4 based radio communication. It uses a proprietary wireless communication stack to implement a star or cluster network with multiple nodes communicating simultaneously. The radio module provides three basic functions: - Transparent communication between network node and network coordinator - Writing parameters to the radio module for configuration to determine its mode of operation such as the configuration of a node or coordinator - Reading parameters from the radio module All communication to the radio module is established through a UART communication interface. User Manual For CT100 29. Aug. 2012 3 of 8 2 ELECTRICAL INTERFACE 2.1 Maximum Ratings Rating Min. Max. Unit Input Voltage VCC -0.3 3.6 V Input Current VCC 150 mA Operating Temperature -30 60 °C 2.2 Operating Conditions Rating Min. Typ Max. Unit Input Voltage VCC 2.1 3 / 3.3 3.6 V Operating Current at 3dBm - 30 - mA Maximum RF Output Power 7 dBm 2.3 Connector The radio module is connected through a 10-pin 0.5mm pitch flat cable on connector J1: Main function I/O 10- Pin Description Comment VCC 1 Power Supply 3 / 3.3 V VCC 2 Power Supply 3 / 3.3 V GND 3 Ground GND 4 Ground GND 5 Ground UART TX O/O 6 UART TX (Out) High impedance if in shutdown. UART RX I/I 7 UART RX (In)l High impedance if in shutdown. RTS O/I 8 Not used Option SW implemented, wired to corresponding hardware pin on uC. High impedance if in shutdown. CTS I/I 9 Not Used Option SW implemented, wired to corresponding hardware pin on uC. High impedance if in shutdown SHUTDOWN I 10 Enable sleep mode Shutdown or sleep mode, to be able to select multiple radio modules The location of connectorJ1 is indicated below. To provide cable relief a slot is integrated into the radio module. User Manual For CT100 29. Aug. 2012 4 of 8 3 UART CONFIGURATION Baudrate Data Bits Stop bits Parity Flow Control 19200 8 1 No No 4 MODULE MOUNTING The CT100 radio module can be mounted with two 2.5mm machine screws. It is preferred that the screws and stand offs are made of a non conductive and non-ferromagnetic material such as plastic or ceramics. Alternatively the module can be directly soldered on to a carrier board utilizing the radio module using connector J2 and J6. User Manual For CT100 29. Aug. 2012 5 of 8 5 RADIO MODULE COMMAND SET The following table lists all commands available to the user through the UART communication. Ref. Group Command Response 1 Test 0/TEST/CW/n 0/OK 0/ERR Generate CW Signal for Test with TX power of n-0x80 dBm. Test function for EMV measurement 2 0/TEST/RND/n 0/OK 0/ERR Generate random Signal for Test with TX power of n-0x80 dBm. Test function for EMV measurement 0/TEST/DUTY/hh 0/OK 0/ERR Set ‘ON’ time in ms for test signal. Total duty cycle period is 100ms. Minimum is 10 (0x0A). Maximum is 100 (0x64) 3 0/TEST/CH/n 0/OK 0/ERR Force module to channel n 4 0/TEST/LOOP 0/OK Enable / disable UART Loop back 5 0/TEST/END 0/OK 0/ERR Finish any test mode. An error is generated if no test signal is active. 6 0/TEST/HIST 0/Assert: hhhh 0/Assert: HHHH/HHHHHHHH 0/Assert: hhhh 0/Assert: HHHH/HHHHHHHH .... Get Assert-History hhhh: Assert counter (hex) HHHH: file number HHHHHHHH: Line number 7 0/TEST/VER 0/VER/hhhhhhhh/ hhhhhhhh Get VersionNumber of SW and WPS (High word/Low word) 8 0/TEST/BUILD Not defined For debug purposes. Returns build and revision information 9 0/TEST/INFO Not defined For debug purposes 10 0/TEST/RX 0/RX/hh Get current RX level 11 0/TEST/FREQ 0/OK 0/ERR Output a frequency signal to verify internal frequency. The uC must be reset after this command. 12 State 0/STAT/RX/n 0/RX/n/nn Get Rx Level of last frame from device n. P= nn-0x80 dBm 13 0/STAT/PER/n 0/PER/hhhhhhhh Get Packet error rate of connection to device n 14 0/STAT/RPER 0/OK Reset all Packet error rate counters 15 0/STAT/INFO 0/INFO/hhhhhhhh Get radio module info (mode, power, type, ) The lowest 8 bits are the maximum tx power in dBm + 0x80 16 0/STAT/CH 0/CH/hhhh Get current channel 17 0/STAT/SLEEP 0/OK 0/ERR …

Text truncated - open the document above for the full version.

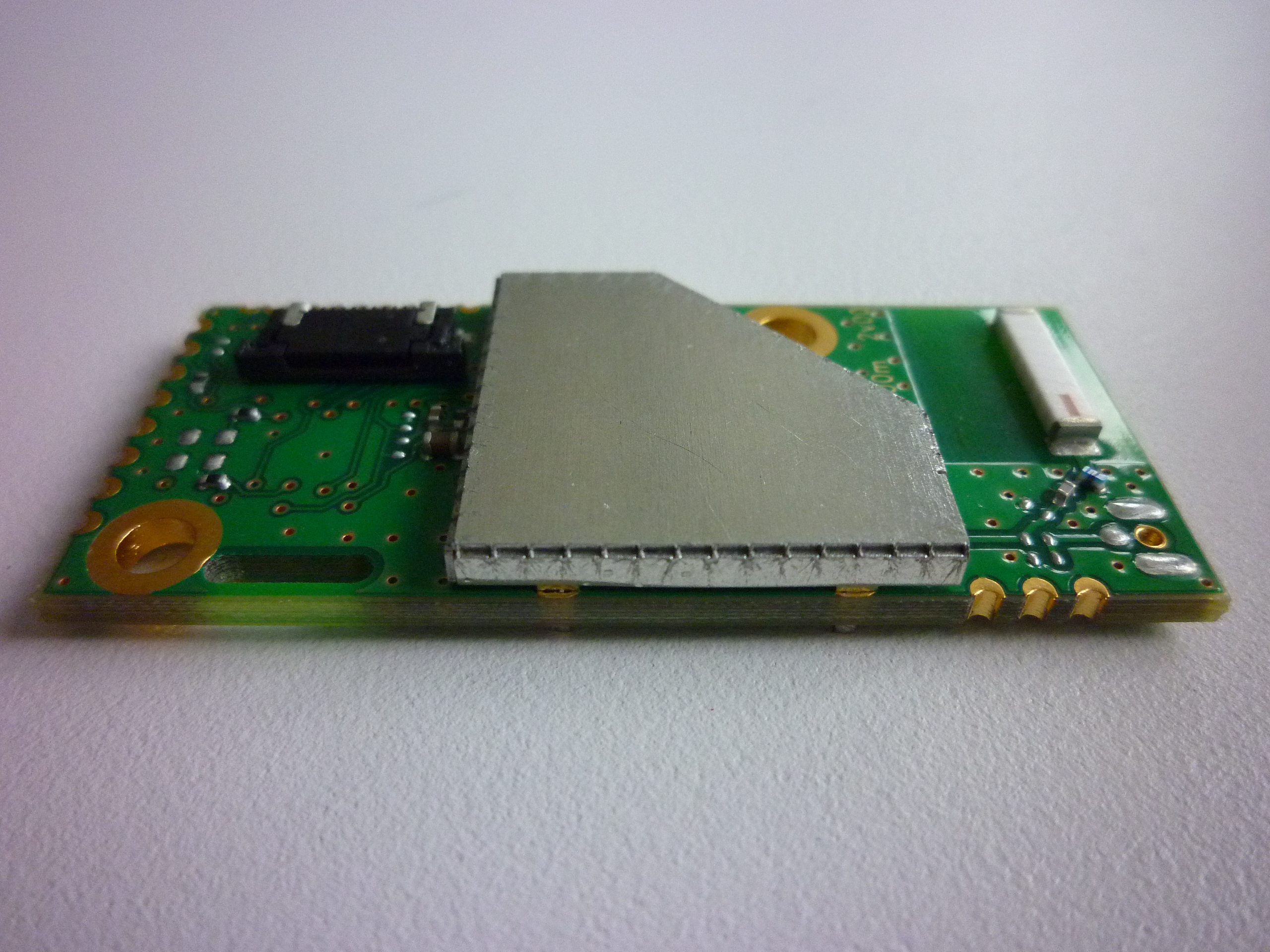

Test Report No.: G0M-1201-1704-TFC247Z-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.2 Photos – Equipment internal EUT TOP EUT BOTTOM Page 6 of 93

Test Report No.: G0M-1201-1704-TFC091M-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 11 RF-EXPOSURE ASSESSMENT REPORT FCC 47 CFR Part 2.1091 Industry Canada RSS-102 RF-Exposure evaluation of mobile equipment Report Reference No. .................... : G0M-1201-1704-TFC091M-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ........................... : Leica Geosystems AG Address ............................................ : Heinrich Wild Strasse 1 9435 Heerbrugg SWITZERLAND Test specification: Standard ........................................... : 47 CFR 1.1310 / 47 CFR 2.1091 / 47 CFR 2.1093 OET Bulletin 65:1997 RSS-102, Issue 4:2010 Safety Code 6:2009 Equipment under test (EUT): Product description VIPER Radio Modul 100m Model No. 785749 Hardware version v2 Firmware / Software version R FCC-ID: RFD-CT100 IC: 3177A-CT100 Test result Passed Test Report No.: G0M-1201-1704-TFC091M-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 11 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 4 1.1 Reference Documents 5 1.2 Radiation Sources 6 2 RESULT SUMMARY 7 3 RF-EXPOSURE CLASSIFICATIONS 8 4 ASSESSMENT 9 4.1 MPE Assessment – 47 CFR 2.1091 / RSS-102 9 Test Report No.: G0M-1201-1704-TFC091M-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 11 1 Equipment (Test item) Description Description VIPER Radio Modul 100m Model 785749 Serial number None Hardware version v2 Software / Firmware version R FCC-ID RFD-CT100 IC 3177A-CT100 Equipment type Radio module Test Report No.: G0M-1201-1704-TFC091M-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 11 1.1 Reference Documents Document type Document No. Issued by Date FCC 15.247 Test Report G0M-1201-1704-TFC247Z-V01 Eurofins Product Service GmbH 2012-07-06 Test Report No.: G0M-1201-1704-TFC091M-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 11 1.2 Radiation Sources Mode # Description Zigbee Frequency range [MHz] 2405 – 2475 Channels 15 Transmission modes DSSS Modulations O-QPSK Maximum radiated power [dBm] 9.0 Maximum transmission duty cycle [%] 100 % (worst case assessment) Antenna 1 gain [dBi] 3.0 Antenna 1 diameter [cm] 1.0 Test Report No.: G0M-1201-1704-TFC091M-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 11 2 Result Summary FCC 47 CFR Part 2.1091, IC RSS-102 Product Specific Standard Section Requirement Result Remarks 47 CFR 2.1091 Maximum permissible exposure @ 20cm below limit PASS RSS-102 2.5.2 Maximum permissible exposure @ 20cm below limit PASS Remarks: Test Report No.: G0M-1201-1704-TFC091M-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 11 3 RF-Exposure Classifications Device Types Fixed A fixed device is defined as a device physically secured at one fixed location and cannot be easily re-located. Mobile A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. (47 CFR 2.1091) Portable A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. (47 CFR 2.1093) Exposure Categories Occupational / Controlled Limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. General population / uncontrolled Exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Test Report No.: G0M-1201-1704-TFC091M-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 11 4 Assessment 4.1 MPE Assessment – 47 CFR 2.1091 / RSS-102 MPE Assessment acc. to 47 CFR 2.1091 / IC RSS-102 Verdict: PASS Assessment according to reference Reference Method FCC OET Bulletin 65 / RSS-102 & Safety Code 6 Device type mobile Exposure category General public IC Limits – Occupational / Controlled Exposure Frequency range [MHz] Electric field strength [V/M] Magnetic field strength [A/M] Power density [W/m 2 ] Averaging time [min] 0.003 – 1.0 600 4.9 N/A 6 1 – 10 600/f 4.9/f N/A 6 10 – 30 60 4.9/f N/A 6 30 – 300 60 0.163 10.0* 6 300 – 1500 3.54·f 0.5 0.0094·f 0.5 f/30 6 1500 - 15000 137 0.364 50 6 15000 - 150000 137 0.364 50 616000/f 0.5 150000 - 300000 0.354·f 0.5 9.4·10 -4 ·f 0.5 3.33·10 -4 ·f 616000/f 0.5 IC Limits – General Population / Uncontrolled Exposure Frequency range [MHz] Electric field strength [V/M] Magnetic field strength [A/M] Power density [W/m 2 ] Averaging time [min] 0.003 – 1.0 280 2.19 N/A 6 1 – 10 280/f 2.19/f N/A 6 10 – 30 28 2.19/f N/A 6 30 – 300 28 0.073 2.0* 6 300 – 1500 1.585·f 0.5 0.0042·f 0.5 f/150 6 1500 - 15000 61.4 0.163 10 6 15000 - 150000 61.4 0.163 10 616000/f 0.5 150000 - 300000 0.158·f 0.5 4.21·10 -4 ·f 0.5 6.67·10 -5 ·f 616000/f 0.5 * = Power density …

Text truncated - open the document above for the full version.

Test Report No.: G0M-1201-1704-TFC247Z-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Digital transmission systems operating within the 2400 – 2483.5 MHz band Report Reference No. .................... : G0M-1201-1704-TFC247Z-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ........................... : Leica Geosystems AG Address ............................................ : Heinrich Wild Strasse 1 9435 Heerbrugg SWITZERLAND Test specification: Standard ........................................... : 47 CFR Part 15C RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description VIPER Radio Modul 100m Model No. 785749 Hardware version v2 Firmware / Software version R FCC-ID: RFD-CT100 IC: 3177A-CT100 Test result Passed Page 1 of 93 Test Report No.: G0M-1201-1704-TFC247Z-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION: 4 1.1 Photos – Equipment External 5 1.2 Photos – Equipment internal 6 1.3 Photos – Test setup 7 1.4 Supporting Equipment Used During Testing 8 1.5 Test Modes 9 1.6 Test Equipment Used During Testing 10 1.7 Sample emission level calculation 11 2 RESULT SUMMARY 12 3 TEST CONDITIONS AND RESULTS 13 3.1 Test Conditions and Results – Occupied Bandwidth 13 3.2 Test Conditions and Results – 6 dB Bandwidth 17 3.3 Test Conditions and Results – Maximum peak conducted power 21 3.4 Test Conditions and Results – Power spectral density 23 3.5 Test Conditions and Results – AC power line conducted emissions 24 3.6 Test Conditions and Results – Band edge compliance 27 3.7 Test Conditions and Results – Conducted spurious emissions 30 3.8 Test Conditions and Results – Transmitter radiated emissions 34 3.9 Test Conditions and Results – Receiver radiated emissions 36 ANNEX A Transmitter radiated spurious emissions 38 ANNEX B Receiver radiated spurious emissions 83 Page 3 of 93 Test Report No.: G0M-1201-1704-TFC247Z-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1 Equipment (Test item) Description: Description VIPER Radio Modul 100m Model 785749 Serial number None Hardware version v2 Software / Firmware version R FCC-ID RFD-CT100 IC 3177A-CT100 Equipment type Radio module Radio type Transceiver Radio technology IEEE 802.15.4 (Zigbee) Operating frequency range 2405 - 2475 MHz Assigned frequency band 2400 - 2483.5 MHz Main test frequencies F LOW 2405 MHz F MID 2440 MHz F HIGH 2475 MHz Spreading DSSS Modulations O-QPSK Number of channels 15 (11-25) Channel spacing 5MHz Number of antennas 1 Antenna Type integrated Model 2450AT45A100 Manufacturer Johanson Technologies, Inc. Gain 3.0 dBi Manufacturer Leica Geosystems AG Heinrich Wild Strasse 1 9435 Heerbrugg SWITZERLAND Power supply V NOM 3.15 VDC V MIN 3.0 VDC V MAX 3.3 VDC AC/DC-Adaptor Model N/A Vendor N/A Input N/A Output N/A Page 4 of 93 Test Report No.: G0M-1201-1704-TFC247Z-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments None *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables Page 8 of 93 Test Report No.: G0M-1201-1704-TFC247Z-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.5 Test Modes Mode # Description ZIGBEE General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = DSSS Modulation = O-QPSK Data rate = 250 kbps Duty cycle = 100 % Power level = Maximum Receive General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone receive Spreading = DSSS AC-Powerline General conditions: EUT powered by commercial AC/DC-Adapter Radio conditions: Mode = standalone transmit Spreading = DSSS Power level = Maximum Page 9 of 93 Test Report No.: G0M-1201-1704-TFC247Z-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.6 Test Equipment Used During Testing Occupied Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2011-12 2012-12 6dB Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2011-12 2012-12 Maximum peak conducted power Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2011-12 2012-12 Power spectral density Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2011-12 2012-12 Band edge compliance Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2011-12 2012-12 Conducted spurious emissions Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2011-12 2012-12 Radiated spurious emissions Description Manufacturer Model Identifier Cal. Date Cal. Due Semi-anechoic chamber Frankonia AC 5 EF00395 - - Spectrum Analyzer R&S FSIQ26 EF00151 2011-11 2012-11 Biconical Antenna R&S HK 116 EF00012 2010-01 2013-01 LPD Antenna R&S HL 223 EF00187 2011-02 2014-02 LPD Antenna R&S HL 025 EF00327 2010-02 2013-02 AC powerline conducted emissions Description Manufacturer Model Identifier Cal. Date Cal. Due AMN R&S ESH2-Z5 EF00182 2010-09 2012-09 AMN R&S ESH3-Z5 EF00036 2010-11 2012-11 EMI Test Receiver R&S ESCS 30 EF00295 2011-06 2012-06 Page 10 of 93 Test Report No.: G0M-1201-1704-TFC247Z-V01 Eurofi…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1201-1704-TFC247Z-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.3 Photos – Test setup Test setup : radiated emissions Test setup : conducted emissions Page 7 of 93
