RFD-ICGXXGNSS Receiver

Leica iCON gps 60 User Manual Version 1.0 English 2 iCON gps 60, Introduction Introduction PurchaseCongratulations on the purchase of a Leica iCON gps 60 system. This manual contains important safety directions as well as instructions for setting up the product and operating it. Refer to "7 Safety Directions" for further informa- tion. Read carefully through the User Manual before you switch on the product. Product identification The type and serial number of your product are indicated on the type plate. Enter the type and serial number in your manual and always refer to this information when you need to contact your agency or Leica Geosystems authorised service work- shop. Type:_______________ Serial No.:_______________ iCON gps 60, Introduction3 SymbolsThe symbols used in this manual have the following meanings: Trademarks•Windows is a registered trademark of Microsoft Corporation in the United States and other countries •CompactFlash and CF are trademarks of SanDisk Corporation •Bluetooth is a registered trademark of Bluetooth SIG, Inc. All other trademarks are the property of their respective owners. TypeDescription  DANGERIndicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.  WARNINGIndicates a potentially hazardous situation or an unintended use which, if not avoided, could result in death or serious injury.  CAUTIONIndicates a potentially hazardous situation or an unintended use which, if not avoided, may result in minor or moderate injury and/or appreciable material, financial and environmental damage.  Important paragraphs which must be adhered to in practice as they enable the product to be used in a technically correct and efficient manner. 4 iCON gps 60, Introduction Validity of this manual This manual applies to the Leica iCON gps 60 SmartAntenna. Available documentation Refer to the following resources for all Leica iCON documentation/software: •the Leica iCON DVD. •https://myworld.leica-geosystems.com NameDescription/Format Leica iCON gps 60 User Manual All instructions required in order to operate the product to a basic level are contained in the User Manual. Provides an overview of the product together with tech- nical data and safety directions.  NameDescription/Format Leica iCON gps 60 System Field Manual Describes the general working of the product in standard use. Intended as a quick reference field guide.  iCON gps 60, Introduction5 DVD-ROM contentsThe Leica iCON DVD contains software and documentation specific to Leica iCON gps 60: myWorld@Leica Geosystems (https://myworld.leica-geosystems.com) offers a wide range of services, information and training material. With direct access to myWorld, you are able to access all relevant services whenever it is convenient for you, 24 hours a day, 7 days per week. This increases your effi- ciency and keeps you and your equipment instantly updated with the latest informa- tion from Leica Geosystems. TypeDescription SoftwareSystem software Software language files DocumentationLeica gps 60 User Manual Leica gps 60 System Field Manual ServiceDescription myProductsSimply add all Leica Geosystems products that you and your company own. View detailed information on your products, buy additional options or Customer Care Packages (CCPs), update your products with the latest software and keep up-to-date with the latest documentation. 6 iCON gps 60, Introduction myServiceView the service history of your products in Leica Geosystems Service Centers and detailed information on the services performed on your products. For your products that are currently in Leica Geosystems Service Centers view the current service status and the expected end date of service. mySupportCreate new support requests for your products that will be answered by your local Leica Geosystems Support Team. View the complete history of your Support and view detailed information on each request in case you want to refer to previous support requests. myTrainingEnhance your product knowledge with the Leica Geosystems Campus - Information, Knowledge, Training. Study the latest online training material or download training material on your products. Keep up-to-date with the latest News on your products and register for Seminars or Courses in your country. ServiceDescription iCON gps 60, Table of Contents7 Table of Contents In this manualChapterPage 1 Unpacking the Container 11 1.1 Leica iCON gps 60 Container Contents11 1.2 Compatible Field Controllers17 1.2.1iCON Series Field Software Overview20 1.3 Holder and Clamps for Field Controllers22 2 Using the iCON gps 60 SmartAntenna 24 2.1 Installing the Internal Battery24 2.1.1General Battery Handling26 2.2 Installing a SIM Card27 2.3 Understanding Antenna Heights29 2.4 The Mechanical Reference Plane, MRP30 2.5 Measuring the Antenna Height for a Pillar Setup31 2.6 Measuring the Antenna Height for a Tripod Setup33 2.7 Measuring the Antenna Height for a Pole Setup34 8 iCON gps 60, Table of Contents 3 Leica iCON gps 60 User Interface 35 3.1 Main Menu38 3.1.1Navigation in Sub Menus45 3.1.2Available Sub Menus46 3.2 How to Change and Edit Values52 4 Software Tools 56 4.1 Base Setup56 4.1.1Base Setup Functions59 4.1.2Raw Data Logging65 4.2 Licensing67 5 Setups with Controller and Accessories 68 5.1 Real-Time Base Setup68 5.2 Base Station with MNA120271 5.3 Real-Time Base with Raw Data Logging75 5.4 Raw Data Logging Setup78 5.5 Real-Time Rover Setup80 5.6 Establish Bluetooth Data Connection84 iCON gps 60, Table of Contents9 6 Care and Transport 85 6.1 Transport85 6.2 Storage86 6.3 Cleaning and Drying87 7 Safety Directions 88 7.1 General Introduction88 7.2 Definition of Use89 7.3 Limits of Use91 7.4 Responsibilities92 7.5 Hazards of Use93 7.6 Electromagnetic Compatibility EMC102 7.7 FCC Statement, Applicable in U.S.105 8 Technical Data 107 8.1 Technical Data iCON gps 60 Antenna107 8.1.1Tracking Characteristics112 8.1.2Accuracy114 8.2 Technical Data MNA1202 GG Antenna116 8.3 Pin A…

Text truncated - open the document above for the full version.

External Photos iCG60 Page 1/1 Leica Geosystems AG – [email protected] 14.03.2012 08_iCG60 ExtPho.ppt

Label Sample iCG60 Page 1/1 Leica Geosystems AG – [email protected] 14.03.2012 06_iCG60 LabelSmpl.ppt

Page 1/1 Leica Geosystems AG – [email protected] 25.08.2010 07_CS10 LabelLoc.ppt

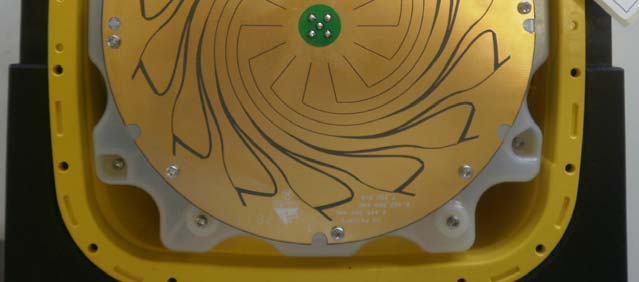

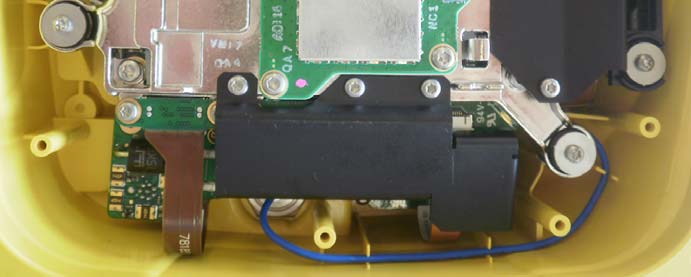

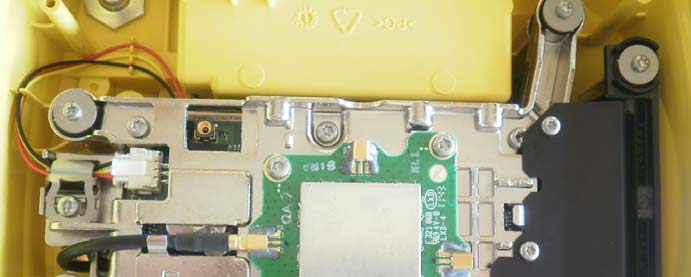

Internal Photos iCG60 Page 1/1 Leica Geosystems AG – [email protected] 14.03.2012 09_iCG60 IntPho.ppt

Test Report No.: G0M-1110-1487-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Frequency hopping systems operating within the 2400 – 2483.5MHz band Report Reference No. .................... : G0M-1110-1487-TFC247B-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ........................... : Leica Geosystems AG Address ............................................ : Heinrich Wild Strasse 1 9435 Heerbrugg SWITZERLAND Test specification: Standard ........................................... : 47 CFR Part 15C RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description GNNS Antenna Model No. iCG60 Hardware version 1.0 Firmware / Software version 1.0 FCC-ID: RFD-ICGXX IC: 3177A-ICGXX Test result Passed Page 1 of 117 Test Report No.: G0M-1110-1487-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION: 4 1.1 Photos – Equipment External 5 1.2 Photos – Equipment internal 6 1.3 Photos – Test setup 10 1.4 Supporting Equipment Used During Testing 11 1.5 Test Modes 12 1.6 Test Equipment Used During Testing 14 1.7 Sample emission level calculation 15 2 RESULT SUMMARY 16 3 TEST CONDITIONS AND RESULTS 17 3.1 Test Conditions and Results – Occupied Bandwidth 17 3.2 Test Conditions and Results – 20dB Bandwidth 24 3.3 Test Conditions and Results – Number of hopping frequencies 34 3.4 Test Conditions and Results – Frequency hopping channel separation 38 3.5 Test Conditions and Results – Time of occupancy (Dwell Time) 40 3.6 Test Conditions and Results – Maximum peak conducted power 42 3.7 Test Conditions and Results – Band edge compliance 44 3.8 Test Conditions and Results – Conducted spurious emissions 58 3.9 Test Conditions and Results – Transmitter radiated emissions 65 3.10 Test Conditions and Results – Receiver radiated emissions 67 ANNEX A Transmitter radiated spurious emissions 69 ANNEX B Receiver radiated spurious emissions 107 Page 3 of 117 Test Report No.: G0M-1110-1487-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1 Equipment (Test item) Description: Description GNNS Antenna Model iCG60 Serial number None Hardware version 1.0 Software / Firmware version 1.0 FCC-ID RFD-ICGXX IC 3177A-ICGXX Equipment type End product Radio type Transceiver Radio technology Bluetooth Operating frequency range 2402 - 2480MHz Assigned frequency band 2400 - 2483.5MHz Main test frequencies F LOW 2402MHz F MID 2441MHz F HIGH 2480MHz Spreading FHSS Modulations GFSK, PI/4-DQPSK, 8-PSK Number of channels 79 hopping channels at all Channel spacing 1MHz Number of antennas 1 Antenna Type integrated chip antenna Model FR05-S1-N-0-001 Manufacturer Fractus Gain 2.2dBi Manufacturer Leica Geosystems AG Heinrich Wild Strasse 1 9435 Heerbrugg SWITZERLAND Power supply V NOM 12VDC V MIN 9VDC V MIN 28VDC Page 4 of 117 Test Report No.: G0M-1110-1487-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments None *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables Page 11 of 117 Test Report No.: G0M-1110-1487-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.5 Test Modes Mode # Description DH5-Sngl General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping stopped (single hopping channel) Modulation = GFSK Packet type = DH5 Data rate = 1Mbps Duty cycle = 47% Power level = Maximum 2DH5-Sngl General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping stopped (single hopping channel) Modulation = π/4-DQPSK Packet type = 2DH5 Data rate = 2Mbps Duty cycle = 47% Power level = Maximum 3DH5-Sngl General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping stopped (single hopping channel) Modulation = 8-DPSK Packet type = 3DH5 Data rate = 3Mbps Duty cycle = 47% Power level = Maximum DH5-Hop General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping Modulation = GFSK Packet type = DH5 Data rate = 1Mbps Duty cycle = 47% Power level = Maximum Page 12 of 117 Test Report No.: G0M-1110-1487-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 2DH5-Hop General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping Modulation = π/4-DQPSK Packet type = 2DH5 Data rate = 2Mbps Duty cycle = 47% Power level = Maximum 3DH5-Hop General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping Modulation = 8-DPSK Packet type = 3DH5 Data rate = 3Mbps Duty cycle = 47% Power level = Maximum Receive General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone receive Spreading = Hopping Page 13 of 117 Test Report No.: G0M-1110-1487-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.6 Test Equipment Used During Testing 20dB Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 ETS 0496 2011-12 2012-12 Number of hopping frequencies Description Manufact…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1110-1487-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 21 EMC TEST REPORT FCC 47 CFR Part 15B Industry Canada RSS-Gen Electromagnetic compatibility - Unintentional radiators Report Reference No. .................... : G0M-1110-1487-EF01-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ........................... : Leica Geosystems AG Address ............................................ : Heinrich Wild Strasse 1 9435 Heerbrugg SWITZERLAND Test specification: Standard ........................................... : 47 CFR Part 15 Subpart B RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description GNNS Antenna Model No. iCG60 Zenith50 Hardware version 1.0 Firmware / Software version 1.0 Contains FCC-ID: RFD-ICGXX IC: 3177A-ICGXX Test result Passed Test Report No.: G0M-1110-1487-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 21 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 4 1.1 Photos – Equipment external 5 1.2 Photos – Equipment internal 6 1.3 Photos – Test setup 10 1.4 Supporting Equipment Used During Testing 11 1.5 Operating Modes 12 1.6 Test Equipment Used During Testing 13 2 RESULT SUMMARY 14 3 TEST CONDITIONS AND RESULTS 15 3.1 Test Conditions and Results – Radiated emissions 15 Test Report No.: G0M-1110-1487-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 21 1 Equipment (Test item) Description Description GNNS Antenna Model iCG60 Zenith50 Serial number None Hardware version 1.0 Software / Firmware version 1.0 FCC-ID RFD-ICGXX IC 3177A-ICGXX Power supply 12 VDC (Battery only) AC/DC-Adaptor None Manufacturer Leica Geosystems AG Heinrich Wild Strasse 1 9435 Heerbrugg SWITZERLAND Highest emission frequency Fmax [MHz] = 400 Device classification Class B Equipment type Tabletop Number of tested samples 1 Test Report No.: G0M-1110-1487-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 21 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments None *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables Test Report No.: G0M-1110-1487-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 12 of 21 1.5 Operating Modes Mode # Description 1 Active GPRS 1900 / 1 Timeslot connection to communication tester. Bluetooth active. Test Report No.: G0M-1110-1487-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 13 of 21 1.6 Test Equipment Used During Testing Radiated emissions Description Manufacturer Model Identifier Cal. Date Cal. Due Biconical Antenna R&S HK 116 EF00012 2010-01 2013-01 LPD-Antenne R&S HL 223 EF00187 2011-02 2014-02 LPD-Antenna R&S HL 025 EF00327 2010-02 2013-02 EMI Test Receiver R&S ESU8 EF00379 2011-12 2012-12 EMI Test Receiver R&S ESCS30 EF00295 2011-06 2012-06 Test Report No.: G0M-1110-1487-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 14 of 21 2 Result Summary FCC 47 CFR Part 15B, Industry Canada RSS-Gen Product Specific Standard Requirement – Test Reference Method Result Remarks 47 CFR 15.109 RSS-Gen 4.9 & 4.10 Radiated emissions ANSI C 63.4 PASS 47 CFR 15.107 RSS-Gen 7.2.4 AC power line conducted emissions ANSI C63.4 N/A Remarks: Test Report No.: G0M-1110-1487-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 15 of 21 3 Test Conditions and Results 3.1 Test Conditions and Results – Radiated emissions Radiated emissions acc. FCC 47 CFR 15.109 / IC RSS-Gen Verdict: PASS Laboratory Parameters: Required prior to the test During the test Ambient Temperature 15 to 35 °C 22°C Relative Humidity 30 to 60 % 45% Test according referenced standards Reference Method ANSI C63.4 Sample is tested with respect to the requirements of the equipment class Equipment class Class B Test frequency range determined from highest emission frequency Highest emission frequency Fmax [MHz] = 400 Fully configured sample scanned over the following frequency range Frequency range 30 MHz to 5 GHz Operating mode 1 Limits and results Class B Frequency [MHz] Quasi-Peak [dBμV/m] Result Average [dBμV/m] Result Peak [dBμV/m] Result 30 – 88 40 PASS - - - 88 – 216 43.5 PASS - - - 216 – 960 46 PASS - - - 960 – 1000 54 PASS - - - > 1000 - - 54 PASS 74 PASS Comments: Test Report No.: G0M-1110-1487-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 16 of 21 Spurious emissions under normal conditions according to FCC Part 15b Project number: G0M-1110-1487 Manufacturer: Leica Geosystems AG EUT Name: GMNS Antenna Model: iCG60 Test Site: Eurofins Product Service GmbH Operator: Mr. Handrik Test Conditions: Tnom: 22°C, Unom: 12 V DC Antenna: Rohde & Schwarz HK 116, Vertical Measurement distance: 3m Mode: GPRS 1900, 1 slot; GPS: external antenna, external cable 50 ohm; uncoated Test Date: 12.12.2011 Note: Pass Index 14 Frequency Quasi-Peak Quasi-Peak Limit Quasi-Peak Difference Status 129,9 MHz 35,17 dBμV/m 43,5 dBμV/m -8,33 dB Pass 133,08 MHz 41,83 dBμV/m 43,5 dBμV/m -1,67 dB Pass 138,27 MHz 35,16 dBμV/m 43,5 dBμV/m -8,34 dB Pass 142,548 MHz 36,75 dBμV/m 43,5 dBμV/m -6,75 dB Pass 156,186 MHz 35,84 dBμV/m 43,5 dBμV/m -7,66 dB Pass 1 2 3 4 5 0 5 10 15 20 25 30 35 40 45 50 55 60 40 M60 M80 M100 M120 M140 M160 M200 M30 M Frequency (Hz) Electrical Field (dBμV/m) FCC part 15B Class B QPRBW: 120 kHz, Vert…

Text truncated - open the document above for the full version.
