RFD-RX-TRX1250T (2.4GHz Transceiver)

Leica RX1200 User Manual (Draft Copy Only) Version 5.0 English 2RX1200 Introduction Introduction PurchaseCongratulations on the purchase of an RX1200. This manual contains important safety directions as well as instructions for setting up the product and operating it. Refer to "7 Safety Directions" for further information. Read carefully through the User Manual before you switch on the product. Product identification The type and serial number of your product are indicated on the type plate. Enter the type and serial number in your manual and always refer to this information when you need to contact your agency or Leica Geosystems authorized service workshop. Type:_______________ Serial No.:_______________ IntroductionRX12003 SymbolsThe symbols used in this manual have the following meanings: Trademarks•Windows and Windows CE are a registered trademark of Microsoft Corporation •CompactFlash and CF are trademarks of SanDisk Corporation •Bluetooth is a registered trademark of Bluetooth SIG, Inc All other trademarks are the property of their respective owners. TypeDescription
DangerIndicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WarningIndicates a potentially hazardous situation or an unintended use which, if not avoided, could result in death or serious injury.
CautionIndicates a potentially hazardous situation or an unintended use which, if not avoided, may result in minor or moderate injury and/or appreciable material, financial and environmental damage. ) Important paragraphs which must be adhered to in practice as they enable the product to be used in a technically correct and efficient manner. 4RX1200 Table of Contents Table of Contents In this manualChapterPage 1How to Use this Manual10 2Description of the System16 2.1 Terminology16 2.2 System Concept22 2.2.1Software Concept22 2.2.2Data Storage and Data Conversion Concept27 2.2.3Power Concept30 2.3 Transport Containers32 2.3.1Container Contents for SmartPole32 2.3.2Container Contents for the TPS Instrument33 2.3.3Container Contents for the GNSS Receiver36 2.4 RX1200 Components38 3User Interface40 3.1 Keyboard40 3.2 Screen44 3.3 Operating Principles46 3.4 Icons47 Table of ContentsRX12005 4Operation50 4.1 Equipment Setup50 4.1.1Fixing RX1200 to a Holder, Handstrap or GNSS Receiver50 4.1.2Setting up with SmartPole61 4.1.3Setting up with the TPS Instrument62 4.1.4Setting up with the GNSS Receiver65 4.2 Batteries68 4.2.1Operating Principles68 4.2.2RX1220/RX1250 Battery70 4.2.3SmartAntenna Battery72 4.2.4GHT56 Battery74 4.3 Working with the CompactFlash Card76 4.4 LED Indicators on SmartAntenna81 4.5 LED Indicators on GHT5683 4.6 Working with the Clip-On-Housings for Devices on GHT5685 4.7 Basic Operation97 4.8 Licence Keys103 4.9 Guidelines for Correct Results with GNSS Surveys106 4.10 RX1250 Connections107 4.10.1Connection to SmartAntenna107 4.10.2Connection to a Digital Cellular Phone109 4.10.3Connection to a Personal Computer111 4.11 Working with the TPS Instrument117 4.11.1Working in Remote Mode117 6RX1200 Table of Contents 4.11.2Working in Transparent Mode118 4.11.3Working in Semi-Transparent Mode119 5Local Mode120 5.1 Accessing the Main Configuration Menu120 5.2 Overview of the Main Configuration Menu122 5.3 Choosing a Sensor123 5.4 Local Settings125 5.5 Radio Settings129 5.5.1Radio Communication Settings129 5.5.2Configuring the Radios134 5.6 Working with a Sensor136 6Care and Transport138 6.1 Transport138 6.2 Storage139 6.3 Cleaning and Drying140 7Safety Directions142 7.1 General Introduction142 7.2 Intended Use143 7.3 Limits of Use145 7.4 Responsibilities146 7.5 International Warranty, Software Licence Agreement148 7.6 End User Licence Agreement EULA150 Table of ContentsRX12007 7.7 Hazards of Use153 7.8 Electromagnetic Compatibility EMC159 7.9 FCC Statement, Applicable in U.S.162 8Trouble Shooting172 9Technical Data180 9.1 RX1200 Technical Data180 9.2 SmartAntenna Technical Data186 9.2.1Tracking Characteristics186 9.2.2Accuracy189 9.2.3Technical Data191 9.3 GHT56 Technical Data195 9.4 Conformity to National Regulations198 9.4.1RX1220 (RX1220 and RX1220 T)198 9.4.2RX1250 (RX1250 X and RX1250 T)200 9.4.3GFU16, Bluetooth communication203 9.4.4GFU17, Siemens MC45205 9.4.5GFU24, Siemens MC75207 9.4.6GFU19 (US), GFU25 (CAN) CDMA MultiTech MTMMC-C 209 9.4.7SmartAntenna with Bluetooth211 Appendix A Directory Structure of the Memory Device214 Appendix B Cables216 8RX1200 Table of Contents Index 220 Table of ContentsRX12009 10RX1200 How to Use this Manual 1How to Use this Manual ) It is recommended to set-up the product while reading through this manual. PathMain Menu: Manage...\Data stands for this working sequence: From the Main Menu select Manage... and then select Data. ScreenCONFIGURE General Menu describes the name of the screen. PageScreens can have more than one page. Units page describes a specific page of a screen. For example: ’...in CONFIGURE Units & Formats, Units page...’ Fields and optionsFields displayed on the screen are described as <Coord System:> or <Coord System: Swiss>, if ’Swiss’ is the selected coordinate system. XXThe characters XX are used as place holders for screen names or multiple options that are all covered by a general description of appearance or functionality. Example 1:STAKEOUT XX Stakeout indicates that the explanation provided is valid for the screens STAKEOUT Polar Stakeout and STAKEOUT Orthogonal Stakeout. How to Use this ManualRX120011 KeysTwo different types of keys can be found on the instrument. These are fixed keys and softkeys. Example 2:In REFLINE Define Reference, Reference page, <Task: XX Line> indicates that the explanation provided is valid for the options <Task: Measure to Line>, <Task: Stake to Line> and <Task: Gridstake Line>. TypeDescription Fixed keysKeys which can be pressed on the keyboard, for example: • Function keys F1-F6. • Function keys F7-F12. • Alphanumeric keys. •ESC, USER, PROG, CE, ENTER, SHIFT. • Arrow keys. …

Text truncated - open the document above for the full version.

Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Switzerland Direct Phone: +41 71 727 3894 Phone +41 71 727 31 31 E-Mail: [email protected] www.leica-geosystems.com FCC Heerbrugg, 27 September 2006 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburg, PA 15262-0001 Request for Confidentiality Leica Geosystems AG - FCC-ID: RFD-RX-T FCC Part 15 Certification Gentlemen, In accordance with 0.459 of CFR 47, Leica Geosystems AG hereby requests confidentiality of -Block Diagrams -Operational Description -Internal Photos -Schematics attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Leica Geosystems AG considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Leica Geosystems AG considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Gerhard Schwärzler Director Quality Management, Geosystems Division Leica Geosystems AG

Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Switzerland Direct Phone: +41 71 727 3894 Phone +41 71 727 31 31 E-Mail: [email protected] www.leica-geosystems.com FCC Heerbrugg, 27 September 2006 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburg, PA 15262-0001 Application for FCC Approval of a mobile device "RX1250T" FCC ID: RFD-RX-T Gentlemen This final device is a composite device with the modular approved Bluetooth Transceiver (FCC ID: RFD-PANMOD1) and the modular transmitter (FCC ID: HSW-2410G). The equipment fulfills the technical standards and rules of the rule part under which it operates. Additional measurements of the final device enable the co-location of the both modular approved transmitter for the application in a "RX1250T" (FCC ID: RFD-RX-T). We kindly apply for a grant of our application certification. This mobile device is intended to be used for remote-control of a total-station and data-logging in surveying applications. Please contact us if you have any additional questions. Best regards Gerhard Schwärzler Director Quality Management, Geosystems Division Leica Geosystems AG

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20605-0496-P-15 Page 1 of 19 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20605-0496-P-15 Page 2 of 19 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20605-0496-P-15 Page 3 of 19

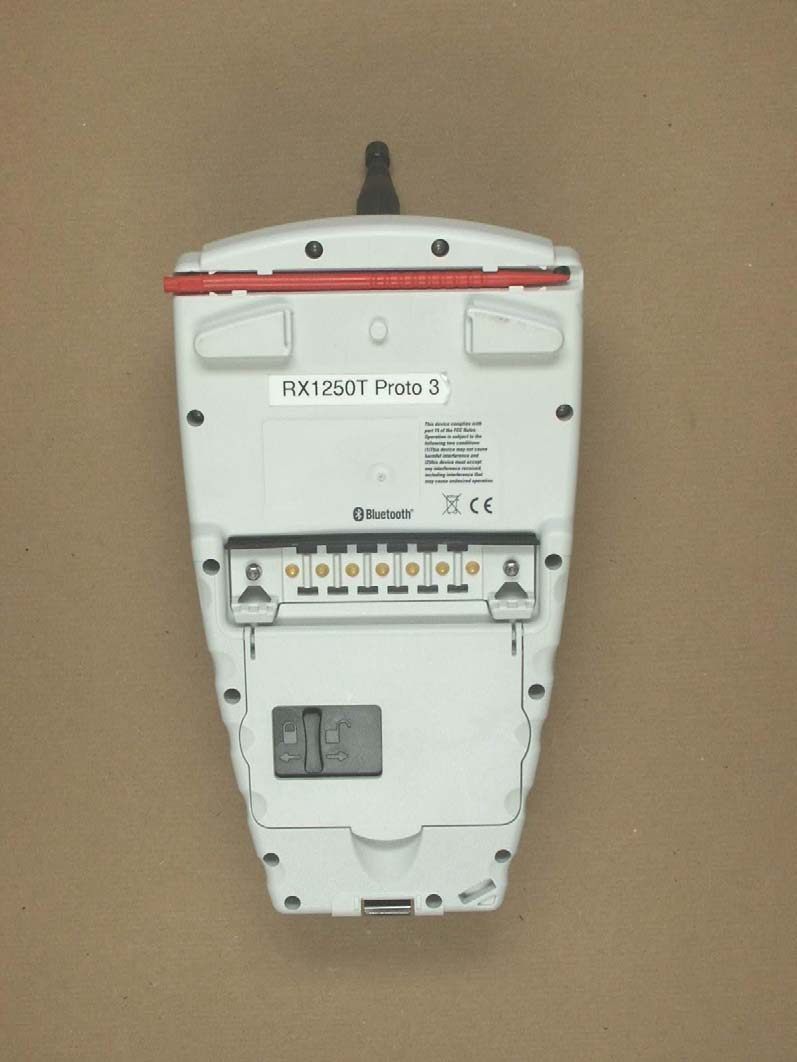

External Photos RX1250T Page 1/1 Leica Geosystems AG – [email protected] 12.07.2006 RX1250T_ExtPho.ppt

Label Label LocationRX1250T

Label Sample RX1250T

12.07.2006 Page 1/9 RX1250T_AntSpec.doc [email protected] Antenna Specification for RX1250T FCC-ID: RFD-RX-T Antenna for PANMOD Bluetooth Module FCC-ID: RFD-PANMOD1 LW T ab c Inches0.374 ± .0080.079 ± .0080.047 + .004/ -.0080.053 ± .008 0.043 ± .0040.010 ± .004 mm9.5 ± 0.2 2.0 ± 0.21.2 + 0.1/- 0.21.35 ± 0.21.1 ± 0.10.25 ± 0.1 Terminal Configuration 1INPUT 2NC Mechanical Dimensions “High Frequency Ceramic Solutions” 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 www.johanson technology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Input PowerImpedanceOperating Temperature RangeReel Qty 3 Watts max50 Ω-40 to +85°C1000 Part FrequencyPeak GainAve. GainReturn Number(MHz)(XZ-V)(XZ-V)Loss 2450AT45A100_2400 - 25003.0 dBi typ.1.0 dBi typ. 9.5 dB min. 2.45 GHz Chip AntennaP/N 2450AT45A100 Detail Specification Page 1 of 3 Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. Mounting Considerations Mount these devices with brown colored side facing up. Line width should be designed to provide 50Ωimpedance matching characteristics. a) Without Matching Circuit (moderate bandwidth)b) With Matching Circuit* (wide bandwidth) *Matching circuit and component values will depend on PCB layout. “High Frequency Ceramic Solutions” www.johanson technology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2.45 GHz Chip AntennaP/N 2450AT45A100 Detail Specification Page 2 of 3 Test Board for Electrical Characteristic Measurements Typical Return Loss for P/N 2450AT45A100 a) Without Matching Circuitb) With Matching Circuit “High Frequency Ceramic Solutions” www.johanson technology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2.45 GHz Chip AntennaP/N 2450AT45A100 Detail Specification Page 3 of 3 Typical Radiation Patterns for P/N 2450AT45A100 Antenna for Cirronet WIT2410 Module FCC-ID: HSW-2410G Valid as from: 18.06.02Valid until: 01.01.3000 Date:Tel./Init.:Revision:Revision:Name: Antenna Drawn:26.04.023563/SHPTrade Name: Released:18.06.023563/SHPOp.Nr.:Sheet: 1 of 6 Geosystems We reserve all rights in connection with this document (SN 210318) Dept. 135 A 4 DOC-CODE FKZ EDP-/MAT.-/PROJ N. 731642 INDEX ----- Nr. 1.E 471005 Nr. 2.E 632054 1. Dimensions, description Valid as from: 18.06.02Valid until: 01.01.3000 Date:Tel./Init.:Revision:Revision:Name: Antenna Drawn:26.04.023563/SHPTrade Name: Released:18.06.023563/SHPOp.Nr.:Sheet: 2 of 6 Geosystems We reserve all rights in connection with this document (SN 210318) Dept. 135 A 4 DOC-CODE FKZ EDP-/MAT.-/PROJ N. 731642 INDEX ----- Nr. 1.E 471005 Nr. 2.E 632054 2. Manufacturer’s specifications: Radiation Pattern in the Omi-directionnal cut Plane F = 2.45 GHz Radiation Pattern in the Dipolar cut Plane F = 2.45 GHz Valid as from: 18.06.02Valid until: 01.01.3000 Date:Tel./Init.:Revision:Revision:Name: Antenna Drawn:26.04.023563/SHPTrade Name: Released:18.06.023563/SHPOp.Nr.:Sheet: 3 of 6 Geosystems We reserve all rights in connection with this document (SN 210318) Dept. 135 A 4 DOC-CODE FKZ EDP-/MAT.-/PROJ N. 731642 INDEX ----- Nr. 1.E 471005 Nr. 2.E 632054 Electrical: Antenna TypeStraight dipole antenna for portable equipment FrequencyTo be specified within 2400-2485MHz ImpedanceNom. 50Ω PolarizationVertical Gain2 dBi VSWR2 max. Max. Power1 Watt Mechanical: Material (Top)HYTREL G3548 L black, UV resistant WeightApprox. 12 g ConnectorSMA-male gold plated

___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH RF Exposure Calculation Applicant: Leica Geosystems AG FCC ID: RFD-RX-T This final mobile device is a composite device with the modular transmitter (FCC ID: RFD-PANMOD1) and the modular transmitter (FCC ID: HSW-2410G). The equipment full fills the technical standards and rules of the rule part under which it operates. Additional measurements of the final device enable the co-location of the both modular approved transmitter for the application in a "RX1250T" (FCC ID: RFD-RX-T). integral Antenna requirement § 15.203). An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this section. The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. The Following calculation is the reference data for 20cm distance.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PARTS 15.247 IC RADIO STANDARDS RSS-210 Annex 8 FCC ID: RFD-RX-T Model Name: RX 1250T Test report no.: G0M20605-0496-P-15 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20605-0496-P-15 Page 1 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General test procedure 2.5 Test results 3 Transmitter parameters 3.1 RF power output conducted 3.2 RF power output radiated (EIRP) 3.3 20 dB bandwidth 3.4 Time of occupancy (dwell time) 3.5 Number of hopping frequencies 3.6 Carrier frequency separation 3.7 Spurious emission conducted 3.8 Spurious emission radiated 3.9 Band-edge compliance 3.10 AC power line conducted emission 4 Receiver parameters 4.1 Radiated emission APPENDIX ETS Dr. Genz GmbH, Germany Registration number: G0M20605-0496-P-15 Page 2 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 23.08.2006 M. Handrik Date ETS-Lab. Name Signature Technical responsibility for area of testing: 23.08.2006 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20605-0496-P-15 Page 3 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 A CCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY: REG. NO. 96970 INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED CERTIFICATE NUMBER: 1983-01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) 1.3 Details of approval holder Name : Leica Geosystems AG Street : Heinrich Wild Strasse 1 Town : CH-9435 Heerbrugg Country : Switzerland Telephone : +41 71 727 3894 Fax : +41 71 726 5894 Contact : Herr Gerhard Schwärzler E-Mail : +41 71 727 3894 ETS Dr. Genz GmbH, Germany Registration number: G0M20605-0496-P-15 Page 4 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 21.08.2006 Date of receipt of test item : 21.08.2006 Date of test : 20.08.2006 1.5 Test item Description of test item : Handheld Computer Type identification : RX 1250T Serial number : without Photos : See annex A. Technical data Frequency band : 2.4 - 2.4835 GHz Frequency Ch A : 2402 MHz Frequency Ch B : 2411 MHz Frequency Ch C : 2480 MHz Transmitter Vnom Vnom Power (ch A) : Conducted: -- dBm Radiated: 21.61 dBm Power (ch B) : Conducted: -- dBm Radiated: 22.60 dBm Power (ch C) : Conducted: -- dBm Radiated: 23.31 dBm Antenna Type : 2.45 GHz Chip Antenna (Bluetooth Module PANMOD) Antenna Gain : 3 dBi Antenna Type : Straight dipole antenna (Cirronet WIT2410G Module) Antenna Gain : 2 dBi Power supply : 7.4 V DC Operating mode : duplex Type of modulation : FHSS Host device : none ETS Dr. Genz GmbH, Germany Registration number: G0M20605-0496-P-15 Page 5 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Classification : Fixed Device Mobile Device (Human Body distance > 20 cm) Portable Device (Human Body distance < 20 cm) Manufacturer: (if applicable) Name : Leica Geosystems AG Street : Heinrich Wild Strasse 1 Town : CH-9435 Heerbrugg Country : Switzerland Additional information: The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronization procedure and other parameters are determined by Bluetooth Core Specification. The Handheld Computer RX 1250T was tested acc. a shorted plan in confirmation with the manufacturer. The model RX 1250T uses the prequalified Bluetooth module PANMOD of the company Leica and the Cirronet WIT2410 Module of the company Cirronet. They are both active at the same time and work simultaneously. ETS Dr. Genz GmbH, Germany Registration number: G0M20605-0496-P-15 Page 6 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard: FCC Parts: 15.247 IC Standards: RSS 210 Issue 6 Annex 8.1 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 ° C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa ETS Dr. Genz …

Text truncated - open the document above for the full version.

Carrier power (Field Strength) FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 74 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247 Comment 1:Dist.: 3m, Ant.: BBHA9120D Comment 2:Freq: 2.470GHz, Emax: 117.46dBμV/m, RBW: 100kHz 55.65 60.00 70.00 80.00 90.00 100.00 110.00 120.00 Level [dBμV/m] 2.395G2.41G2.42G2.43G2.44G2.45G2.46G2.47G2.488G Frequency [Hz] MES 8. FCC_15247_harm LIM FCC_Tx Page 1/1 22.08.2006 19:21 Overview / Antenna vertical Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 0 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247 Comment 1:Dist.: 3m, Ant.: HK 116 Comment 2:Freq: 119.940MHz, Emax: 32.99dBμV/m, RBW: 100kHz 20.46 30.00 40.00 50.00 60.00 70.00 80.00 90.00 100.00 Level [dBμV/m] 30M60M80M100M120M140M160M180M 200M Frequency [Hz] MES 1. FCC_15247 LIM FCC_restricted Page 1/1 23.08.2006 21:25 Overview / Antenna vertical Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 0 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247 Comment 1:Dist.: 3m, Ant.: HK 116 Comment 2:Freq: 183.307MHz, Emax: 32.67dBμV/m, RBW: 100kHz 20.1 30.0 40.0 50.0 60.0 70.0 80.0 90.0 100.0 Level [dBμV/m] 30M60M80M100M120M140M160M180M 200M Frequency [Hz] MES 1. FCC_15247 LIM FCC_restricted Page 1/1 23.08.2006 21:27 Overview / Antenna horizontal Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 0 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247 Comment 1:Dist.: 3m, Ant.: HL 223, amplif. Comment 2:Freq: 648.898MHz, Emax: 36.83dBμV/m, RBW: 100kHz 9.11 20.00 30.00 40.00 50.00 60.00 70.00 80.00 90.00 100.00 Level [dBμV/m] 200M 300M400M500M600M700M800M900M1G Frequency [Hz] MES 2. FCC_15247 LIM FCC_restricted Page 1/1 23.08.2006 20:40 Overview / Antenna vertical Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 0 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247 Comment 1:Dist.: 3m, Ant.: HL 223, amplif. Comment 2:Freq: 560.721MHz, Emax: 34.15dBμV/m, RBW: 100kHz 9.61 20.00 30.00 40.00 50.00 60.00 70.00 80.00 90.00 100.00 Level [dBμV/m] 200M 300M400M500M600M700M800M900M1G Frequency [Hz] MES 2. FCC_15247 LIM FCC_restricted Page 1/1 23.08.2006 20:44 Overview / Antenna horizontal Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 0 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247, peak detector Comment 1:Dist.: 3m, Ant.: BBHA9120D, amplif. Comment 2:Freq: 2.397GHz, Emax: 59.92dBμV/m, RBW: 1MHz 31.49 40.00 50.00 60.00 70.00 80.00 90.00 100.00 Level [dBμV/m] 1G1.5G2G2.5G3G3.5G4G Frequency [Hz] MES 3. FCC_15247 LIM FCC_restricted Page 1/1 22.08.2006 19:58 Overview / Antenna vertical Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 0 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247, average detector Comment 1:Dist.: 3m, Ant.: BBHA9120D, amplif. Comment 2:Freq: 3.602GHz, Emax: 31.16dBμV/m, RBW: 1MHz 19.7 30.0 40.0 50.0 60.0 70.0 80.0 90.0 100.0 Level [dBμV/m] 1G1.5G2G2.5G3G3.5G4G Frequency [Hz] MES 14. FCC_15247_av LIM FCC_restricted Page 1/1 22.08.2006 20:03 Overview / Antenna vertical Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 0 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247, peak detector Comment 1:Dist.: 3m, Ant.: BBHA9120D, amplif. Comment 2:Freq: 2.397GHz, Emax: 50.78dBμV/m, RBW: 1MHz 31.18 40.00 50.00 60.00 70.00 80.00 90.00 100.00 Level [dBμV/m] 1G1.5G2G2.5G3G3.5G4G Frequency [Hz] MES 3. FCC_15247 LIM FCC_restricted Page 1/1 22.08.2006 20:26 Overview / Antenna horizontal Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 0 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247, peak detector Comment 1:Dist.: 3m, Ant.: BBHA9120D, ampl.+HP. Comment 2:Freq: 4.922GHz, Emax: 49.30dBμV/m, RBW: 1MHz 25.47 30.00 40.00 50.00 60.00 70.00 80.00 90.00 100.00 Level [dBμV/m] 4G5G6G7G8G Frequency [Hz] MES 4. FCC_15247 LIM FCC_restricted Page 1/1 22.08.2006 20:38 Overview / Antenna vertical Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 0 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247, peak detector Comment 1:Dist.: 3m, Ant.: BBHA9120D, ampl.+HP. Comment 2:Freq: 7.206GHz, Emax: 49.34dBμV/m, RBW: 1MHz 25.05 30.00 40.00 50.00 60.00 70.00 80.00 90.00 100.00 Level [dBμV/m] 4G5G6G7G8G Frequency [Hz] MES 4. FCC_15247 LIM FCC_restricted Page 1/1 22.08.2006 20:29 Overview / Antenna horizontal Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 0 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) T…

Text truncated - open the document above for the full version.

Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 37 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247, average detector Comment 1:Dist.: 3m, Ant.: BBHA9120D, ampl.+HP. Comment 2:Freq: 7.311GHz, Emax: 33.82dBμV/m, RBW: 1MHz 15.27 30.00 40.00 50.00 60.00 70.00 80.00 90.00 100.00 Level [dBμV/m] 4G5G6G7G8G Frequency [Hz] MES 15. FCC_15247_av LIM FCC_restricted Page 1/1 22.08.2006 21:00 Overview / Antenna vertical Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 37 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247, peak detector Comment 1:Dist.: 3m, Ant.: BBHA9120D, ampl.+HP. Comment 2:Freq: 7.311GHz, Emax: 50.00dBμV/m, RBW: 1MHz 26.38 40.00 50.00 60.00 70.00 80.00 90.00 100.00 Level [dBμV/m] 4G5G6G7G8G Frequency [Hz] MES 4. FCC_15247 LIM FCC_restricted Page 1/1 22.08.2006 21:31 Overview / Antenna horizontal Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 37 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247, peak detector Comment 1:Dist.: 3m, Ant.: BBHA9120D, ampl.+HP. Comment 2:Freq: 11.006GHz, Emax: 41.87dBμV/m, RBW: 1MHz 32.97 40.00 50.00 60.00 70.00 80.00 90.00 100.00 Level [dBμV/m] 8G9G10G11G12G Frequency [Hz] MES 5. FCC_15247 LIM FCC_restricted Page 1/1 22.08.2006 21:02 Overview / Antenna vertical Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 37 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247, peak detector Comment 1:Dist.: 3m, Ant.: BBHA9120D, ampl.+HP. Comment 2:Freq: 10.974GHz, Emax: 42.34dBμV/m, RBW: 1MHz 33.13 40.00 50.00 60.00 70.00 80.00 90.00 100.00 Level [dBμV/m] 8G9G10G11G12G Frequency [Hz] MES 5. FCC_15247 LIM FCC_restricted Page 1/1 22.08.2006 21:33 Overview / Antenna horizontal Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 37 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247, peak detector Comment 1:Dist.: 3m, Ant.: BBHA9120D, ampl.+HP. Comment 2:Freq: 12.170GHz, Emax: 54.41dBμV/m, RBW: 1MHz 35.65 40.00 50.00 60.00 70.00 80.00 90.00 100.00 Level [dBμV/m] 12G13G14G15G16G17G Frequency [Hz] MES 6. FCC_15247 LIM FCC_restricted Page 1/1 22.08.2006 21:04 Overview / Antenna vertical Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 37 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247, average detector Comment 1:Dist.: 3m, Ant.: BBHA9120D, ampl.+HP. Comment 2:Freq: 12.170GHz, Emax: 33.38dBμV/m, RBW: 1MHz 25.64 30.00 40.00 50.00 60.00 70.00 80.00 90.00 100.00 Level [dBμV/m] 12G13G14G15G16G17G Frequency [Hz] MES 17. FCC_15247_av LIM FCC_restricted Page 1/1 22.08.2006 21:11 Overview / Antenna vertical Spurious emissions Field Strength FCC RULES PART 15, SUBPART C Approval Holder:Leica Geosystem AG EUT:Handheld Computer Model:RX1250T / Ch.: 37 Test Site / Operator:ETS / Mr. Handrik Test Condition:25°C / Unom: 7.4 V DC (battery) Test Specification:according to §15.247, peak detector Comment 1:Dist.: 3m, Ant.: BBHA9120D, ampl.+HP. Comment 2:Freq: 13.774GHz, Emax: 44.42dBμV/m, RBW: 1MHz 36.13 40.00 50.00 60.00 70.00 80.00 90.00 1…
