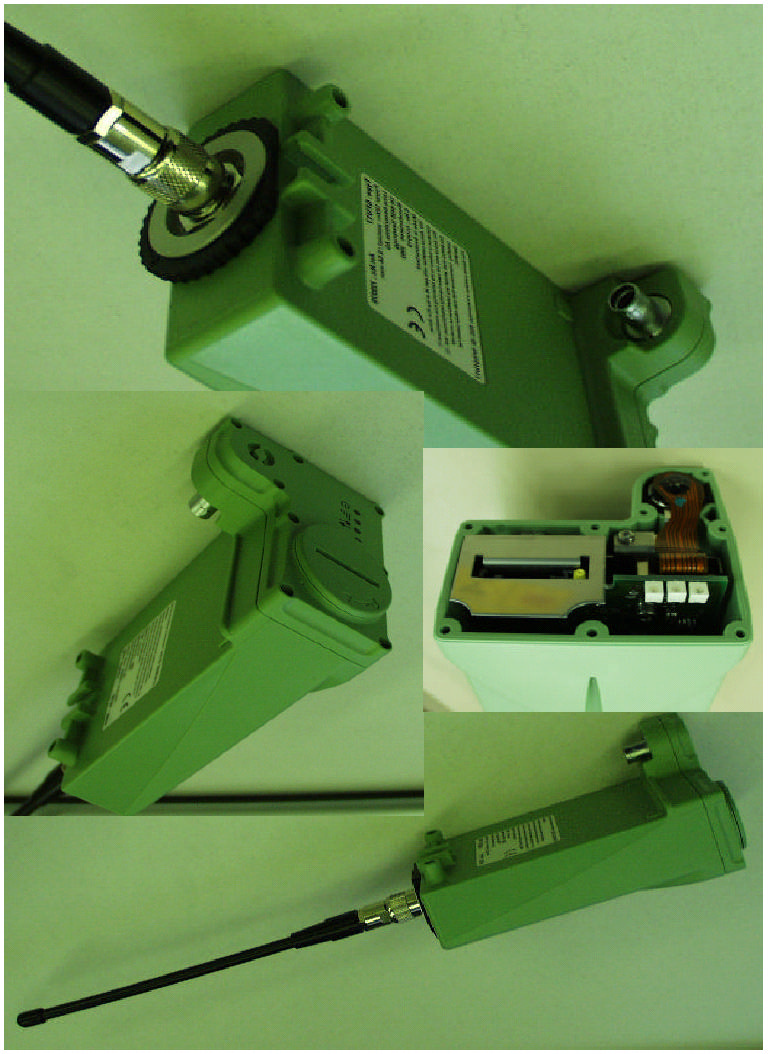

RFDGFU17GSM Communication Device for Mobile Applications

GPS1200 Professional Series User Manual Version 1.0 English IGPS1200 Introduction Introduction PurchaseCongratulations on the purchase of a GPS1200 Professional Series instrument. This manual contains important safety directions as well as instructions for setting up the product and operating it. Refer to "7 Safety Directions" for further information. Read carefully through the User Manual before you switch on the product. Product identifica- tion The model and the serial number of your product are indicated on the type plate. Enter the model and serial number in your manual and always refer to this informa- tion when you need to contact your agency or Leica Geosystems authorized service workshop. Type:_______________ Serial No.:_______________ Software-Version:_______________ IntroductionGPS1200II SymbolsThe symbols used in this manual have the following meanings: Trademarks•Windows (registered trademark of Microsoft Corporation) •Bluetooth (registered trademark of Bluetooth SIG, Inc.) All other trademarks are the property of their respective owners. TypeDescription
DangerIndicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WarningIndicates a potentially hazardous situation or an unintended use which, if not avoided, could result in death or serious injury.
CautionIndicates a potentially hazardous situation or an unintended use which, if not avoided, may result in minor or moderate injury and/or appreciable material, financial and environmental damage. ) Important paragraphs which must be adhered to in practice as they enable the product to be used in a technically correct and efficient manner. IIIGPS1200 Table of Contents Table of Contents In this manualChapterPage 1How to Use this Manual1-1 2Description of the System2-1 3User Interface3-1 4Operation4-1 5Reference Station5-1 6Care and Transport6-1 7Safety Directions7-1 8Technical Data8-1 Table of ContentsGPS1200IV 1-1GPS1200 How to Use this Manual 1 How to Use this Manual ) It is recommended to set-up the product while reading through this manual. PathMain Menu: Manage...\Data stands for this working sequence: From the Main Menu select Manage... and then select Data. ScreenCONFIGURE General Menu describes the name of the screen. PageScreens can have more than one page. Units page describes a specific page of a screen. For example: ’...in CONFIGURE Units & Formats, Units page...’. Fields and optionsFields displayed on the screen are described as <Coord System:> or <Coord System: Swiss>, if ’Swiss’ is the selected coordinate system. IndexThe index is at the back of the manual. ) Keys, fields and options on the screens which are considered as self-explanatory are not explained. Validity of this manual •This manual applies to all GPS1200 instruments. Differences between the various models are marked and described. How to Use this ManualGPS12001-2 •The RX1200 is available as RX1210 or RX1220 and with touch screen function- ality as RX1210T or RX1220T. The names RX1210 and RX1220 are used throughout the manual and may also represent the T models. Only use the supplied stylus on the touch screens of the T models. IllustrationsFor the purpose of the illustrations, a GX1230 model has been selected which is representative for all models. Available docu- mentation Name of docu- mentation Description GPS1200 User Manual All instructions required in order to operate the instrument to a basic level are contained in this User Manual. Provides an overview of the system together with technical data and safety directions. Name of docu- mentation Description GPS1200 System Field Manual Describes the general working of the system in standard use. Intended as a quick reference field guide. 1-3GPS1200 How to Use this Manual Format of the docu- mentation The GPS1200 CD contains the entire documentation in electronic format. All manuals are also available in printed form except for the GPS1200 Technical Refer- ence Manual. GPS1200 Applica- tion Programs Field Manual Describes specific onboard application programs in standard use. Intended as a quick reference field guide. GPS1200 Tech- nical Reference Manual Overall comprehensive guide to the system and program func- tions. Included are detailed descriptions of special soft- ware/hardware settings and software/hardware functions intended for technical specialists. Name of docu- mentation Description How to Use this ManualGPS12001-4 2-1GPS1200 Description of the System 2 Description of the System In this chapterTopicPage 2.1System Components2-2 2.2Container Contents2-5 2.3Receiver Components2-8 2.4System Concept2-9 Description of the SystemGPS12002-2 2.1System Components Main components Receivers Receiver:To calculate a range to all visible satellites. RX1200:To operate the user interface either by the keyboard or by the touch screen with supplied stylus. Antenna:To receive the satellite signals from the NAVSTAR satellites. Leica Geo Office:The office software including a series of help programs which support working with GPS1200. Leica GPS Spider:The reference station software required to operate the reference station receivers of GPS1200. GX1230:Twelve L1, twelve L2 channels, code and phase, real-time capable GX1220:Twelve L1, twelve L2 channels, code and phase GX1210:Twelve L1 channels, code and phase GX1200 PPS with PPS/Event option Twelve L1, twelve L2 channels, code and phase, real-time capable, with event and PPS ports GRX1200Twelve L1, twelve L2 channels, code and phase, real-time capable, for reference station applica- tions 2-3GPS1200 Description of the System Refer to "8 Technical Data" for information on technical specifications. ) The GX1230, GX1220, GX1200 PPS with PPS/Event option, GRX1200 and GRX1200 Pro receivers use the GPS P-code signal, which by U.S. policy is liable to be switched off without notice. Phase measurements on L2 are ensured as these receivers automatically switch to patented tracking techniques. Antennas used with rec…

Text truncated - open the document above for the full version.

Page 1 / 5 040117QM.doc Technical Report - FCC-ID: RFDGFU17 No 040117QM From Gerhard Schwärzler Date December 01, 2003 To Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, PA 15262-0001 Copy to --- Subject Application for Equipment Authorization for GFU17 1) Description Application is submitted for certification of GFU17, a GSM module for data transmission in a GPS surveying application named GPS1200 (please refer to the GPS1200 User Manual for detailed information). 2) Block Diagram Core piece of the GFU17 is the FCC certified Siemens MC45 module (FCC-ID: QIPMC45), which is mounted on an interface board. The Interface board ensures the adaptation between the Siemens MC45 module and the GPS1200 system, with respect to power supply and interface communication. Our application does not affect or alter the original characteristics of the Siemens MC45 module. 3) Schematic Diagram of Interface Board Please see the attached files “Schematic Diagram Interfaceboard 737383 1” and “Schematic Diagram Interfaceboard 737383 2”. Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg (Switzerland) www.leica-geosystems.com Page 2 / 5 040117QM.doc 4) Technical Specification and Details The GFU17 housing adapts the Siemens MC45 module mechanically to the GPS1200 surveying system application and serves as protection against environmental influences. The external antenna is a zero dBi type and does not amplify the standard signal of the Siemens MC45 module. Please see attached file “Antenna_800&1900” for details. All data listed in this application, such as RF emission, frequency range, output power, emission designation, are based on the Siemens MC45 module (FCC-ID: QIPMC45). According to this conclusion, our application information is basically focused on the other portions of the GFU17, such as interface board, labeling, housing and antenna. Further we have included an EMC emission report, which also shows the Radiofrequency Radiation Exposure Evaluation calculation. 5) Labeling Page 3 / 5 040117QM.doc 6) Pictures External Pictures: GFU17 Page 4 / 5 040117QM.doc Internal Pictures: Interfaceboard - three different views Page 5 / 5 040117QM.doc 7) EMC Emission of GFU17 The attached file “EMV2003 Datalink 01” shows the EMC emission of the GPS1200 system for the separate utilization of the three data transmission modules: - GFU14 (no FCC approval filed) - GFU17 (filed for FCC approval under RFDGFU17) - GFU18 (filed for FCC approval under RFDGFU18) 8) RF Radiation Exposure Evaluation Calculation of GFU17 The separation distance between body and antenna in our GPS1200 application is at least 20cm (typically >30cm). Therefore our consideration of RF exposure for the GFU17 is fully based on the attached report “Prediction of MPE limit at given distance”, which was originally filed by Siemens AG under FCC-ID “QIPMC45”, and the fact that we are using a zero dBi antenna.

Page 1 / 5 040117QM.doc Technical Report - FCC-ID: RFDGFU17 No 040117QM From Gerhard Schwärzler Date December 01, 2003 To Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, PA 15262-0001 Copy to --- Subject Application for Equipment Authorization for GFU17 1) Description Application is submitted for certification of GFU17, a GSM module for data transmission in a GPS surveying application named GPS1200 (please refer to the GPS1200 User Manual for detailed information). 2) Block Diagram Core piece of the GFU17 is the FCC certified Siemens MC45 module (FCC-ID: QIPMC45), which is mounted on an interface board. The Interface board ensures the adaptation between the Siemens MC45 module and the GPS1200 system, with respect to power supply and interface communication. Our application does not affect or alter the original characteristics of the Siemens MC45 module. 3) Schematic Diagram of Interface Board Please see the attached files “Schematic Diagram Interfaceboard 737383 1” and “Schematic Diagram Interfaceboard 737383 2”. Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg (Switzerland) www.leica-geosystems.com Page 2 / 5 040117QM.doc 4) Technical Specification and Details The GFU17 housing adapts the Siemens MC45 module mechanically to the GPS1200 surveying system application and serves as protection against environmental influences. The external antenna is a zero dBi type and does not amplify the standard signal of the Siemens MC45 module. Please see attached file “Antenna_800&1900” for details. All data listed in this application, such as RF emission, frequency range, output power, emission designation, are based on the Siemens MC45 module (FCC-ID: QIPMC45). According to this conclusion, our application information is basically focused on the other portions of the GFU17, such as interface board, labeling, housing and antenna. Further we have included an EMC emission report, which also shows the Radiofrequency Radiation Exposure Evaluation calculation. 5) Labeling Page 3 / 5 040117QM.doc 6) Pictures External Pictures: GFU17 Page 4 / 5 040117QM.doc Internal Pictures: Interfaceboard - three different views Page 5 / 5 040117QM.doc 7) EMC Emission of GFU17 The attached file “EMV2003 Datalink 01” shows the EMC emission of the GPS1200 system for the separate utilization of the three data transmission modules: - GFU14 (no FCC approval filed) - GFU17 (filed for FCC approval under RFDGFU17) - GFU18 (filed for FCC approval under RFDGFU18) 8) RF Radiation Exposure Evaluation Calculation of GFU17 The separation distance between body and antenna in our GPS1200 application is at least 20cm (typically >30cm). Therefore our consideration of RF exposure for the GFU17 is fully based on the attached report “Prediction of MPE limit at given distance”, which was originally filed by Siemens AG under FCC-ID “QIPMC45”, and the fact that we are using a zero dBi antenna.

Page 1 / 5 040117QM.doc Technical Report - FCC-ID: RFDGFU17 No 040117QM From Gerhard Schwärzler Date December 01, 2003 To Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, PA 15262-0001 Copy to --- Subject Application for Equipment Authorization for GFU17 1) Description Application is submitted for certification of GFU17, a GSM module for data transmission in a GPS surveying application named GPS1200 (please refer to the GPS1200 User Manual for detailed information). 2) Block Diagram Core piece of the GFU17 is the FCC certified Siemens MC45 module (FCC-ID: QIPMC45), which is mounted on an interface board. The Interface board ensures the adaptation between the Siemens MC45 module and the GPS1200 system, with respect to power supply and interface communication. Our application does not affect or alter the original characteristics of the Siemens MC45 module. 3) Schematic Diagram of Interface Board Please see the attached files “Schematic Diagram Interfaceboard 737383 1” and “Schematic Diagram Interfaceboard 737383 2”. Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg (Switzerland) www.leica-geosystems.com Page 2 / 5 040117QM.doc 4) Technical Specification and Details The GFU17 housing adapts the Siemens MC45 module mechanically to the GPS1200 surveying system application and serves as protection against environmental influences. The external antenna is a zero dBi type and does not amplify the standard signal of the Siemens MC45 module. Please see attached file “Antenna_800&1900” for details. All data listed in this application, such as RF emission, frequency range, output power, emission designation, are based on the Siemens MC45 module (FCC-ID: QIPMC45). According to this conclusion, our application information is basically focused on the other portions of the GFU17, such as interface board, labeling, housing and antenna. Further we have included an EMC emission report, which also shows the Radiofrequency Radiation Exposure Evaluation calculation. 5) Labeling Page 3 / 5 040117QM.doc 6) Pictures External Pictures: GFU17 Page 4 / 5 040117QM.doc Internal Pictures: Interfaceboard - three different views Page 5 / 5 040117QM.doc 7) EMC Emission of GFU17 The attached file “EMV2003 Datalink 01” shows the EMC emission of the GPS1200 system for the separate utilization of the three data transmission modules: - GFU14 (no FCC approval filed) - GFU17 (filed for FCC approval under RFDGFU17) - GFU18 (filed for FCC approval under RFDGFU18) 8) RF Radiation Exposure Evaluation Calculation of GFU17 The separation distance between body and antenna in our GPS1200 application is at least 20cm (typically >30cm). Therefore our consideration of RF exposure for the GFU17 is fully based on the attached report “Prediction of MPE limit at given distance”, which was originally filed by Siemens AG under FCC-ID “QIPMC45”, and the fact that we are using a zero dBi antenna.

Page 1 / 5 040117QM.doc Technical Report - FCC-ID: RFDGFU17 No 040117QM From Gerhard Schwärzler Date December 01, 2003 To Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, PA 15262-0001 Copy to --- Subject Application for Equipment Authorization for GFU17 1) Description Application is submitted for certification of GFU17, a GSM module for data transmission in a GPS surveying application named GPS1200 (please refer to the GPS1200 User Manual for detailed information). 2) Block Diagram Core piece of the GFU17 is the FCC certified Siemens MC45 module (FCC-ID: QIPMC45), which is mounted on an interface board. The Interface board ensures the adaptation between the Siemens MC45 module and the GPS1200 system, with respect to power supply and interface communication. Our application does not affect or alter the original characteristics of the Siemens MC45 module. 3) Schematic Diagram of Interface Board Please see the attached files “Schematic Diagram Interfaceboard 737383 1” and “Schematic Diagram Interfaceboard 737383 2”. Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg (Switzerland) www.leica-geosystems.com Page 2 / 5 040117QM.doc 4) Technical Specification and Details The GFU17 housing adapts the Siemens MC45 module mechanically to the GPS1200 surveying system application and serves as protection against environmental influences. The external antenna is a zero dBi type and does not amplify the standard signal of the Siemens MC45 module. Please see attached file “Antenna_800&1900” for details. All data listed in this application, such as RF emission, frequency range, output power, emission designation, are based on the Siemens MC45 module (FCC-ID: QIPMC45). According to this conclusion, our application information is basically focused on the other portions of the GFU17, such as interface board, labeling, housing and antenna. Further we have included an EMC emission report, which also shows the Radiofrequency Radiation Exposure Evaluation calculation. 5) Labeling Page 3 / 5 040117QM.doc 6) Pictures External Pictures: GFU17 Page 4 / 5 040117QM.doc Internal Pictures: Interfaceboard - three different views Page 5 / 5 040117QM.doc 7) EMC Emission of GFU17 The attached file “EMV2003 Datalink 01” shows the EMC emission of the GPS1200 system for the separate utilization of the three data transmission modules: - GFU14 (no FCC approval filed) - GFU17 (filed for FCC approval under RFDGFU17) - GFU18 (filed for FCC approval under RFDGFU18) 8) RF Radiation Exposure Evaluation Calculation of GFU17 The separation distance between body and antenna in our GPS1200 application is at least 20cm (typically >30cm). Therefore our consideration of RF exposure for the GFU17 is fully based on the attached report “Prediction of MPE limit at given distance”, which was originally filed by Siemens AG under FCC-ID “QIPMC45”, and the fact that we are using a zero dBi antenna.

- - Test protocol: - File: Antenna_800&1900 Date: Tel. / Init.: Revision: Revision: Name: Antenna for US mobile network (800/1900) Drawn:: 10.09.03 4075-LENM - - - - Trade name: GAT 5 Released: 27.11.03 4075-LENM- - - - - Op.No.: - Page: 1 of 1 We reserve all rights in connection with this docu- ment (SN 210318) Dept. 111 A 4 DOC-CODE FKZ EDV-/ART.-/PROJECT NO. 734756 INDEX - Nr. 1.E 471005 Nr. 2.E 329601 1 INTRODUCTION 1.1 FIGURE 1.2 SHORT DISCRIPTION The GAT 5 is a dualband antenna for the standard frequencies in the US mobile networks. The antenna is suited for the GSM1900 standard and the TDMA800/1900 standard. The use is in combination with the Data- link moduls GFU17 & GFU18, which are used with the GPS System 1200. 2 TECHNICAL SPECIFICATION Parameter Value Low Band: 824 – 894MHz Frequency High Band: 1850 – 1990MHz Antenna connector TNC female Impedance 50 Ohm Gain 0dBi Max. Power 5 Watt Length aprox. 190mm 3 MANUFACTURER (DISTRIBUTOR) VIMCOM AG Dorfstrasse 55 CH-8103 Unterengstringen Tel.: 0041 1 7517700 Fax.:0041 1 7517710

Application QIPMC45 Dipl.-Ing. Karin Silberhorn CETECOM GmbH, Essen, Germany Prediction of MPE limit at given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 2 4R PG S π = where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna The table below is excerpted from Table 1B of 47 CFR 1.1310 titled Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure: Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 – 1500 f/1500 30 1500 – 100.000 1.0 30 where f = frequency in MHz Prediction Antenna Type: 0dBi Antenna / 3dBi Antenna / 6 dBi Antenna / 7 dBi Antenna Maximum peak output power at antenna input terminal: 29.7 dBm Maximum peak output power at antenna input terminal: 933,254 mW Antenna gain(typical): 0 dBi Maximum antenna gain: 1 numeric Prediction distance: 20 cm Prediction frequency: 1880 MHz MPE limit for uncontrolled exposure at prediction frequency: 1 2 cm mW Power density at prediction frequency: with Antenna Gain of 0dBi 0,1857 2 cm mW Power density at prediction frequency: with Antenna Gain of 3dBi 0,3713 2 cm mW Power density at prediction frequency: with Antenna Gain of 6dBi 0,7427 2 cm mW Power density at prediction frequency: with Antenna Gain of 7dBi 0,9305 2 cm mW Maximum allowable antenna gain: 7,3137 dBi This predictions demonstrate the following: 1) The power density levels at a distance of 20 cm with typical antennas of 0-7dBi are below the maximum levels allowed by the FCC regulations. 2) The antenna gain where 1 2 cm mW would be reached at 20 cm distance, is G= 7,3137dBi

Page 1 / 1 GFU17_RF_Exposure Memo No GFU17_RF_Exposure From Markus Lengweiler Date February 4, 2004 To Federal Communications Commission Copy to Subject GFU17 (FCC-ID: RFDGFU17) - Evaluation of RF Exposure Prediction of MPE limit at given distance: S = power density P = power input to the antenna Equation: S = P*G / 4πR 2 G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna The table below is excerpted from Table 1B of 47 CFR 1.1310 titled Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure: Frequency Range(MHz) Power Density (mW/cm^2) Averageing Time (minutes) 300 - 1500 f/1500 30 1500 - 100000 1 30 1900MHz GSM Maximum peak output power at antenna input terminal: 29.7 dBm Maximum peak output power at antenna input terminal: 933.3 mW Antenna gain (typical): 0 dBi Prediction distance: 20 cm Prediction frequency: 1880 MHz Power density at prediction frequency: 0.1857 mW/cm^2 MPE limit for uncontrolled exposure at prediction frequency: 1 mW/cm^2 Conclusion: The power density levels at a distance of 20cm with the supported antenna (0dBi) are below the maximum levels allowed by the FCC regulations. Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg (Switzerland) www.leica-geosystems.com

Page 1 / 10 EMV2003 Datalink 01.doc Memo No EMV2003 Datalink 01 From Hans-Peter Schaer Date 2003-12-01 To G. Schwaerzler - 3894, A. Jaeger - 3512 Copy to H. Zudrell - 3560 Subject Electromagnetic Compatibility Datalink for GPS System 1200: Leica Geosystems GFU14 (Satelline 3AS radio modem) Leica Geosystems GFU17 (Siemens MC45 mobile phone) Leica Geosystems GFU18 (Sony / Ericsson DM25 TDMA) 1 EMC Measurements with 3 Datalink Modules for GPS System 1200: 1.1 Emission Standard: EN55022 Class B: 2000 1.1.1 Date, Lab and present Persons: Date: 2003-11-28 Lab: montena emc sa at Fribourg (CH) Present Persons: montena emc sa J. Ding Leica Geosystems AG H.-P. Schär / 3563 1.1.2 Test Equipment: Radiated electromagnetic field 30 - 1000 MHz Test site: ® anechoic chamber (foam) o open test site ̋ anechoic chamber (ferrites) o ............................................. Distance: o 30 m ̋ 10 m o 3 m o ......................... Position of EUT: 0.8 m (height of the equipment under test above floor) Test precision: ± 6 dB (30 - 300 MHz) / ± 5.4 dB (300 - 1000 MHz) Test method: The electromagnetic disturbance radiated by the equipment is measured from 30 to 1000 MHz using a spectrum analyser and a wide band antenna. The antenna is moved from 1 to 4 m in height successively with horizontal and vertical polarisations. The turning table is operated through 360° during the measurements. The recordings are carried out taking into account the maximum value of all the disturbance appearing while the apparatus is under test. The peak values are recorded continuously on the graph. The values exceeding the limits are remeasured manually giving quasi-peak values and average values using a receiver and these measurements are indicated under the graph. The limit must be respected in quasi- peak values (QP). Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg (Switzerland) www.leica-geosystems.com Page 2 / 10 EMV2003 Datalink 01.doc ̋ Spectrum analyser o 88-14 ® 90-26 ̋ 03-45 ̋ Receiver o 85-04 o 90-43 ̋ 94-35 ̋ Preamplifier o 88-05 ® 90-01 ̋ 90-42 o 95-86 o Antenna (biconical) o 82-02 o 87-05 o 87-16 o 91-05 o 94-37 o Antenna (log-per) o 88-20 o 90-30 o 91-35 o 94-64 ̋ Antenna (bilog) ̋ 94-03 o .............. o Antenna (horn) o 90-24 o 90-29 o 98-12 o 98-13 o .............. o ............................... ....................................................................................... 1.1.3 Product (EUT): GPS Sensor GX1230 S/N 450004 Terminal RX1210T S/N 100002 GPS Antenna AT502 Satelline 3AS Datalink Module modem, 433.525 MHz Leica Geosystems Type: GFU14 Siemens MC45 mobile phone, Leica Geosystems Type: GFU17 Sony / Ericsson DM25 TDMA, Leica Geosystems Type: GFU18 1.1.3.1 Configuration: GPS System on Leica Geosystems tripode Sensor GX1230 with 2 internal Batteries, External Battery GEB171 with cable to Sensor GPS Antenna AT502 with HF Cable connected to Sensor 3 different Datalink Modules clipped directly to the Sensor GX1230 1.1.3.2 Function: Rover Tracking (Sensor tracks GPS Satellites) each Datalink Module in receiving mode Page 3 / 10 EMV2003 Datalink 01.doc 1.1.4 Test Setup: System on rotating Table 1.1.5 Modification: no modifications 1.1.6 Test Results: Pass Page 4 / 10 EMV2003 Datalink 01.doc 1.1.6.1 Rotated Emission GFU14 Page 5 / 10 EMV2003 Datalink 01.doc Page 6 / 10 EMV2003 Datalink 01.doc 1.1.6.2 Rotated Emission GFU17 Page 7 / 10 EMV2003 Datalink 01.doc Page 8 / 10 EMV2003 Datalink 01.doc 1.1.6.3 Rotated Emission GFU18 Page 9 / 10 EMV2003 Datalink 01.doc Page 10 / 10 EMV2003 Datalink 01.doc 2 Summary: According to the measurements the Datalink Modules comply with following Standards: 2.1 Emission: 2.1.1 EN55022 Class B: 1998 +A1: 2000: Pass 3 FCC Compliance: The Test Lab „montena emc“ is FCC listed, so the measurements are also accepted for FCC compliance (FCC Part 15 Class B: 2000). www.emc.montena.com The Testlab “montena emc sa” is a national accredited Testlab (Accr. No.: SCS086). The Testlab is accredited by Swiss Accreditation Service. Released by H.-P. Schär - 3563 2003-12-01

Note: The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory Applicant:Siemens AG CETECOM - Certification and Testing in Communications GmbH Im Teelbruch 122 D-45219 Essen Germany Telephone: + 49 (0) 20 54 / 95 19 0 Fax: + 49 (0) 2054 / 95 19 20 T E S T R E P O R T No.: 2-20542043b/02 for GPRS/GSM 900/1800/1900 Module MC 45 + DSB 45 + Votronic Handset FCC ID: QIPMC45 TTI-P-G081/94 FCC Registration No. 99538 Test Report 2-20542043b/02, Page 2 of 65 20542043b_02.doc Table of contents 1. SUMMARY OF TEST RESULTS3 2. ADMINISTRATIVE DATA4 2.1. I DENTIFICATION OF THE TESTING LABORATORY 4 2.2. T EST LOCATION 4 2.3. O RGANIZATIONAL ITEMS 4 2.4. A PPLICANT ́ S DETAILS 4 2.5. M ANUFACTURER ́ S DETAILS 4 3. EQUIPMENT UNDER TEST (EUT)5 3.1. EUT: T YPE , S/N ETC . AND SHORT DESCRIPTIONS USED IN THIS TEST REPORT 5 3.2. A UXILIARY E QUIPMENT (AE): T YPE , S/N ETC . AND SHORT DESCRIPTIONS 5 3.3. EUT SET - UPS 6 3.4. EUT OPERATING MODES 6 4. TEST SET-UPS7 4.1. T EST S ET - UP 1 FOR C ONDUCTED MEASUREMENTS 7 4.2. T EST S ET - UP 2 FOR R ADIATED MEASUREMENTS 8 4.3. P ARAMETER SETTINGS ON MOBILE PHONE AND CMU9 5. MEASUREMENTS10 5.1. C ALIBRATION OF ANECHOIC CHAMBER 10 5.2. RF POWER OUTPUT § 2.1046 CONDUCTED 11 5.3. RF POWER OUTPUT § 2.1046 RADIATED 12 5.4. O CCUPIED BANDWIDTH § 2.104913 5.5. S PURIOUS EMISSIONS AT ANTENNA TERMINALS § 2.105117 5.6. F IELD STRENGTH OF SPURIOUS RADIATION § 2.105326 5.7. F REQUENCY STABILITY / TEMPERATURE VARIATION § 2.105550 6. INSTRUMENTS AND ANCILLARY EQUIPMENT „CTC“53 6.1. S INGLE INSTRUMENTS 53 6.2. T EST SYSTEMS 55 7. PHOTOGRAPHS56 7.1. E XTERNAL PHOTOS OF EUT56 7.2. I NTERNAL PHOTOS OF EUT57 7.3. P HOTOS OF TEST SET - UP 59 Test Report 2-20542043b/02, Page 4 of 65 20542043b_02.doc 2. Administrative Data 2.1. Identification of the testing laboratory Company name:CETECOM Certification and Testing in Communications GmbH Address:Im Teelbruch 122 D-45219 Essen - Kettwig Germany Laboratory accreditation:DAR-Registration No.: TTI-P-G081/94 FCC- Registration No.: 99538 Responsible for testing laboratory:Dipl.-Ing. W. Richter Deputies:Dieter Franke Dipl.-Ing. Karin Silberhorn Dipl.-Ing. Heiko Strehlow 2.2. Test location 2.2.1. Test laboratory “CTC” Company name:see chapter 2.1. Identification of the testing laboratory 2.3. Organizational items Reference No.:20542043 Order No.:-- Responsible for test report and project leader:Dipl.-Ing. V. Krueger Receipt of EUT:2002-07-17 Date(s) of test:2002-07-17 – 2002-08-01 Date of report:2002-08-19 Number of report pages:65 Number of diagram pages (annex):no diagrams --------------------------------------------------------------------------------------------------------------------------------------- Version of template: 4.05 2.4. Applicant ́s details Applicant ́s name:Siemens AG Address:Siemensdamm 50 13629 Berlin Germany Contact person:Mr. Hussein Halawi; Tel. +49 30 38630211 2.5. Manufacturer ́s details Manufacturer ́s name:please see Applicant ́s details Address:please see Applicant ́s details Test Report 2-20542043b/02, Page 5 of 65 20542043b_02.doc 3. Equipment under test (EUT) 3.1. EUT: Type, S/N etc. and short descriptions used in this test report short descrip- tion*) EUTType S/N serial number HW hardware status SW software status EUT A GPRS / GSM ModuleMC 4500499941137807 7 B 2.5SW: 34 EUT B Development support box DSB 45# 200B 1.1V 1.0 EUT C Handset VotronicHH-SI-30.3Sample 2V 1.1-- EUT D EUT E EUT F *) EUT short description is used to simplify the identification of the EUT in this test report. Additional Information for EUT A Frequency range:1850.2 – 1909.8 MHz Number of channels:300 Nominal power supply voltage:4,5 V (of module) Power supply range:3,3 – 4,5 V Temperature range:-30°C - +60°C Emission designator:300KGXW Antenna:… integral antenna: antenna connector: external antenna Max. stated nominal output power: conducted 30,0 ±2 dBm, radiated 30,0 ±2 dBm EIRP…
