RFR-B2029BT Module

Stollmann E + V GmbH BlueMod+B20 Hardware reference Author: bg Date of Saving: 28.03.07 Ref: BlueMod+B20_HWreference_V101.doc Revision: 1.00 Page 1 of 1 BlueMod+B20 Hardware reference Stollmann E + V GmbH BlueMod+B20 Hardware reference Author: bg Date of Saving: 28.03.07 Ref: BlueMod+B20_HWreference_V101.doc Revision: 1.00 Page 2 of 2 Note This device was developed for the purpose of communication in an office environ- ment. It is intended solely for our industrial clients for physical integration into their own technical products after careful examination by experienced technical personnel for its suitability for the intended purpose. The device was not developed for or in- tended for use in any specific customer application. The firmware of the device may have to be adapted to the specific intended modalities of use or even replaced by other firmware in order to ensure flawless function in the respective areas of applica- tion. Performance data (range, power requirements, etc.) may depend on the oper- ating environment, the area of application, the configuration, and method of control, as well as on other conditions of use; these may deviate from the technical specifi- cations, the Design Guide specifications, or other product documentation. The ac- tual performance characteristics can be determined only by measurements subse- quent to integration. Variations in the performance data of mass-produced devices may occur due to individual differences between such devices. Device samples were tested in a reference environment for compliance with the legal requirements applicable to the reference environment. No representation is made regarding the compliance with legal, regulatory, or other requirements in other environments. No representation can be made and no warranty can be assumed regarding the suit- ability of the device for a specific purpose as defined by our customers. Stollmann reserves the right to make changes to the hardware or firmware or to the specifica- tions without prior notice or to replace the device with a successor model. Of course, any changes to the hardware or firmware of any devices for which we have entered into a supply agreement with our customers will be made only if, and only to the extent that, such changes can reasonably be expected to be acceptable to our cus- tomers. No general commitment will be made regarding periods of availability; these must be subject to individual agreement. All agreements are subject to our Terms and Conditions for Deliveries and Payments, a copy of which is available from Stollmann. Copyright © 2005-2006 Stollmann E+V GmbH Trademarks The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Stollmann E+V GmbH is under license. Other trademarks and trade names are those of their respective owners. Stollmann E + V GmbH BlueMod+B20 Hardware reference Author: bg Date of Saving: 28.03.07 Ref: BlueMod+B20_HWreference_V101.doc Revision: 1.00 Page 3 of 3 Table of contents 1 Introduction ........................................................................................................ 6 1.1 Feature Summary ......................................................................................... 6 1.2 Applications .................................................................................................. 6 1.2.1 Cable Replacement Serial Point-to-point............................................... 6 1.2.2 Cable Replacement Multipoint .............................................................. 7 1.2.3 Terminal Server .................................................................................... 7 1.2.4 PC Client............................................................................................... 8 2 Block Diagram ................................................................................................... 9 3 Application Interface ........................................................................................ 10 3.1 Power Supply.............................................................................................. 10 3.2 Reset .......................................................................................................... 11 3.3 Serial Interface............................................................................................ 12 3.4 PIO Interface............................................................................................... 12 3.5 I 2 C Interface ................................................................................................ 13 3.6 Bluetooth radio Interface .............................................................................13 3.7 PCM Interface............................................................................................. 14 3.8 USB Interface ............................................................................................. 14 3.8.1 D+, D- ................................................................................................. 14 3.8.2 USB Pull-Up Resistor.......................................................................... 14 3.8.3 USB Self-Powered Mode .................................................................... 15 3.8.4 USB Bus-Powered Mode .................................................................... 15 3.9 Serial Peripheral Interface...........................................................................16 3.9.1 SPI Interface Cable ............................................................................. 16 4 Pin Description................................................................................................. 17 4.1 Pin Numbering ............................................................................................ 17 4.2 Pin Description............................................................................................ 18 4.2.1 General Pin Description ..........................................…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 23.02.2007 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Company requests confidentiality for the following products: FCC ID Number Product Title/Model FCC ID: RFR-B2029 BlueMod+B20/29 For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” The above exhibits contain Company trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, i.A. Name: i.A. Jens Jensen Company: Stollmann E+V GmbH Address: Mendelssohnstr. 15d, 22761 Hamburg, Germany Phone: ++49.40.89088.498 Email: [email protected]

Stollmann Entwicklungs und Vertriebs GmbH, Mendelssohnstr. 15d, D-22761 Hamburg, Germany Page 1 of 1 Tel: ++49-40-890 88-0, Fax: ++49-40-890 88-444, http://www.stollmann.de Dear Joachim, Stollmann Bluetooth Adapter BlueMod+B20/B29 FCC ID: RFR-B2029 We would like to approve the above product as a limited modular approval specific to FCC Public Notice DA 00-1407, released June 26, 2000, titled Part 15 Unlicensed Modular Transmitter Approval for low power transmitter modules, here a Class 2 Bluetooth Adapter with typ. 2 dBm output power. The requirements of the Public Notice DA 00-1407 are met as follows: 1. The BlueMod+B20/B29 does not need an own RF shielding in order to be compliant to the FCC rules. We apply for a Limited Modular Approval (LMA), constrained to be sold to OEM manufacturers only. This product is designed for being built into measurement devices or machine control devices enabling OEM’s to offer Bluetooth functionality for their products. The interface is working on TTL level and the connector is only made for being soldered on a PCB. Therefore this product cannot be used by end users. There is no user manual, but a Reference Design Guide available, which instructs the OEM on how to use this module such that compliance of the end product is always ensured. 2. The BlueMod+B20/B29 has buffered data inputs, since the complete Bluetooth protocol stacks are implemented on the BlueMod+B20/B29. 3. The BlueMod+B20/B29 has no own voltage regulator. OEM’s are instructed on supply voltage range and ripple ratings in the Reference Design Guide, BlueMod+B20_HWreference_V100.pdf. 4. A unique antenna connector or an internal antenna is used. The Reference Design Guide gives exact instructions on how to implement an internal or external antenna. 5. The EUT was tested in a standalone type configuration as can be seen on pages 44 to 47 of the CETECOM Test Report No. 2-4564-01-03-07_FCC15. It was mounted on a PCB to be identified with “52495”. This PCB is referenced in the test report. Placed on the PCB are only level shifters for translating the serial TTL signals to RS232 level, so that a connection to a PC COM port could be made, and further a connector for a mains plug adaptor for having supply. 6. An exhibit label (including FCC ID) has been included in the Design Guide and the OEM manufacturer has been instructed on how to label the end product. 7. The BlueMod+B20/B29 is compliant with all applicable FCC rules. Instructions for maintaining compliance are given in the Design Guide. 8. The BlueMod+B20/B29 is compliant with all applicable RF exposure requirements for modular transmitter devices. OEM manufactures are given instructions in the Design Guide for maintaining compliance to RF exposure requirements. Yours faithfully i.A. Jens Jensen Manager of Compliance Engineering

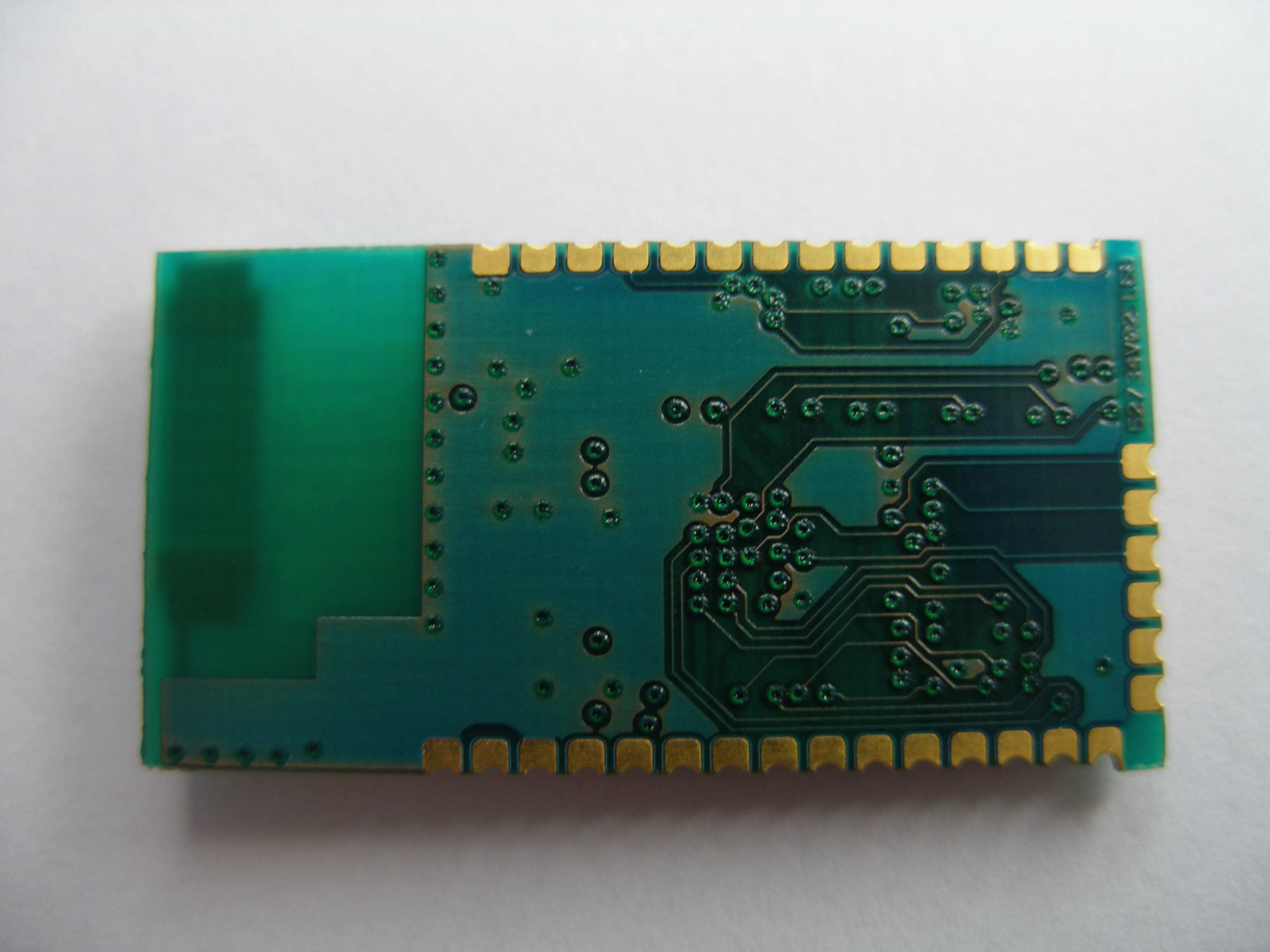

B20_V2_topview B20_V2_bottomview

P3260032

B20_V2_topview B20_V2_bottomview

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4564-01-03/07 Date: 2007-03-20 Page 1 of 46 \\Ut55\2_projekte\07\4564_1\Task3(BLU)\2-4564-01-03_07_FCC15.doc Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: IC 3463A-1 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report no. : 2-4564-01-03/07 Applicant : Stollmann E+V GmbH Type : BlueMod+B20/29 V2 Test Standard : FCC Part 15.247 RSS-210 Issue 6 FCC ID : RFR-B2029 Certification No. IC : 4957A-B2029 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4564-01-03/07 Date: 2007-03-20 Page 2 of 46 Table of contents 1. ADMINISTRATIVE DATA ...................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.1.2 Organizational items..................................................................................................................................... 3 1.1.3 Applicant ́s details ........................................................................................................................................ 4 1.2 ADMINISTRATIVE DATA OF MANUFACTURER / MEMBER........................................................................................ 4 1.3 DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) .......................................................................................... 5 1.3.1 EUT: Type, S/N etc. ...................................................................................................................................... 5 1.3.2 If RF component testing only, describtion of additional used HW/SW ......................................................... 5 1.3.3 Additional EUT information For IC Canada (appendix 2)...........................................................................6 1.3.4 EUT operating modes ................................................................................................................................... 7 1.3.5 Extreme conditions testing values................................................................................................................. 7 2. TESTSTANDARD & SUMMARY LIST OF ALL PERFORMED TEST CASES .............................................. 8 3. RF MEASUREMENT TESTING ............................................................................................................................. 9 3.1 DESCRIPTION OF TEST SET-UP................................................................................................................................9 3.1.1 Radiated measurements ................................................................................................................................ 9 3.1.2 Conducted measurements ............................................................................................................................. 9 3.2 REFERENCED DOCUMENTS................................................................................................................................... 10 3.3 ADDITIONAL COMMENTS..................................................................................................................................... 10 3.4 ANTENNA GAIN................................................................................................................................................... 10 3.5 CARRIER FREQUENCY SEPARATION §15.247(A)(1) .............................................................................................. 11 3.6 NUMBER OF HOPPING CHANNELS §15.247(A)(1)(III) ........................................................................................... 12 3.7 TIME OF OCCUPANCY (DWELL TIME) §15.247(A)(1)(III)...................................................................................... 13 3.8 POWER SPECTRAL DENSITY (HYBRID SYSTEM IN INQUIRY MODE/PAGE SCAN) §15.247(E) ................................. 14 3.9 SPECTRUM BANDWIDTH OF A FHSS SYSTEM / 20DB BANDWITH §15.247(A)(1)................................................. 15 3.10 MAXIMUM OUTPUT POWER (CONDUCTED) § 15.247 (B)(1) .................................................................................. 20 3.11 MAX. PEAK OUTPUT POWER (RADIATED) § 15.247 (B)(1) .................................................................................... 25 3.12 BAND-EDGE COMPLIANCE OF CONDUCTED EMISSIONS §15.247 (D) ..................................................................... 26 3.13 BAND-EDGE COMPLIANCE OF RADIATED EMISSIONS §15.205 .............................................................................. 29 3.14 SPURIOUS EMISSIONS - CONDUCTED (TRANSMITTER) § 15.247 (D)..................................................................... 32 3.15 SPURIOUS EMISSIONS > 30 MHZ- RADIATED (TRANSMITTER) § 15.247 (D)......................................................... 34 3.16 SPURIOUS EMISSIONS - RADIATED (RECEIVER) § 15.109 ..................................................................................... 38 3.17 SPURIOUS EMISSIONS < 30 MHZ - TRANSMITTER RADIATED § 15.209 ................................................................ 40 3.…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4564-01-03/07 Date: 2007-03-20 Page 44 of 46 4 Photographs of Test Set-up Photo 1: Radiated Emissions Photo 2: Radiated Emissions CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4564-01-03/07 Date: 2007-03-20 Page 45 of 46 Photo 3: Conducted Emissions
