RFZMP3USBMP3 AND DIGITAL RECORDER WATCH

27 FCC NOTICE NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

Block Diagram

1B-4B, 2/F, Hoplite Ind. Centre, No. 3-5, Wang Tai Road. Kowloon Bay, Hong Kong. Tel: 852-2795-6517 Fax: 852-2795-5556 Sample Label FCC ID: RFZMP3USB This is to certify that the label shown above will be the production label to be used on production units of model MP. FCC ID number: RFZMP3USB. Lisa Bai Sales Executive Tel: +86-756-3227860 Fax: +86-756-3334079 Website: www.xonixwatch.com Remark: Since the sample is not large enough to place the 2-part warning statement, so the 2-part warning statement will be shown on user manual.

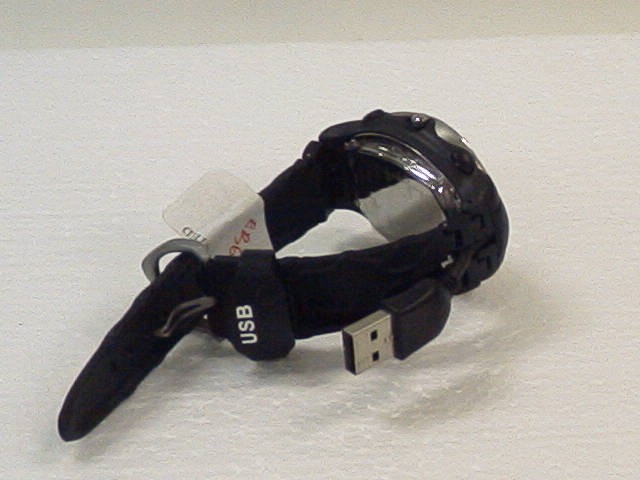

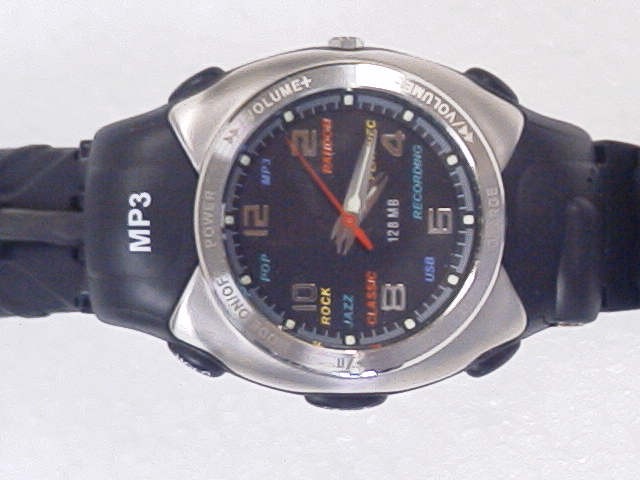

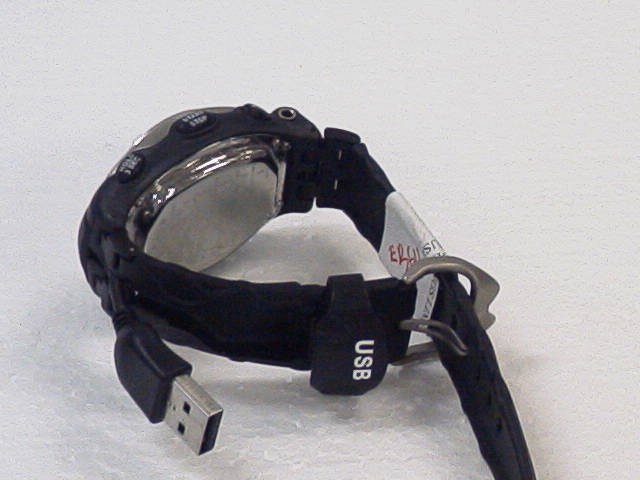

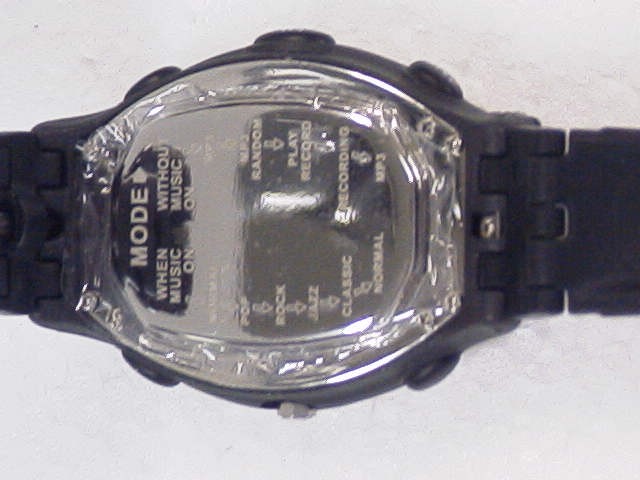

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: XONIX HOLDINGS LIMITED FCC ID: RFZMP3USB REPORT #: X\XONIX_RFZ\548HTR\548HT4TestReport.doc COVER SHEET Test Report Product Name: MP3 AND DIGITAL RECORDER WATCH FCC ID: RFZMP3USB Applicant: XONIX HOLDINGS LIMITED 1B – 4B, 2/F, HOPLITE INDUSTRIAL CENTRE NO. 3 – 5 WANG TAI ROAD KOWLOON BAY, KOWLOON HONG KONG Date Receipt: APRIL 19, 2004 Date Tested: MAY 12, 2004 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: XONIX HOLDINGS LIMITED FCC ID: RFZMP3USB REPORT #: X\XONIX_RFZ\548HTR\548HT4TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: XONIX HOLDINGS LIMITED FCC ID: RFZMP3USB TEST REPORT CONTAINING: PAGE 1............TEST EQUIPMENT LIST PAGE 2............TEST PROCEDURES PAGE 3............RADIATION INTERFERENCE TEST DATA EXHIBITS INCLUDING: BLOCK DIAGRAM SCHEMATIC USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS CIRCUIT DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: XONIX HOLDINGS LIMITED FCC ID: RFZMP3USB REPORT #: X\XONIX_RFZ\548HTR\548HT4TestReport.doc Page 1 of 3 Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/13/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/15/03 4/15/05 Blue Tower RF Preselector HP 85685A 2620A00294 out for Cal Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/15/03 4/15/05 LISN Electro- Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 LISN Electro- Metrics EM-7820 2682 CAL 3/12/03 3/12/05 Log- Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: XONIX HOLDINGS LIMITED FCC ID: RFZMP3USB REPORT #: X\XONIX_RFZ\548HTR\548HT4TestReport.doc Page 2 of 3 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 82ºF with a humidity of 42%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in a manner that was representative of the way the EUT would be used. If the EUT had any peripherals, they were attached and placed in a similar manner. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. In addition, in the event of the test being for a computer set up, the modem and printer positions were swapped and cables were manipulated as much as possible. The monitor was not moved, as that would not represent a typical situation configuration. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: XONIX HOLDINGS LIMITED FCC ID: RFZMP3USB REPORT #: X\XONIX_RFZ\548HTR\548HT4TestReport.doc Page 3 of 3 APPLICANT: XONIX HOLDINGS LIMITED FCC ID: RFZMP3USB NAME OF TEST: RADIATED SPURIOUS EMISSIONS RULES PART NO.: 15.109(a) - Class B Computing Device REQUIREMENTS: 30 - 88 MHz 40.0 dBuV/m measured at 3 meters 88 - 216 MHz 43.5 dbuV/m 216 - 960 MHz 46.0 dbuV/m ABOVE 960 MHz 54.0 dbuV/m TEST DATA: Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 33.48 16.2 H 0.83 12.32 29.35 10.65 33.48 19.9 V 0.83 10.89 31.62 8.38 38.52 12.9 V 0.87 10.12 23.89 16.11 38.52 15.5 H 0.87 11.45 27.82 12.18 60.02 16.4 H 1.06 11.09 28.55 11.45 60.02 17.5 V 1.06 10.79 29.35 10.65 124.52 10.3 V 1.57 13.70 25.57 17.93 161.38 10.9 V 1.83 15.61 28.34 15.16 182.88 13.8 H 1.98 16.69 32.47 11.03 195.24 14.5 H 2.07 17.20 33.77 9.73 219.78 6.7 V 2.20 11.30 20.20 25.80 219.78 10.4 H 2.20 12.01 24.61 21.39 232.46 7.2 V 2.26 11.52 20.98 25.02 232.46 8.5 H 2.26 11.92 22.68 23.32 258.18 6.9 H 2.39 12.96 22.25 23.75 270.48 5.1 V 2.45 12.74 20.29 25.71 270.48 13.4 H 2.45 13.64 29.49 16.51 293.48 10.1 V 2.57 13.73 26.40 19.60 293.48 12.8 H 2.57 14.40 29.77 16.23 321.08 5.1 V 2.71 15.12 22.93 23.07 321.08 8.6 H 2.71 15.47 26.78 19.22 333.29 6.7 H 2.77 15.33 24.80 21.20 367.33 6.8 H 2.94 15.43 25.17 20.83 TEST PROCEDURE: ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 to 1000 MHz. The unit was measured at Timco Engineering Inc. 849 N.W. State Road 45…
