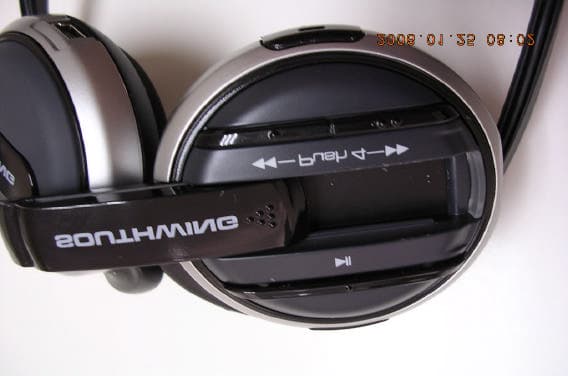

RGPCELLBluetooth Stereo Headphones

SA505 Bluetooth Stereo Headphone User's Guide 1 User Manual for SA505 Bluetooth Stereo Headphones BT3070 Bluetooth Stereo Headphone User's Guide 2 CAUTION: Avoid using SA505 headphone with the volume turned up for a long time. Doing so can damage your hearing. It is advisable to keep the volume at a moderate level at all times. Copyright © 2005, TECOM Co., Ltd All rights reserved. User’s Guide SA505 Bluetooth Universal Stereo Headphone Third Edition (December 2005) SA505 Bluetooth Stereo Headphone User's Guide 3 Table of Contents I. About SA505 Stereo Headphone......................................................................... 4 1.1 BT3070 Stereo Headphone Overview ........................................................ 4 1.2 General Features ......................................................................................... 5 II. Setup SA505 Headphone...................................................................................... 6 2.1 Turn on/off stereo headphone ..................................................................... 6 2.2 Pairing with devices.................................................................................... 6 2.3 Connecting BT3070 headphone with multiple devices ............................ 11 2.4 Charging headphone ................................................................................. 11 III. Play Music with SA505 Headphone.................................................................. 13 IV. Make/Answer Calls with SA505 Headphone ................................................... 15 V. The LED Indicator Mean ..................................................................................... 17 SA505 Bluetooth Stereo Headphone User's Guide 4 I. About SA505 Stereo Headphone 1.1 SA505 Stereo Headphone Overview < Left side > < Right side > Blue/ Red Status LED Indicator Volume Up Play/ Pause/ Stop/ Pairing Button Volume Down Forward Backward Retractable Microphone Orange LED Charging Indicato r Power On/ Off Floating Slider Mini USB Charging Socke t SA505 Bluetooth Stereo Headphone User's Guide 5 1.2 General Features „ Phone Call: SA505 is equipped with a retractable microphone and supports Bluetooth hand-free profile for wireless phone call. „ Music Streaming: SA505 supports Bluetooth A2DP (Advanced Audio Distribution Profile). User can enjoy omni-direction high quality wireless music play up to 15 meters away. „ Remote Control: SA505 supports Bluetooth AVRCP (Audio Video Remote Control Profile). User may use SA505 interface to control music play remotely. „ Clarity: Advanced DSP (Digital Signal Processing) technology is incorporated for noise reduction and echo cancellation during wireless phone conversation. „ Others „ Up to 5 Bluetooth phones or MP3 players can be paired with single SA505. „ Standby time up to 400 hours. „ Supports continuous music play up to 8 hours and continuous talking up to 10 hours. „ One-push the retractable microphone for picks up a call. SA505 Bluetooth Stereo Headphone User's Guide 6 II. Setup SA505 Headphone 2.1 Turn on/off stereo headphone y Put the Power On/Off Floating Slider to ON side for turning on your headphone – when the headphone is opened, a short tone will be heard and the LED indicator will flash slowly in blue. y Put the Power On/Off Floating Slider to OFF side for turning the headphone off. 2.2 Pairing with devices Before using SA505 headphone you must pair up with Dongle or/and mobile phone or other bluetooth enabled devices. y Put the headphone into pairing mode y Press and hold the Play button (about 5 seconds) until the LED indicator flash blue and red alternately – 2 short tones will be heard. y Set your Dongle or mobile phone or other device to “discover” the BT3070 headphone and then pair with it. Please follow Dongle /or phone or other devices instruction guide. Tecom Dongle for example: (Operating System: Windows XP pro. SP2) SA505 Bluetooth Stereo Headphone User's Guide 7 Steps Actions Illustration 1 Double click “My Bluetooth Places” icon on the desktop first. 2 Click “View the device in range” 3 Click “Search for device in range” to discover the BT3070 headphone. 4 Dongle will find the BT3070 headphone, right click to find out its related services. 5 It will require the PIN code, please confirm with PIN = 0000 (4 zero’s). In case of unsuccessful pairing please repeat above steps. SA505 Bluetooth Stereo Headphone User's Guide 8 Nokia 6230 for example: Steps Actions Illustration 1 Click “Menu” button first. 2 Select “Settings”. 3 Select “Connectivity” SA505 Bluetooth Stereo Headphone User's Guide 9 4 Select “Bluetooth” 5 Select “Paired devices” 6 Please click “New” to search for the BT3070 headphone. SA505 Bluetooth Stereo Headphone User's Guide 10 7 Mobile phone will find the BT3070 headphone. Please click “Pair” to pair with the BT3070 headphone. 8 Mobile phone will require the passcode (PIN code), please confirm with passcode = 0000 (4 zero’s) and then click “OK”. 9 Click “Connect” to connect with the BT3070 headphone. When connected, mobile phone’s operating tone will automatically be transferred to your headphone.(Depend on mobile’s type, some of mobiles may be fail to hear operate tone from BT3070 after connected.) SA505 Bluetooth Stereo Headphone User's Guide 11 In case of unsuccessful pairing/connecting please repeat above steps. 2.3 Connecting SA505 headphone with multiple devices You are able to connect SA505 headphone with audio source and mobile phone simultaneously. Please refer to your music-player/phone manual for details regarding pairing/connecting bluetooth enabled devices. 2.4 Charging headphone WARNING: This headphone contains a lithium polymer rechargeable battery. To reduce the risk of fire or burns, do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water If you hear warning tone regularly (every 10 seconds), it stands for BT3070 in the low battery mode. Try to charge the headphone as below: Steps Actions…
