RGS38001U2.4 GHz IEEE 802.11b/g WLAN USB device

User manual FCC ID: RGS38001U Page 1 of 10 GlobespanVirata model ISL38001U IEEE 802.11g USB WLAN Card User Manual Version 0.1 User manual FCC ID: RGS38001U Page 2 of 10 Table of Contents 0-INTRODUCTION .................................................................................................... 3 1-INSTALLATION PROCEDURE ........................................................................... 3 1.1 INSTALLING THE USB CARD............................................................................... 3 1.2 INSTALLING THE SOFTWARE DRIVERS................................................................ 3 1.3 WIRELESS LAN INSTALLATION GUIDE LINES AND AUTHORIZATION FOR USE.7 2-REGULATORY INFORMATION ........................................................................ 7 2.1 FCC INFORMATION TO USER............................................................................. 7 2.2 FCC GUIDELINES FOR HUMAN EXPOSURE........................................................ 7 2.3 FCC ELECTRONIC EMISSION NOTICES.............................................................. 7 2.4 FCC RADIO FREQUENCY INTERFERENCE STATEMENT..................................... 8 2.5 EXPORT RESTRICTIONS....................................................................................... 8 2.6 EUROPE - EU DECLARATION OF CONFORMITY................................................. 9 3-TECHNICAL SPECIFICATIONS....................................................................... 10 User manual FCC ID: RGS38001U Page 3 of 10 0-Introduction The GlobespanVirata ISL38001U WLAN USB NIC is a complete wireless high speed Network Interface Card (NIC). It conforms to the IEEE 802.11g protocol and operates in the 2.45 GHz ISM frequency bands. It provides a complete reference design evaluation platform of hardware and software to system providers or integrators requiring wireless data communications capability and is ideal for integration into computer platforms. • Fully compliant with the IEEE 802.11g WLAN standards • FCC Certified Under Part 15 (pending) to Operate in the 2.45 Bands • Support for 54, 48, 36, 24, 18, 12, 9, and 6 Mbps OFDM, 11 and 5.5 Mbps CCK and legacy 2 and 1 Mbps data rates • Driver Supports Microsoft Windows ® 98/SE, ME, XP and 2000 (SR1) 1-Installation procedure 1.1 Installing the USB card a-Insert the USB connector to into the USB slot of the host PC. As this device is plug-and-play, this can be done with the Host PC eitheron or off. 1.2 Installing the software drivers a-Start windows b-When windows detects new hardware and asks for drivers, point to directory where the GlobespanVirata driver is located (for example floppy drive, cdrom , harddisk) to install. c-after drivers are installed, restart windows d-the GlobespanVirata WLAN icon will appear in system tray on the bottom right of the screen (see yellow arrow in fig. 01) fig, 01: GlobespanVirata WLAN icon User manual FCC ID: RGS38001U Page 4 of 10 e-double click the GlobespanVirata WLAN icon to open the WLAN settings, the following window will appear (see fig.02) fig, 02: GlobespanVirata WLAN settings window f-click on configuration tab and select which type of network is required (access point or Peer-to-peer mode), see fig. 03. fig, 03: WLAN network type setting window User manual FCC ID: RGS38001U Page 5 of 10 g-select what TX rate is required (default setting is fully automatic) see fig. 04. fig, 04: WLAN tx rate setting window h-select what encryption type is required, 64 or 128 bit WEP (default setting is disabled) see fig. 05. fig, 05: WLAN encryption rate setting window User manual FCC ID: RGS38001U Page 6 of 10 i-click on the status tab to see the connection status (fig.06). fig, 06: WLAN network status j-click on the about tab to see the software drivers versions and MAC address (fig.07). fig, 07: WLAN driver and MAC addres information User manual FCC ID: RGS38001U Page 7 of 10 1.3 Wireless LAN installation guide lines and Authorization for use Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by GlobespanVirata may void the user’s authority to operate the equipment. GlobespanVirata is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. GlobespanVirata and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. The use of Wireless LAN devices may be restricted in some situations or environments for example: * On board of airplanes, or * In an explosive environment, or * In case the interference risk to other devices or services is perceived or identified as harmful. In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please first verify authorization to use these devices prior to operating the equipment. 2-Regulatory information 2.1 FCC Information to User This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals 2.2 FCC Guidelines for Human Exposure In order to comply with RF exposure limits, the user is advised to maintain a distance of at least 20 cm from the antenna of this device while it is in use. The antenna is integrated within the plastic enclosure of this USB device. 2.3 FCC Electronic Emission Notices This device complies with part…

Text truncated - open the document above for the full version.

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Cover letter Date September 12, 2003 Our reference 03K1060a Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands Telefication B.V. Attn.: W. Blom Edisonstraat 12a 6902 PK Zevenaar The Netherlands Dear Mr. Blom, On behalf of our customer GlobespanVirata B.V., we hereby would like to apply for FCC certification of the following device: FCC ID : RGS38001U Brand : Intersil Model number : ISL38001U Description : 2.4 GHz IEEE 802.11b/g WLAN USB device The following PDF files (exhibits) are electronically submitted: 1. Cover letter containing the request for FCC certification 2. Request for confidentiality 3. Test report(s) in conformity with 47 CFR Part 15 4. Bill of materials 5. Circuit diagram 6. Block diagram 7. Operational description 8. Interior photographs 9. Exterior photographs 10. Test setup photographs 11. RF exposure statement 12. Authorization letter 13. User manual 14. Label information Best regards, TNO Electronic Products & Services (EPS) B.V. P.A.J.M. Robben, B.Sc.E.E. Marketing Manager

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Request for confidentiality Date September 12, 2003 Our reference 03K1060b Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands Telefication B.V. Attn.: W. Blom Edisonstraat 12a 6902 PK Zevenaar The Netherlands Dear Mr. Blom, Pursuant to section 0.457 of the FCC rules we herewith request the following exhibits, related to this application for FCC ID: RGS38001U, to be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than GlobespanVirata B.V. and TNO Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Operational description 4. Block diagram The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Best regards, TNO Electronic Products & Services (EPS) B.V. P.A.J.M. Robben, B.Sc.E.E. Marketing Manager

Date 09 September 2003 Your reference -- Our reference 2003-mansup-595F Subject Agent authorization letter for FCC ID: RGS38001U To whom it may concern To whom it may concern, This letter confirms the agreement that; TNO Electronic Products & Services (EPS) B.V. Smidshornerweg 18 9822 TL Niekerk The Netherlands Phone number: +31 594 505005 Fax number: +31 594 504814 is authorized as an agent for GlobespanVirata B.V. (The Netherlands) Rembrandtlaan 1a, Bilthoven The Netherlands Phone number: +31 30 2296060 Fax number: +31 30 2296061 This agent authorization includes: -signing application forms and act on behalf of GlobespanVirata B.V. -receiving and exchanging data between GlobespanVirata B.V. and European/non-European national authorities regarding the -certification of- and/or -arranging type approvals for the following product: GlobespanVirata model ISL38001U WLAN USB device with FCC ID: RGS38001U This authorization will expire on December 31, 2003 or upon earlier written notice from GlobespanVirata B.V. Yours sincerely, Derick Sariredjo ( [email protected] ) GlobespanVirata B.V. ( www.globespanvirata.com ) Rembrandtlaan 1a, 3723 BG Bilthoven, The Netherlands Phone: +31.30.225.9742 Fax: +31.30.229.6061

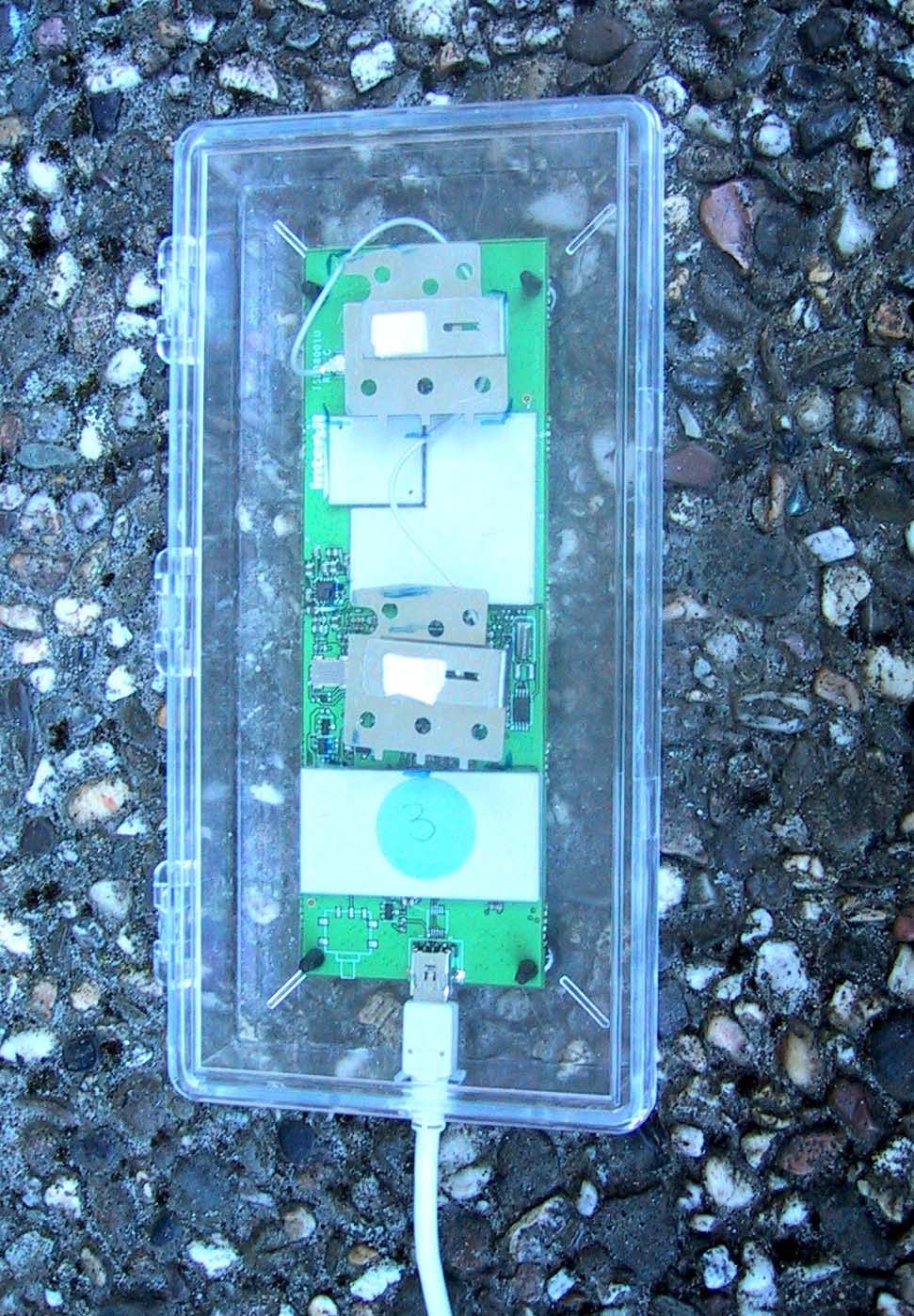

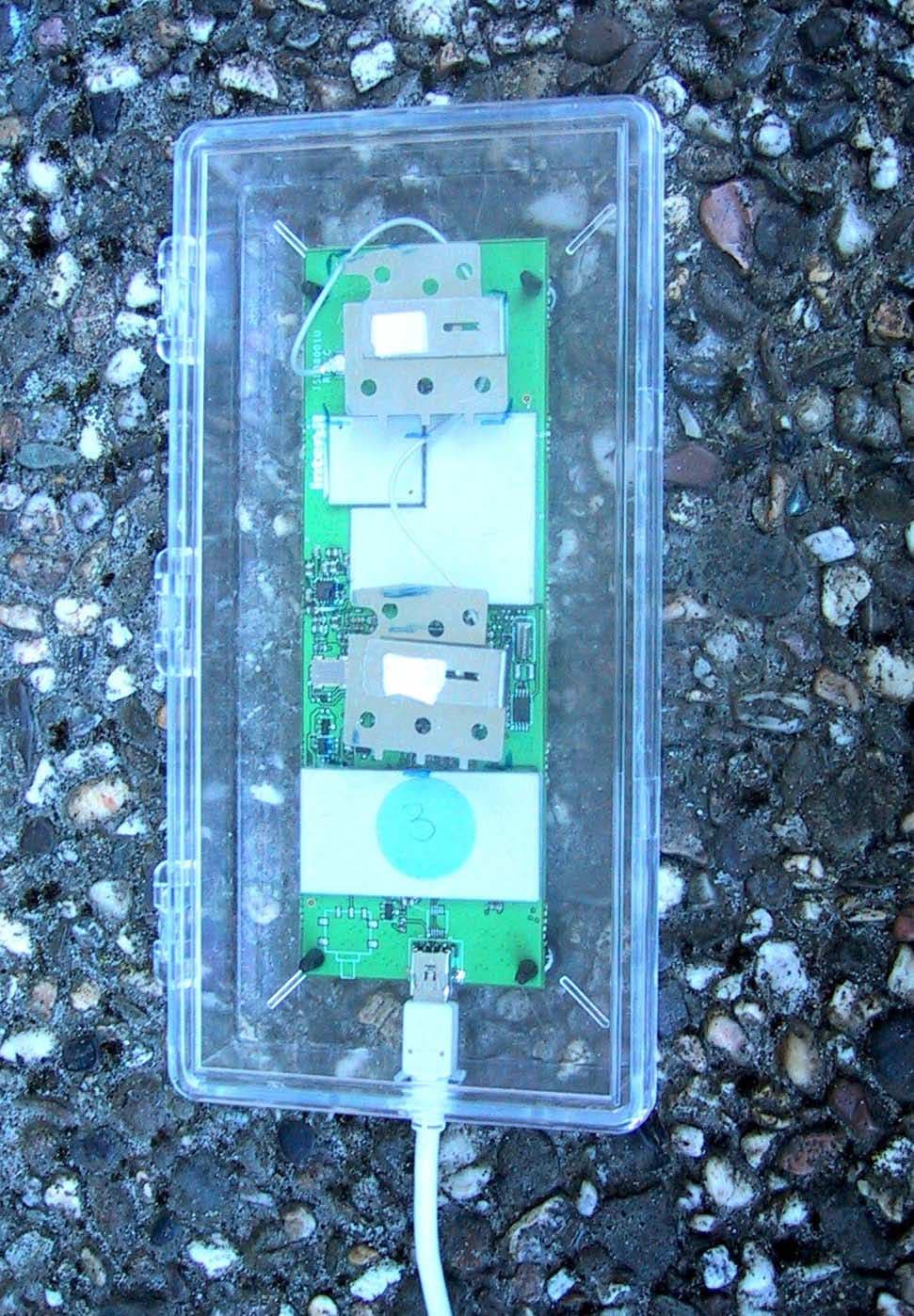

FCC ID: RGS38001U Page 1 of 4 External photographs of Description: 2.4 GHz IEEE 802.11g WLAN USB Card FCC ID: RGS38001U Brand name: GlobespanVirata Model number: ISL38001U FCC ID: RGS38001U Page 2 of 4 ISL38001U Exterior overview FCC ID: RGS38001U Page 3 of 4 ISL38001U exterior front view FCC ID: RGS38001U Page 4 of 4 ISL38001U exterior rear view

FCC ID: RGS38001U Page 1 of 3 FCC and CE Label info of Description: 2.4 GHz IEEE802.11g WLAN USB Card FCC ID: RGS38001U Brand name: GlobespanVirata Model number: ISL38001U FCC ID: RGS38001U Page 2 of 3 ISL38001U FCC and CE Label Label material: Tamper evident 0.002" polyester. This material is durable, tamper proof and legible. Tamper proof: If the label is removed after 48 hours (time for the adhesive to cure) it will separate which will leave label material on the attached surface that it was removed from. This label material will spell out the word "VOID". The label will also show the word "VOID" where the label material was pulled away. The end result is the word " VOID " on both the mating surface and label, leaving both unusable. FCC ID: RGS38001U Page 3 of 3 FCC CE label on housing

FCC ID: RGS38001U Page 1 of 5 Internal photographs of Description: 2.4 GHz IEEE 802.11g WLAN USB Card FCC ID: RGS38001U Brand name: GlobespanVirata Model number: ISL38001U FCC ID: RGS38001U Page 2 of 5 ISL38001U PCB front with shield FCC ID: RGS38001U Page 3 of 5 ISL38001U PCB front without shield FCC ID: RGS38001U Page 4 of 5 ISL38001U PCB rear FCC ID: RGS38001U Page 5 of 5 ISL38001U PCB rear without shield

Declaration on radiation safety standard conformance To whom it may concern: GlobespanVirata B.V. Rembrandtlaan 1a 3723 BG Bilthoven The Netherlands declares that the following product Description: 2.4 GHz IEEE 802.11b/g USB device FCC ID: RGS38001U Manufacturer: GlobespanVirata B.V. Brand: GlobespanVirata Model: ISL38001U has a maximum e.i.r.p. of 23.2 dBm (208.9 mW, maximum conducted output power of +21.2 dbm plus antenna gain of 2 dBi) in the frequency range of 2412 ñ 2462 MHz, which means that the worst case prediction of power density (100% reflection) at 20 cm distance (worst case) can be calculated as follows : EIRP S = 4*π * R 2 (power density without reflection) 2 2 *EIRP S = 4*π * R 2 (power density with 100% reflection) 2 2 *EIRP 208.9 mW S = 4*π * R 2 = π*(20cm) 2 = 0.17 mW/cm 2 (limit = 1.0 mW/cm 2 ) This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 03081103.r01 Page 1 of 58 TEST REPORT OF A 2.4 GHZ IEEE 802.11b/g WLAN USB DEVICE, BRAND GLOBESPANVIRATA, MODEL ISL38001U, IN CONFORMITY WITH 47 CFR PART 15 (2003-03-13). FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2003-03-13) 2.4 GHz IEEE 802.11b/g WLAN USB device GlobespanVirata B.V. GlobespanVirata ISL38001U RGS38001U Project number: 03081103.r01 Page 2 of 58 MEASUREMENT/TECHNICAL REPORT GlobespanVirata B.V. Model : ISL38001U FCC ID: RGS38001U September 12, 2003 This report concerns: Original grant/certification Class 2 change Verification Equipment type: Digital Transmission System Deferred grant requested per 47 CFR 0.457(d)(1)(ii) ? Yes No Report prepared by: Name : P.A.J.M. Robben, B.Sc.E.E. Company name : TNO Electronic Products & Services (EPS) B.V. Address : Smidshornerweg 18 Postal code/city : 9822 ZG Niekerk Mailing address : P.O. Box 15 Postal code/city : 9822 TL Niekerk Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 and the measurement procedures of ANSI C63.4-1992. TNO Electronic Products & Services (EPS) B.V. at Niekerk, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: September 12, 2003 Signature: P. de Beer TNO Electronic Products & Services (EPS) B.V. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2003-03-13) 2.4 GHz IEEE 802.11b/g WLAN USB device GlobespanVirata B.V. GlobespanVirata ISL38001U RGS38001U Project number: 03081103.r01 Page 3 of 58 Description of test item Test item : 2.4 GHz IEEE 802.11b/g WLAN USB device Manufacturer : GlobespanVirata B.V. Brand : GlobespanVirata Model : ISL38001U Serial numbers : V03300086 Revision : C3 Receipt number : 1 Receipt date : August 11, 2003 Applicant information Applicant's representative : Mr. D. Sariredjo Company : GlobespanVirata B.V. Address : Rembrandtlaan 1a Postal code : 3723 BG City : Bilthoven PO-box : 343 Postal code : 3720 AH City : Bilthoven Country : The Netherlands Telephone number : +31 30 225 9742 Telefax number : +31 30 229 6061 Test(s) performed Location : Niekerk Test(s) started : August 11, 2003 Test(s) completed : September 1, 2003 Purpose of test(s) : Type approval / certification Test specification(s) : 47 CFR Part 15 (2003-03-13) Test engineer : O.H. Hoekstra H.J. Pieters Report written by : P.A.J.M. Robben, B.Sc.E.E. Project leader : P.A.J.M. Robben, B.Sc.E.E. This report is in conformity with NEN-EN-ISO/IEC 17025. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2003-03-13) 2.4 GHz IEEE 802.11b/g WLAN USB device GlobespanVirata B.V. GlobespanVirata ISL38001U RGS38001U Project number: 03081103.r01 Page 4 of 58 Table of contents 1 General information................................................................................................................................................................. 6 1.1 Product description .......................................................................................................................................................... 6 1.2 Related submittal(s) and/or Grant(s) ............................................................................................................................... 6 1.3 Tested system details ....................................................................................................................................................... 6 1.4 Test methodology ............................................................................................................................................................ 7 1.5 Test facility ...................................................................................................................................................................... 7 1.6 Product labeling ............................................................................................................................................................... 7 1.7 System test configuration ................................................................................................................................................ 8 1.7.1 Justification.............................................................................................................................................................. 8 1.7.2 EUT test software .................................................................................................................................................... 9 1.8 Special accessories .......................................................................................................................................................... 9 1.9 Equipment modifications................................................................................................................................................. 9 1.10 Configuration of the tested system ................................…

Text truncated - open the document above for the full version.

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 03081103.p01 Page 1 of 7 47 CFR PART 15 TEST SETUP PHOTOGRAPHS OF A 2.4 GHZ IEEE 802.11b/g WLAN USB DEVICE, BRAND GLOBESPANVIRATA, MODEL ISL38001U. FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz IEEE 802.11b/g WLAN USB device GlobespanVirata B.V. GlobespanVirata ISL38001U RGS38001U Project number: 03081103.p01 Page 2 of 7 Description of test item Test item : 2.4 GHz IEEE 802.11b/g WLAN USB device Manufacturer : GlobespanVirata B.V. Brand : GlobespanVirata Model : ISL38001U Serial numbers : V03300086 Revision : C3 Receipt number : 1 Receipt date : August 11, 2003 Applicant information Applicant's representative : Mr. D. Sariredjo Company : GlobespanVirata B.V. Address : Rembrandtlaan 1a Postal code : 3723 BG City : Bilthoven PO-box : 343 Postal code : 3720 AH City : Bilthoven Country : The Netherlands Telephone number : +31 30 225 9742 Telefax number : +31 30 229 6061 This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz IEEE 802.11b/g WLAN USB device GlobespanVirata B.V. GlobespanVirata ISL38001U RGS38001U Project number: 03081103.p01 Page 3 of 7 Table of contents 1 Radiated emission test setup.................................................................................................................................................... 4 1.1 Radiated emission test setup (front). ............................................................................................................................... 4 1.2 Radiated emission test setup (back). ............................................................................................................................... 5 2 Conducted emission test setup................................................................................................................................................. 6 2.1 Conducted emission test setup (front). ............................................................................................................................ 6 2.2 Conducted emission test setup (back). ............................................................................................................................ 7 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz IEEE 802.11b/g WLAN USB device GlobespanVirata B.V. GlobespanVirata ISL38001U RGS38001U Project number: 03081103.p01 Page 4 of 7 1 Radiated emission test setup. 1.1 Radiated emission test setup (front). Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz IEEE 802.11b/g WLAN USB device GlobespanVirata B.V. GlobespanVirata ISL38001U RGS38001U Project number: 03081103.p01 Page 5 of 7 1.2 Radiated emission test setup (back). Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz IEEE 802.11b/g WLAN USB device GlobespanVirata B.V. GlobespanVirata ISL38001U RGS38001U Project number: 03081103.p01 Page 6 of 7 2 Conducted emission test setup. 2.1 Conducted emission test setup (front). Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz IEEE 802.11b/g WLAN USB device GlobespanVirata B.V. GlobespanVirata ISL38001U RGS38001U Project number: 03081103.p01 Page 7 of 7 2.2 Conducted emission test setup (back).
