RGS39200M12.4/5 GHz IEEE 802.11g/a WLAN MiniPCI card

Conexant Systems B.V.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Oct 14, 2003
Application Purpose: Original Equipment
Date of Application: Oct 14, 2003
Equipment Note: 2.4/5 GHz IEEE 802.11g/a WLAN MiniPCI card
Frequency Range: 5725.00000000 - 5850.00000000
Company: Conexant Systems B.V.
Country: Netherlands

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Preliminary OEM installation manual FCC ID: RGS39200M1 Page 1 of 12 GlobespanVirata model ISL39200M IEEE 802.11a/g MiniPCI WLAN Card OEM installation Manual Version 0.1 Preliminary OEM installation manual FCC ID: RGS39200M1 Page 2 of 12 Table of Contents 0-INTRODUCTION ....................................................................................................3 1-OEM INSTALLATION PROCEDURE.................................................................3 1.0 H OST PC NOTEBOOK..........................................................................................3 1.1 I NSTALLING THE MINIPCI CARD INTO THE HOST PC NOTEBOOK....................3 1.2 INSTALLING THE SOFTWARE DRIVERS................................................................3 1.3 WIRELESS LAN INSTALLATION GUIDE LINES AND AUTHORIZATION FOR USE.7 2-REGULATORY INFORMATION.........................................................................7 2.1 FCC I NFORMATION TO USER.............................................................................7 2.2 FCC GUIDELINES FOR HUMAN EXPOSURE........................................................7 2.3 FCC E LECTRONIC EMISSION NOTICES..............................................................7 2.4 FCC RADIO FREQUENCY INTERFERENCE STATEMENT.....................................8 2.5 FCC LABELING REQUIREMENTS (INSTRUCTION FOR OEM INTEGRATOR)......8 2.6 R EQUIRED STATEMENTS IN THE END-USER MANUAL (INSTRUCTION FOR OEM INTEGRATOR).............................................................................................................8 2.7 EXPORT RESTRICTIONS.....................................................................................11 2.8 EUROPE - EU DECLARATION OF CONFORMITY...............................................11 3-TECHNICAL SPECIFICATIONS .......................................................................12 Preliminary OEM installation manual FCC ID: RGS39200M1 Page 3 of 12 0-Introduction The GlobespanVirata ISL39200M WLAN NIC is a complete wireless high speed Network Interface Card (NIC). It conforms to the IEEE 802.11g and IEEE 802.11a protocol and operates in the 2.45 GHz and 5150-5350MHz, 5470-5725MHz and 5725-5825 MHz frequency bands. It provides a complete reference design evaluation platform of hardware and software to system providers or integrators requiring wireless data communications capability and is ideal for integration into computer platforms. ï Fully compliant with the IEEE 802.11g and IEEE 802.11a WLAN standards ï FCC Certified Under Part 15 (pending) to Operate in the 2.45 GHz and 5150-5350MHz, 5725-5825 MHz Bands ï ETSI Certified Under RTTE directive (pending) to Operate in the 2.45 GHz and 5150-5350MHz, 5470-5725MHz and 5725-5825 MHz Bands ï Support for 54, 48, 36, 24, 18, 12, 9, and 6 Mbps OFDM, 11 and 5.5 Mbps CCK and legacy 2 and 1 Mbps data rates ï Driver Supports Microsoft Windows Æ 98/SE, ME, XP and 2000 (SR1) IMPORTANT NOTICE: In order to comply with the FCC guidelines for human exposure to electromagnetic fields, the GlobespanVirata ISL39200M WLAN NIC with FCC ID: RGS39200M1 may only be installed in those host systems which are default configured to switch off the card and its embedded transmitter in the event the lid/LCD screen of the host system is closed during normal operation of the host system. The end-user must not have access to any software/hardware feature of the host system which would give the possibility to change this default behaviour of the host system. 1-OEM Installation procedure 1.0 Host PC Notebook The GlobespanVirata ISL39200M WLAN MiniPCI Card is authorized to be installed into the following host PC notebooks: 1óIBM R40 Thinkpad Notebook series 1.1 Installing the miniPCI card into the host PC Notebook a-open miniPCI slot cover of host PC Notebook housing (please observe the necessary ESD precautions). b-insert miniPCI card into miniPCI slot c-connect the host PC notebook antennas to the miniPCI card antenna connectors (Hirose type UFL connector) d-close miniPCI slot cover of host PC Notebook housing 1.2 Installing the software drivers a-Start windows b-When windows detects new hardware and asks for drivers, point to directory where the GlobespanVirata driver is located (for example floppy drive, cdrom , harddisk) to install. c-after drivers are installed, restart windows Preliminary OEM installation manual FCC ID: RGS39200M1 Page 4 of 12 d-the GlobespanVirata WLAN icon will appear in system tray on the bottom right of the screen (see yellow arrow in fig. 01) fig, 01: GlobespanVirata WLAN icon e-double click the GlobespanVirata WLAN icon to open the WLAN settings, the following window will appear (see fig.02) fig, 02: GlobespanVirata WLAN settings window f-click on configuration tab and select which type of network is required (access point or Peer-to-peer mode), see fig. 03. fig, 03: WLAN network type setting window Preliminary OEM installation manual FCC ID: RGS39200M1 Page 5 of 12 g-select what TX rate is required (default setting is fully automatic) see fig. 04. fig, 04: WLAN tx rate setting window h-select what encryption type is required, 64 or 128 bit WEP (default setting is disabled) see fig. 05. fig, 05: WLAN encryption rate setting window Preliminary OEM installation manual FCC ID: RGS39200M1 Page 6 of 12 i-click on the status tab to see the connection status (fig.06). fig, 06: WLAN network status j-click on the about tab to see the software drivers versions and MAC address (fig.07). fig, 07: WLAN driver and MAC addres information Preliminary OEM installation manual FCC ID: RGS39200M1 Page 7 of 12 1.3 Wireless LAN installation guide lines and Authorization for use Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by GlobespanVirata may void the userís authority to operate the equipment. GlobespanVi…

Text truncated - open the document above for the full version.

Cover Letter(s)

Date 25 September 2003 Yo u r r e f e r e n c e -- Our reference 2003-mansup-595H Subject Agent authorization letter for FCC ID: RGS39200M1 To whom it may concern To whom it may concern, This letter confirms the agreement that; TNO Electronic Products & Services (EPS) B.V. Smidshornerweg 18 9822 TL Niekerk The Netherlands Phone number: +31 594 505005 Fax number: +31 594 504814 is authorized as an agent for GlobespanVirata B.V. (The Netherlands) Rembrandtlaan 1a, Bilthoven The Netherlands Phone number: +31 30 2296060 Fax number: +31 30 2296061 This agent authorization includes: -signing application forms and act on behalf of GlobespanVirata B.V. -receiving and exchanging data between GlobespanVirata B.V. and European/non-European national authorities regarding the -certification of- and/or -arranging type approvals for the following product: GlobespanVirata model ISL39200M WLAN miniPCI device with FCC ID: RGS39200M1 This authorization will expire on December 31, 2003 or upon earlier written notice from GlobespanVirata B.V. Yours sincerely, Derick Sariredjo ( [email protected] ) GlobespanVirata B.V. ( www.globespanvirata.com ) Rembrandtlaan 1a, 3723 BG Bilthoven, The Netherlands Phone: +31.30.225.9742 Fax: +31.30.229.6061

Cover Letter(s)

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Cover letter Date October 9, 2003 Our reference 03K1119a Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands Telefication B.V. Attn.: W. Blom Edisonstraat 12a 6902 PK Zevenaar The Netherlands Dear Mr. Blom, On behalf of our customer GlobespanVirata B.V., we hereby would like to apply for FCC certification (limited modular approval, see also excerpt of DA 00-1407 and remarks below) of the following device: FCC ID : RGS39200M1 Brand : GlobespanVirata Model number : ISL39200M Description : 2.4/5 GHz IEEE 802.11g/a WLAN MiniPCI card The usage of this transmitter will be limited to the following specific host (notebook PC): brand: IBM, model: R40. The following PDF files (exhibits) are electronically submitted: 1. Cover letter containing the request for FCC certification 2. Request for confidentiality 3. Test report(s) in conformity with 47 CFR Part 15 4. Bill of materials 5. Circuit diagram 6. Block diagram 7. Operational description 8. Interior photographs 9. Exterior photographs 10. Test setup photographs 11. RF exposure statement 12. Authorization letter 13. User manual 14. Label information 15. Antenna information Best regards, TNO Electronic Products & Services (EPS) B.V. P.A.J.M. Robben, B.Sc.E.E. Marketing Manager Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Date September 16, 2003 Our reference 03K0809a1 Your reference - Page 2 of 3 Excerpt of DA 00-1407 In order to obtain a modular transmitter approval, a cover letter requesting modular approval must be submitted and the numbered requirements identified below must be addressed in the application for equipment authorization. 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. Remark: The transmitter has its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Remark: The transmitter has buffered modulation/data inputs. 3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. Remark: The transmitter has its own integrated and dedicated power supply regulation. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a ìuniqueî antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The ìprofessional installationî provision of Section 15.203 may not be applied to modules. Remark: The transmitter has a ìuniqueî antenna coupler. Details about the antenna is described in the exhibits 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Date September 16, 2003 Our reference 03K0809a1 Your reference - Page 3 of 3 Remark: The transmitter has NOT been tested in a stand-alone configuration in order to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The transmitter is only intended for use in the configuration as decribed in the filing. Other configurations may require additional testing and certification by the FCC. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior labe…

Text truncated - open the document above for the full version.

External Photos

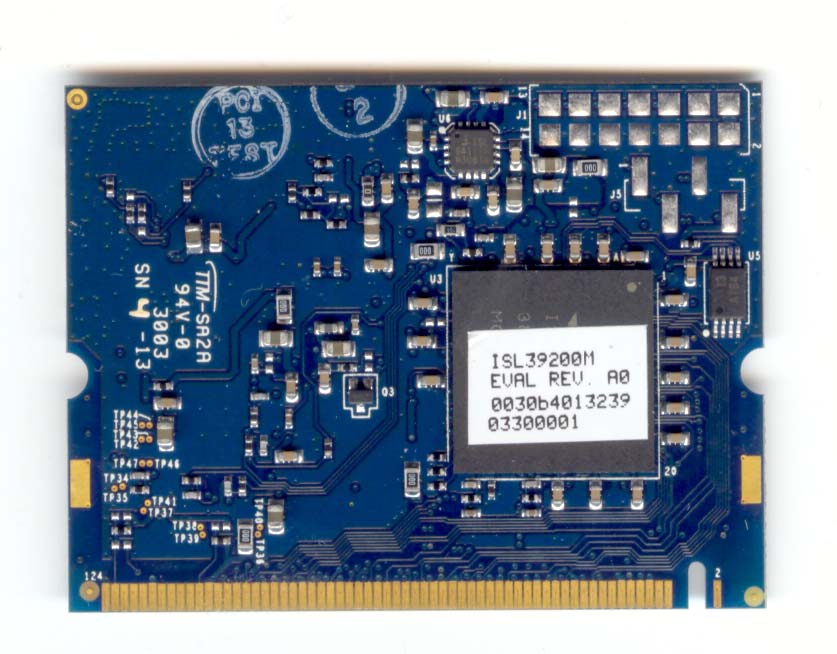

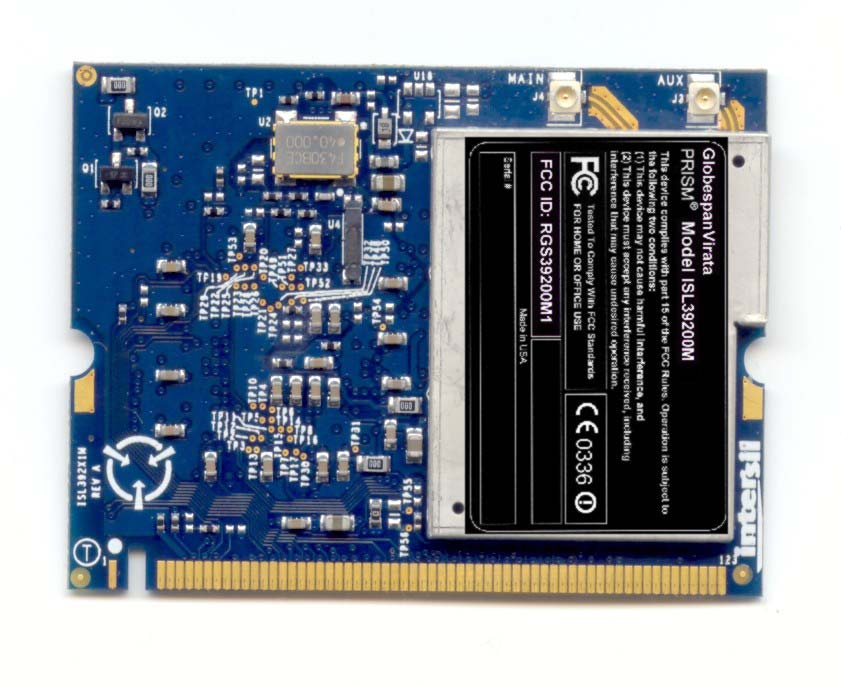

FCC ID: RGS39200M1 Page 1 of 4 Internal photographs of Description: 2.4 GHz / 5 GHz WLAN miniPCI Card FCC ID: RGS39200M1 Brand name: GlobespanVirata Model number: ISL39200M FCC ID: RGS39200M1 Page 2 of 4 ISL39200M PCB front with RF shield FCC ID: RGS39200M1 Page 3 of 4 ISL39200M PCB front without RF shield FCC ID: RGS39200M1 Page 4 of 4 ISL39200M PCB rear

ID Label/Location Info

FCC ID: RGS39200M1 Page 1 of 3 FCC and CE Label info of Description: 2.4 GHz / 5GHz dual band miniPCI WLAN Card FCC ID: RGS39200M1 Brand name: GlobespanVirata Model number: ISL39200M FCC ID: RGS39200M1 Page 2 of 3 ISL39200M FCC and CE Label Label material: Tamper evident 0.002" polyester. This material is durable, tamper proof and legible. Tamper proof: If the label is removed after 48 hours (time for the adhesive to cure) it will separate which will leave label material on the attached surface that it was removed from. This label material will spell out the word "VOID". The label will also show the word "VOID" where the label material was pulled away. The end result is the word " VOID " on both the mating surface and label, leaving both unusable. FCC ID: RGS39200M1 Page 3 of 3 ISL39200M label on miniPCI card

Internal Photos

FCC ID: RGS39200M1 Page 1 of 6 Photographs of 2.4 GHz / 5 GHz dual band Hitachi WLAN antenna assembly of ISL39200M miniPCI WLAN card assembled in IBM R40 Notebook Host. WLAN miniPCI Card details: Description: dual band 2.4 GHz / 5 GHz WLAN MiniPCI Card FCC ID: RGS39200M1 Brand name: GlobespanVirata Model number: ISL39200M FCC ID: RGS39200M1 Page 2 of 6 Overview of IBM R40 Host Notebook PC with embedded Hitachi WLAN antenna location Embedded WLAN antenna location FCC ID: RGS39200M1 Page 3 of 6 2.4 GHz / 5 GHz Hitachi WLAN antennas mounted on left and right sides of TFT display of IBM R40 Notebook Host FCC ID: RGS39200M1 Page 4 of 6 Left side main antenna assemby Main antenna: Hitachi 2.4 GHz / 5 GHz dual band inverted F type antenna Rated gain in 2.4 GHz / 5 GHz band (incl. 530 mm ant. cable loss): 3.0 dBi FCC ID: RGS39200M1 Page 5 of 6 Right side aux antenna assemby Aux. antenna: Hitachi 2.4 GHz / 5 GHz dual band inverted F type antenna Rated gain in 2.4 GHz / 5 GHz band (incl. 640 mm ant. cable loss): 2.0 dBi FCC ID: RGS39200M1 Page 6 of 6 ISL39200M miniPCI WLAN card assembly in IBM R40 Notebook Host

RF Exposure Info

Declaration on radiation safety standard conformance To whom it may concern: GlobespanVirata B.V. Rembrandtlaan 1a 3723 BG Bilthoven The Netherlands declares that the following product Description: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card FCC ID: RGS39200M1 Manufacturer: GlobespanVirata B.V. Brand: GlobespanVirata Model: RGS39200M1 (1) has a maximum e.i.r.p. of +23.9 dBm (245.5 mW, maximum conducted output power of +20.9 dbm plus antenna gain of +3.0 dBi) in the frequency range of 2412 ñ 2462 MHz, which means that the worst case prediction of power density (100% reflection) at 20 cm distance (worst case) can be calculated as follows : EIRP S = 4*π * R 2 (power density without reflection) 2 2 *EIRP S = 4*π * R 2 (power density with 100% reflection) 2 2 *EIRP 245.5 mW S = 4*π * R 2 = π*(20cm) 2 = 0.195 mW/cm 2 (limit = 1.0 mW/cm 2 ) This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5). (2) has a maximum e.i.r.p. of +19.7 dBm (93.3 mW, maximum conducted output power of +16.7 dbm plus antenna gain of +3.0 dBi) in the frequency range of 5150 ñ 5350 MHz, which means that the worst case prediction of power density (100% reflection) at 20 cm distance (worst case) can be calculated as follows : EIRP S = 4*π * R 2 (power density without reflection) 2 2 *EIRP S = 4*π * R 2 (power density with 100% reflection) 2 2 *EIRP 93.3 mW S = 4*π * R 2 = π*(20cm) 2 = 0.074 mW/cm 2 (limit = 1.0 mW/cm 2 ) This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.407 (f). (3) has a maximum e.i.r.p. of +23.8 dBm (239.9 mW, maximum conducted output power of +20.8 dbm plus antenna gain of +3.0 dBi) in the frequency range of 5725 ñ 5850 MHz, which means that the worst case prediction of power density (100% reflection) at 20 cm distance (worst case) can be calculated as follows : EIRP S = 4*π * R 2 (power density without reflection) 2 2 *EIRP S = 4*π * R 2 (power density with 100% reflection) 2 2 *EIRP 239.9 mW S = 4*π * R 2 = π*(20cm) 2 = 0.191 mW/cm 2 (limit = 1.0 mW/cm 2 ) This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

Test Report

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 03082501.r05 Page 1 of 58 TEST REPORT OF A 2.4/5 GHZ IEEE 802.11g/a WLAN MINIPCI CARD, BRAND GLOBESPANVIRATA, MODEL ISL39200M, IN CONFORMITY WITH 47 CFR PART 15 (2003-07-22). FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2003-07-22) 2.4/5 GHz IEEE 802.11g/a WLAN MiniPCI card GlobespanVirata B.V. GlobespanVirata ISL39200M RGS39200M Project number: 03082501.r05 Page 2 of 58 MEASUREMENT/TECHNICAL REPORT GlobespanVirata B.V. Model : ISL39200M FCC ID: RGS39200M October 6, 2003 This report concerns: Original grant/certification Class 2 change Verification Equipment type: Digital Transmission System Deferred grant requested per 47 CFR 0.457(d)(1)(ii) ? Yes No Report prepared by: Name : H.J. Pieters Company name : TNO Electronic Products & Services (EPS) B.V. Address : Smidshornerweg 18 Postal code/city : 9822 ZG Niekerk Mailing address : P.O. Box 15 Postal code/city : 9822 TL Niekerk Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 and the measurement procedures of ANSI C63.4-1992. TNO Electronic Products & Services (EPS) B.V. at Niekerk, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: October 6, 2003 Signature: P. de Beer TNO Electronic Products & Services (EPS) B.V. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2003-07-22) 2.4/5 GHz IEEE 802.11g/a WLAN MiniPCI card GlobespanVirata B.V. GlobespanVirata ISL39200M RGS39200M Project number: 03082501.r05 Page 3 of 58 Description of test item Test item : 2.4/5 GHz IEEE 802.11g/a WLAN MiniPCI card Manufacturer : GlobespanVirata B.V. Brand : GlobespanVirata Model : ISL39200M Serial numbers : V03330015 Revision : ISL392X5M-EVAL REV. A0 Receipt number : 1 Receipt date : September 3, 2003 Applicant information Applicant's representative : Mr. D. Sariredjo Company : GlobespanVirata B.V. Address : Rembrandtlaan 1a Postal code : 3723 BG City : Bilthoven PO-box : 343 Postal code : 3720 AH City : Bilthoven Country : The Netherlands Telephone number : +31 30 225 9742 Telefax number : +31 30 229 6061 Test(s) performed Location : Niekerk Test(s) started : September 9, 2003 Test(s) completed : September 22, 2003 Purpose of test(s) : Type approval / certification Test specification(s) : 47 CFR Part 15 (2003-07-22) Test engineer : O.H. Hoekstra H.J. Pieters Report written by : H.J. Pieters Project leader : P.A.J.M. Robben, B.Sc.E.E. This report is in conformity with NEN-EN-ISO/IEC 17025. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2003-07-22) 2.4/5 GHz IEEE 802.11g/a WLAN MiniPCI card GlobespanVirata B.V. GlobespanVirata ISL39200M RGS39200M Project number: 03082501.r05 Page 4 of 58 Table of contents 1 General information ...............................................................................................................................................................6 1.1 Product description.........................................................................................................................................................6 1.2 Related submittal(s) and/or Grant(s) ..............................................................................................................................6 1.3 Tested system details......................................................................................................................................................6 1.4 Test methodology ...........................................................................................................................................................7 1.5 Test facility.....................................................................................................................................................................7 1.6 Product labeling..............................................................................................................................................................7 1.7 System test configuration ...............................................................................................................................................8 1.7.1 Justification ............................................................................................................................................................8 1.7.2 EUT test software ...................................................................................................................................................9 1.8 Special accessories .........................................................................................................................................................9 1.9 Equipment modifications................................................................................................................................................9 1.10 Configuration of the tested system .................................................…

Text truncated - open the document above for the full version.

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Derick S Sariredjo(Regulatory Engineer)

[email protected]+31 30 229 6060Fax: +31 30 229 6061

Technical Contact

TNO Electronic Products & Services (EPS) B.V.Pieter Robben

[email protected]+31 594 505005

Smidshornerweg 18 · Niekerk · Netherlands

Test Firm

TUV Rheinland Nederland B.V.Ties E. T Koning

[email protected]31-594-505-005Fax: 31-594-504-804

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	5.72 GHz - 5.85 GHz	120.00 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Limited Modular Approval. Power output listed is conducted. The device is authorized for use with the laptop computer and antenna(s) specified in this filing. Installation of the device is by authorized installers only. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with specific information required to satisfy RF exposure compliance.
