RGS39200C2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card

Preliminary User manual FCC ID: RGS39200C Page 1 of 10 GlobespanVirata ISL39200C IEEE 802.11a/g WLAN Cardbus32 Card User Manual Version 0.2 Preliminary User manual FCC ID: RGS39200C Page 2 of 10 Table of Contents 0-INTRODUCTION .................................................................................................... 3 1-INSTALLATION PROCEDURE ........................................................................... 3 1.1 INSTALLING THE CARDBUS32 CARD INTO THE HOST PC NOTEBOOK............... 3 1.2 INSTALLING THE SOFTWARE DRIVERS................................................................ 3 1.3 WIRELESS LAN INSTALLATION GUIDE LINES AND AUTHORIZATION FOR USE.7 2-REGULATORY INFORMATION ........................................................................ 7 2.1 FCC INFORMATION TO USER............................................................................. 7 2.2 FCC GUIDELINES FOR HUMAN EXPOSURE........................................................ 7 2.3 FCC ELECTRONIC EMISSION NOTICES.............................................................. 7 2.4 FCC RADIO FREQUENCY INTERFERENCE STATEMENT..................................... 8 2.5 EXPORT RESTRICTIONS....................................................................................... 8 2.6 EUROPE - EU DECLARATION OF CONFORMITY................................................. 9 3-TECHNICAL SPECIFICATIONS....................................................................... 10 Preliminary User manual FCC ID: RGS39200C Page 3 of 10 0-Introduction The GlobespanVirata ISL39200C WLAN NIC is a complete wireless high speed Network Interface Card (NIC). It conforms to the IEEE 802.11g and IEEE 802.11a protocol and operates in the 2.45 GHz and 5150-5350MHz, 5470-5725MHz and 5725-5825 MHz frequency bands. It provides a complete reference design evaluation platform of hardware and software to system providers or integrators requiring wireless data communications capability and is ideal for integration into computer platforms. • Fully compliant with the IEEE 802.11g and IEEE 802.11a WLAN standards • FCC Certified Under Part 15 (pending) to Operate in the 2.45 GHz and 5150-5350MHz, 5725-5825 MHz Bands • ETSI Certified Under RTTE directive (pending) to Operate in the 2.45 GHz and 5150-5350MHz, 5470-5725MHz and 5725-5825 MHz Bands • Support for 54, 48, 36, 24, 18, 12, 9, and 6 Mbps OFDM, 11 and 5.5 Mbps CCK and legacy 2 and 1 Mbps data rates • Driver Supports Microsoft Windows ® 98/SE, ME, XP and 2000 (SR1) 1-Installation procedure 1.1 Installing the Cardbus32 card into the host PC Notebook a-Turn Host PC off, then insert Cardbus card into Cardbus slot of notebook Host PC. CAUTION: 1-- This assembly is designed to operate with a supply voltage of 3.3V in laptop computers supporting the CARDBUS32 standard. 2-- Do not force engagement of the card in the CARDBUS32 slot. It is mechanically designed to prevent improper insertion. 1.2 Installing the software drivers a-Start windows b-When windows detects new hardware and asks for drivers, point to directory where the GlobespanVirata driver is located (for example floppy drive, cdrom , harddisk) to install. c-after drivers are installed, restart windows d-the GlobespanVirata WLAN icon will appear in system tray on the bottom right of the screen (see yellow arrow in fig. 01) fig, 01: GlobespanVirata WLAN icon Preliminary User manual FCC ID: RGS39200C Page 4 of 10 e-double click the GlobespanVirata WLAN icon to open the WLAN settings, the following window will appear (see fig.02) fig, 02: GlobespanVirata WLAN settings window f-click on configuration tab and select which type of network is required (access point or Peer-to-peer mode), see fig. 03. fig, 03: WLAN network type setting window Preliminary User manual FCC ID: RGS39200C Page 5 of 10 g-select what TX rate is required (default setting is fully automatic) see fig. 04. fig, 04: WLAN tx rate setting window h-select what encryption type is required, 64 or 128 bit WEP (default setting is disabled) see fig. 05. fig, 05: WLAN encryption rate setting window Preliminary User manual FCC ID: RGS39200C Page 6 of 10 i-click on the status tab to see the connection status (fig.06). fig, 06: WLAN network status j-click on the about tab to see the software drivers versions and MAC address (fig.07). fig, 07: WLAN driver and MAC addres information Preliminary User manual FCC ID: RGS39200C Page 7 of 10 1.3 Wireless LAN installation guide lines and Authorization for use Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by GlobespanVirata may void the user’s authority to operate the equipment. GlobespanVirata is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. GlobespanVirata and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. The use of Wireless LAN devices may be restricted in some situations or environments for example: * On board of airplanes, or * In an explosive environment, or * In case the interference risk to other devices or services is perceived or identified as harmful. In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please first verify authorization to use these devices prior to operating the equipment. 2-Regulatory information 2.1 FCC Information to User This product does not contain any…

Text truncated - open the document above for the full version.

Preliminary User manual FCC ID: RGS39200C Page 1 of 10 GlobespanVirata ISL39200C IEEE 802.11a/g WLAN Cardbus32 Card User Manual Version 0.4 Preliminary User manual FCC ID: RGS39200C Page 2 of 10 Table of Contents 0-INTRODUCTION ....................................................................................................3 1-INSTALLATION PROCEDURE ...........................................................................3 1.1 I NSTALLING THE CARDBUS32 CARD INTO THE HOST PC NOTEBOOK...............3 1.2 I NSTALLING THE SOFTWARE DRIVERS................................................................3 1.3 WIRELESS LAN INSTALLATION GUIDE LINES AND AUTHORIZATION FOR USE.7 2-REGULATORY INFORMATION.........................................................................7 2.1 FCC I NFORMATION TO USER.............................................................................7 2.2 FCC GUIDELINES FOR HUMAN EXPOSURE........................................................7 2.3 FCC E LECTRONIC EMISSION NOTICES..............................................................7 2.4 FCC RADIO FREQUENCY INTERFERENCE STATEMENT.....................................8 2.5 EXPORT RESTRICTIONS.......................................................................................8 2.6 EUROPE - EU DECLARATION OF CONFORMITY.................................................9 3-TECHNICAL SPECIFICATIONS .......................................................................10 Preliminary User manual FCC ID: RGS39200C Page 3 of 10 0-Introduction The GlobespanVirata ISL39200C WLAN NIC is a complete wireless high speed Network Interface Card (NIC). It conforms to the IEEE 802.11g and IEEE 802.11a protocol and operates in the 2.45 GHz and 5150-5350MHz, 5470-5725MHz and 5725-5825 MHz frequency bands. It provides a complete reference design evaluation platform of hardware and software to system providers or integrators requiring wireless data communications capability and is ideal for integration into computer platforms. ï Fully compliant with the IEEE 802.11g and IEEE 802.11a WLAN standards ï FCC Certified Under Part 15 (pending) to Operate in the 2.45 GHz and 5150-5350MHz, 5725-5825 MHz Bands ï ETSI Certified Under RTTE directive (pending) to Operate in the 2.45 GHz and 5150-5350MHz, 5470-5725MHz and 5725-5825 MHz Bands ï Support for 54, 48, 36, 24, 18, 12, 9, and 6 Mbps OFDM, 11 and 5.5 Mbps CCK and legacy 2 and 1 Mbps data rates ï Driver Supports Microsoft Windows Æ 98/SE, ME, XP and 2000 (SR1) 1-Installation procedure The GlobespanVirata ISL39200C WLAN Cardbus card is only authorized for use in combination with the following notebook computer(s): Hewlett-Packard Omnibook 4150. This device may not be installed in -or used in combination with- any other models and/or brands of notebook computers. 1.1 Installing the Cardbus32 card into the host PC Notebook a-Turn Host PC off, then insert Cardbus card into Cardbus slot of notebook Host PC. CAUTION: 1-- This assembly is designed to operate with a supply voltage of 3.3V in laptop computers supporting the CARDBUS32 standard. 2-- Do not force engagement of the card in the CARDBUS32 slot. It is mechanically designed to prevent improper insertion. 1.2 Installing the software drivers a-Start windows b-When windows detects new hardware and asks for drivers, point to directory where the GlobespanVirata driver is located (for example floppy drive, cdrom , harddisk) to install. c-after drivers are installed, restart windows d-the GlobespanVirata WLAN icon will appear in system tray on the bottom right of the screen (see yellow arrow in fig. 01) fig, 01: GlobespanVirata WLAN icon Preliminary User manual FCC ID: RGS39200C Page 4 of 10 e-double click the GlobespanVirata WLAN icon to open the WLAN settings, the following window will appear (see fig.02) fig, 02: GlobespanVirata WLAN settings window f-click on configuration tab and select which type of network is required (access point or Peer-to-peer mode), see fig. 03. fig, 03: WLAN network type setting window Preliminary User manual FCC ID: RGS39200C Page 5 of 10 g-select what TX rate is required (default setting is fully automatic) see fig. 04. fig, 04: WLAN tx rate setting window h-select what encryption type is required, 64 or 128 bit WEP (default setting is disabled) see fig. 05. fig, 05: WLAN encryption rate setting window Preliminary User manual FCC ID: RGS39200C Page 6 of 10 i-click on the status tab to see the connection status (fig.06). fig, 06: WLAN network status j-click on the about tab to see the software drivers versions and MAC address (fig.07). fig, 07: WLAN driver and MAC addres information Preliminary User manual FCC ID: RGS39200C Page 7 of 10 1.3 Wireless LAN installation guide lines and Authorization for use Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by GlobespanVirata may void the userís authority to operate the equipment. GlobespanVirata is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. GlobespanVirata and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. The use of Wireless LAN devices may be restricted in some situations or environments for example: * On board of airplanes, or * In an explosive environment, or * In case the interference risk to other devices or services is perceived or identified as harmful. In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (…

Text truncated - open the document above for the full version.

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Cover letter Date September 24, 2003 Our reference 03K1081a Your reference - Page 1 of 3 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands Office of Engineering and Technology Laboratory Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 U.S.A. Dear Mr./Ms., On behalf of our customer GlobespanVirata B.V., we hereby would like to apply for FCC certification (full modular approval, see also excerpt of DA 00-1407 and remarks below) of the following device: FCC ID : RGS39200C Brand : GlobespanVirata Model number : ISL39200C Description : 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card The following PDF files (exhibits) are electronically submitted: 1. Cover letter containing the request for FCC certification 2. Request for confidentiality 3. Test report(s) in conformity with 47 CFR Part 15 (a) Test report 47 CFR Part 15.247 (2412 ñ 2462 MHz) (b) Test report 47 CFR Part 15.247 (5725 ñ 5850 MHz) (c) Test report 47 CFR Part 15.407 (5150 ñ 5350 MHz) 4. Bill of materials 5. Circuit diagram 6. Block diagram 7. Operational description 8. Interior photographs 9. Exterior photographs 10. Test setup photographs 11. SAR test report 12. Authorization letter 13. User manual 14. Label information Best regards, TNO Electronic Products & Services (EPS) B.V. P.A.J.M. Robben, B.Sc.E.E. Marketing Manager Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Date September 24, 2003 Our reference 03K1081a Your reference - Page 2 of 3 Excerpt of DA 00-1407 In order to obtain a modular transmitter approval, a cover letter requesting modular approval must be submitted and the numbered requirements identified below must be addressed in the application for equipment authorization. 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. Remark: The modular transmitter has its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Remark: The transmitter has buffered modulation/data inputs. 3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. Remark: The transmitter has its own integrated and dedicated power supply regulation. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a ìuniqueî antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The ìprofessional installationî provision of Section 15.203 may not be applied to modules. Remark: The modular transmitter has an integral antenna. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Date September 24, 2003 Our reference 03K1081a Your reference - Page 3 of 3 Remark: The modular transmitter has been tested in a stand-alone configuration (by using a Carbus extender card) in order to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: ìContains Transmitter Module FCC ID: XYZMODEL1î or ìContains FCC ID: XYZMOD…

Text truncated - open the document above for the full version.

Date 17 September 2003 Your reference -- Our reference 2003-mansup-615f Subject Agent authorization letter for FCC ID: RGS39200C To whom it may concern To whom it may concern, This letter confirms the agreement that; TNO Electronic Products & Services (EPS) B.V. Smidshornerweg 18 9822 TL Niekerk The Netherlands is authorized as an agent for Company GlobespanVirata B.V. The Netherlands Address, City Rembrandtlaan 1a, Bilthoven Country The Netherlands Phone number +31 30 2296060 Fax number +31 30 2296061 and is authorized to sign application forms and act on behalf of GlobespanVirata B.V. The Netherlands and is authorized to receive and exchange data between GlobespanVirata B.V. The Netherlands and European/non-European national authorities regarding the -certification of- and/or -arranging type approvals for the following product: GlobespanVirata model ISL39200C WLAN Cardbus Card with FCC ID: RGS39200C This authorization will expire on December, 2003 or upon earlier written notice from GlobespanVirata B.V. The Netherlands. Yours sincerely, Derick Sariredjo GlobespanVirata B.V. The Netherlands Rembrandtlaan 1a, 3723 BG Bilthoven, The Netherlands Phone: +31.30.225.9742 Fax: +31.30.229.6061

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Request for confidentiality Date September 24, 2003 Our reference 03K1081b Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands Office of Engineering and Technology Laboratory Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 U.S.A. Dear Mr./Ms., Pursuant to section 0.457 of the FCC rules we herewith request the following exhibits, related to this application for FCC ID: RGS39200C, to be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than GlobespanVirata B.V. and TNO Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Operational description 4. Block diagram The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Best regards, TNO Electronic Products & Services (EPS) B.V. P.A.J.M. Robben, B.Sc.E.E. Marketing Manager

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Cover letter Date January 20, 2004 Our reference 03K1081a1 Your reference - Page 1 of 3 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands Office of Engineering and Technology Laboratory Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 U.S.A. Dear Mr./Ms., On behalf of our customer GlobespanVirata B.V., we hereby would like to apply for FCC certification (limited modular approval, see also excerpt of DA 00-1407 and remarks below) of the following device: FCC ID : RGS39200C Brand : GlobespanVirata Model number : ISL39200C Description : 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card The following PDF files (exhibits) are electronically submitted: 1. Cover letter containing the request for FCC certification 2. Request for confidentiality 3. Test report(s) in conformity with 47 CFR Part 15 (a) Test report 47 CFR Part 15.247 (2412 ñ 2462 MHz) (b) Test report 47 CFR Part 15.247 (5725 ñ 5850 MHz) (c) Test report 47 CFR Part 15.407 (5150 ñ 5350 MHz) 4. Bill of materials 5. Circuit diagram 6. Block diagram 7. Operational description 8. Interior photographs 9. Exterior photographs 10. Test setup photographs 11. SAR test report 12. Authorization letter 13. User manual 14. Label information Best regards, TNO Electronic Products & Services (EPS) B.V. P.A.J.M. Robben, B.Sc.E.E. Marketing Manager Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Date January 20, 2004 Our reference 03K1081a1 Your reference - Page 2 of 3 Excerpt of DA 00-1407 In order to obtain a modular transmitter approval, a cover letter requesting modular approval must be submitted and the numbered requirements identified below must be addressed in the application for equipment authorization. 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. Remark: The modular transmitter has its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Remark: The transmitter has buffered modulation/data inputs. 3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. Remark: The transmitter has its own integrated and dedicated power supply regulation. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a ìuniqueî antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The ìprofessional installationî provision of Section 15.203 may not be applied to modules. Remark: The modular transmitter has an integral antenna. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Date January 20, 2004 Our reference 03K1081a1 Your reference - Page 3 of 3 Remark: The modular transmitter has been tested in a stand-alone configuration (by using a Carbus extender card) in order to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: ìContains Transmitter Module FCC ID: XYZMODEL1î or ìContains FCC ID: XYZMOD…

Text truncated - open the document above for the full version.

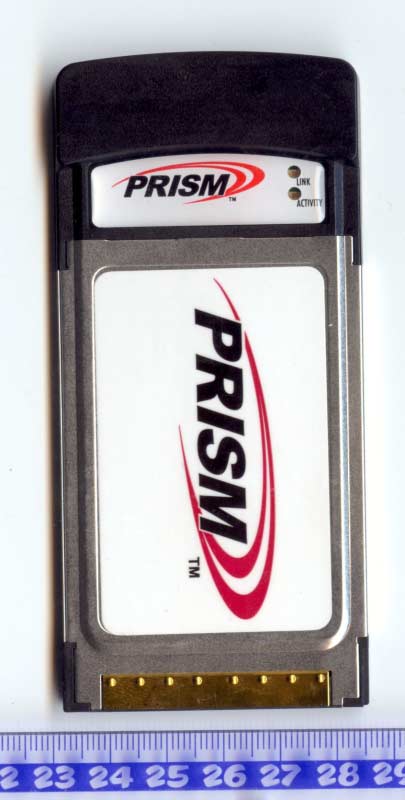

FCC ID: RGS39200C Page 1 of 3 External photographs of Description: 2.4 GHz / 5 GHz Dual band WLAN Cardbus Card FCC ID: RGS39200C Brand name: GlobespanVirata Model number: ISL39200C FCC ID: RGS39200C Page 2 of 3 ISL39200C Front exterior FCC ID: RGS39200C Page 3 of 3 ISL39200C back exterior

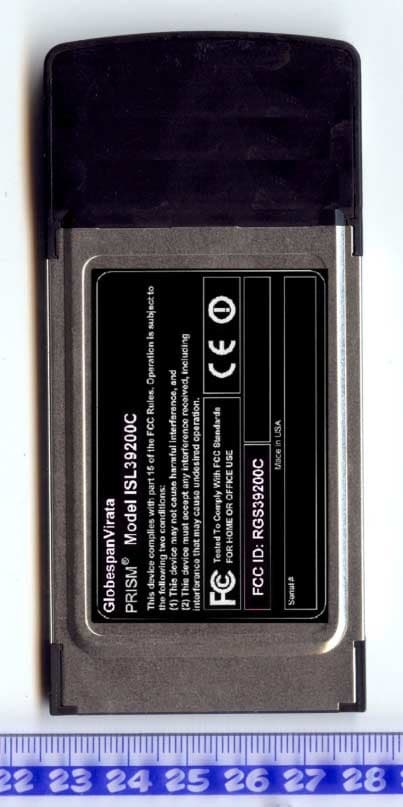

FCC ID: RGS39200C Page 1 of 4 FCC and CE Label info of Description: 2.4 GHz / 5GHz dual band WLAN Cardbus Card FCC ID: RGS39200C Brand name: GlobespanVirata Model number: ISL39200C FCC ID: RGS39200C Page 2 of 4 ISL39200C FCC and CE Label Label material: Tamper evident 0.002" polyester. This material is durable, tamper proof and legible. Tamper proof: If the label is removed after 48 hours (time for the adhesive to cure) it will separate which will leave label material on the attached surface that it was removed from. This label material will spell out the word "VOID". The label will also show the word "VOID" where the label material was pulled away. The end result is the word " VOID " on both the mating surface and label, leaving both unusable. FCC ID: RGS39200C Page 3 of 4 ISL39200C Front label on Cover set FCC ID: RGS39200C Page 4 of 4 ISL3920C FCC and CE Back label on Cover set

FCC ID: RGS39200C Page 1 of 4 Internal photographs of Description: 2.4 GHz / 5 GHz WLAN Cardbus Card FCC ID: RGS39200C1 Brand name: GlobespanVirata Model number: ISL39200C FCC ID: RGS39200C Page 2 of 4 ISL39200C PCB front with shield FCC ID: RGS39200C Page 3 of 4 ISL39200C PCB front without shield FCC ID: RGS39200C Page 4 of 4 ISL39200C PCB rear

802.11a/b/g dual band 2.4/5GHz WLAN cardbus card Model No.: ISL39200C Tested For Globespanvirata BV Rembrandtlaan 1a Bilthoven, The Netherlands In Accordance With SAR (Specific Absorption Rate) Requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) UltraTech's File No.: ITSL-008-SAR This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: January 12, 2004 Report Prepared by: JaeWook Choi, SAR System Engineer Tested by: JaeWook Choi, SAR System Engineer Issued Date: January 12, 2004 Test Dates: December 17, 2003 ~ December 20, 2003 The results in this Test Report apply only to the sample(s) tested, which has been randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] SPECIFIC ABSORPTION RATE (SAR) Page 1 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) 802.11a/b/g dual band 2.4/5GHz WLAN cardbus card M/N: ISL39200C FCC ID: RGS39200C ULTRATECH GROUP OF LABS File #: ITSL-008-SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 January 12, 2004 Tel. #: 905-829-1570, Fax. #: 905-8…
