RID-LR101HLoRa Wireless Module

LoRa Wireless Communication Module Design Guide LR-101H VER: 1.0 GlobalSat WorldCom Corporation 16F., No. 186, Jian 1 st Rd, Zhonghe Dist., New Taipei City 23553, Ta i w a n Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899 [email protected] www.globalsat.com.tw USGlobalSat Incorporated 14740 Yorba Court Chino, CA 91710 Te l : 888.323.8720 / Fax: 909.597.8532 [email protected] www.usglobalsat.com Product Description LR-101H is a low power-consuming, half-duplex module. It can wirelessly transmit data to long-distance. It is built-in high-speed and low power-consuming MCU and SX1276 modulation chipset. This chipset is applied with the forward error correction technique which greatly improves interference immunity and advances sensitivity. The coding can detect errors and automatically filter out errors and false data LR-101H provides multi-channels. It supports various settings like baud rate, transmission power, and transmission speed, etc. LR-101H is suitable for long-distance transmission or harsh environments. Product feature  Ultra-high sensitive receiving ability by LoRa spread spectrum modulation technology  Long-distance transmission (1kM)  Support setting various parameters like baud rate, transmission power, and transmission speed  Multi-channel, dual data buffer (each 256 Bytes)  Instant wake up over the air  Four operating modes  Built- in watchdog  PIN connector for easy development and test Hardware Specifications Chipset SEMTECH LoRa SX1276 Antenna RPSMA/50Ω Frequency 903-927 MHz Transmission power 100mW (MAX.) Transmission media UART UART Baud Rate: 1200/2400/4800/9600(Default)/19200/38400/57600bps Parity: 8N1/8E1/8O1 Operation Voltage 3.0V~6V Current consumption Receiving: 13 mA(typical) ， Transmitting: 120 mA(typical) Sleeping: 2.2uA(typical) Transmission distance 1kM(0.81Kbps) Receiving sensitivity [email protected] Operation Temperature -40°C~ 85°C Humidity 5%~95%(Non-condensing) Dimension 30mm x 18mm(PCBA) Connector PIN type, pitch 2.54mm Pin Definition LR-101H Pin Definition Pin Signal name I/O Description 1 GND - Ground 2 VCC - 3.0V~6.0V 3 RXD Input UART input 4 TXD Output UART output 5 BZ Output Module’s operation status 6 P2 Input Pin2 for switching operation mode 7 P1 Input Pin1 for switching operation mode Product Size Operation Mode There are four operating modes of LR-101H. 1. Normal mode 2.Wake-up mode 3.Power-saving mode 4.Setup mode. The four operation modes are switched by the signal level of P1 and P2. Mode 1: Normal mode (P1=0, P2=0) UART is opened. Wireless channel is opened. Penetrating transmission. Mode 2: Wake-up mode (P1=0, P2=1) UART is opened. Wireless channel is opened. The only difference from normal mode is that its preamble is longer than normal mode’s, so that it can make sure the receiver could be waked in the power-saving mode. Note: The receiver could be waked no matter it is in normal mode or wake-up mode or power-saving mode. The receiver would automatically add the RSSI at the end of the received data. Mode 3: Power-saving mode (P1=1, P2=0) UART is closed. The wireless channel is in power-saving mode. You can set up an interval from 0.5 to 5 seconds to wake up in power-saving mode to check if there is preamble. If the receiver receives preamble, it will open UART, and wake MCU to process the received data and return data. After that, it will return to the power-saving mode. Mode 4: Setup mode (P1=1, P2=1) UART is closed. Wireless channel is closed. It could only be configured. Application Note 1. For proper operation of LR-101H, do not leave P1 or P2 floating. Do keep P1 and P2 at fixed level; otherwise it might cause the module instable. 2. Antenna is the important part in the communication system. The quality of antenna would directly influence the communication. Please take the antenna type and antenna’s electrical characteristics into consideration while integrating LR-101 into product. The Connection Diagram of the Module with MCU： Parameter Setting The configuration of LR-101H is programmed by hexadecimal notation. The default of baud rate is 9600bps. You can read and write the setting as below: 1) Read the setting: 0xFF 0x4C 0xCF 0x52 0xA1 0x52 0xF0 (7 bytes) Response: Preamble Model Name FW Version LoRa MAC Address Group ID RF Frequency RF TRx Rate RF Power UART Baud Rate UART Parity Wakeup Time End Word 0x24 (1 byte) 4 bytes 7 bytes 8 bytes 1 byte 3 bytes 1 byte 1 byte 1 byte 1 byte 1 byte 0x21 (1 byte) 2) Write the setting: Header of writing command RF Frequency Group ID RF TRx Rate RF Power UART Baud Rate UART Parity Wakeup Time 0xFF 0x4C 0xCF 0x52 0xA1 0x57 0xF1 (7 byte) 3 bytes 1 byte 1 byte 1 byte 1 byte 1 byte 1 byte Response: Preamble Model Name FW Version LoRa MAC Address Group ID RF Frequency RF TRx Rate RF Power UART Baud Rate UART Parity Wakeup Time End Word 0x24 (1 byte) 4 bytes 7 bytes 8 bytes 1 byte 3 bytes 1 byte 1 byte1 byte 1 byte 1 byte 0x21 (1 byte) The parameters are presented as hexadecimal. Parameter Name Bytes Description Model Name 4 Show the last 4 characters of model number in hexadecimal format. The last 4 characters of LR-101 H are 101H. The hexadecimal of 101 H is 0x31 0x30 0x31 0x4C. Model Name is written in FLASH memory and could not be modified. FW Version 7 Show the last 7 characters of firmware version in hexadecimal format. EX: The hexadecimal of 1507291. is 0X31 0x35 0x30 0x37 0x32 0x39 0x31. FW Version is written in FLASH memory and could not be modified. LoRa MAC Address 8 Show the last 8 characters of MCU ID. If MCU is changed, the LoRa Mac address must also be changed. LoRa Mac Address is written in FLASH memory and could not be modified. EX. 0x2A 0x1D 0x1C 0X1D 0x1E 0x1F 0x2A 0x2B Group ID 1 The range is from 0 to 255. Please set the same group ID for the same group’s devices for proper communication in the same group. (Default: 0, this function is disabled.) RF Frequency 3 The unit is KHz. (Default: 915000KHz, which is presented as 0x0D 0xF6 0x38.) RF TRx Rate 1 0.81K, 1.46K…

Text truncated - open the document above for the full version.

QA-FR-170-B

QA-FR-171-A

GlobalSat WorldCom Corporation 16F., No.186, Jian 1st Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) Modular Approval Letter Date: 2015-10-30 To whom it may concern: We , GlobalSat WorldCom Corporation, hereby request Limited Modular Approval for Product: LoRa Wireless Module (Model number: LR-101H, FCC ID: RID-LR101H). The EUT meets the requirement for modular approval as detailed in FCC Public Notice DA 00-1407. Compliance to each of the requirements is described below: 1. The modular transmitter has its own RF shielding. Please refer the product photo. 2. The modular transmitter has buffered modulation/data inputs, Buffered data inputs stage has been integrated in chip (Model: SX1276). 3. The modular transmitter has its own power supply regulation. Please refer to the Block Diagram. (DC 3-6 V from system) 4. Comply with the antenna requirements of Section 15.203 and 15.204(c), the module used one of two optional external antennas with RP-SMA female connector with -1.0 dBi(antenna1) and 2 dBi (antenna 2) gain. 5. The modular transmitter was tested with one test jig and laptop. 6. Equipped with either a permanently affixed label or must be capable of electronically displaying its FCC Identification number. FCC ID is shown on the label and permanently affixed to this modular transmitter, please refer to the User Manual. 7. Comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The necessary explanation to be complied with this requirement is contained in the user manual, and please refers to the User Manual. 8. Comply with any applicable RF exposure requirements in its final configuration. Sincerely, Director GlobalSat WorldCom Corporation Tel: +886-2-8226-3799 Ext#1206 Fax: +886-2-8226-3899 16F., No.186, Jian 1st Rd. Zhonghe Dist., New Taipei City 23553 Taiwan

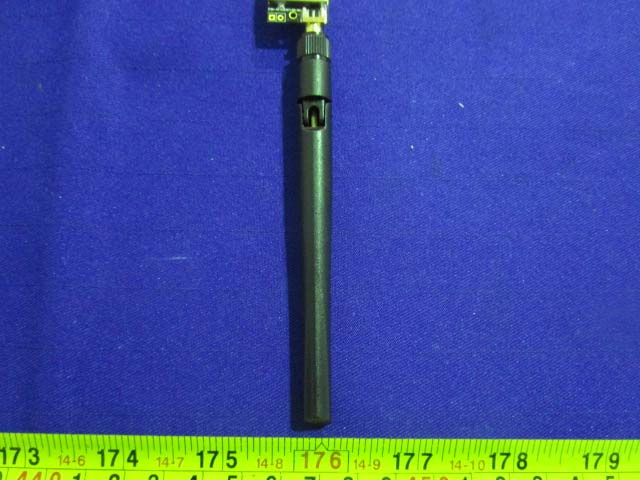

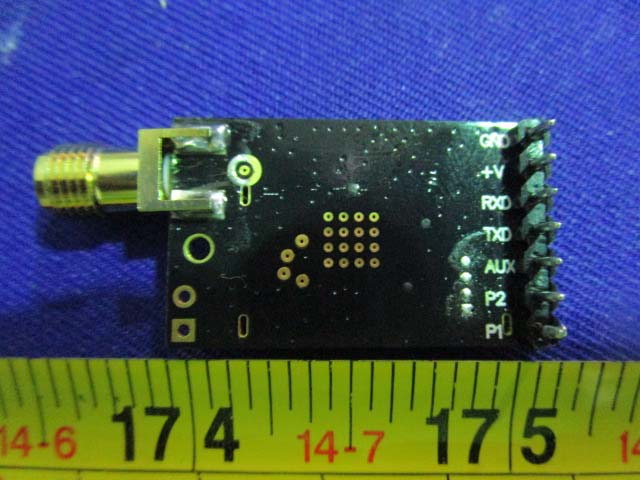

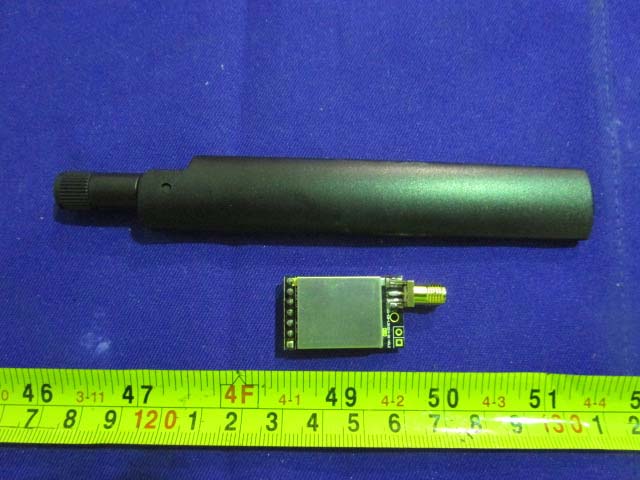

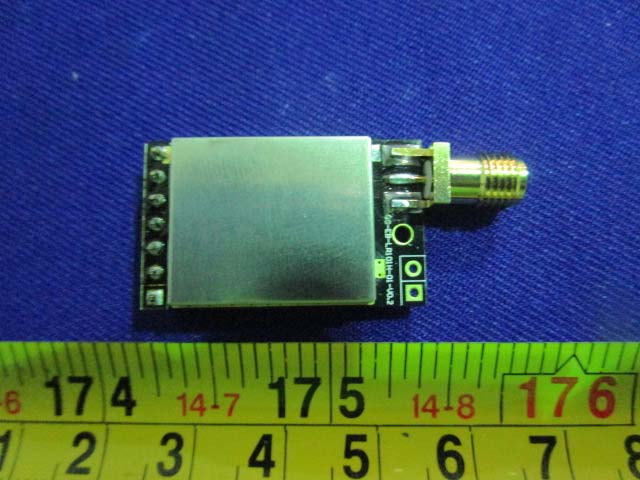

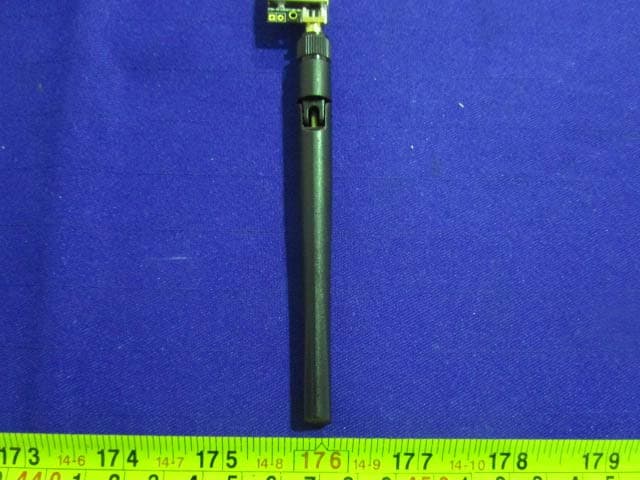

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All 1 View EUT – All 2 View EUT – Top View EUT – Bottom View EUT – Port View EUT – Antenna 1 View EUT – Antenna 2 View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Uncover View EUT –Main Board Top View EUT –Main Board Bottom View EUT –RF Chip View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For GlobalSat WorldCom Corporation 16F., No.186, Jian 1st Rd. Zhonghe Dist., New Taipei City 23553 Taiwan FCC ID: RID-LR101H Report Type: Original Report Product Type: LoRa Wireless Module Test En gineer: Lion Xiao Re port Number: RTW150901050-00 Re port Date: 2015-10-14 Reviewed By: Sula Huang RF Leader Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RTW150901050-00 FCC Part 15.247 Page 2 of 32 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 EXTERNAL CABLE ........................................................................................................................................................ 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §15.247 (I) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) .................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 FCC §15.203 - ANTENNA REQUIREMENT ............................................................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 9 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 MEASUREMENT UNCERTAINTY .................................................................................................................................. 10 EUT SETUP ................................................................................................................................................................ 10 EMI TEST RECEIVER SETUP ....................................................................................................................................... 11 TEST PROCEDURE ...................................................................................................................................................... 11 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 12 TEST RESULTS SUMMARY .......................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 12 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 15 APPLICABLE STANDARD ............................................................................................................................................ 15 MEASUREMENT UNCERTAINTY ...........................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Antenna 1： Conducted Emissions - Front View Conducted Emissions – Side View Radiated Emission View (Below 1GHz) Radiated Emission View (Above 1GHz) Antenna 2: Radiated Emission View (Below 1GHz) Radiated Emission View (Above 1GHz)
