TR-151A / TR-151E Vehicle/Asset Tracker User Manual Version 0.9.9 TR-151 page 2 Table of Content 1. Introduction and Features.............................................................................................. 3 1.1 Introduction ............................................................................................................3 1.2 Features .................................................................................................................3 1.3 Hardware................................................................................................................4 2. Start-up.......................................................................................................................... 5 2.1 Accessories .............................................................................................................5 2.2 Install SIM card and Battery ......................................................................................6 2.3 Charging the battery ................................................................................................9 2.4 TR-151 with magnetic holder ................................................................................... 10 2.5 Turn on/off the device............................................................................................. 12 2.6 Button Description ................................................................................................. 12 2.7 DIP switch ............................................................................................................ 15 3. TR-151 Setup and Call Center Operation ...................................................................... 16 3.1 Install the USB driver ............................................................................................. 16 3.2 Install the Call Center program ................................................................................ 17 3.3 Call Center Operation ............................................................................................. 18 3.3.1 Set TR-151 by call center for the first time. ...................................................... 18 3.3.2 View the IMEI code and phone number of TR-151 device .................................... 20 3.3.3 Delete a user (TR-151 device) from Call center ................................................. 21 3.4 Description of the Call Center UI .............................................................................. 22 3.5 SMS Tracking commands and Configuration for SMS Call Center software developer ........ 26 4. Operating the TR-151 ................................................................................................... 27 4.1 How to set SOS number of TR-151? .......................................................................... 27 4.2 How to set TR-151 to immediately report its position by SMS?...................................... 28 4.3 How to set TR-151 to periodically report its position by SMS? ....................................... 29 4.4 How to set TR-151 to immediately report its position by GPRS? .................................... 30 4.5 How to set TR-151 to periodically report its position by GPRS?...................................... 31 4.6 Tracking/Monitoring TR-151 by GPRS ........................................................................ 32 4.7 Displaying the location on map ................................................................................ 33 4.8 How to set TR-151 enter Geofence mode? ................................................................. 35 4.9 How to make TR-151 do Voice monitor function? ........................................................ 38 4.10. How to set TR-151 enter Parking Mode? ................................................................. 39 4.11 How to set TR-151 enter Sleeping Mode? ................................................................. 40 4.12 The return format from TR-151 .............................................................................. 41 4.13 SMS Configuration................................................................................................ 43 4.13.1 SMS Configuration _ SMS Default Return Phone Number................................... 45 4.13.2 SMS Configuration _ Maximum GPS Fixing Time .............................................. 46 4.13.3 SMS Configuration _ Default Report Mode Setting ............................................ 47 4.13.4 SMS Configuration _ GPRS Setting ................................................................ 48 TR-151 page 3 1. Introduction and Features 1.1 Introduction TR-151 is a durable and water resistant GPS/GSM/GPRS tracker. Users can install TR-151 on vehicles or assets for tracking. It can send out SMS with its location (longitude and latitude) to user’s cell phone by GSM network or to personal computer by internet connection of GPRS network. Then users can track the location of their vehicles or assets. TR-151 is designed to equip with high capacity of Li-ion battery for long operation time. There is one SOS button on the TR-151 for emergency help. It is very easy to install or hide TR-151 in the car to perform tracking. TR-151 is ideal application for vehicle tracking and equipment/assets monitoring. 1.2 Features z High sensitive GPS chipset z Combination of GPS ,GSM/GPRS wireless network z Durable and water resistant GPS tracker z Easy to install or hide in the car to perform tracking. No external wires needed. z Ideal application for vehicle tracking and equipment/assets monitoring z Optional external antenna for GPS reception z Rechargeable 2100mA high capacity Li-ion battery for long operation time z External DC power supply z Configuration can be done via SMS commands or by application software via USB interface. z SOS (emergency) button. z Voice monitor function to monitor the sound/conversation live. z Geofence function NOTE: Voice Monitoring function…

Text truncated - open the document above for the full version.

Label Location Front Back (Use a coin to loosen the screw on back cover) Remove back cover and battery Find the Label

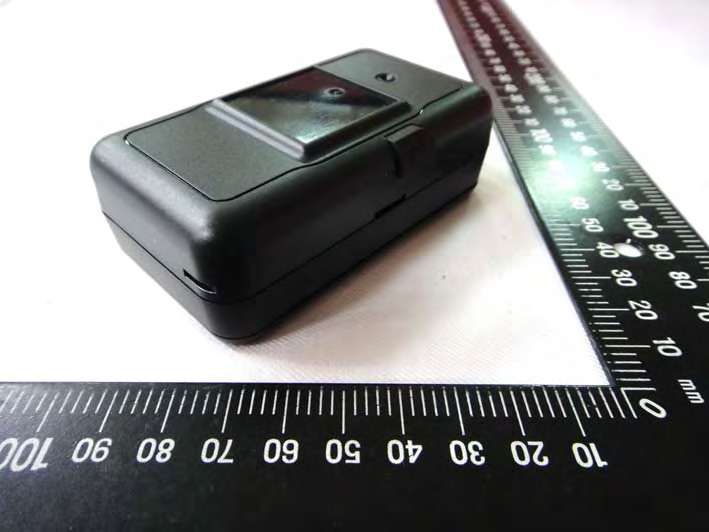

1 of 5 External Photos Model Number: TR-151A / TR-151E FCC ID: RID-TR151 2 of 5 EUT Photo 1 ) EUT Photo 2 ) 3 of 5 EUT Photo 3 ) EUT Photo 4 ) 4 of 5 EUT Photo 5 ) EUT Photo 6 ) 5 of 5 EUT Photo 7 )
