RID-TR600AVL Tracking System

AVL Tracking System TR-600 V0.2 Globalsat Technology Corporation 16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235, Taiwan Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899 [email protected] .tw www.globalsat.com.tw USGlobalSat Incorporated 1308 John Reed Court, City of Industry, CA 91745 Tel: 626.968.4145 / Fax: 626.968.4373 [email protected] www.usglobalsat.com 2 CONTENT 1. Introduction.......................................................................................................................................3 1.1 Introduction.............................................................................................................................3 1.2 Features....................................................................................................................................3 1.3 Hardware Architecture........................................................................................................4 1.4 Hardware specification........................................................................................................5 1.5 Appearance..............................................................................................................................6 1.6 LED indicator...........................................................................................................................7 1.7 Cable description...................................................................................................................8 1.8 Accessories............................................................................................................................10 2 Operation............................................................................................................................................ 11 2.1 Install the SIM card............................................................................................................ 11 2.2 Install the GPS and GSM antenna................................................................................12 3 Free Web Service.............................................................................................................................14 3.1 Preparation for Use Website............................................................................................14 3.2 Account creation..................................................................................................................14 3.3 Account creation..................................................................................................................18 3.4 Delete device from your account..................................................................................18 3.5 Set up SOS Parameters....................................................................................................19 3.6 Set up Digital Output.........................................................................................................20 3.7 TR-600 Motion report.........................................................................................................21 3 1. Introduction 1.1 Introduction TR-600 is a multi-functional and economical communication platform for vehicle positioning applications. It integrates high sensitivity GPS system and quad-band 850/900/1800/1900 MHz GSM system into a compact mechanism. TR-600 is enclosed into a solid housing for simple installation. It provides real time GPS positions anytime and anywhere in the open sky and offers the precise position and vehicle status to back-end server or controller’s cell phone to handle/ display/ calculate the necessary information. Benefits such as enhanced fleet management, improved vehicle safety, and useful emergency response are accomplished through the implementation of TR-600 system. 1.2 Features y Build in Quad-band 850/900/1800/1900 MHz GSM system y Build in high sensitivity GPS system y Support AT command via SMS/ TCP/UDP y Remote control via SMS/GPRS command y Real-time regular GPS position feedback and vehicle status monitoring y Build in 3 digital outputs, 3 digital inputs, ACC input, 1 analog input, 1 serial port y Power supply for Lion battery and lead-acid battery y Support multi geo-fence function y OTA (On the air) firmware upgrading y Data logger for 50,000 points y Ignition/ Power Low/ Power Lost / Speed Limit detection alarm y 3 LED indicators for GSM, GPS, power status y External panic button for emergency SOS (Option) 4 1.3 Hardware Architecture GPS antenna GSM antenna CPU GPS GSM MODEM Analog Input Digital output Digital input Li backup Battery USART/ RS-232 Motion Sensor SOS 5 1.4 Hardware specification Item Description Dimension 98 mm X 65 mm X 22 mm CPU High performance line ARM-base 32-bit MCU GPS receiver SiRF Star III high performance GPS chipset Operation -30°C ~ + 80°C Temperature Storage -40°C ~ + 85°C GPS Antenna SMA Type connector Active antenna ( 3.3~3.8V) GSM Antenna SMA Type connector Communication Telit (GE865) Quad-band GSM 850/900/1800/1900 MHz Protocol Voice/SMS/GPRS (TCP/UDP/HTTP) Built-in Memory 32 Mb GPS logging capacity 50,000 points Emergency Input Negative trigger 1 Ignition (ACC) Input Positive trigger 1 Negative trigger 2 Digital Input Port Positive trigger 1 Digital Output Port Negative trigger 3 (300 mA) Analog Input Port Analog Input 1( 0~28V) Serial Port 115200 bps Backup battery (Option) Internal 800 mAh Lion battery Support external Lead-acid battery (12V/24V) Temperature sensor (Option) Motion sensor Sensor G-sensor (3-Axis Accelerometer) (Option) Support barcode reader Support NMEA-0183 output for navigation Support RFID reader Function (Custom-made) Support tire pressure monitoring system 6 1.5 Appearance 1 Peripheral interface port 2 I/O port 3 Power Status LED 4 GPS LED 5 GSM LED 6 For fixing device with screws 7 GSM antenna connector 8 For fixing device with belt 9 GPS antenna connector 10 SIM card holder 1 2 3 4 5 6 6 7 8 9 10 8 6 6 7 1.6 LED indicator Po…

Text truncated - open the document above for the full version.

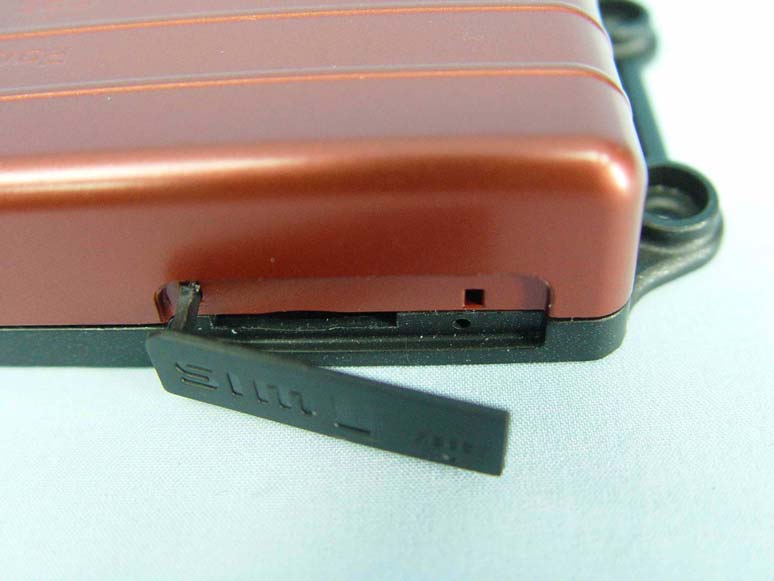

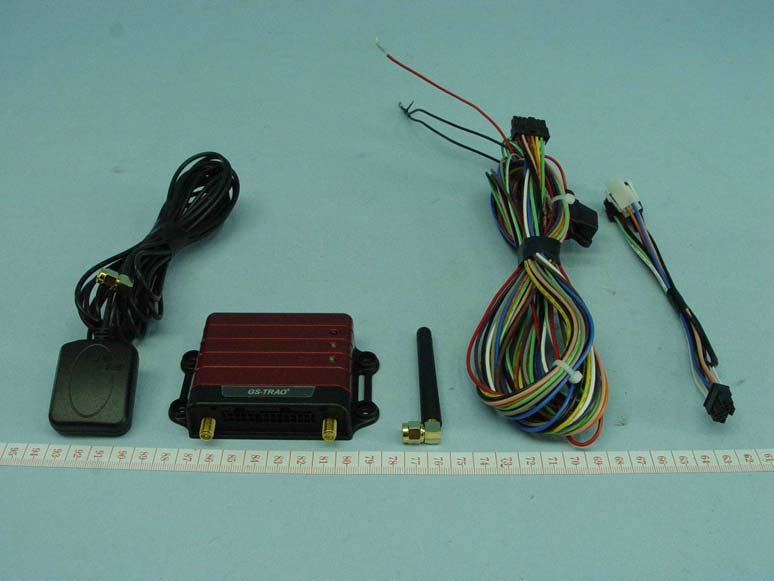

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

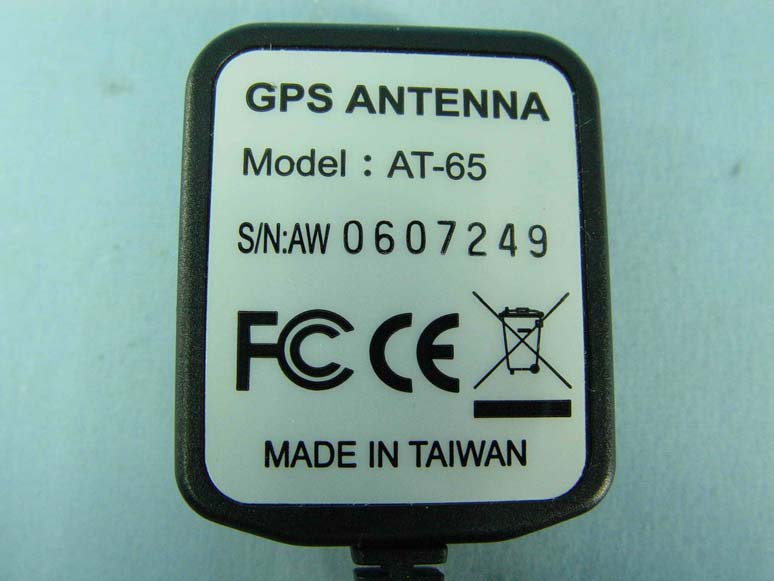

TR-600 Label Location

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11

Report No.: SA981202L05 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA981202L05 MODEL NO.: TR-600 FCC ID: RID-TR600 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Globalsat Technology Corporation. ADDRESS: 16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Report No.: SA981202L05 Report Format Version 3.0.1 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 824 ~ 849 32.2 2 20 0.523 0.549 1850 ~ 1910 27.7 1.5 20 0.166 1.00
