AVL Tracking System TR-606B GlobalSat WorldCom Corporation 16F., No. 186, Jian 1 st Rd, Zhonghe Dist., New Taipei City 23553, Taiwan Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899 [email protected] www.globalsat.com.tw USGlobalSat Incorporated 14740 Yorba Court Chino, CA 91710 Tel: 888.323.8720 / Fax: 909.597.8532 [email protected] www.usglobalsat.com 2 CONTENT 1. Introduction ....................................................................................................................................... 3 1.1 Introduction ............................................................................................................................. 3 1.2 Features .................................................................................................................................... 3 1.3 Hardware Architecture ........................................................................................................ 4 1.4 Hardware specification ........................................................................................................ 5 1.5 Appearance .............................................................................................................................. 6 1.6 LED indicator ........................................................................................................................... 7 1.7 Cable description ................................................................................................................... 8 1.8 Accessories ............................................................................................................................ 10 2 Operation ............................................................................................................................................ 11 2.1 Install the SIM card ............................................................................................................ 11 2.2 Install the GPS and GSM antenna ................................................................................ 12 2.3 Installing the Emergency button ................................................................................... 13 3 1. Introduction 1.1 Introduction The TR-606B is a multi-functional and economically feasible communication platform for mobile positioning applications. It integrates highly sensitive GPS module, dual-band UMTS/HSDPA and quad-band GSM communication module with a powerful microcontroller that fits into a compact enclosure. The TR-606B has a solid and rigid housing, for simple installation. It provides real-time GPS positions anytime and anywhere with an open view to the sky, and offers precise positioning, and reports vehicle status to the server with necessary information shown on the map. Benefits such as enhanced fleet management, improved vehicle safety, emergency response, are all accomplished through the implementation of the TR-606B system. 1.2 Features
Dual-Band UMTS/HSDPA 850/1900 MHz WCDMA system
Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz system
Build in high sensitivity GPS system
Supports AT command via SMS/ TCP/UDP
Remote control via SMS/GPRS command
Real-time GPS position feedback and vehicle status monitoring
Built-in in digital outputs (3), digital inputs (3), an ACC input, 1 analog input, and 1 serial port
Power supply for Li-ion battery and lead-acid battery
Supports multi geo-fence function
OTA (Over the air) firmware upgrade
Data buffer storage 3,000 points
Interval report depends on customization
Power low/lost detection alarm
Motion sensor
3 LED indicators for GSM, GPS, power status 4 1.3 Hardware Architecture GPS antenna GSM antenna Speaker Microphone CPU GPS GSM MODEM Analog Input Digital output Digital input Li backup Battery USART/ RS-232 Motion Sensor SOS 5 1.4 Hardware specification Item Description Dimension 98 mm X 71 mm X 22 mm CPU High performance line ARM-base 32-bit MCU GPS receiver SiRF Star III high performance GPS chipset Temperature Operation -30 °C ~ + 80°C Storage -40°C ~ + 85°C GPS Antenna SMA Type connector. Active antenna ( 3.3~3.8V) GSM Antenna SMA Type connector. Patch antenna Communication UMTS/HSDPA 850/1900 MHz WCDMA Quad-Band GSM/GPRS/EDGE 850/900/1800/1900 MHz Protocol Voice/SMS/GPRS (TCP/UDP) Built-in Memory 32 Mb GPS logging capacity 3000 points (Cell ID 1,400 points) Emergency Input Negative trigger 1 Ignition (ACC) Input Positive trigger 1 Digital Input Port Negative trigger 2 Positive trigger 1 Digital Output Port Negative trigger 3 (300 mA) Analog Input Port Analog Input 1( 0~28V) Serial Port 115200 bps Backup battery Internal 820 mAh Lion battery Support external Lead-acid battery (12V/24V) Sensor Motion sensor 6 1.5 Appearance 1 Peripheral interface port 2 I/O port 3 Power Status LED 4 GPS LED 5 GSM LED 6 For fixing device with screws 7 GSM antenna connector 8 For fixing device with belt 9 GPS antenna connector 10 SIM card holder 1 2 3 4 5 6 6 7 8 9 10 8 6 6 7 1.6 LED indicator Power Status LED (Red) LED Permanently On State Main power on, device on GPS LED (Yellow) LED Permanently off Fast blinking (Once every 1 second) Slow blinking (Once every 3 seconds) State GPS off GPS not fix GPS fix GSM LED (Green) LED Permanently off Fast blinking (Once every 1 second) Slow blinking (Once every 3 seconds) State GSM off 1. TR-606B is searching GSM network 2. SIM card is registering to GSM network TR-606B is registered full service 8 1.7 Cable description 14 Pin I/O Cable Wire Color Description Green/ White Analog Input_1 White Digital Output 3 (Negative Trigger) Gray Digital Output 1 (Negative Trigger) Purple Digital Input 3 (Positive Trigger) Blue Digital Input 1 (Negative Trigger) Black Ground Red Main Power X Green Digital Output 2 (Negative Trigger) Yellow ACC (Positive Trigger) Orange Digital Input 2 (Negative Trigger) Brown SOS (Negative Trigger) Pink 12V/24V Backup Battery Black Ground 9 8 Pin Cable Wire Color Description Pink Audio_5V Blue Speaker …

Text truncated - open the document above for the full version.

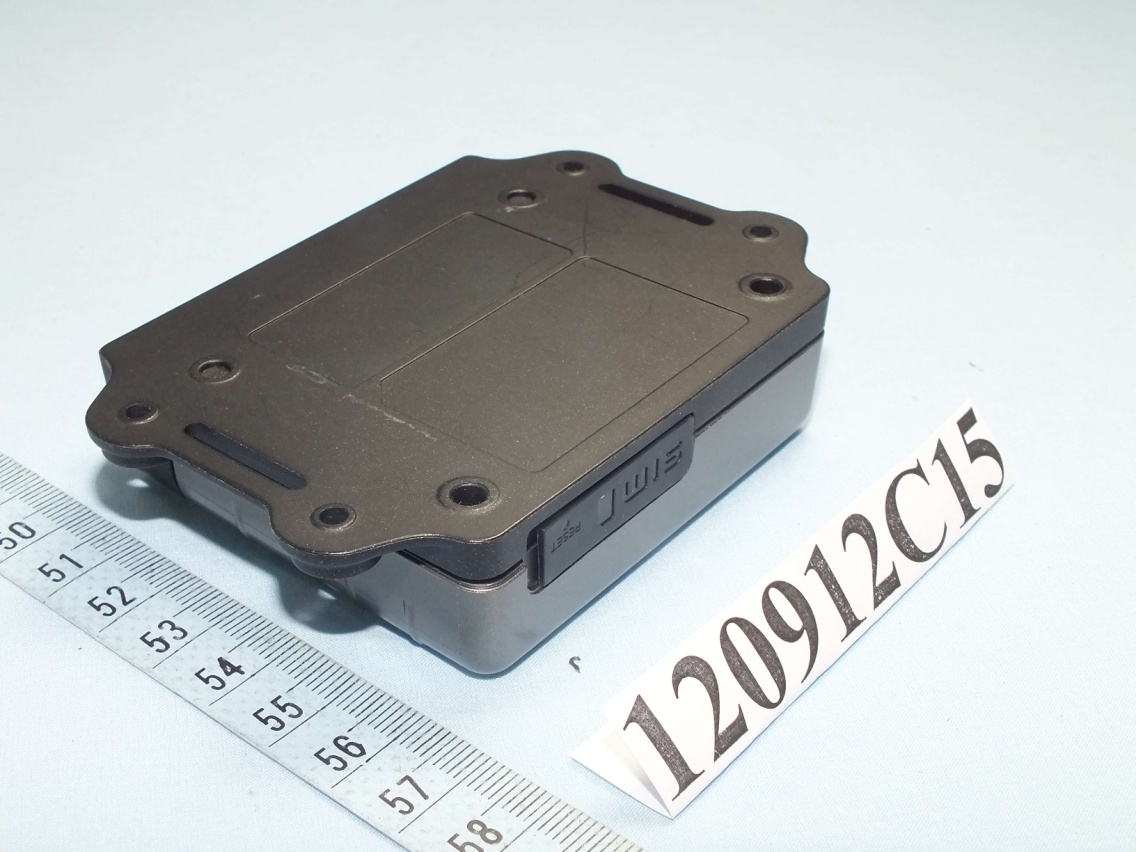

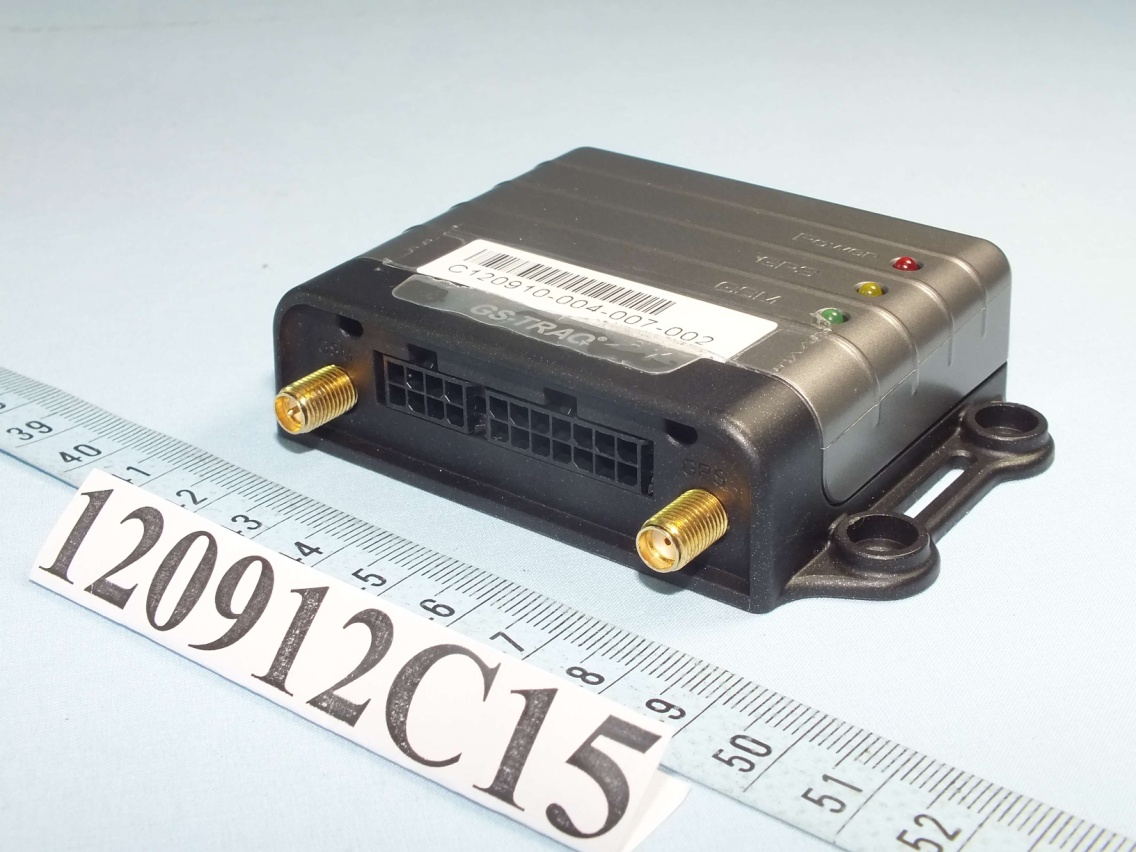

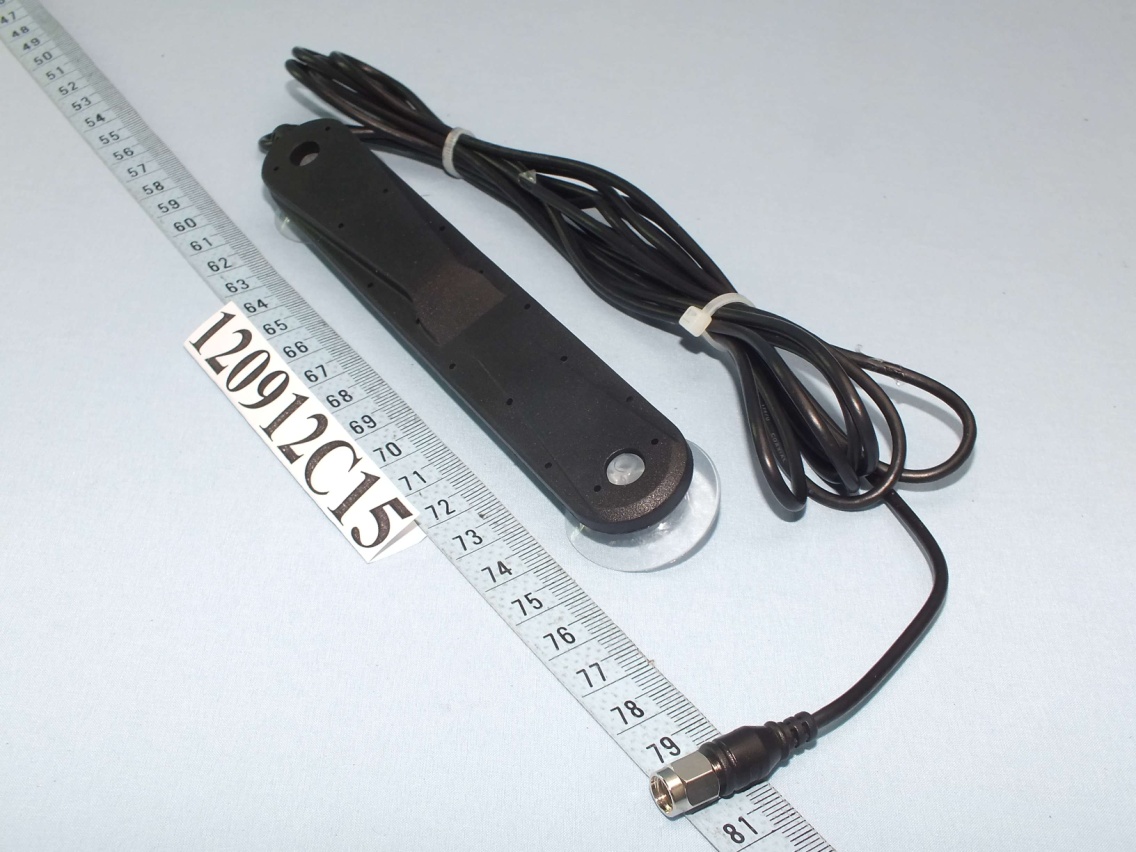

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Drawn by / Brian This is a GENERIC ARTWORK intended for the purpose of providing necessary graphics. The colors shown on this Artwork do NOT reflect the actual printing colors. Please see Aesthetic Specifications for color information. Part Number Printing Model Number Dimensions Description Material Version Date 料 號 型 號 敘 述 版 本 印 刷 尺 寸 材 質 日 期 N3STTR606B6001 SPECIFICATION Black TR-606B44*27mm Rating Label 反銀龍貼紙 Mist Silver Polyester Film Label 1.0 2012-09-26 Model No: TR-606B Input: 12-24V 1A FCC ID: RID-TR606 S/N: TR606B010001 Made in Taiwan Barcode System:Code 128 S/N:TR606B010001~TR606B01XXXX Scale / 1:1 Model No: TR-606B Input: 12-24V 1A FCC ID: RID-TR606 S/N: TR606B010001 Made in Taiwan

Label location

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11

Report No.: SA120912C15 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA120912C15 MODEL NO.: TR-606B, TR-606A FCC ID: RID-TR606 RECEIVED: Sep. 12, 2012 TESTED: Oct. 22 ~ Nov. 02, 2012 ISSUED: Nov. 09, 2012 APPLICANT: GlobalSat WorldCom Corporation ADDRESS: 16F., No.186, Jian 1st Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SA120912C15 2 of 6 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................. 4 2. RF EXPOSURE ............................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................... 5 2.3 CLASSIFICATION ........................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .................................. 6 Report No.: SA120912C15 3 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120912C15 Original release Nov. 09, 2012 Report No.: SA120912C15 4 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Tracker MODEL: TR-606B, TR-606A BRAND: GlobalSat APPLICANT: GlobalSat WorldCom Corporation TESTED: Oct. 22 ~ Nov. 02, 2012 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: TR-606B) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Nov. 09, 2012 Polly Chien / Specialist APPROVED BY : , DATE:Nov. 09, 2012 Ken Liu / Manager Report No.: SA120912C15 5 of 6 Report Format Version 5.0.0 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA120912C15 6 of 6 Report Format Version 5.0.0 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FCC Part 22 MODE FREQUENCY BAND (MHz) ERP (dBm)EIRP (dBm) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) START STOP GSM 824.2 848.8 29.26 31.41 20 0.275 0.549 EDGE 824.2 848.8 23.30 25.45 20 0.070 0.550 WCDMA 826.4 846.6 18.73 20.88 20 0.024 0.551 FCC Part 24 MODE FREQUENCY BAND (MHz) EIRP (dBm) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) STARTSTOP GSM 1850.2 1909.8 24.84 20 0.061 1 EDGE 1850.2 1909.8 20.13 20 0.020 1 WCDMA 1852.4 1907.6 12.59 20 0.004 1

Report No.: RF120912C15 1 of 38 Report Format Version 5.0.0 FCC TEST REPORT (PART 22) REPORT NO.: RF120912C15 MODEL NO.: TR-606B (refer to item 3.1 for more details) FCC ID: RID-TR606 RECEIVED: Sep. 12, 2012 TESTED: Oct. 22 ~ Nov. 02, 2012 ISSUED: Nov. 09, 2012 APPLICANT: GlobalSat WorldCom Corporation ADDRESS: 16F., No.186, Jian 1st Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120912C15 2 of 38 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 3 1 CERTIFICATION .......................................................................................................................... 4 2 SUMMARY OF TEST RESULTS .................................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY ............................................................................................... 5 2.2 TEST SITE AND INSTRUMENTS ................................................................................................ 6 3 GENERAL INFORMATION ........................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................. 7 3.2 CONFIGURATION OF SYSTEM UNDER TEST .......................................................................... 8 3.3 DESCRIPTION OF SUPPORT UNITS ......................................................................................... 8 3.4 TEST ITEM AND TEST CONFIGURATION ................................................................................. 9 3.5 EUT OPERATING CONDITIONS ............................................................................................... 10 3.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................ 10 4 TEST TYPES AND RESULTS .................................................................................................... 11 4.1 OUTPUT POWER MEASUREMENT ......................................................................................... 11 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ...................................................................... 11 4.1.2 TEST PROCEDURES ................................................................................................................ 11 4.1.3 TEST SETUP .............................................................................................................................. 11 4.1.4 TEST RESULTS ......................................................................................................................... 12 4.2 FREQUENCY STABILITY MEASUREMENT ............................................................................. 14 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT ......................................................... 14 4.2.2 TEST PROCEDURE .................................................................................................................. 14 4.2.3 TEST SETUP .............................................................................................................................. 14 4.2.4 TEST RESULTS ......................................................................................................................... 15 4.3 OCCUPIED BANDWIDTH MEASUREMENT ............................................................................. 16 4.3.1 TEST PROCEDURES ................................................................................................................ 16 4.3.2 TEST SETUP .............................................................................................................................. 16 4.3.3 TEST RESULTS ......................................................................................................................... 17 4.4 BAND EDGE MEASUREMENT ................................................................................................. 18 4.4.1 LIMITS OF BAND EDGE MEASUREMENT ............................................................................... 18 4.4.2 TEST SETUP ................................................................…

Text truncated - open the document above for the full version.

Report No.: RF120912C15-1 1 of 38 Report Format Version 5.0.0 FCC TEST REPORT (PART 24) REPORT NO.: RF120912C15-1 MODEL NO.: TR-606B (refer to item 3.1 for more details) FCC ID: RID-TR606 RECEIVED: Sep. 12, 2012 TESTED: Oct. 22 ~ Nov. 02, 2012 ISSUED: Nov. 09, 2012 APPLICANT: GlobalSat WorldCom Corporation ADDRESS: 16F., No.186, Jian 1st Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120912C15-1 2 of 38 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 3 1 CERTIFICATION .......................................................................................................................... 4 2 SUMMARY OF TEST RESULTS .................................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY ............................................................................................... 5 2.2 TEST SITE AND INSTRUMENTS ................................................................................................ 6 3 GENERAL INFORMATION ........................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................. 7 3.2 CONFIGURATION OF SYSTEM UNDER TEST .......................................................................... 8 3.3 DESCRIPTION OF SUPPORT UNITS ......................................................................................... 8 3.4 TEST ITEM AND TEST CONFIGURATION ................................................................................. 9 3.5 EUT OPERATING CONDITIONS ............................................................................................... 10 3.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................ 10 4 TEST TYPES AND RESULTS .................................................................................................... 11 4.1 OUTPUT POWER MEASUREMENT ......................................................................................... 11 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ...................................................................... 11 4.1.2 TEST PROCEDURES ................................................................................................................ 11 4.1.3 TEST SETUP .............................................................................................................................. 11 4.1.4 TEST RESULTS ......................................................................................................................... 12 4.2 FREQUENCY STABILITY MEASUREMENT ............................................................................. 14 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT ......................................................... 14 4.2.2 TEST PROCEDURE .................................................................................................................. 14 4.2.3 TEST SETUP .............................................................................................................................. 14 4.2.4 TEST RESULTS ......................................................................................................................... 15 4.3 OCCUPIED BANDWIDTH MEASUREMENT ............................................................................. 16 4.3.1 TEST PROCEDURES ................................................................................................................ 16 4.3.2 TEST SETUP .............................................................................................................................. 16 4.3.3 TEST RESULTS ......................................................................................................................... 17 4.4 BAND EDGE MEASUREMENT ................................................................................................. 18 4.4.1 LIMITS OF BAND EDGE MEASUREMENT ............................................................................... 18 4.4.2 TEST SETUP ..........................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST (Part 22) 2 RADIATED EMISSION TEST (Part 24)
