RIDBT-338Bluetooth GPS Receiver

1 User Manual Bluetooth GPS Receiver BT-338 ver 1.04 2 1 BT-338 at a glance 1.1 Appearance and Function 1.2 How to change battery Figure 1 Open the cover of battery 3 Figure 2 Take out the battery with pull tag Figure 3 Put new battery into BT-338 4 Figure 4 Fit battery into BT-338 Figure 5 Slide the cover of battery to close Figure 6 Slide the cover of battery to close 5 1.3 Accessories 6 2. Introduction The BT-338 is a GPS receiver with Bluetooth interface and built-in active antenna for high sensitivity to tracking signal. Based on the SiRF star III Low power chip set and supports all functions (Single Sat updates in reduced visibility, Superior urban canyon performance, FoliageLock for weak signal tracking, etc.). The BT-338 is well suited to system integrations including PDA, Smart phone, Tablet PC and Notebook PC with Bluetooth devices. It satisfies a wide variety of applications that are purposes in automotive, and outdoor recreation navigation systems. 2.1 Package Before you start up, make sure that your package includes following items. If any item is missing or damaged, please contact your dealer immediately. ‹ Bluetooth GPS Receiver ‹ A CD with the User Manual and the Testing Program. ‹ AC Power Charger ‹ DC Car Power Charger 2.2 Power Switch Power on: Press the power button 1 second until the power LED is on. Power off: Press the power button 1 second until the power LED is off. 7 2.3 Power Jack The power jack lets you to connect either a DC car power charger (included) or AC power charger (included) to recharge the internal battery. Please note that the adapter rating 5V, 1.2 A, positive pole center. 2.4 LED Function Bluetooth Status LED (Blue): Blinking (Slowly) ---- Not connected to any Bluetooth device. Blinking (Quickly) ---- Connected to other Bluetooth device. GPS Status LED (Green): Blinking ---- GPS position is fixed Steady light ---- GPS position is not fixed Battery Status LED (Red/Yellow): Red ---- Battery power is critically low. Charge immediately. Yellow ---- Battery is charging now. LED off ---- Battery is partially full or fully charged. 2.5 Power-saving Function When you start the power of the Bluetooth GPS Receiver BT-338, if the Bluetooth is not connected to any devices within 10 minutes, BT-338 will turn off the power automatically, and all the LED will go off simultaneously. 8 3. Specification 3.1 System Specification Electrical Characteristics (Receiver) FrequencyL1, 1575.42 MHz C/A Code1.023 MHz chip rate Channels 20 all-in-view tracking Tracking Sensitivity-159 dBm Accuracy Position Horizontal 10m 2D RMS (SA off) WAAS enabled5m 2D RMS (SA off) Time1 micro-second synchronized to GPS time Velocity0.1m/sec 95% (SA off) Datum DatumWGS-84 Acquisition Rate Hot start8 sec., average (with ephemeris and almanac valid) Warm start38 sec., average (with almanac but not ephemeris) Cold start42 sec., average (neither almanac nor ephemeris) Reacquisition0.1 sec. average (interruption recovery time) Protocol GPS Output DataNMEA 0183 protocol, and supports command: GGA(1sec), GSA(1 sec), GSV(5 sec), RMC(1sec) ( VTG and GLL are optional) GPS transfer rate38400,N,8,1 Dynamic Condition Acceleration LimitLess than 4g Altitude Limit18,000 meters (60,000 feet) max. Velocity Limit515 meters/sec. (1,000 knots) max. Jerk Limit20 m/sec**3 Power Voltage Built-in rechargeable battery(1650 mAh) and 5V DC input charging circuit Operation Time15 hr. After fully recharged, in continuous mode >20 hr in trickle power mode Physical Characteristics Dimension72.5mm x 40.4mm x 26mm Weight75g Temperature Operating -20°~ 60°C Storage-30°~ 80°C HumidityUp to 95% non-condensing 3.2 Bluetooth Specification ● Bluetooth V1.2 Compliant ● Supply Voltage : 2.8V ~ 3.3V ● Frequency Range : 2.402 ~ 2.480 GHz ● Receiver Sensitivity : -80 dBm ● Transmit Power : Class 2 ● Transmitting Range : 10 m (Depends on environment) ● Power Consumption : 45 mA (Typical) 9 4. Usage 4.1. For PDA with built-in Bluetooth 1. Turn on the power switch in BT-338 2. Please refer to the user manual of PDA to enable the Bluetooth of PDA connecting to the BT-338. Some PDAs may need the Bluetooth passkey, the passkey is “0000”. 3. Check the number of COM port used by Bluetooth. 4. Run the suitable mapping/navigation software and select the correct COM port & baud rate : 38400 4.2. For PDA with Bluetooth Compact Flash card 1. Turn on the power switch in BT-338 2. Please refer to the user manual of Bluetooth Compact Flash card to enable it connects to the BT-338. Some Bluetooth devices may need the Bluetooth passkey, the passkey is “0000”. 3. Check the number of COM port used by Bluetooth.(Example COM 6). 4. Running the suitable mapping/navigation software and select the correct COM port & baud rate : 38400. 4.3. For Notebook with Bluetooth device 1. Turn on the power switch in BT-338 2. Please refer to the user manual of Bluetooth device to enable it connects to the BT-338. Some Bluetooth devices may need the Bluetooth passkey, the passkey is 10 “0000”. 3. Check the number of COM port used by Bluetooth.(Example COM 6). 4. Running the suitable mapping/navigation software and select the correct COM port & baud rate : 38400. Note: The Bluetooth device in most of the applications have an “auto-detect” feature that you do not need to select the Baud Rate. 11 5. How to test your Bluetooth GPS Receiver? The testing program only supports the Microsoft Windows CE & Pocket PC based PDA platform. 1. Run the “GPSinfo.exe” to execute the installation procedure of testing program (via PC and ActiveSync). 2. Run the “GPS Information” program from “Start Program files” of PDA. Here is the description of “GPS Information” testing program : User must select COM port , Baud Rate (38400) and click the [Star GPS] button to start receiving GPS data. Note: The Bluetooth device in most of the applications have an “auto-detect” feature that you do not need to select the Baud Rate. 12 13 FCC Notices This device complies with part 15 of the FCC rules. Oper…

Text truncated - open the document above for the full version.

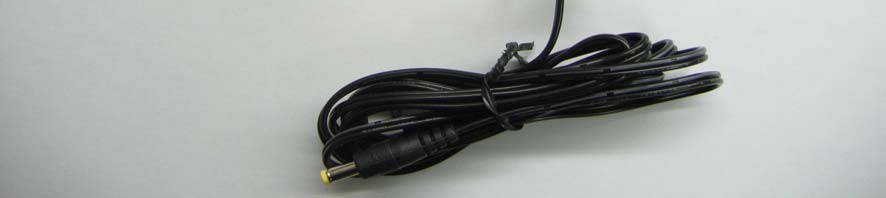

REPORT NO: EF/2005/20003 ID:RIDBT-338 DATE: Mar. 04, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT REPORT NO: EF/2005/20003 ID:RIDBT-338 DATE: Mar. 04, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA All View of EUT Front View of EUT REPORT NO: EF/2005/20003 ID:RIDBT-338 DATE: Mar. 04, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Back View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Globalsat Technology Corporation FCC ID: RIDBT-338 FCC ID: RIDBT-338 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

REPORT NO: EF/2005/20003 ID:RIDBT-338 DATE: Mar. 04, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT REPORT NO: EF/2005/20003 ID:RIDBT-338 DATE: Mar. 04, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Open View of EUT Internal of EUT Internal of EUT REPORT NO: EF/2005/20003 ID:RIDBT-338 DATE: Mar. 04, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA

REPORT NO: EF/2005/20003 ID:RIDBT-338 DATE: Mar. 04, 2005 Page: 1 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: Bluetooth GPS Receiver Brand Name: N/A Model Name: BT-338 Model Differences: N/A FCC ID: RIDBT-338 Report No.: EF/2005/20004 Issue Date: Feb. 17, 2005 FCC Rule Part: §15.247 Prepared for: Globalsat Technology Corporation 16F, No. 186, Jian Yi Road., Far East Century Park, Chung Ho City, Taipei Hsien, Taiwan Prepared by: SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. REPORT NO: EF/2005/20003 ID:RIDBT-338 DATE: Mar. 04, 2005 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA VERIFICATION OF COMPLIANCE Applicant: Globalsat Technology Corporation 16F, No. 186, Jian Yi Road., Far East Century Park, Chung Ho City, Taipei Hsien, Taiwan Equipment Under Test: Bluetooth GPS Receiver Brand Name: N/A FCC ID Number: RIDBT-338 Model No.: BT-338 Model Difference: N/A File Number: EF/2005/20004 Date of test: Feb. 05, 2005 ~ Mar. 03, 2005 Date of EUT Received: Mar. 04, 2005 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date Mar. 04, 2005 Alex Hsieh Approved By Date Mar. 04, 2005 Vincent Su REPORT NO: EF/2005/20003 ID:RIDBT-338 DATE: Mar. 04, 2005 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Table of Contents 1. GENERAL INFORMATION .........................................................................................................6 1.1. Product Description ............................................................................................................................6 1.2. Related Submittal(s) / Grant (s) ..........................................................................................................6 1.3. Test Methodology ...............................................................................................................................6 1.4. Test Facility.........................................................................................................................................6 1.5. Special Accessories .............................................................................................................................6 1.6. Equipment Modifications....................................................................................................................6 2. SYSTEM TEST CONFIGURATION ............................................................................................7 2.1. EUT Configuration .............................................................................................................................7 2.2. EUT Exercise ......................................................................................................................................7 2.3. Test Procedure.....................................................................................................................................7 2.4. Configuration of Tested System..........................................................................................................8 3. SUMMARY OF TEST RESULTS .................................................................................................9 4. DESCRIPTION OF TEST MODES ..............................................................................................9 5. CONDUCTED EMISSION TEST................................................................................................10 5.1. Standard Applicable ..........................................................................................................................10 5.2. EUT Setup.........................................................................................................................................10 5.3. Measurement Procedure....................................................................................................................10 5.4. Measurement Equipment Used: ........................................................................................................11 5.5. Measurement Result..........................................................................................................................1…

Text truncated - open the document above for the full version.

REPORT NO: EF/2005/20003 ID:RIDBT-338 DATE: Mar. 04, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA APPENDIX 1 PHOTOGRPHS OF SET UP REPORT NO: EF/2005/20003 ID:RIDBT-338 DATE: Mar. 04, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Radiated Emission Set up Photo REPORT NO: EF/2005/20003 ID:RIDBT-338 DATE: Mar. 04, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Conducted Emission Set up Photo Conducted Emission Set up Photo
