RIDBT-368Bluetooth GPS Receiver

Copyright © 2007, Globalsat Technology Corporation Page 1 of 18 Globalsat Bluetooth GPS Receiver BT-368 User Manual Version 1.0 Globalsat Technology Corporation Headquarters (Far East Century Park) 16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235, Taiwan Tel: 886-2-8226-3799/ Fax: 886-2-8226-3899 E-mail : [email protected] Website: www.globalsat.com.tw Copyright © 2007, Globalsat Technology Corporation Page 2 of 18 Table of Content 1. Product Information ................................................................................. 3 1.1 Product Description .......................................................................... 3 1.2 Product Features .............................................................................. 3 1.3 Product Specifications ....................................................................... 4 2. Hardware Description ............................................................................... 5 2.1 Overview ........................................................................................ 5 2.2 LED Behaviors ................................................................................. 6 2.3 Power Button ................................................................................... 6 2.4 USB Charge Connector...................................................................... 6 3. Package Contents .................................................................................... 7 4. Getting Start........................................................................................... 8 Step 1: Charging Battery ........................................................................ 8 Step 2: Turn on the power ...................................................................... 8 Step 3: Wait for GPS fixed ...................................................................... 8 Step 4: Connect to your Bluetooth-enabled devices .................................... 9 Step 5: Start Navigation Software ............................................................ 9 5. Troubleshooting..................................................................................... 10 5.1 Connect BT-368 to a Pocket PC......................................................... 10 5.2 Bluetooth is unable to be connected.................................................. 13 5.3 GPS cannot be positioned ................................................................ 13 6. Impartment Information......................................................................... 14 Copyright © 2007, Globalsat Technology Corporation Page 3 of 18 1. Product Information 1.1 Product Description BT-368 is a high performance Bluetooth GPS receiver. It uses SiRF StarIII chipset, which track up to 20 satellites simultaneously. With a high-performance antenna built-in, BT-368 ensures excellent signal reception. BT-368 takes advantage of the Bluetooth technology to offer hassle free installation. It connects wirelessly to your Bluetooth enabled PDA, laptop, or other devices. BT-368 uses a high capacity rechargeable lithium ion battery and offers more than 10 hours of operation time. BT-368 is the best companion of your PDA, mobile phone, or other portable devices for navigation purposes. 1.2 Product Features 9 SiRF StarIII chipset 9 20 parallel channels 9 Extreme fast TTFF at low signal level 9 Bluetooth enabled 9 High capacity rechargeable battery 9 NMEA-0183 compliant protocol (Default: GGA, GSA, GSV, RMC, VTG, GLL, and ZDA) and SiRF binary protocol 9 Support SBAS (WAAS, EGNOS, and MSAS) 9 Three LED indicators Copyright © 2007, Globalsat Technology Corporation Page 4 of 18 1.3 Product Specifications GPS Receiver Chipset SiRF StarIII Frequency L1, 1575.42 MHz Code C/A Code Protocol NMEA 0183 v3.01 (Default:GGA,GSA,GSV,RMC,VTG,GLL,ZDA) and SiRF binary Available Baud Rate 4800/9600/14400/19200/38400/57600/115200 Channels 20 Antenna Built-in Patch Antenna Sensitivity Acquisition:-146dBm, Tracking:-159dBm Cold Start 42 seconds Warm Start 38 seconds Hot Start 1 second Reacquisition 0.1 second Accuracy Position: 3 m / 2.5 m with DGPS Velocity: 0.1 m/s Time: 1ms RMS Maximum Altitude 18,000 meter Maximum Velocity 515 meter/second Maximum Acceleration 4G Update Rate 1 Hz DGPS WAAS, EGNOS, MSAS Bluetooth Version 2.0 Range 10 Meter (Class 2) Support Profile SPP Profile Physical Characteristics Dimensions 40mm X 70mm X 9.2mm Weight 30g DC Characteristics Power Supply 5.0Vdc Battery Rechargeable Li-ion, 700mAH Battery Life 10 Hours Environmental Range Humidity Range 5% to 95% non-condensing -10°C to 60°C Operation Temperature 0°C to 45°C while charging Storage Temperature -20°C to 70°C Copyright © 2007, Globalsat Technology Corporation Page 5 of 18 2. Hardware Description 2.1 Overview Power LED Power Button Bluetooth LED GPS LED USB charge connector Copyright © 2007, Globalsat Technology Corporation Page 6 of 18 2.2 LED Behaviors Bluetooth LED (Blue) Status Description Blink once per three seconds Not linked Blink once per second Linked GPS LED (Green) Status Description Blink once per second Position fixed Steady on Position not fixed Power LED (Red/Orange) Status Description Red light steady on Battery low Off Battery good Orange light steady on Battery charging 2.3 Power Button Action Function Press and hold the button for 1 second while off Power turned on Press and hold the button for 1 second while on Power turned off 2.4 USB Charge Connector Connect to USB cable for battery charging. It needs about 3 ~ 4 hours to fully charge the battery. Copyright © 2007, Globalsat Technology Corporation Page 7 of 18 3. Package Contents 9 BT-368 9 Car Charger 9 USB cable for recharging 9 AC Charger (Optional) 9 User Manual and Software Utility CD Car Charger USB Cable for recharging AC Charger (Optional) Copyright © 2007, Globalsat Technology Corporation Page 8 of 18 4. Getting Start Step 1: Charging Battery Please charge the battery by the included charger till the orange…

Text truncated - open the document above for the full version.

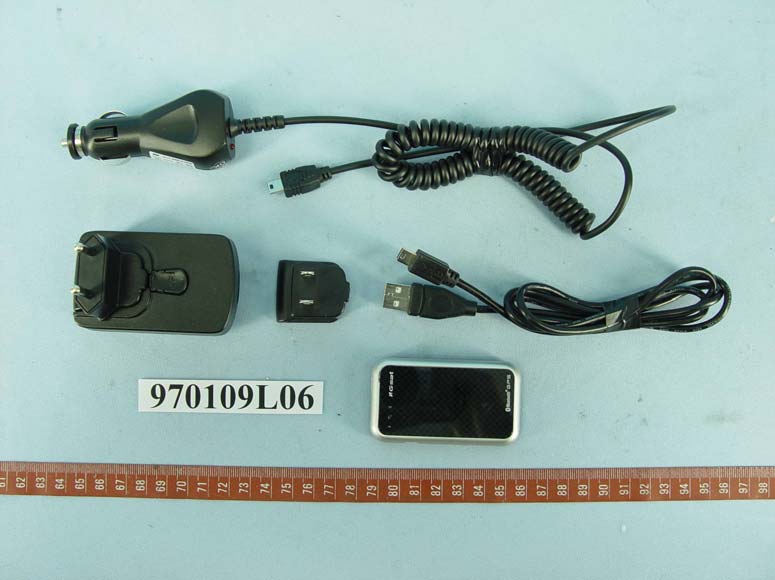

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

2008 JAN 03 0.2

Page 4 Page 5 Page 6

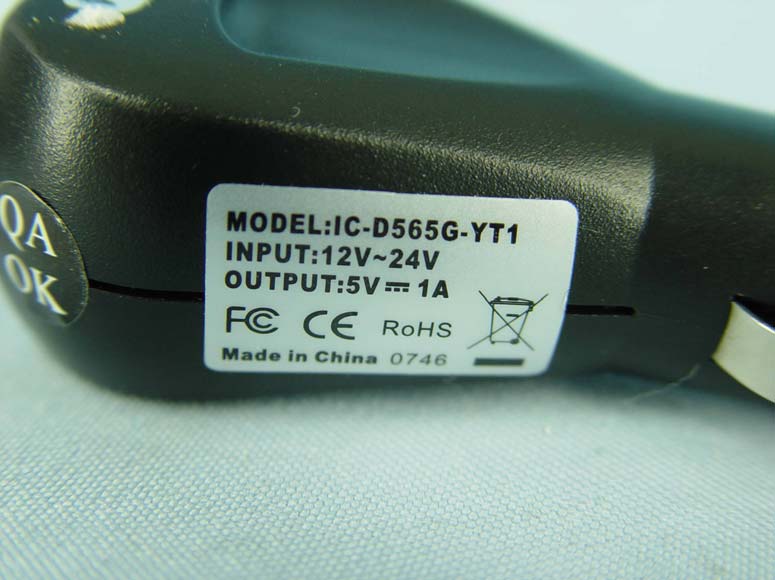

FCC ID: RIDBT-368 Report No.: RF970109L06 Technical Description The transmitter of the EUT (Bluetooth GPS Receiver) is powered by 3.7Vdc from batteries or 5Vdc from Car charger. The antenna is chip antenna without antenna connector. This device is a Frequency Hopping device with 79 hopping frequencies. The other instruction, please have a look at the users manual.

FCC ID: RIDBT-368 Report No: SA970109L06 1 RF EXPOSURE REPORT REPORT NO.: SA970109L06 MODEL NO.: BT-368, BT-368i ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Globalsat Technology Corporation. ADDRESS: 2-1F, No.16, Chien 8 Road Far East Century Park, Chung Ho City, Taipei Hsien 235, Taiwan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: RIDBT-368 Report No: SA970109L06 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: RIDBT-368 Report No: SA970109L06 3 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: RIDBT-368 Report No: SA970109L06 4 5 Conclusion No Evaluation Required if power is below this threshold: F(GHz) mW Low 2.402 High 2.480 24.585 Maximum measured transmitter power: Pout (dBm) Pout (mW) Conducted Power 3.73 2.360 EIRP Power 6.03 4.009 *Note: The antenna is Chip antenna with 2.3dBi gain. Threshold for no SAR evaluation is 24.585mW Transmitter power is 7.962mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

Report No.: RF970109L06 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO.: RF970109L06 MODEL NO.: BT-368 (refer to note 3.1 for more detail) RECEIVED: Jan. 09, 2008 TESTED: Jan. 14 ~ Jan. 26, 2008 ISSUED: Jan. 29, 2008 APPLICANT: Globalsat Technology Corporation. ADDRESS: 2-1F, No.16, Chien 8 Road Far East Century Park, Chung Ho City, Taipei Hsien 235, Taiwan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 70 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF970109L06 2 Report Format Version 2.0.6 Table of Contents 1. CERTIFICATION.......................................................................................................4 2. SUMMARY OF TEST RESULTS ..............................................................................5 2.1 MEASUREMENT UNCERTAINTY............................................................................5 3. GENERAL INFORMATION .......................................................................................6 3.1 GENERAL DESCRIPTION OF EUT.........................................................................6 3.2 DESCRIPTION OF TEST MODES...........................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................... 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................... 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 11 3.4 DESCRIPTION OF SUPPORT UNITS ................................................................... 11 4. TEST TYPES AND RESULTS ................................................................................12 4.1 RADIATED EMISSION MEASUREMENT ..............................................................12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................ 12 4.1.2 TEST INSTRUMENTS ........................................................................................... 13 4.1.3 TEST PROCEDURES ............................................................................................ 14 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 14 4.1.5 TEST SETUP ......................................................................................................... 15 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 15 4.1.7 TEST RESULTS ..................................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT .........................................................25 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 25 4.2.2 TEST INSTRUMENTS ........................................................................................... 25 4.2.3 TEST PROCEDURES ............................................................................................ 26 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 26 4.2.5 TEST SETUP ......................................................................................................... 27 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 27 4.2.7 TEST RESULTS ..................................................................................................... 28 4.3 NUMBER OF HOPPING FREQUENCY USED ......................................................30 4.3.1 LIMIT OF HOPPING FREQUENCY USED ............................................................ 30 4.3.2 TEST INSTRUMENTS ........................................................................................... 30 4.3.3 TEST PROCEDURES ............................................................................................ 30 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 31 4.3.5 TEST SETUP ......................................................................................................... 31 4.3.6 TEST RESULTS ..................................................................................................... 31 4.4 DWELL TIME ON EACH CHANNEL ......................................................................34 4.4.1 LIMIT OF DWELL TIME USED............................................................................... 34 4.4.2 TEST INSTRUMENTS ........................................................................................... 34 4.4.3 TEST PROCEDURES ............................................................................................ 34 4.4.4 DEVIATION FROM TEST STANDARD .................................................................. 34 4.4.5 TEST SETUP ......................................................................................................... 35 4.4.6 TEST RESULTS ..................................................................................................... 35 4.5 CHANNEL BANDWIDTH........................................................................................43 4.5.1 LIMITS OF CHANNEL BANDWIDTH ..................................................................... 43 4.5.2 TEST INSTRUMENTS ........................................................................................... 43 4.5.3 TEST PROCEDURE .................................................…

Text truncated - open the document above for the full version.
