RIDBTA-806Bluetooth USB Dongle

BTA-806 User Manual page 1 of 8 BTA-806 Bluetooth Dongle User manual, version 0.75 Copyright © 2005 GlobalSat Technology Corporation. All rights reserved The trademarks mentioned in this document are legally registered to their respective companies. BTA-806 User Manual page 2 of 8 1. Introduction Our latest Bluetooth Dongle has been designed and developed specifically for all current Bluetooth devices. The USB Bluetooth 2.0 Dongle combines the latest features with premium levels of quality and reliability. It enables networking products through Bluetooth capable of data transfer among devices such as PDAs, printers, mobiles, computers, and other emerging electronic devices. Compatible with USB 1.1 and 2.0, the BTA-806 supports Windows XP/2000/Me and installs quickly and easily to a desktop or notebook computer with an available USB port. 1.1. Package Before you start up, make sure that your package includes the following items. If any items are missing or damaged, contact your dealer immediately. y BTA-806 Bluetooth dongle y CD (including the driver) 1.2. Features y Bluetooth v2.0 EDR compliant (Class II) y Frequency Hopping Spread Spectrum (FHSS) for better connections y High Speed data transfer up to 3Mbps y Connects up to 7 BT devices to the PC y Implements a Personal Area Network (PAN) y Uses 2.4GHz ~ 2.4835GHz ISM band y Connection range up to 10 Meters (32 feet) y Activity indicator LED y Plug and Play y LMP improvements BTA-806 User Manual page 3 of 8 2. Specification Model Name BTA-806 Product Description Bluetooth USB dongle USB Interface 1.1 Certification FCC, CE Bluetooth Version Bluetooth v2.0 EDR RF Output Power Class 2 Frequency 2.4GHz ~ 2.4835GHz ISM band Spread Spectrum FHSS (Frequency Hopping Spread Spectrum) Operating Range 10 meters (32 feet) Sensitivity -80dBm @0.1%BER Bluetooth Profile SYNC、SPP、HCRP、PAN、OPP、LAP、HID、FTP、FAX、 A2DP、AVRCP、DUN、BIP LED 1 LED Operation Temperature -10 ºC ~ 55 ºC Storage Temperature -20 ºC ~ 60 ºC Humidity 10% ~ 90% non-condensing Dimensions 42 * 18 * 8mm (L * W * T) Power Consumption Working: 58mA , Stand by: 13mA 3. Installation Install the driver before you use the Bluetooth dongle. 1) Please place the driver CD into CD-ROM drive, the Autorun program will start automatically. Please select the language you want. If the Autorun program does not start, please manually run it by double click on the “setup.exe” from CD root directory. 2) The Autorun program will prepare to install the driver for you, please follow the instruction to complete the installation process. 3) After the installation is completed, please restart your system to take effect of the driver. BTA-806 User Manual page 4 of 8 4. Start the connection software Start the IVT BlueSoleil software 1. Please double click on the “BlueSoleil” icon from desktop to start the BlueSoleil software, or click from Start Æ Programs Æ IVT BlueSoleil Æ BlueSoleil. 2. Click on the red ball to start or stop searching for Bluetooth devices in range. 3. For more information about the BlueSoleil, please see its Online Help. You can start the Online Help by clicking Help Æ Contents and Index from main menu or press the F1 key. BTA-806 User Manual page 5 of 8 5. Connecting device Find Remote Devices To set up a Bluetooth connection, the remote device must be found first. There are 3 ways to find remote devices in BlueSoleil. Inquire Device 1. Single-click the red ball in the main window to start inquiry. 2. Bluetooth devices within the radio range will be shown around the center ball. 3. Wait for a few seconds until the names of all the devices are obtained. Connect and Disconnect Connect 1. Select a remote device and double click it to browse its services. Bluetooth passkey may be asked if security level of either side is set to high and they are not paired devices. After service browsing, the services the remote device supports are highlighted by changing the color of the service buttons on the top of the main window. 2. Single click one of the service button to connect. After connection is setup, the remote device and the service button will turn green. Note: Users can right click the remote device icon or the service button to pop up operation menu for connection. Disconnect Method 1: Select the remote device, right click the service button. On the popup menu, select Disconnect. Method 2: Right click the device icon. On the pop-up menu, select Disconnect | (the connection you want to disconnect). Method 3: For FTP and Synchronization connection, close the operation window, the connection will be disconnected. Method 4: Disconnect from the remote device directly. Method 5: If the local Bluetooth device is removed or the remote device is powered off, all the connections will be disconnected. If the remote device moves out of the radio range, all the connections with the remote device will be disconnected in 1 minute. Pair / Un-pair Devices Once a remote device has paired with your computer by exchanging passkeys, passkeys will no longer be required for further connections between your computer and the device. How to pair with another device • Automatically If a passkey is required for connection, the devices will be paired automatically the first time they successfully exchange passkeys and connect. After a device has successfully paired BTA-806 User Manual page 6 of 8 with your computer, the remote device icon in the Main Window will have a red checkmark next to it. • Manually In the Main Window, right click on the device icon, and in the pop-up menu, select Pair Device. In the Enter Bluetooth Passkey dialog, enter the same passkey that you enter on the remote device. After a device has successfully paired with your computer, the remote device icon will have a red checkmark next to it. How to un-pair with another device • Manually In the Main Window, right-click on the device icon, and in the pop-up menu, select Unpair. The red checkmark next to the device icon will disappear. AV Headphone The AV …

Text truncated - open the document above for the full version.

020905 American TCB 6731 Whittier Ave. McLean, VA 22101 Acknowledgement of IC Listing Requirements By signing this document, we acknowledge that any information specified on the ATCB Application and Agreement Form for Industry Canada Certification Services provided with this application may be provided to Industry Canada. We acknowledge that this information may be posted in the Radio Equipment List (REL) on the Department's Web Site. Additionally, we understand that we must inform ATCB of any changes to the information submitted. We further acknowledge that the Certified product shall not be distributed, leased, or offered for sale in Canada prior to its listing on the Industry Canada Radio Equipment List (REL). We are aware that we may verify the status of this listing at the following web address: http://strategis.ic.gc.ca/cgi-bin/sc_mrksv/spectrum/reltelSearch/search.pl?lang=e&db=rel Dated this 12/30/2005 By: ___Tony Jin_______ (Print name) Title: RF Engineer email: [email protected] On behalf of: Globalsat Technology Corporation Telephone: 886-2-82263799 020905 Attn: Director of Certification Authority to Act as Agent I appoint SGS Taiwan Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by American TCB, still resides with Globalsat Technology Corporation; 16F, No.186,Jian Yi Road.,Far East Century Park, Chung Ho City ,Taipei Hsien, Taiwan Dated this 12/30/2005 Agency Agreement Expiration Date: (Typically 8-12 months) By: Tony Jin____ (Print name) Title: RF Engineer On behalf of: Globalsat Technology Corporation Telephone: 886-2-82263799

Report No.: EF/2005/B0019 IC:5442A-80600000 Issue Date: Dec. 28, 2005 FCC ID:RIDBTA-806 Of The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 EXTERNAL OF EUT Report No.: EF/2005/B0019 IC:5442A-80600000 Issue Date: Dec. 28, 2005 FCC ID:RIDBTA-806 Of The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Front View of EUT Back View of EUT Report No.: EF/2005/B0019 IC:5442A-80600000 Issue Date: Dec. 28, 2005 FCC ID:RIDBTA-806 Of The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Side Vidw of EUT

FCC ID / IC LABEL FORMAT AND LOCATION Applicant: Globalsat Technology Corporation IC: 5442A-80600000 FCC ID: RIDBTA-806

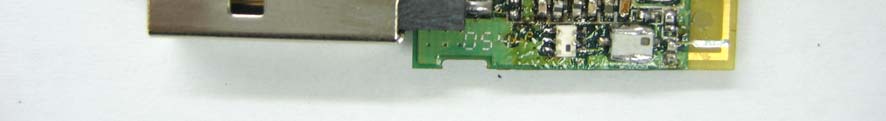

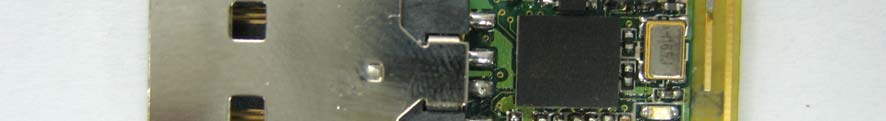

Report No.: EF/2005/B0019 IC:5442A-80600000 Issue Date: Dec. 28, 2005 FCC ID:RIDBTA-806 Of The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 INTERNAL OF EUT Report No.: EF/2005/B0019 IC:5442A-80600000 Issue Date: Dec. 28, 2005 FCC ID:RIDBTA-806 Of The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT Internal of EUT – 1 Antenna Report No.: EF/2005/B0019 IC:5442A-80600000 Issue Date: Dec. 28, 2005 FCC ID:RIDBTA-806 Of The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 2

Report No.: EF/2005/B0019 IC: 5442A-80600000 Issue Date: Dec. 28, 2005 ID: RIDBTA-806 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw RF EXPOSURE „ Standard Applicable According to §1.1307(b)(5), systems operating under the provisions of this section shall be oper- ated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. According to §1.1310 and §2.1093 RF exposure is calculated. „ Measurement Result This is a portable device and the Max peak output power is 3.77dBm (0.00238W) lower than low threshold 60/fGHz mW (24.48mW), d<2.5cm in general population category； The SAR measurement is not necessary.

Report No.: EF/2005/B0019 IC:5442A-80600000 Issue Date: Dec. 28, 2005 FCC ID:RIDBTA-806 Page: 1 Of The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT AND INDUSTRY CANADA RSS-210 OF Product Name: BLUETOOTH USB DONGLE Brand Name: N/A Model Name: BTA-806 IC Number: ID Number: 5442A-80600000 RIDBTA-806 Report No.: EF/2005/B0019 Issue Date: Dec. 28, 2005 Rule Part: FCC Part 15C:2005 , §15.247, RSS-210 issue 6:2005, Annex 8 Prepared for Globalsat Technology Corporation 16F, No. 186, Jian Yi Road., Far East Century Park, Chung Ho City, Taipei Hsien, Taiwan. Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No.: EF/2005/B0019 IC:5442A-80600000 Issue Date: Dec. 28, 2005 FCC ID:RIDBTA-806 Page: 2 Of The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: Globalsat Technology Corporation 16F, No. 186, Jian Yi Road., Far East Century Park, Chung Ho City, Tapei Hsien, Taiwan. Equipment Under Test: BLUETOOTH USB DONGLE Brand Name: N/A IC Number: ID Number: 5442A-80600000 RIDBTA-806 Model No.: BTA-806 Model Difference: N/A File Number: EF/2005/B0019 Date of test: Dec. 14, 2005 ~ Dec. 22, 2005 Date of EUT Received: Dec. 14, 2005 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15C:2005, §15.247 and RSS-210 issue 6: 2005 Annex 8. The test results of this report relate only to the tested sample identified in this report. Test By: Date Dec. 28, 2005 Danny Yeh Prepared By: Date Dec. 28, 2005 Elisa Chen Approved By: Date Dec. 28, 2005 Vincent Su Report No.: EF/2005/B0019 IC:5442A-80600000 Issue Date: Dec. 28, 2005 FCC ID:RIDBTA-806 Page: 3 Of The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Dec. 28, 2005 Report No.: EF/2005/B0019 IC:5442A-80600000 Issue Date: Dec. 28, 2005 FCC ID:RIDBTA-806 Page: 4 Of The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION .........................................................................................................7 1.1 Product Description ............................................................................................................................7 1.2 Related Submittal(s) / Grant (s) ..........................................................................................................7 1.3 Test Methodology ...............................................................................................................................7 1.4 Test Facility.........................................................................................................................................7 1.5 Accreditation and Listing....................................................................................................................7 1.6 Special Accessories .............................................................................................................................7 1.7 Equipment Modifications....................................................................................................................7 2. SYSTEM TEST CONFIGURATION ............................................................................................8 2.1 EUT Configuration .............................................................................................................................8 2.2 EUT Exercise ......................................................................................................................................8 2.3 Test Procedure.....................................................................................................................................8 2.4 Configuration of Tested System..........................................................................................................9 3. SUMMARY OF TEST RESULTS ...............................................................................................10 4. DESCRIPTION OF TEST MODES .................................................................…

Text truncated - open the document above for the full version.

Report No.: EF/2005/B0019 IC:5442A-80600000 Issue Date: Dec. 28, 2005 FCC ID:RIDBTA-806 Of The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP Report No.: EF/2005/B0019 IC:5442A-80600000 Issue Date: Dec. 28, 2005 FCC ID:RIDBTA-806 Of The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Set up Photos Report No.: EF/2005/B0019 IC:5442A-80600000 Issue Date: Dec. 28, 2005 FCC ID:RIDBTA-806 Of The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Conducted Emission Set Up Photos
