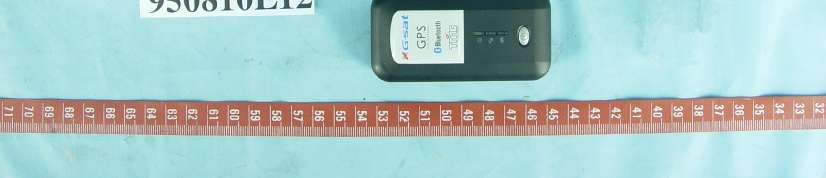

RIDBTT-100Bluetooth TMC GPS Receiver

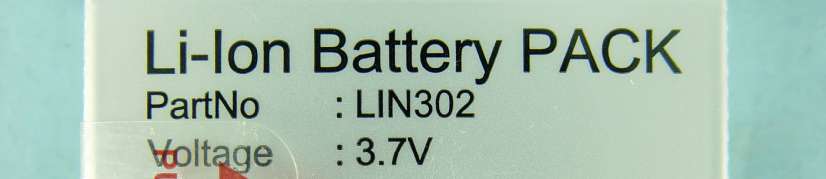

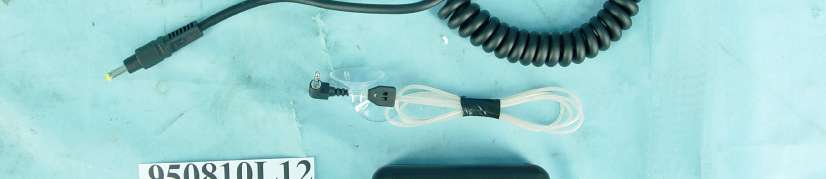

BTT-100 User Manual Version 0.9.02 2 Table of Content Overview ........................................................................... 3 Features and Specification ................................................ 4 Features................................................................................ 4 Specification .......................................................................... 4 Accessories............................................................................ 6 Getting Started.................................................................. 7 ► Power Switch ..................................................................... 7 ► LED Function...................................................................... 7 ► Power-saving Function......................................................... 7 ► Power jack ......................................................................... 8 ► Usage ............................................................................... 8 ► Connect BTT-100 to a "Windows Mobile Version 5 Pocket PC"..... 9 Software Application ....................................................... 12 ► Connect BTT-100 with your Pocket PC .................................. 12 ► Test the RDS function ........................................................ 14 Troubleshooting .............................................................. 17 ► Change battery................................................................. 17 ► Bluetooth is unable to be connected .................................... 18 ► GPS cannot be positioned................................................... 18 3 Overview Power jack TMC antenna jack Power button Power status LED GPS status LED Bluetooth status LED 4 Features and Specification Features y New SiRF GSC3 high performance and low power consumption chipset y Communication with Host Platform via Bluetooth Serial Profile y Built-in ceramic patch antenna y Support NMEA 0183 data protocol y 3 LED to show the status of GPS/Bluetooth/Battery y Rechargeable Li-ion battery y Operation time: 14 hours, in continuous mode y Auto power-off, if Bluetooth is not connected to any device within 10 minutes y Bluetooth operation range: 10m Specification Standard: Bluetooth V2.0 Voltage: Rechargeable and removable battery with 5V DC input charging circuit Operation Time: 14 hours after fully recharged, in continuous mode Connection: Communication with host platform via Bluetooth Serial Port Profile Dimension: 82mm x 42mm x 22mm Weight: 70g Operating temperature -20 ° to 60 ° C Humidity: 5% to 95% Non-condensing Output message: NMEA-0183 output protocol (Output format：GGA, GSA, GSV, RMC) + Globalsat TMC protocol 1.0 GPS Parameters General GPS Chipset: SiRF Star III Frequency: L1, 1575.42 MHz C/A code: 1.023 MHz chip rate 5 Channels: 20 channel all-in-view tracking Antenna Type: Built-in patch antenna Position: 10 meters, 2D RMS 5 meters, 2D RMS, WAAS enabled Velocity: 0.1 m/s Time: 1 us synchronized to GPS time Default datum: WGS-84 Reacquisition: 0.1 sec., average Hot start: 1 sec., average Warm start: 38 sec., average Cold start: 42 sec., average Altitude Limit: 18,000 meters (60,000 feet) max. Velocity Limit: 515 meters/ second (1000 knots) max. Acceleration Limit: Less than 4g Jerk Limit: 20 m/sec3 RDS-TMC Parameter General FREQUENCY 87.5Mhz~108Mhz US/Europe RF Sensitivity: 30uV emf (BQR >=95%) FM ANTENNA Length=75 cm, 75 Ohm CONNECTOR 2.5Φ Right Angle Phone Jack 6 Accessories Before you start up, make sure that your package includes the following items. If any item is missing or damaged, please contact your dealer immediately. y BTT-100 Bluetooth GPS Receiver y TMC antenna y Car charger y CD-ROM BTT-100 TMC antenna Car charger CD-ROM 7 Getting Started ► Power Switch Power on: Press the power button 1 second until the GPS status LED is on. Power off: Press the power button 1 second until the GPS status LED is off. ► LED Function Power Status LED (Red/Yellow): Red: Battery power is critically low. Charge it immediately. Yellow: Battery is charging now. LED off: Battery is partially full or fully charged. GPS Status LED (Green): Blinking: GPS position is fixed Steady light: GPS position is not fixed Bluetooth Status LED (Blue): Blinking (Slowly): It does not connect to any Bluetooth device yet. Blinking (Quickly): It has already connected to some Bluetooth device. ► Power-saving Function After you turned on the power of the Bluetooth GPS Receiver BTT-100, if the Bluetooth is not connected to any devices within 10 minutes, BTT-100 will turn off the power automatically for saving 8 the battery power, and all the LED will go off simultaneously. ► Power jack You can use either the DC car power charger (included) or the AC adapter (optional) to connect to the power jack of BTT-100 to recharge the internal battery. Please note that the adapter rating 5V, 1.2 A, positive pole center. ► Usage Connect BTT-100 to your Bluetooth device (1) Press the power button to turn on the BTT-100. (2) The Bluetooth device could be “a PDA with built-in Bluetooth”, “a PDA with Bluetooth Compact Flash card”, or “a Notebook with Bluetooth device”...etc. (3) Please refer to the user manual of your Bluetooth device and enable it for connecting to BTT-100. Some Bluetooth device may need the Bluetooth passkey, the passkey is “0000”. (4) Check the number of COM port used by the Bluetooth device. (5) Run the suitable mapping/navigation software and select the correct COM port & Baud rate: 38400. Note: Most of the application software of Bluetooth device has an auto-detect feature, so you don’t have to manually select the Baud rate. 9 ► Connect BTT-100 to a "Windows Mobile Version 5 Pocket PC" 1. Tap on the Bluetooth button on right lower corner. 2. Turn on your Bluetooth GPS receiver. 3. Check “Turn on Bluetooth”. 4. Tap the “Devices” tab, and tap “New Partnership...”. 5. It will search for all the Bluetooth devices. 6. Select a device (for example 10 “BT-GPS-328EB2”) and…
