RIW-ZW-2000-222.4G OutDoor Device

Wireless LAN Device Series WLAN Outdoor Bridge ZW-2000-IA User Manual Version. 1 TABLE OF CONTENTS PREFACE.................................................................................................................................................................3 CH 1. ZW-2000 INSTALLATION....................................................................................................................4 PACKING LIST.......................................................................................................................................................4 HARDWARE INSTALLATION................................................................................................................................5 CH 2. FIRST TIME CONFIGURATION........................................................................................................8 BEFORE START TO CONFIGURE...........................................................................................................................8 KNOWING THE NETWORK APPLICATION...........................................................................................................8 ADVANCED SETTINGS........................................................................................................................................31 CONFIGURING WIRELESS SECURITY...............................................................................................................34 CONFIGURING AS WLAN CLIENT ADAPTER..................................................................................................37 QUICK START TO CONFIGURE............................................................................................................................37 CONFIGURING UNIVERSAL REPEATER.............................................................................................................40 CH 3. CONFIGURING WDS...........................................................................................................................42 WDS NETWORK TOPOLOGY..............................................................................................................................42 WDS APPLICATION............................................................................................................................................44 CH 4. ADVANCED CONFIGURATIONS....................................................................................................46 CONFIGURING LAN TO WAN FIREWALL.......................................................................................................46 PORT FILTERING..................................................................................................................................................46 IP FILTERING.......................................................................................................................................................47 MAC FILTERING.................................................................................................................................................48 NAT (NETWORK ADDRESS TRANSLATION)....................................................................................................49 CONFIGURING PORT FORWARDING (VIRTUAL SERVER).......................................................................................49 MULTIPLE SERVERS BEHIND NAT EXAMPLE:................................................................................................50 CONFIGURING DMZ..........................................................................................................................................50 CONFIGURING WAN INTERFACE......................................................................................................................51 STATIC IP.............................................................................................................................................................51 DHCP CLIENT (DYNAMIC IP)..........................................................................................................................52 PPPOE..................................................................................................................................................................53 PPTP....................................................................................................................................................................54 CONFIGURING CLONE MAC ADDRESS...........................................................................................................55 CONFIGURING DHCP SERVER..........................................................................................................................57 BANDWIDTH CONTROL......................................................................................................................................57 QOS (QUALITY OF SERVICE)............................................................................................................................59 STATIC ROUTE SETUP........................................................................................................................................64 DYNAMIC ROUTE SETUP...................................................................................................................................65 2 VPN PASS-THROUGH.........................................................................................................................................66 USING CLI MENU..............................................................................................................................................66 THE SYSTEM MANAGEMENT............................................................................................................................69 SNMP AGENT.....................................................................................................................................................70 MISCELLANE…

Text truncated - open the document above for the full version.

21 Configure DEV4: 1. Access the web server (http://192.168.2.254) of device from the Ethernet port. Caution If you configure multiple devices in the same PC, since the devices have the same default IP address but different MAC addresses, it may cause you unable to access the web server of device. If the situation happens, please try to clean the ARP table of your PC by DOS command “arp –d” then you can access the web server of device using the default IP address. 2. Use Wizard page to setup device. 3. Press “Next>>” button then set the “Operation Mode” to “Wireless ISP” mode. 4. Press “Next>>” button then disable “Time Zone” function. 22 5. Press “Next>>” button then set the IP address of LAN interface. 6. Press “Next>>” button then select the “DHCP Client” for “WAN Access Type”. 7. Press “Next>>” button then select the “Client” for “mode” and change the SSID to “DEV4”. 8. Press “Next>>” button then select “None” for “Encryption” then press “Finished” button. 23 9. Wait for refreshing web page. 10. Change the IP address of your PC to 192.168.3.x then access the web server by the new IP address “192.168.3.1” and use “Status” page check the setting. 11. If the “State” of “Wireless Configuration” is not “Connected” or you want to refresh the “RSSI “, please use “Site Survey” page to re-connect a AP. 24 Configure DEV5: 1. Access the web server (http://192.168.2.254) of device from the Ethernet port. Caution If you configure multiple devices in the same PC, since the devices have the same default IP address but different MAC addresses, it may cause you unable to access the web server of device. If the situation happens, please try to clean the ARP table of your PC by DOS command “arp –d” then you can access the web server of device using the default IP address. 2. Use Wizard page to setup device. 3. Press “Next>>” button then set the “Operation Mode” to “Wireless ISP” mode. 4. Press “Next>>” button then disable “Time Zone” function. 25 5. Press “Next>>” button then set the IP address of LAN interface. 6. Press “Next>>” button then select the “Client” for “mode” and change the SSID to “DEV5”. 7. Press “Next>>” button then select “None” for “Encryption” then press “Finished” button. 8. Wait for refreshing web page. 26 9. Access the web server by the new IP address “192.168.2.205” and use “LAN Interface” page to disable DHCP Server. 10. Wait for refreshing webpage. 11. Use “State” page to check setting. 27 12. If the “State” of “Wireless Configuration” is not “Connected” or you want to refresh the “RSSI “, please use “Site Survey” page to re-connect a AP. 28 Basic Settings Disable Wireless LAN Interface Disable the wireless interface of device Band: The device supports 2.4GHz(B), 2.4GHz(G) and 2.4GHz(B+G) mixed modes. Mode: The radio of device supports different modes as following: 1. AP The radio of device acts as an Access Point to serves all wireless clients to join a wireless local network. 2. Client Support Infrastructure and Ad-hoc network types to act as a wireless adapter. 3. WDS Wireless Distribution System, this mode serves as a wireless repeater, only devices with WDS function supported can connect to it, all the wireless clients can’t survey and connect the device when the mode is selected. 4. AP+WDS Support both AP and WDS functions, the wireless clients and devices with WDS function supported can survey and connect to it. 29 l Infrastructure: This type requires the presence of 802.11b/g Access Point. All communication is done via the Access Point. Ethernet AP AP Client #2 AP Client #1 l Ad Hoc: This type provides a peer-to-peer communication between wireless stations. All the communication is done from Client to Client without any Access Point involved. Ad Hoc networking must use the same SSID and channel for establishing the wireless connection. PC #3PC #2 AP Client #1 AP Client #2AP Client #3 PC #1 In client mode, the device can’t support the Router mode function including Firewall and WAN settings. SSID: The SSID is a unique identifier that wireless networking devices use to establish and maintain wireless connectivity. Multiple access point/bridges on a network or sub-network can use the same SSID. SSIDs are case sensitive and can contain up to 32 alphanumeric characters. Do not include spaces in your SSID. Channel Number 30 The following table is the available frequencies (in MHz) for the 2.4-GHz radio: Channel No. Frequency Country Domain 1 2412 Americas, EMEA, Japan, and China 2 2417 Americas, EMEA, Japan, and China 3 2422 Americas, EMEA, Japan, Israel, and China 4 2427 Americas, EMEA, Japan, Israel, and China 5 2432 Americas, EMEA, Japan, Israel, and China 6 2437 Americas, EMEA, Japan, Israel, and China 7 2442 Americas, EMEA, Japan, Israel, and China 8 2447 Americas, EMEA, Japan, Israel, and China 9 2452 Americas, EMEA, Japan, Israel, and China 10 2457 Americas, EMEA, Japan, and China 11 2462 Americas, EMEA, Japan, and China 12 2467 EMEA and Japan only 13 2472 EMEA and Japan only 14 2484 Japan only When set to “Auto”, the device will find the least-congested channel for use. Associated Client Show the information of active wireless client stations that connected to the device. REMARK This device operation of this product in the U.S.A. is firmware-limited to channels 1-11. 31 Advanced Settings These settings are only for more technically advanced users who have sufficient knowledge about wireless LAN. These settings should not be changed unless you know what effect the changes will have on your device. The default setting is optimized for the normal operation. For specific application, setting configuration will required highly attention to reach optimistic condition. Note Any unreasonable value change to default setting will reduce the throughput of the device. Authentication Type The device supports two Authentication Types “Open system” and “Shared Key”. When you select “Share Key”, you need to setup “WEP” key in “Security” page (See the next section). The default settin…

Text truncated - open the document above for the full version.

35 When you decide to use the WEP encryption to secure your WLAN, please refer to the following setting of the WEP encryption: l 64-bit WEP Encryption64-bit WEP keys are as same as the encryption method of 40-bit WEP. You can input 10 hexadecimal digits (0~9, a~f or A~F) or 5 ACSII chars. l 128-bit WEP Encryption128-bit WEP keys are as same as the encryption method of 104-bit WEP. You can input 26 hexadecimal digits (0~9, a~f or A~F) or 10 ACSII chars. l The Default Tx Key field decides which of the four keys you want to use in your WLAN environment. WEP Encryption with 802.1x Setting The device supports external RADIUS Server that can secure networks against unauthorized access. If you use the WEP encryption, you can also use the RADIUS server to check the admission of the users. By this way every user must use a valid account before accessing the Wireless LAN and requires a RADIUS or other authentication server on the network. An example is shown as following. Ethernet RADIUS Server Wireless Station ZWA-G120 You should choose WEP 64 or 128 bit encryption to fit with your network environment first. Then add user accounts and the target device to the RADIUS server. In the device , you need to specify the IP addressPassword 36 (Shared Secret) and Port number of the target RADIUS server. WPA Encryption Setting WPA feature provides a high level of assurance for end-users and administrators that their data will remain private and access to their network restricted to authorized users. You can choose the WPA encryption and select the Authentication Mode. WPA Authentication Mode This device supports two WPA modes. For personal user, you can use the Pre-shared Key to enhance your security setting. This mode requires only an access point and client station that supports WPA-PSK. For Enterprise, authentication is achieved via WPA RADIUS Server. You need a RADIUS or other authentication server on the network. l Enterprise (RADIUS): When WPA Authentication mode is Enterprise (RADIUS), you have to add user accounts and the target device to the RADIUS Server. In the device , you need to specify the IP addressPassword (Shared Secret) and Port number of the target RADIUS server. l Pre-Share Key: This mode requires only an access point and client station that supports WPA-PSK. The WPA-PSK settings include Key Format, Length and Value. They must be as same as each wireless client in your wireless network. When Key format is Passphrase, the key value should have 8~63 ACSII chars. When Key format is Hex, the key value should have 64 hexadecimal digits (0~9, a~f or A~F). 37 Configuring as WLAN Client Adapter This device can be configured as a wireless Ethernet adapter. In this mode, the device can connect to the other wireless stations (Ad-Hoc network type) or Access Point (Infrastructure network type) and you don’t need to install any driver. Quick start to configure Step 1. In “Basic Settings” page, change the Mode to “Client” mode. And key in the SSID of the AP you want to connect then press “Apply Changes” button to apply the change. Step 2. Check the status of connection in “Status” web page 2 1 3 38 The alternative way to configure as following: Step 1. In “Wireless Site Survey” page, select one of the SSIDs you want to connect and then press “Connect” button to establish the link. Step 2. If the linking is established successfully. It will show the message “Connect successfully”. Then press “OK”. Step 3. Then you can check the linking information in “Status” page. 1 2 3 39 Note If the available network requires authentication and data encryption, you need to setup the authentication and encryption before step1 and all the settings must be as same as the Access Point or Station. About the detail authentication and data encryption settings, please refer the security section. Authentication Type In client mode, the device also supports two Authentication Types “Open system” and “Shared Key”. Although the default setting is “Auto”, not every Access Points can support “Auto” mode. If the authentication type on the Access Point is knew by user, we suggest to set the authentication type as same as the Access Point. Data Encryption In client mode, the device supports WEP and WPA Personal/Enterprise except WPA2 mixed mode data encryption. About the detail data encryption settings, please refer the security section. 40 Configuring Universal Repeater This device can be configured as a Repeater. In this mode, the device can extend available wireless range of other AP let user can link the network that they want, Also the device working as AP and Repeater same time. Following two ways describe how to make Universal Repeater effective. 1. Enable Universal Repeater Mode and then select a SSID in the Table that you want. Final click Apply Changes button to take effective. (Click Refresh button to make table renew) Note: Under APWDS and AP+WDS mode, The Universal Repeater can take effective. 41 2. Enter specific SSID in the Extended SSID field and then click Apply Changes button to take effective. 42 Ch 3. Configuring WDS Wireless Distribution System (WDS) uses wireless media to communicate with the other devices, like the Ethernet does. This function allows one or more remote LANs connect with the local LAN. To do this, you must set these devices in the same channel and set MAC address of other devices you want to communicate with in the WDS AP List and then enable the WDS. When you decide to use the WDS to extend your WLAN, please refer the following instructions for configuration. l The bridging devices by WDS must use the same radio channel. l When the WDS function is enabled, all wireless stations can’t connect the device. l If your network topology has a loop, you need to enable the 802.1d Spanning Tree function. l You don’t need to add all MAC address of devices existed in your network to WDS AP List. WDS AP List only needs to specify the MAC address of devices you need to directly connect to. l The bandwidth …

Text truncated - open the document above for the full version.

REVISION ZONE REV DESCRIPTION DATE APPROVED B B l l o o c c k k D D i i a a g g r r a a m m 01 - June 2 ,06 . PROJECT NO. ZW-2000-IA DWG TITLE 802.11g Hi-Power Outdoor AP / Bridge DRAWN Jeff Huang DWG NO . ENGR Jeff Huang REV USED ON APVD By 01 SHEET 1 OF 1 POE 2400MHz~2483.5MHz Powerconvert (RTL8186) 802.11 g Hi-Power Outdoor AP/Brid g e TX PHY RX Link ANTENNA 5V to 3.3V Traffic 2400MHz~2483.5MHz 802.11g wlanchip 2400MHz~ 2483.5MHz 3.3V to 1.8V Power convert Control AGC Power convert Powerconvert (SZM-2066Z) CRYTAL25MHz RF Circuit(RTL8225) POE to 5V OSC40MHz TX/RXSWITCH TX 3.3V to 3.0V Power Amplify SDRAM16M*2 LED DISPLAY 2400MHz~2483.5MHz TX 2400MHz~2483.5MHz FLASH RX Channel Number 1 2 3 4 5 6 7 8 9 10 11

July 19, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: RIW- ZW - 2000-22 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

Helen Zhao Subject: FW: FW: ZINWELL CORPORATION, FCC ID: RIW-ZW-2000-22, Assessment NO.: AN06T6105, Notice#1 9/7/2006 From: amanda.wu Sent: Thursday, September 07, 2006 4:00 AM To: Helen Zhao Subject: Re:FW: ZINWELL CORPORATION, FCC ID: RIW-ZW-2000-22, Assessment NO.: AN06T6105, Notice#1 Dear Helen: Please see my reply, thank you. Best Regards, Amanda -----Original Message----- Sent: Tuesday, September 05, 2006 5:59 PM Subject: ZINWELL CORPORATION, FCC ID: RIW-ZW-2000-22, Assessment NO.: AN06T6105, Notice#1 Question #1: The user manual and operational description all indicate "REMARK :Channel 1 ~~ 11 by firmware disabeled in U.S.A." Please verify if it is true. Do you mean "only Channel 1 ~~ 11 will be enabled, channel 12-14 will be disabled by firmware in USA"? Ans: The user manual had been revised, please see page 11. Question #2: The test report does not indicate clearly which external dipole antenna is used: 12dBi or 9dBi? Please update section 3.5 Description of test modes to indicate worst case. Ans: The test report had been revised on page 7. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

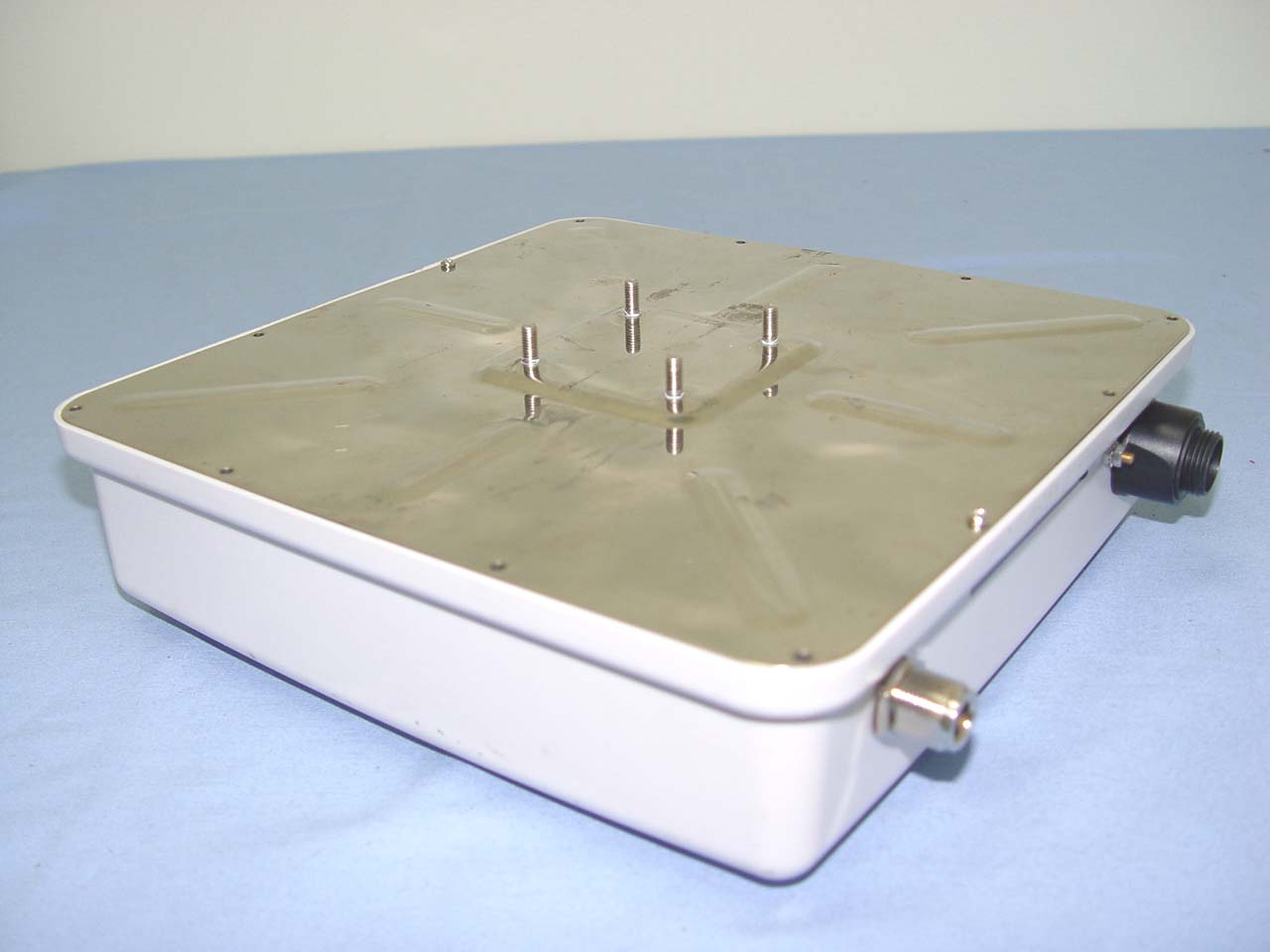

Compliance Certification Services Inc. Report No.: 60824007 Date of Issue: August 24, 2006 Page 1 Total Page: 12 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 60824007 Date of Issue: August 24, 2006 Page 2 Rev.00

White Background Black Text . Note: 1.Text Must Be Arial Form . 2.Material : 3.Printing : 4.Before Production, The Sample Must Be Approved By Engineering Department . 24.AUG.2006 1/1 LABEL FOR SET/GIFT BOX/CARTON ZW-2000-IA 3 LA69720099 White Background Black Text . ZW-2000-IA B A 50.00 mm 4 0 . 0 0 m m RR ZINWELL ZW-2000-IA S / N : x x x x x x x x x x x x x x CODE 128 F CC ID:RIW-ZW-2000-22 S / N : x x x x x x x x x x x x x x Model Name Year Week Serial number EX. 2006/May/23 2000IA62100001 1 5 . 0 0 m m IEEE.11g WLAN OutDoor AP Rating:48V,400mA Metalized Polyester Label (white) #50 Metalized Polyester Label (white) #50 B B

Compliance Certification Services Inc. Report No.: 60824007 Date of Issue: August 24, 2006 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 60824007 Date of Issue: August 24, 2006 Page 4 Rev.00 Compliance Certification Services Inc. Report No.: 60824007 Date of Issue: August 24, 2006 Page 5 Rev.00 Compliance Certification Services Inc. Report No.: 60824007 Date of Issue: August 24, 2006 Page 6 Rev.00 Compliance Certification Services Inc. Report No.: 60824007 Date of Issue: August 24, 2006 Page 7 Rev.00 Compliance Certification Services Inc. Report No.: 60824007 Date of Issue: August 24, 2006 Page 8 Rev.00 Compliance Certification Services Inc. Report No.: 60824007 Date of Issue: August 24, 2006 Page 9 Rev.00 Dipole Antenna: 12 dBi Compliance Certification Services Inc. Report No.: 60824007 Date of Issue: August 24, 2006 Page 10 Rev.00 Dipole Antenna: 9 dBi Compliance Certification Services Inc. Report No.: 60824007 Date of Issue: August 24, 2006 Page 11 Rev.00 Panel Antenna: 14 dBi Compliance Certification Services Inc. Report No.: 60824007 Date of Issue: August 24, 2006 Page 12 Rev.00

SECIFICATION OA-2450-12 Dipole Antennas for Base Stations with 12dBi Gain SUMMARY: This Omni antenna is an omni directional type that will increase signal range and strength greatly in a sphere shape. It comes with a very good fitting kit that includes high quality brackets nuts, bolts and washers. It can be used to cover 360 degree pops. Designed for wireless LAN communications Mounts easily for indoor or outside applications Suited for IEEE 802.11b/g wireless LANs Made with high quality fiberglass material Technical information Frequency 2400 - 2500MHz Gain 12 dBi Polarization Vertical Beamwidth deg vertical & horizontal Horz.360°Vert.7° SWR ≦1.5：1 Impedance 50 Ohm Dimensions Length H1500㎜ Weight 850 g

Te l：+886 6 2819815 Fax：+886 6 2819752 e-mail：[email protected] http：//www.hwayaotek.com.tw NO.25 JHONGYANG ROAD YONG KANG CITY TAINAN COUNTY 710, TAIWAN , R.O.C

Compliance Certification Services Inc. Report No.: 60824007-RP1 FCC ID: RIW-ZW-2000-22 Date of Issue: August 24, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 73 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 2.4G OutDoor Device Model: ZW-2000-IA Trade Name: Zinwell Issued to ZINWELL CORPORATION No. 2, Wen-Hua Road, Hsinchu Industrial Park Hsinchu Hsien 303, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 60824007-RP1 FCC ID: RIW-ZW-2000-22 Date of Issue: August 24, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................16 7.3 AVERAGE POWER............................................................................................................................20 7.4 BAND EDGES MEASUREMENT ................................................................................................24 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................41 7.6 SPURIOUS EMISSIONS ................................................................................................................46 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................66 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................69 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................71 Compliance Certification Services Inc. Report No.: 60824007-RP1 FCC ID: RIW-ZW-2000-22 Date of Issue: August 24, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product 2.4G OutDoor Device Trade Name Zinwell Model Number ZW-2000-IA Model Discrepancy N/A Power Supply Power Adapter: Model: SA06L48-V I/P: DC 100-240V 0.6A 50~60Hz O/P: AC 48V 0.4A Frequency Range 2412 ~ 2462 MHz Transmit Power IEEE 802.11b: 21.27 dBm (133.97 mW) IEEE 802.11g: 21.04 dBm (127.06 mW) Modulation Technique IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: DSSS (CCK, DQPSK, DBPSK) + OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Transmit Data Rate IEEE 802.11b: 11, 5.5, 2, 1 Mbps IEEE 802.11g: 54, 48, 36, 24, 12, 9, 6 Mbps Number of Channels 11 Channels Antenna Specification Panel Antenna: Gain: 14 dBi Dipole Antenna: Gain: 12 dBi, 9dBi Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: RIW-ZW-2000-22 filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: 60824007-RP1 FCC ID: RIW-ZW-2000-22 Date of Issue: August 24, 2006 Page 5 Rev. 00 3. TEST M…
