Wireless LAN Device Series WLAN Outdoor AP ZW-2200-IA/OD User’s Manual Version. 1.4.1 (2006.11.01) 1 TABLE OF CONTENTS NOTICE ............................................................................................................................................................. 3 PREFACE .......................................................................................................................................................... 4 CH 1. ZW-2200 INSTALLATION ...................................................................................................................... 5 ZW-2200-IA................................................................................................................................................................... 5 Packing List............................................................................................................................................................... 5 Hardware Installation ............................................................................................................................................... 6 ZW-2200-OD ............................................................................................................................................................... 11 Packing List............................................................................................................................................................. 11 Hardware Installation ............................................................................................................................................. 12 CH 2. FIRST TIME CONFIGURATION ........................................................................................................... 17 BEFORE START TO CONFIGURE..................................................................................................................................... 17 KNOWING THE NETWORK APPLICATION....................................................................................................................... 18 CH 3. WLAN 1 WIRELESS CONFIGURATION.............................................................................................. 20 BASIC SETTINGS........................................................................................................................................................... 20 ADVANCED SETTINGS................................................................................................................................................... 23 CONFIGURING WIRELESS SECURITY............................................................................................................................. 26 CONNECTING PROFILE.................................................................................................................................................. 29 MAC CLONE FOR SINGLE ETHERNET CLIENT.............................................................................................................. 30 CONFIGURING UNIVERSAL REPEATER........................................................................................................................... 31 CONFIGURING AS WLAN CLIENT ADAPTER................................................................................................................. 33 CH 4. WLAN 2 WIRELESS CONFIGURATION.............................................................................................. 36 BASIC SETTINGS........................................................................................................................................................... 36 ADVANCED SETTINGS................................................................................................................................................... 38 CONFIGURING WIRELESS SECURITY............................................................................................................................. 41 CONNECTING PROFILE.................................................................................................................................................. 44 MAC CLONE FOR SINGLE ETHERNET CLIENT.............................................................................................................. 45 CONFIGURING AS WLAN CLIENT ADAPTER................................................................................................................. 45 CH 5. CONFIGURING WDS ........................................................................................................................... 48 WDS NETWORK TOPOLOGY.......................................................................................................................................... 48 WDS APPLICATION....................................................................................................................................................... 51 CH 6. ADVANCED CONFIGURATIONS ......................................................................................................... 52 CONFIGURING LAN TO WAN FIREWALL...................................................................................................................... 52 PORT FILTERING............................................................................................................................................................ 53 IP FILTERING................................................................................................................................................................ 54 2 MAC F ILTERING........................................................................................................................................................... 55 NAT (NETWORK ADDRESS TRANSLATION) ................................................................................................................... 56 CONFIGURING PORT FORWARDING (VIRTUAL SERVER).........................................................…
Text truncated - open the document above for the full version.
44 Connecting Profile To enable this function, this device must be in the client mode. User clicks to enable this function and input the SSID of preferred AP and then click “Apply Changes”. The BSSID field is an option in case of two preferred APs having the same SSID. In this case, this device will check both SSID and BSSID and connect to the matching AP. We can leave it empty in the normal case. After enabling the connecting profile, the system will check the preferred SSID in a fixed period. If preferred APs are found, the radio will try to connect with them one by one from top to down of the list and regardless of the signal quality and strength. The users can put their most favorite AP on the top so it will be connected first. Please note that check the preferred APs will impact the throughput a lot! Unless the signal strength is good enough, otherwise don't set the interval too short. The default value is 10 minutes. And currently, all the profiles share the same security setting. To delete one SSID in the list, users click the square to select it and click “Delete Selected” and then click “OK” in the pop-up window to confirm it. The user can delete the whole list once for all! Just click “Delete All” and then click “OK” in the pop-up window to confirm it. 45 To simply disable this function, the user just clicks to disable “Enable connecting profile”. The preferred AP list will be preserved for the next use. MAC Clone for Single Ethernet Client Enable/Disable Mac Clone (Single Ethernet Client) in Wireless-Basic Settings page determines whether the Ethernet Client use it’s own MAC address or AP-Client’s MAC address to transmit data. Enable MAC Clone, the single Ethernet client can use its own MAC address. Disable MAC Clone, the single Ethernet client must to use AP-Client’s MAC address. While you use this device act as AP-Client and only one host connect to this device via Ethernet, you need to check this option in this page, otherwise the other device can’t recognize your host behind AP-Client. If you use hub/switch connect multi-device to this AP-Client, you should uncheck this option. Configuring as WLAN Client Adapter This device can be configured as a wireless Ethernet adapter. In this mode, the device can connect to the other wireless stations (Ad-Hoc network type) or Access Point (Infrastructure network type) and you don’t need to install any driver. Quick start to configure Step 3. In “Basic Settings” page, change the Mode to “Client” mode. And key in the SSID of the AP you want to connect then press “Apply Changes” button to apply the change. 46 Step 4. Check the status of connection in “Status” web page The alternative way to configure as following: Step 4. In “Wireless Site Survey” page, select one of the SSIDs you want to connect and then press “Connect” button to establish the link. 1 2 3 47 Step 5. If the linking is established successfully. It will show the message “Connect successfully”. Then press “OK”. Step 6. Then you can check the linking information in “Status” page. 1 2 48 Note : If the available network requires authentication and data encryption, you need to setup the authentication and encryption before step1 and all the settings must be as same as the Access Point or Station. About the detail authentication and data encryption settings, please refer the security section. Authentication Type In client mode, the device also supports two Authentication Types “Open system” and “Shared Key”. Although the default setting is “Auto”, not every Access Points can support “Auto” mode. If the authentication type on the Access Point is knew by user, we suggest to set the authentication type as same as the Access Point. Data Encryption In client mode, the device supports WEP and WPA Personal/Enterprise except WPA2 mixed mode data encryption. About the detail data encryption settings, please refer the security section. Ch 5. Configuring WDS Wireless Distribution System (WDS) uses wireless media to communicate with the other devices, like the Ethernet does. This function allows one or more remote LANs connect with the local LAN. To do this, you must set these devices in the same channel and set MAC address of other devices you want to communicate with in the WDS AP List and then enable the WDS. When you decide to use the WDS to extend your WLAN, please refer the following instructions for configuration. z The bridging devices by WDS must use the same radio channel. z When the WDS function is enabled, all wireless stations can’t connect the device. z If your network topology has a loop, you need to enable the 802.1d Spanning Tree function. z You don’t need to add all MAC address of devices existed in your network to WDS AP List. WDS AP List only needs to specify the MAC address of devices you need to directly connect to. z The bandwidth of device is limited, to add more bridging devices will split the more bandwidth to every bridging device. WDS network topology In this section, we will demonstrate the WDS network topologies and WDS AP List configuration. You can setup the four kinds of network topologies: bus, star, ring and mesh. 49 In this case, there are five devices with WDS enabled: WDS1, WDS2, WDS3, WDS4 and WDS5. Bus topology: LAN1LAN2LAN3LAN4LAN5 WDS #1WDS #4WDS #3WDS #2WDS #5 Device Entries of WDS AP List Spanning Tree Protocol Required WDS1 The MAC Address of WDS2 No WDS2 The MAC Addresses of WDS1 and WDS3 No WDS3 The MAC Addresses of WDS2 and WDS4 No WDS4 The MAC Addresses of WDS3 and WDS5 No WDS5 The MAC Address of WDS4 No Star topology: LAN3LAN 4 LAN 1 LAN 2LAN 5 WDS #5 WDS #2 WDS #3WDS #4 WDS #1 Device Entries of WDS AP List Spanning Tree Protocol Required WDS1 The MAC Addresses of WDS2, WDS3, WDS4 and WDS5 No WDS2 The MAC Address of WDS1 No WDS3 The MAC Address of WDS1 No WDS4 The MAC Address of WDS1 No WDS5 The MAC Address of WDS1 No Ring topology: 50 LAN3 LAN 4 LAN 1 LAN 2 LAN 5 WDS #5 WDS #2 WDS #3 WD S #4 WD S #1 Device Entries of WDS AP List Spanning Tr…
Text truncated - open the document above for the full version.
Date: 2006/11/15 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.
Mike Kuo From: amanda.wu [[email protected]] on behalf of application [[email protected]] Sent: Tuesday, December 19, 2006 10:51 PM To: Mike Kuo Subject: Re:FW: ZINWELL CORPORATION, FCC ID: RIW-ZW-2200, Assessment NO.: AN06T6350, Notice#1 12/21/2006 Dear Mike: Please see my reply, thank you. Best Regards, Amanda -----Original Message----- From: Mike Kuo Sent: Monday, December 11, 2006 11:10 PM To: Mike Kuo Subject: ZINWELL CORPORATION, FCC ID: RIW-ZW-2200, Assessment NO.: AN06T6350, Notice#1 Question #1: User Manual -2: Page 4 of PDF file " This EUT is incompliance with SAR for general population /uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C." This statement does not apply to this mobile device. SAR RF exposure compliance is only appicable to those devices defined as Portable device per section 2.1093 of FCC rules. Please remove this statement. Ans: The user manual had been removed this statment on p4. Question #2: Page 38 of user manual, it provides 5 GHz operating channel in the U.S.. Even though the applicant has provided a statement to state that 5.15-5.35 GHz band and 5.4-5.725 GHz band will be disabled via firmware and not operatinal in the U.S. The statement provided by the applicant does not agree with the user manual. Please provide a revised user manual to have agreement with the applicant statement on 5 GHz channel of operation. "Mike Kuo" <[email protected]> 2006/12/12 03:10 PM 收件人: "amanda.wu" <[email protected]>, <[email protected]> 副本抄送: <[email protected]> 主旨: FW: ZINWELL CORPORATION, FCC ID: RIW-ZW-2200, Assessment NO.: AN06T6350, Notice#1 Ans: The statement had been added into the usermanual on p38. Question #3: Please provide the list of channel for 2.4 and 5GHz band in the Ad-Hoc mode or peer-to-peer mode. Ans: Please see page 23 & 24 for 2.4 GHz, and page 39 & 40 for 5GHz. Question #4: Page 86 of user manual, the required separation distance on this page is 20 cm which is different than the one listed in the beginning of user manual ( 2 meter separation distance is required ). Please explain. Ans: The 20cm statement had been removed form page 86. Question #5: Per section 15.247 (c)(1)(iii) requirement, when the device requires to be professionally installed, the user manual must contain required information to inform the professional installer responsibilities. Ans: Please see page . Question #6: Modifications were made during the final compliance tests ( internal photos ) , please provide a marketing statement signed by the applicant to acknowledge the modifications will be implemented in each unit sold in the U.S.. Ans: Please have the declaration letter. Question #7:In Page 26 of user manual, B mode can be tuned from 20-24 dBm and G mode can be tuned from 17-20 dBm by user. However, due to high gain antenna used, the output power must comply 36 dBm EIRP by reducing the conducted output power limits. The RF conducted output power setting based upon gain of antenna used did not provide in the user manual to inform the installer the highest allowed conduct output power. Please include the power setting Vs antenna used in the user manual. Ans: Client removed this section from userman. FYI : Per section 15.247, the power density limits is not associated with antenna gain. When greater than 6dBi antenna is used, the power density limit does not need to be reduced. Thank you. Question #8 Page 77 of test report, please explain why the average reading is higher than peak reading ? Ans: Sorry, it's typo, the test report had been revised. Question #9 : Page 80 : please explain the statement " 30dBc average fundamental"? Ans: We added the explanation into the page 80. Question #10: Please provide an antenna list with antenna type, antenna gain and type of operation ( point-to-point or point-to-multipoint ). 12/21/2006 Ans: Please see page 46 of usermanual-2 1220. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. ________________________________________________________________________ This e-mail transmission is confidential and intended solely for being reviewed by the recipient(s) identified above. If you are not an identified recipient, please ensure that this communication remains confidential and promptly return it to the sender. Please contact immediately by phone (Tel: 886-2-2299-9720) for any problem with this transmission. Thank you for your attention. 12/21/2006
November 15, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: RIW- ZW - 2200 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,
Declaration of Conformity We (), hereby declare the device: IEEE. 11a/g WLAN OutDoor AP, model: will be shipping to America and for meeting to the FCC rule, the device will be disabled frequency 5150~5350MHz and 5470~5725 MHz. Sincerely Yours,

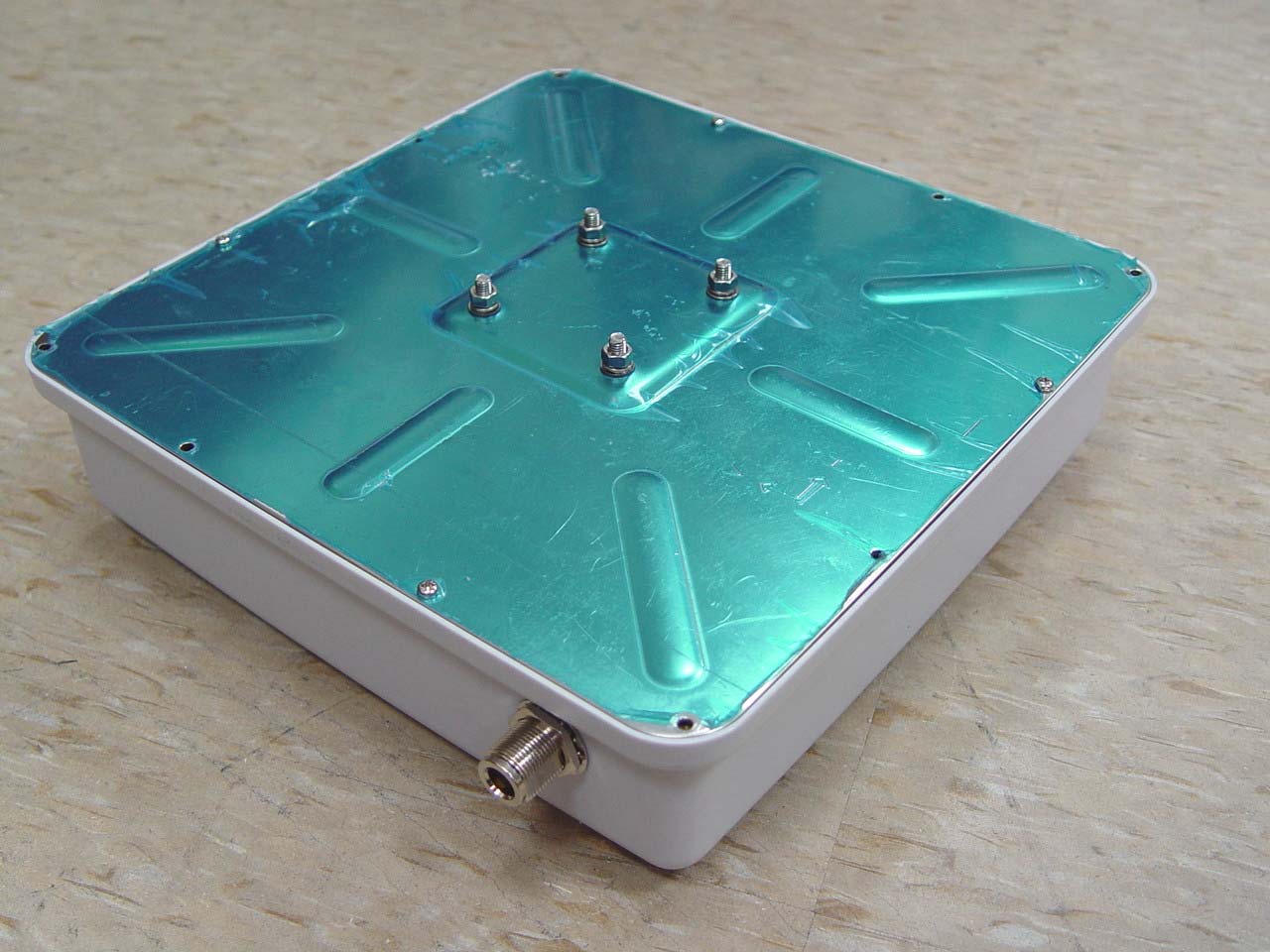

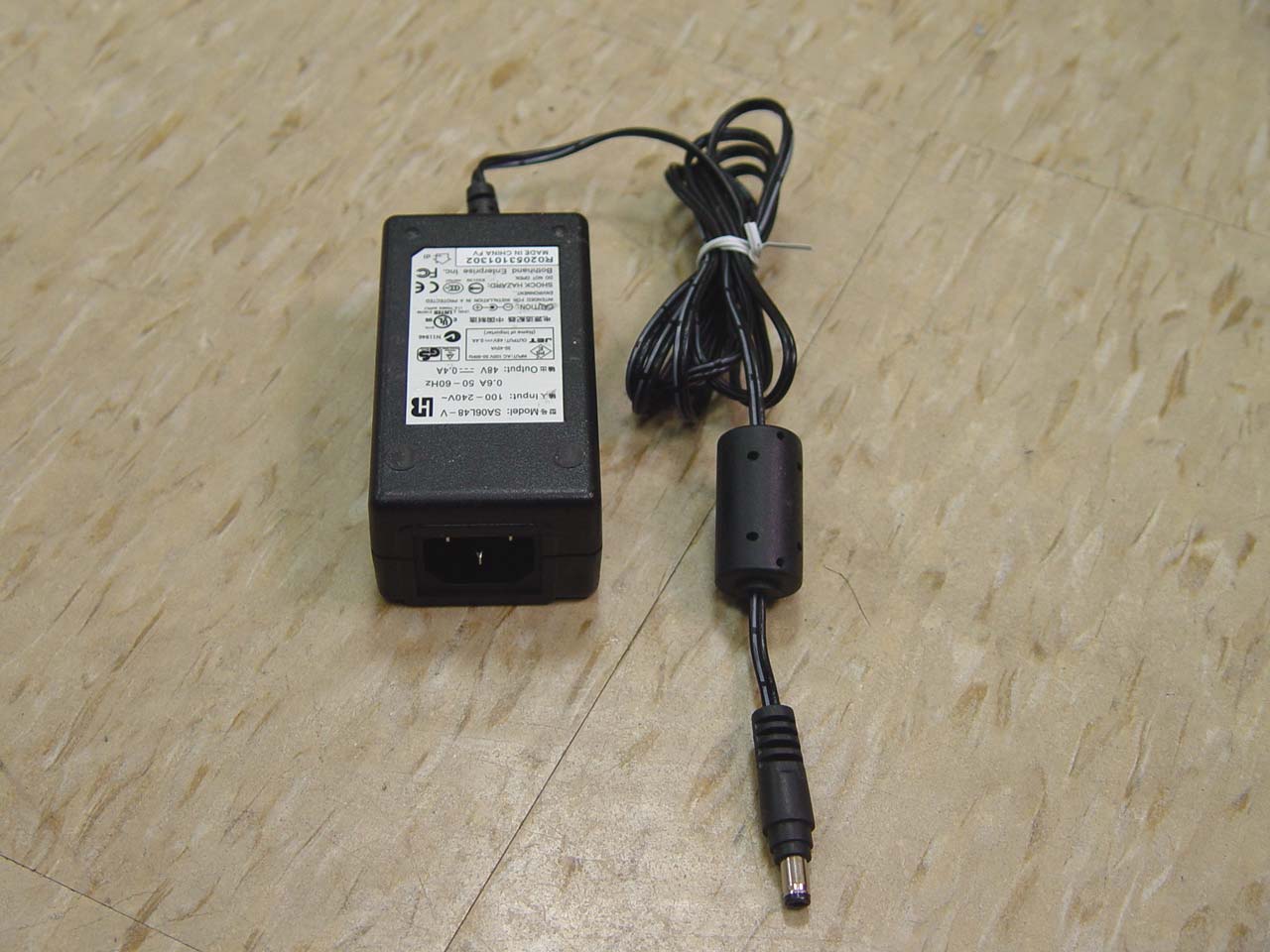

Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 1 Total Page: 23 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT ZW-2200-OD Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 2 Rev.00 Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 3 Rev.00 Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 4 Rev.00 ZW-2200-IA Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 5 Rev.00 Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 6 Rev.00 Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 7 Rev.00
White Background Black Text . Note: 1.Text Must Be Arial Form . 2.Material : 3.Printing : 4.Before Production, The Sample Must Be Approved By Engineering Department . 1/1 LABEL FOR SET/GIFT BOX/CARTO ZW-2200-OD 3 LA79190099 White Background Black Text . ZW-2200-OD 50.00 mm 4 0 . 0 0 m m RR ZINWELL CODE 128 S / N : x x x x x x x x x x x x x x Model Name Year Week Serial number EX. 2006/May/23 2200OD62100001 1 5 . 0 0 m m ZW-2200-OD S / N : x x x x x x x x x x x x x x F CC ID:RIW-ZW-2200 IEEE.11g WLAN OutDoor AP Rating:48V,400mA Metalized Polyester Label (white) #50 Metalized Polyester Label (white) #50 16.OCT.2006 White Background Black Text . Note: 1.Text Must Be Arial Form . 2.Material : 3.Printing : 4.Before Production, The Sample Must Be Approved By Engineering Department . 19.JULY..2006 1/1 Metalized Polyester Label (white) #50 LABEL FOR SET ZW-2000-IA 1 LA69980099 White Background Black Text . ZW-2000-IA Metalized Polyester Label (white) #50 45.00 mm 2 7 . 0 0 m m T his device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)This device may not cause harmful interference and ( 2)This device must accept any interference received, including interference that may c ause undesired operation This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)This device may not cause harmful interference and (2)This device must accept any interference received, including interference that may cause undesired operation
Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 8 Rev.00 INTERNAL PHOTOGRAPHS OF EUT ZW-2200-OD Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 9 Rev.00 Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 10 Rev.00 ZW-2200-IA Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 11 Rev.00 Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 12 Rev.00 Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 13 Rev.00 Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 14 Rev.00 Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 15 Rev.00
Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 16 Rev.00 Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 17 Rev.00 Omni Antenna / Gain: 12dBi Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 18 Rev.00 Omni Antenna / Gain: 15dBi Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 19 Rev.00 Panel Antenna / Gain: 16dBi Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 20 Rev.00 Omni Antenna / Gain: 12dBi Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 21 Rev.00 Panel Antenna / Gain: 16dBi Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 22 Rev.00 Panel Antenna / Gain: 18dBi Compliance Certification Services Inc. Report No.: 60727001 Date of Issue: November 21, 2006 Page 23 Rev.00
NO.25 , CHUNG-YAUNG ROAD , YUNG-KANG CITY , TAINAN HSIEN, TAIWAN , R.O.C TEL: +886-6-2819815 FAX : +886-6-2819752 with Gain 12DBI Technical information Frequency: 2400 - 2483MHz Gain: 12 dBi Polarization: Vertical Beamwidth deg: vertical & horizontal Horz.360°Vert.7° SWR: 1.5:1 Impedance: 50 Ohm Dimensions Length: H1420㎜ Weight: 1300g Connector: N-type / Female ‧Designed for wireless LAN communications ‧Mounts easily for indoor or outside applications ‧Suited for IEEE 802.11b/g wireless LANs ‧Made with high quality fiberglass material OA-2450-12 Dipole Antennas for Base Stations with 12dBi Gain This Omni antenna is an omni directional type that will increase signal range and strength greatly in a sphere shape. It comes with a very good fitting kit that includes high quality brackets nuts, bolts and washers. It can be used to cover 360 degree pops. SWR plane field patterns
NO.25 , CHUNG-YAUNG ROAD , YUNG-KANG CITY , TAINAN HSIEN, TAIWAN , R.O.C TEL: +886-6-2819815 FAX : +886-6-2819752 Technical information Frequency: 2400 - 2500MHz Gain: 15 dBi Polarization: Vertical Beamwidth deg: vertical & horizontal Horz.360°Vert.6° SWR: 1.5:1 Impedance: 50 Ohm Dimensions Length: H1600㎜ Weight: 900g Connector: N-type / Female OA-2450-15 Dipole Antennas for Base Stations with 15dBi Gain This Omni antenna is an omni directional type that will increase signal range and strength greatly in a sphere shape. It comes with a very good fitting kit that includes high quality brackets nuts, bolts and washers. It can be used to cover 360 degree pops. ‧Designed for wireless LAN communications ‧Mounts easily for indoor or outside applications ‧Suited for IEEE 802.11b/g wireless LANs ‧Made with high quality fiberglass material with Gain 15DBI SWR plane field patterns
NO.25 , CHUNG-YAUNG ROAD , YUNG-KANG CITY , TAINAN HSIEN, TAIWAN , R.O.C TEL: +886-6-2819815 FAX : +886-6-2819752 with Gain 16DBI PA-2450-16 Panel 12dBi Gain Wireless LAN Antenna with 2.3GHz to 2.5GHz Frequency This panel antenna delivers extended access point range in a single floor environment ideally positioned in the corner of a building. It functions from point-to-point so that you can wirelessly connect LANs between the buildings in a campus-type environment. It provides multiform transmission when placed on a ceiling, as the higher powder output extends the range through typical flooring materials echnical information Frequency: 2400 - 2583MHz Gain: 16 dBi Polarization: Vertical Beamwidth deg: vertical & horizontal Horz.65°Vert.27° SWR: 1.5:1 Impedance: 50 Ohm Dimensions Length: L454×W134×H30㎜ Weight: 800g Connector: N-type / Female ‧Designed for wireless LAN communications ‧Mounts easily for indoor or outside applications ‧Designed to obtain maximum gain ‧Made with weatherproof and corrosion resistant SWR plane field patterns H-PLANE FIELD PATTERNS E-PLANE FIELD PATTERNS
5.8Ghz 12DBI Omni Antenna This 5G Omni antenna is an omni-directional type that will increase signal range and strength greatly in a sphere shape. It comes with a very good fitting kit that includes high quality brackets nuts, bolts and washers. It can be used to cover 360 degree pops The signal range will be around 1200~1500m Connector type is N Female please choose N Male type cable assemblies Strong suggest use Low Loss cable ELECTRICAL PROPERTIES Ferquency: 5725-5850 Gain: 12dbi Vertical Beamwidth: 7° VSWR: 1.5 Nominal Impedance: 50ohm Polarization: Vertical Connector: N Female Length: 910mm Weight: 370g SWR plane field patterns
Hwa Y ao Technologies Co.,Ltd 5 GHz 16 dBi Panel Antenna N Female PA-5775-16 The Hwayaotek PA-5825-16 is a high performance Panel Waterproof fiberglass design for outdoor use N Female connector Frequency: 5725-5850MHz Gain: 16 dBi VSWR: less than 1.5:1 N Female connector Impedance: 50 Ohm N Female connector Max power: 200 W N Female connector Polarization: Vertical Horizontal Beamwidth (3dB) :16 deg Vertical Bandwidth (3 dB): 16 deg Front to Back Ratio: >= 25 dB IMD: <= -107 dB Electrical Specifications Dimensions: 263mm x 193mm x 42mm Gain Weight: 1 kg Rated Wind Velocity: 210 km/h Diameter of installation pole: 35 - 75 mm or Mechanical Specifications H-PLANE FIELD PATTERNS E-PLANE FIELD PATTERNS
