RIW-ZWA-G220ZINWELL 802.11b/g Wireless AP

Wireless LAN Device Series Multi-Mode AP ZWA-G220 User’s Manual Version. 1.4.3b (2007.07.31) 1 TABLE OF CONTENTS NOTICE .................................................................................................................................................. 3 PREFACE ..........................................................................................................錯誤! 尚未定義書籤。 CH 1. ZWA-G220 INSTALLATION....................................................................................................6 PACKING LIST....................................................................................................................................... 6 BACK PANEL CONNECTIONS................................................................................................................. 6 HARDWARE INSTALLATION.................................................................................................................. 7 CH 2. FIRST TIME CONFIGURATION ............................................................................................ 8 BEFORE STA RT TO CONFIGURE............................................................................................................. 8 KNOWING THE NETWORK APPLICATION............................................................................................... 8 BASIC SETTINGS................................................................................................................................. 28 ADVANCED SETTINGS......................................................................................................................... 31 CONFIGURING WIRELESS SECURITY................................................................................................... 34 CONFIGURING AS WLAN CLIENT ADAPTER....................................................................................... 37 QUICK START TO CONFIGURE.............................................................................................................. 37 MAC CLONE FOR SINGLE ETHERNET CLIENT.................................................................................... 39 EXTEND THE REMOTE AP (BSS)......................................................................................................... 40 CH 3. CONFIGURING WDS .............................................................................................................. 42 WDS NETWORK TOPOLOGY................................................................................................................ 42 WDS APPLICATION............................................................................................................................. 44 CH 4. ADVANCED CONFIGURATIONS ......................................................................................... 46 CONFIGURING LAN TO WA N FIREWALL............................................................................................ 46 PORT FILTERING................................................................................................................................. 46 IP FILTERING...................................................................................................................................... 47 MAC FILTERING................................................................................................................................. 48 NAT (NETWORK ADDRESS TRANSLATION)......................................................................................... 49 CONFIGURING PORT FORWARDING (VIRTUAL SERVER).............................................................................. 50 MULTIPLE SERVERS BEHIND NAT EXAMPLE: ..................................................................................... 50 CONFIGURING DMZ ........................................................................................................................... 51 CONFIGURING WA N INTERFACE......................................................................................................... 52 STAT I C IP............................................................................................................................................ 52 DHCP CLIENT (DYNAMIC IP)............................................................................................................. 53 PPPOE................................................................................................................................................ 54 PPTP .................................................................................................................................................. 55 CONFIGURING CLONE MAC ADDRESS............................................................................................... 57 CONFIGURING DHCP SERVER............................................................................................................ 59 2 B ANDWIDTH CONTROL....................................................................................................................... 60 QOS (QUALITY OF SERVICE)............................................................................................................... 60 STAT I C ROUTE SETUP......................................................................................................................... 64 DYNAMIC ROUTE SETUP.................................................................................................................... 65 VPN PASS-THROUGH.......................................................................................................................... 66 USING CLI MENU...............................................................................................................................66 THE SYSTEM MANAGEMENT.............................................................................................................. 68 SNMP AGENT........................................................................................…

Text truncated - open the document above for the full version.

40 Extend the Remote AP (BSS) This device provides a software function to extend the AP-BSS (Basic Service Set) which is in the remote distance. When in AP, WDS, AP+WDS mode, this device can be set up to extend the remote AP BSS. This device plays two roles simultaneously, connecting to the remote AP-BSS as a WLAN client and serving as local AP-BSS and then forward packages from remote BSS to local BSS. There are two ways below to enable this function. 1. Enable this option and then select a SSID in the Table that you want. Click Apply Changes button to take effective. (Click Refresh button to make table renew) 1 2 3 4 41 Note: It only applies under AP、WDS and AP+WDS mode 2. Enter specific SSID in the Extended SSID field and then click Apply Changes button to take effective. 5 1 2 3 4 6 1 2 3 4 42 Ch 3. Configuring WDS Wireless Distribution System (WDS) uses wireless media to communicate with the other devices, like the Ethernet does. This function allows one or more remote LANs connect with the local LAN. To do this, you must set these devices in the same channel and set MAC address of other devices you want to communicate with in the WDS AP List and then enable the WDS. When you decide to use the WDS to extend your WLAN, please refer the following instructions for configuration. z The bridging devices by WDS must use the same radio channel. z When the WDS function is enabled, all wireless stations can’t connect the device. z If your network topology has a loop, you need to enable the 802.1d Spanning Tree function. z You don’t need to add all MAC address of devices existed in your network to WDS AP List. WDS AP List only needs to specify the MAC address of devices you need to directly connect to. z The bandwidth of device is limited, to add more bridging devices will split the more bandwidth to every bridging device. WDS network topology In this section, we will demonstrate the WDS network topologies and WDS AP List configuration. You can setup the four kinds of network topologies: bus, star, ring and mesh. In this case, there are five devices with WDS enabled: WDS1, WDS2, WDS3, WDS4 and WDS5. Bus topology: Device Entries of WDS AP List Spanning Tree Protocol Required WDS1 The MAC Address of WDS2 No WDS2 The MAC Addresses of WDS1 and WDS3 No WDS3 The MAC Addresses of WDS2 and WDS4 No WDS4 The MAC Addresses of WDS3 and WDS5 No WDS5 The MAC Address of WDS4 No 43 Star topology: Device Entries of WDS AP List Spanning Tree Protocol Required WDS1 The MAC Addresses of WDS2, WDS3, WDS4 and WDS5 No WDS2 The MAC Address of WDS1 No WDS3 The MAC Address of WDS1 No WDS4 The MAC Address of WDS1 No WDS5 The MAC Address of WDS1 No Ring topology: Device Entries of WDS AP List Spanning Tree Protocol Required WDS1 The MAC Addresses of WDS2 and WDS5 Yes WDS2 The MAC Addresses of WDS1 and WDS3 Yes WDS3 The MAC Addresses of WDS2 and WDS4 Yes WDS4 The MAC Addresses of WDS3 and WDS5 Yes WDS5 The MAC Addresses of WDS4 and WDS1 Yes 44 Mesh topology： LAN3 LAN 4 LAN 1 LAN 2 LAN 5 WDS #5 WDS #2 WDS #3 WDS #4 WDS #1 Device Entries of WDS AP List Spanning Tree Protocol Required WDS1 The MAC Addresses of WDS2, WDS3, WDS4 and WDS5 Yes WDS2 The MAC Addresses of WDS1, WDS3, WDS4 and WDS5 Yes WDS3 The MAC Addresses of WDS1, WDS2, WDS4 and WDS5 Yes WDS4 The MAC Addresses of WDS1, WDS2, WDS3 and WDS5 Yes WDS5 The MAC Addresses of WDS1, WDS2, WDS3 and WDS4 Yes WDS Application Peer to Peer connection WDS-AP can be used to increase the coverage area of another device (Parent WDS-AP). Between the Parent WDS-AP and the WDS-AP, Wireless Stations can move among the coverage areas of both devices. When you decide to use the WDS function to connect another WDS-AP, please refer the following instructions for configuration. z In AP mode, enable the WDS function. z You must set these connected devices with the same radio channel and SSID. z Choose “WDS+AP” mode. z Using the bus or star network topology. 45 Description Entries of WDS AP List Spanning Tree Protocol Required Parent WDS-AP The MAC Address of WDS-AP Yes WDS-AP The MAC Address of Parent WDS-APYes Wireless Bridge Wireless Bridge can establish a wireless connection between two or more Wired LANs. When you decide to use the WDS as a Wireless Bridge, please refer the following instructions for configuration. z In AP mode, enable the WDS function. z You must set these connected devices with the same radio channel, but you may use different SSID. z Choose “WDS” mode for only wireless backbone extension purpose. z You can use any network topology, please refer the WDS topology section. 46 Ch 4. Advanced Configurations Configuring LAN to WAN Firewall Filtering function is used to block or permit packets from LAN to WAN. The device supports three kinds of filter Port Filtering, IP Filtering and MAC Filtering. All the entries in current filter table are used to restrict or allow certain types of packets from your local network to through the device. Use of such filters can be helpful in securing or restricting your local network. Denied or Allowed list depends on your IP forwarding default policy in Route page. The IP forwarding default policy is “ACCEPT”. If you want block some application from LAN to WAN, you can go to Route page to select “ACCEPT” for IP Forwarding Default Policy. If you want permit some application from LAN to WAN, you can go to Route page to select “DROP” for IP Forwarding Default Policy. Port Filtering When you enable the Port Filtering function, you can specify a single port or port ranges in current filter table. If you select ACCEPT for the IP forwarding default policy, once the source port of outgoing packets match the port definition or within the port ranges in the table, the firewall will block those packets form LAN to WAN. 1 2 3 4 1 2 3 4 47 If you select DROP for the IP forwarding default policy, once the source port of outgoing packets match the port definition or within the port ranges in the table, the firewall will allow those packets form LAN to W…

Text truncated - open the document above for the full version.

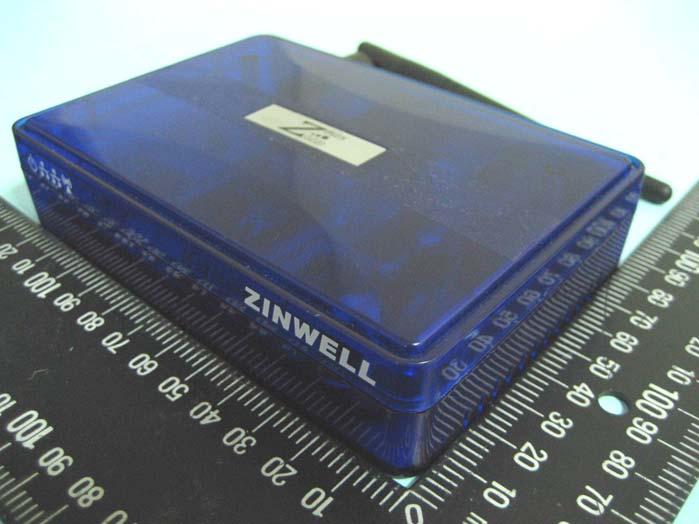

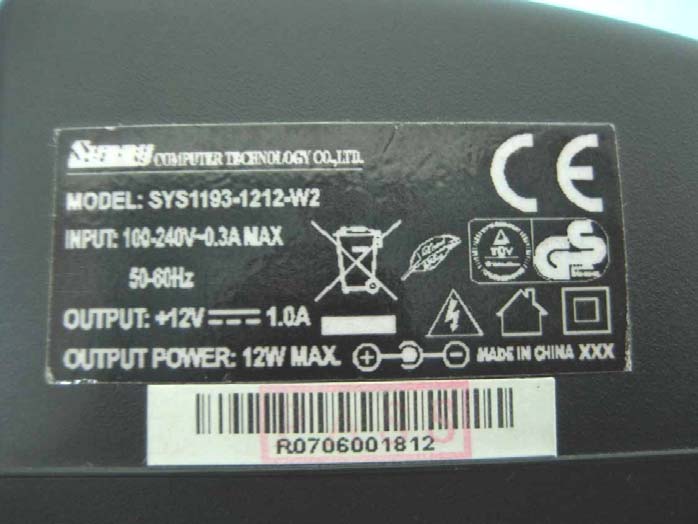

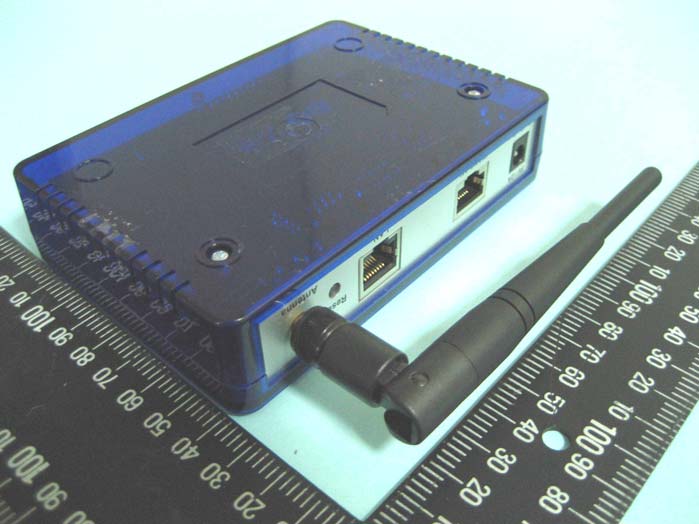

SPORTON International Inc. PAGE NUMBER : A1 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Report No.: 761102 Trade: ZINWELL Model No.: ZWA-G220 SPORTON International Inc. PAGE NUMBER : A2 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 Report No.: 761102 Trade: ZINWELL Model No.: ZW-2194 SPORTON International Inc. PAGE NUMBER : A5 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 Adapter 1 Trade: Sunny Model No.: SYS1193-1005-W2 SPORTON International Inc. PAGE NUMBER : A8 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 Adapter 2 Trade: Sunny Model No.: SYS1193-1212-W2 SPORTON International Inc. PAGE NUMBER : A10 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A12 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A13 OF A13 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 24, 2007 FAX : 886-2-2696-2255

Report No.: FR761102 FCC ID: RIW-ZWA-G220 Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR761102 FCC ID: RIW-ZWA-G220 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR761102 FCC ID: RIW-ZWA-G220 Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Dipole Max Conducted Power for IEEE 802.11b/g : 26.65dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3 1.9953 26.6500 462.3810 0.183633 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company ZINWELL CORPORATION Applicant Address 2, Wen-Hua Road, Hsinchu INdustrial Park Hsinchu Hsien 303,Taiwan FCC ID RIW-ZWA-G220 Manufacturer’s company ZINWELL CORPORATION Manufacturer Address 2, Wen-Hua Road, Hsinchu INdustrial Park Hsinchu Hsien 303,Taiwan Product Name ZINWELL 802.11b/g Wireless AP Brand Name ZINWELL Model Name ZWA-G220, ZW-2194 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date May 29, 2007 Final Test Date Jun. 13, 2007 Submission Type Original Equipment Multiple Listing Please refer to section 3.7 Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR761102 Report Format Version: 01 Page No. : i of ii FCC ID: RIW-ZWA-G220 Issued Date : Jul. 25, 2007 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................4 3.7. Table for Multiple Listing & Class II Change ........................................................................................................................................5 3.8. Table for Supporting Units ...................................................................................................................................................................5 3.9. Table for Parameters of Test Software Setting .....................................................................................................................................5 3.10. Test Configurations .............................................................................................................................................................................6 4. TEST RESULT ................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................11 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................15 4.3. Power Spectral Density Measurement ..............................................................................................................................................17 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................22 4.5. Radiated Emissions Measurement ....................................................................................................................................................27 4.6. Band Edge Emissions Measurement .................................................................................................................................................45 4.7. Antenna Requirements .....................................................................................................................................................................52 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 53 6. TEST LOCATION.............................................................................................................................................. 55 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 56 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A21 APPENDIX B. TEST PHOTOS....…

Text truncated - open the document above for the full version.

Report No.: FR761102 FCC ID: RIW-ZWA-G220 Page No. : 1 of 5 Appendix B. Test Photos Report No.: FR761102 FCC ID: RIW-ZWA-G220 Page No. : 2 of 5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR761102 FCC ID: RIW-ZWA-G220 Page No. : 3 of 5 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR761102 FCC ID: RIW-ZWA-G220 Page No. : 4 of 5 30MHz~1GHz Test Mode: Mode 3 FRONT VIEW REAR VIEW Report No.: FR761102 FCC ID: RIW-ZWA-G220 Page No. : 5 of 5 Above 1GHz FRONT VIEW REAR VIEW
