RIZFEB1106Electronic Ballast

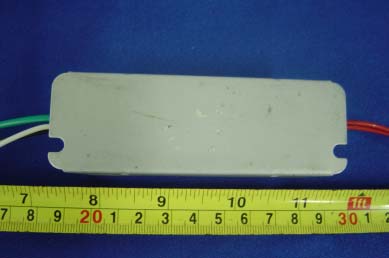

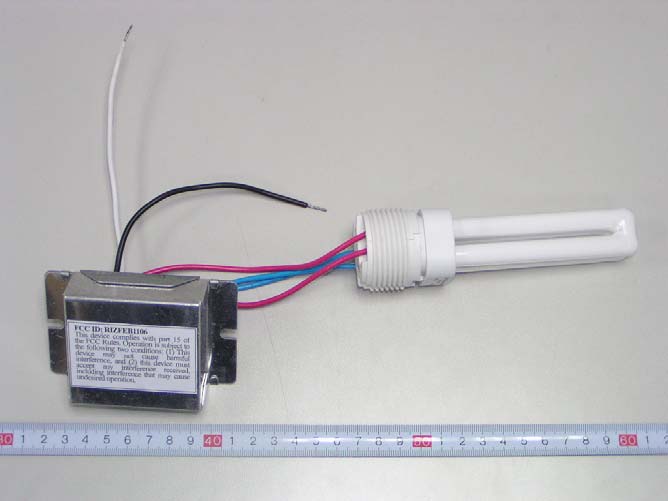

External Photos FEB-1-13-120-N-S-A: EUT - Front View FEB-1-13-120-N-S-A: EUT - Back View FEB-1-26-120-N-S-A: EUT - Front View FEB-1-26-120-N-S-A: EUT - Back View

ID Label FCC Label FCC ID: RIZFEB1106 This product complier with Part 18 of the FCC rules but may cause interference to televisions, radios, wireless remote control or maritime safety communications equipment or other critical navigation or communication equipment operation between 0.45-30MHz. If interference should occur, move the lamp away from the appliance a distance of three feet or more. Or plug the lamp or the compliance into a different outlet.

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow. FEB-1-13-120-N-S-A FEB-1-26-120-N-S-A

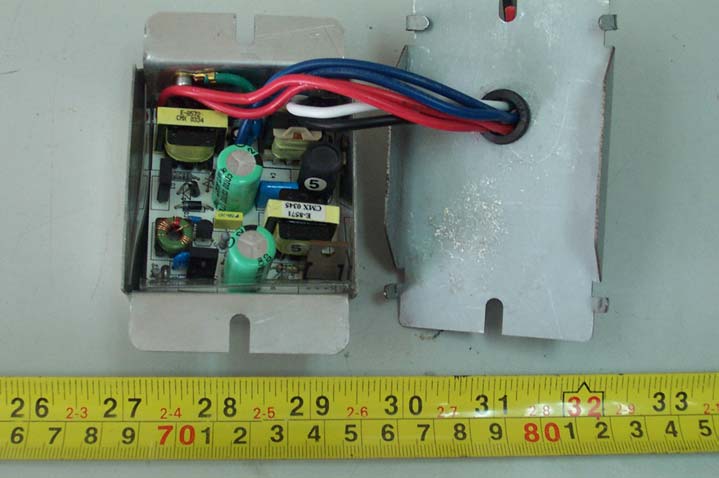

Internal Photos FEB-1-13-120-N-S-A: EUT - Inside View (1) FEB-1-13-120-N-S-A: EUT - Inside View (2) FEB-1-13-120-N-S-A: EUT – PCB Front View FEB-1-13-120-N-S-A: EUT – PCB Rear View FEB-1-26-120-N-S-A: EUT - Inside View (1) FEB-1-26-120-N-S-A: EUT - Inside View (2) FEB-1-26-120-N-S-A: EUT – PCB Front View FEB-1-26-120-N-S-A: EUT – PCB Rear View

1 2 34 A BC D 4 3 2 1 D CB A Title Numbe r Revision Siz e A4 Date : 12-Oct-2005 Sheet of File: D:\Sch\930003.ddb Drawn By: D4IN4007D3IN4007 C1 0 472/1kV F11A/250V L N C6333/100V A3 A3 LAMP FEB-1-13-120-N-S-A PCB: EB126N Q1 E13003 Q2 E13003 D8DB3 R2300K/1/2W R712RR612R T1 E-9780 LZQ D7 IN4007 D5 FR107 D6 FR107 R43R6/1/4WR33R6/1/4W C210uF/250VC310uF/250V C1 1 152/630V A1 A2 R1300K/1/2W D2IN4007D1IN4007 J1 J1 SHORT at 120V INPUT L1 E-11425 C1 104/275V L1E-10563 C9104/400V R1 05K1R91K5 D1 0IN4148 Q3SCR100-8 C7100uF/16V ZD13V3 C8222/100V D9FR107 R8300K/1/2W R1 1510K/1/4W C4 223/100V C5 223/100V A 1 2 34 A BC D 4 3 2 1 D CB A Title Number Revision Siz e A4 Date: 5-Dec-2006 Shee t of File: D:\Sch\930003.ddb Drawn By: D4IN4007D3IN4007 C10 822/800V F11A/250V L N C6333/100V A3 A3 LAMP FEB-1-26-120-N-S-A PCB: EB126N Q1 E13003 Q2 E13003 D8DB3 R2300K/1/2W R712RR612R T1 E-9780 LZQ D7 IN4007 D5 FR107 D6 FR107 R41R/1/4WR31R/1/4W C222uF/250VC322uF/250V C1 1 152/630V A1 A2 R1300K/1/2W D2IN4007D1IN4007 J1 J1 SHORT at 120V INPUT L1 E-11425 C1 104/275V T2E-10564A C9104/400V R1 015KR91K5 D1 0IN4148 Q3SCR1 0 0 - 8 C7100uF/16V ZD13V3 C8222/100V D9FR107 R8300K/1/2W R1 1510K/1/4W C4 223/100V C5 223/100V A

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratory Corp. (Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. FCC PART 18 EMI MEASUREMENT AND TEST REPORT For ALKI ELECTRONICS TECHNOLOGY CORPORATION 7F, NO. 52, LANE 10, JI-HU ROAD, NEI WU DIST., TAIPEI, TAIWAN, R. O. C. FCC ID: RIZFEB1106 This Report Concerns: Original Report Equipment Type: Electronic Ballast Test Engineer: Simon Mo Report Number: RSZ06112251 Test Date: 2006-11-23 Report Date: 2006-12-08 Reviewed By: EMC Manager: Boni Baniqued Prepared By: Bay Area Compliance Laboratory Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, GuangDong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 ALKI ELECTRONICS TECHNOLOGY CORPORATION FCC ID: RIZFEB1106 Report # RSZ06112251 Page 2 of 12 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 EXTERNAL I/O CABLE..................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSION...........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................7 TEST DATA..................................................................................................................................................................7 PLOT(S) OF TEST DATA................................................................................................................................................8 ALKI ELECTRONICS TECHNOLOGY CORPORATION FCC ID: RIZFEB1106 Report # RSZ06112251 Page 3 of 12 FCC Part 18 Report GENERAL INFORMATION Product Description for Equipment under Test (EUT) The ALKI ELECTRONICS TECHNOLOGY CORPORATION’s model: FEB-1-13-120-N-S-A, FEB-1-26- 120-N-S-A or the “EUT” as referred to in this report is a Electronic Ballast which measures approximately FEB-1-13-120-N-S-A: 9.1cm L x 6.0cm W x 3.0cm H, FEB-1-26-120-N-S-A: 9.1cm L x 6.0cm W x 3.0cm H rated input voltage: AC 120V/60Hz. * The test data gathered are from production sample, serial number: 0611110, Provided by the manufacturer, we received EUT on 2006-11-22. Objective The following test report is prepared on behalf of ALKI ELECTRONICS TECHNOLOGY CORPORATION in accordance with Part 2, Subpart J, and Part 18, Subparts A, B and C of the Federal Communication Commissions rules and regulations. The objective of the manufacturer is to determine compliance with FCC Part 18 limits. Related Submittal(s)/Grant(s) No related submittal(s). Test Methodology All measurements contained in this report were conducted with MP-5, FCC Methods of Measurements of Radio Noise Emissions from ISM Equipment, February 1986. All measurement was performed at Bay Area Compliance Laboratory Corp. (ShenZhen). The radiated testing was performed at an antenna-to- EUT distance of 3 meters. Test Facility The Test site used by Bay Area Compliance Laboratory Corp. (ShenZhen) to collect radiated and conducted emission measurement…

Text truncated - open the document above for the full version.

Test Setup Photos FEB-1-13-120-N-S-A: Conducted Emission - Front View FEB-1-13-120-N-S-A: Conducted Emission - Side View FEB-1-26-120-N-S-A: Conducted Emission - Front View FEB-1-26-120-N-S-A: Conducted Emission - Side View
