RJ6IA1000FM Transmitter

Tekkeon, Inc.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Jul 07, 2005
Application Purpose: Original Equipment
Date of Application: Jul 07, 2005
Equipment Note: FM Transmitter
Frequency Range: 88.10000000 - 88.90000000
Company: Tekkeon, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

IA1000 User Guide FM Transmitter and Car Charger for iPod revised_UG_4x4 _r1 5/16/05 5:03 PM Page 1 revised_UG_4x4 _r1 5/16/05 5:03 PM Page 2 USER GUIDEContentsOverview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Unpacking myTune FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Getting to Know myTune FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Using myTune FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Customizing myTune FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Mounting myTune FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Playing iPod Music on an FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Charging iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Downloading Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 0 Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1 Federal Communications Commission (FCC) Statement . . . . . . . . . . . . . . . 12 revised_UG_4x4 _r1 5/16/05 5:03 PM Page 1 OverviewmyTune™ FM, a combination FM transmitter and car charger foriPod, plays your iPod music on your car stereo, and simultaneouslycharges your iPod. myTune FM cradles your iPod and mounts onyour vent to keep your iPod at eye level, without interfering withyour driving.myTune FM is made for iPod mini, iPod with dock connector, andiPod photo.Getting StartedUnpacking myTune FMYour myTune FM package includesthe following:2 Sizing pads (4 sets) iPod mini mounting clip Car power adapter myTune FM withmounting clip revised_UG_4x4 _r1 5/16/05 5:03 PM Page 2 Channel Selector FireWire Port forConnection toPower Adapter Power Button USB 2.0 Port Power Adapter Channel SelectionIndicators iPod Mounting Clip Getting to Know myTune FM 3 USER GUIDE revised_UG_4x4 _r1 5/16/05 5:03 PM Page 3 Using myTune FMCustomizing myTune FMTo customize myTune FM to dock your iPod, you must adhere two of the providedsizing pads onto myTune FM if you are using any iPod except iPod mini. If usingiPod mini, you must replace the mounting clip with the iPod mini mounting clip.To attach sizing pads:1. If applicable, peel the paper from the appropriate sizing pad pair and adhere each of the two pads onto one ofthe circles on the back plate of myTune FM. To replace the mounting clip:1. If using iPod mini, remove the attached arms by gently pushing one arm toward the back of myTune FM. Snapthe myTune FM mini mounting clip into its place. Mounting myTune FMmyTune FM snaps onto the air vents in your car. To accommodate different airvent orientations, the mounting clip on the back of myTune FM swivels to ahorizontal or vertical position. You can leave myTune FM mounted in your car, anddock iPod in myTune FM when you’re ready to listen to your tunes on the radio. 4 SizingPads revised_UG_4x4 _r1 5/16/05 5:03 PM Page 4 To mount myTune FM on your air vent:1. If your air vents have horizontal flaps, simply attach the mounting clip to the vent flap. If your air ventshave vertical flaps, twist the mounting clip to thevertical position, and attach the mounting clip to thevent flap. 2. With one end plugged into myTune FM, insert the power adapter into the 12V power outlet (lighteradapter) in your car. The blue light on the poweradapter will turn on to indicate that the adapter isplugged in. To dock iPod into myTune FM:1. Slide iPod down the face of myTune FM as shown until the iPod dock connector is firmly inserted into the 30-pin myTune FMconnecter. The arms will holdiPod in place. The iPod miniwill slide between the frontmostbrackets on the mini clip. 2. To remove iPod, gently slide iPod up the face of myTune FM. 5 USER GUIDE revised_UG_4x4 _r1 5/16/05 5:03 PM Page 5 Playing iPod Music on an FM RadioTo play your iPod music on your car radio, you must first select the channel onmyTune FM, and then select the same channel on your FM radio. The sevenpre-set channels available on myTune FM are CH1, CH2, 88.1, 88.3, 88.5, 88.7,and 88.9. CH1 and CH2 are market-dependent channels. A green light indicates that the channel selected is on the toprow, while an amber light indicates the selected channel ison the bottom row. The last channel in the bottom row is not used. To play iPod music on your FMradio:When myT une FM is turned on, the channel will be set to CH1, the default FM channel.1. With myTune FM mounted in your car and your car powered on, turn on your FM radio and select on your dial. 2. Switch the power button on the bottom of myPower FM to ON.3. Turn on the connected iPod and play your music. You will hear the music broadcast on your car radio. 6 Top row Bottom row revised_UG_4x4 _r1 5/16/05 5:03 PM Page 6 4. If the reception on the selected channel is not clear, press the channel selector on the bottom of myTune FM to select the next channel. An LED will light toindicate the channel selection. Each time you press the button, the selectionwill change, moving across the channels on the front of myTune FM from leftto right, top to bottom. Channels on the top row are ind…

Text truncated - open the document above for the full version.

Block Diagram

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:9-Mar-2005 Sheet of File:E:\\IA1000\IA1000\IA1000FM(BH1417).DdbDrawn By: IA1000 1/1 PCB NO RevisionChanged it Drange NO: IA1000 F M D3 D0 RF OUT L/IN R/IN XOSC INPUT DC12V±1.8V

External Photos

ID Label/Location Info

FCC ID LABEL FORMAT AND LOCATION Applicant: Tekkeon Inc. FCC ID: RJ6IA1000 FCC ID:RJ6IA1000 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

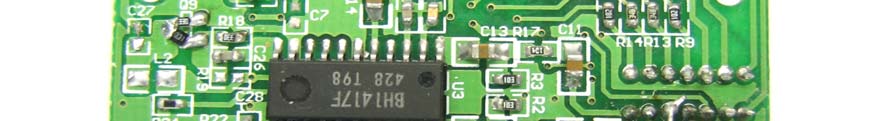

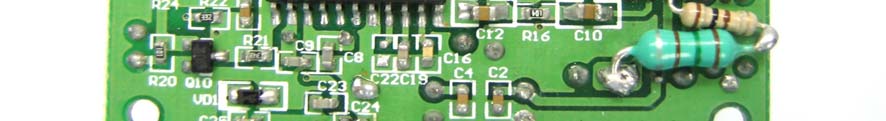

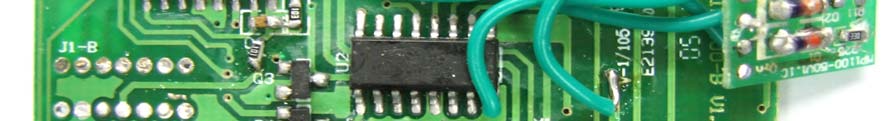

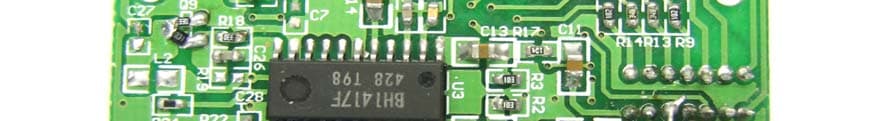

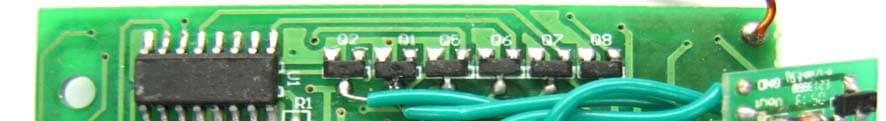

REPORT NO: ER/2005/60001 ID: RJ6IA1000 DATE: Jun. 28, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA APPENDIX 3 PHOTOGRPHS OF EUT REPORT NO: ER/2005/60001 ID: RJ6IA1000 DATE: Jun. 28, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Open View of EUT Open View of EUT REPORT NO: ER/2005/60001 ID: RJ6IA1000 DATE: Jun. 28, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Internal View of EUT-1 Internal of EUT – 2 REPORT NO: ER/2005/60001 ID: RJ6IA1000 DATE: Jun. 28, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Internal of EUT – 3 Internal of EUT – 4 REPORT NO: ER/2005/60001 ID: RJ6IA1000 DATE: Jun. 28, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Internal of EUT – 5 Internal of EUT – 6 REPORT NO: ER/2005/60001 ID: RJ6IA1000 DATE: Jun. 28, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Internal of EUT – 7

Operational Description

Operational Description for IA1000 General Characters: 1. I/P Voltage: + 12-24 Vdc at Pin 1 of 1394 2. Transmitter frequency: 88.1M 88.3M 88.5M 88.7M 88.9M 3. Current consumption: 60±10mA 4. Frequency response: 50HZ-15KHZ 5. Transmit distance: 2-3 m Operations: Energized i-pod 1394 connector from 12Vdc, and push the channel selector to control the pin 15, 15 & 17 of BH1417, then change the transmitter frequency CH1, CH2, 88.1M. 88.3M. 88.5M. 88.7M. 88.9M (CH1 and CH2 are reserved, no any function now), at the meantime, a sound signal input the pin 1 & 22 of BH1417 and to be amplified, then a stereo output from pin 5 to pin 9 of BH1417, finally, a RF signal output to antenna of outside building.

Schematics

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:23-Feb-2005Sheet of File:D:\\carFM\IA1000FM(BH1417).DdbDrawn By: 12VDC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CON1 30PIN 1 2 3 4 5 CON2 MINIUSB 1 2 3 4 5 6 CON3 1394 Vin 1 Gnd 2 Vout 3 U4 78L06 C1 100uF/25V SW2 6VDC R25 1M D1 1N5819 C3 100uF/25V C4 0.1uF L IN R IN VCC C2 0.1uF () X1IA1000 1/2 PCB NO RevisionChanged it X1 Drange NO: IA1000V1.3 LGECR-05008 S-IA1000-00-00

Schematics

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:24-Mar-2005Sheet of File:E:\\IA1000\IA1000\IA1000FM(BH1417).DdbDrawn By: R/in 1 PTC 2 LTC 3 V/2 4 MIXO 5 GND 6 PLL 7 VCC 8 BOSC 9 PVCC 12 XOSC 13 XOSC 14 D0 15 D1 16 D2 17 D3 18 PADJ 19 LTC 20 PTC 21 L/in 22 RFGND 10 RFOUT 11 U3 BH1417F Y1 7.6M C8 27P C9 27P C10 1uF C12 1uF C13 1uF C11 1uF R17 47K R16 47K R2 10K R3 10K C16 2200P C17 2200P C20 150P C19 150P C21 10uF C22 470P R4 1.5K C23 30P L1 3.5T/0.4 C24 47P C25 82P VD1 KV-1471E R7 4.7K Y5 1 Y1 2 Y0 3 Y2 4 Y6 5 Y7 6 Y3 7 Gnd 8 Y8 9 Y4 10 Y9 11 Cout 12 CK INH 13 CLK 14 Rest 15 Vcc 16 U1 CD4017 SW1 LED1 G LED2 G LED3 G LED4 G LED5 G LED6 G R8 1K R1 10K 1 2 3 4 5 6 Q1 8050 Q2 8050 Q3 8050 Q4 8050 Q5 8050 Q6 8050 LED7 G LED8 G Q7 8050 Q8 8050 7 8 C7 0.1uF Vc C26 30P ANT1 Q9 3356 L2 0.5mm/6T R19 33K R18 47K C27 30P Vcc L IN R IN C6 0.1uF C14 1uF C5 1000P R5 10K R6 10K C30 330P C15 1uF R9 1K R10 1K R11 1K R12 470 R13 470 R14 470 R15 470 0 10 1 11 2 12 3 13 4 1 5 2 6 3 7 4 EI 5 EO 15 A0 9 A1 7 A2 6 GS 14 Vcc 16 Gnd 8 U2 74LS148 12345678 hgfedcba a b c d e f g h CH1CH288.1M88.3M88.5M88.7M88.9M PLL Q10 2SD2142K C29 47uF R20 100 C28 0.047uF R21 2.2K C18 2200P R23 3.3K R22 3.3K R24 20K PLL VCC Vcc () X1 IA1000 2/2 PCB NO RevisionChanged it X1 Drange NO: IA1000V1.3 LGECR-05008 S-IA1000-00-00 D21N4148 D31N4148 Q11 AO3401 R26 33 Vcc Vc g h

Test Report

REPORT NO: ER/2005/60001 ID: RJ6IA1000 DATE: Jun. 28, 2005 Page: 1 of 16 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: FM Transmitter Model Name: IA1000 Model Differences: N/A Brand Name: N/A FCC ID: RJ6IA1000 Report No.: ER/2005/60001 Issue Date: Jun. 28 2005 FCC Rule Part: §15.239 Prepared for Tekkeon Inc. 3002 Dow Avenue, Suite 134, Tustin, CA 92780, USA. Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. REPORT NO: ER/2005/60001 ID: RJ6IA1000 DATE: Jun. 28, 2005 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA VERIFICATION OF COMPLIANCE Applicant: Tekkeon Inc.. 3002 Dow Avenue, Suite 134, Tustin, CA 92780, USA Product Description: FM Transmitter FCC ID Number: RJ6IA1000 Model No.: IA1000 Model Difference: N/A File Number: ER/2005/60001 Date of test: Apr. 07, 2005 ~ Jun. 24, 2005 Date of EUT Receive: Apr. 06, 2005 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.239. The test results of this report relate only to the tested sample identified in this report. Test By: Date Jun 28, 2005 Henk Huang Prepared By: Date Jun 28, 2005 Gigi Yeh Approved By Date Jun 28, 2005 Vincent Su REPORT NO: ER/2005/60001 ID: RJ6IA1000 DATE: Jun. 28, 2005 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Version Version No. Date 00 Jun 28, 2005 REPORT NO: ER/2005/60001 ID: RJ6IA1000 DATE: Jun. 28, 2005 Page: 4 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Table of Contents 1. GENERAL INFORMATION ........................................................................................... 5 1.1 PRODUCT DESCRIPTION................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................. 5 1.3 TEST METHODOLOGY....................................................................................................................... 5 1.4 TEST FACILITY................................................................................................................................. 5 2. SYSTEM TEST CONFIGURATION .............................................................................. 6 2.1 EUT CONFIGURATION...................................................................................................................... 6 2.2 EUT EXERCISE................................................................................................................................. 6 2.3 TEST PROCEDURE............................................................................................................................. 6 2.4 LIMITATION...................................................................................................................................... 7 2.5 CONFIGURATION OF TESTED SYSTEM.............................................................................................. 8 3. SUMMARY OF TEST RESULTS ................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................ 9 5. CONDUCTED EMISSIONS TEST (NOT APPLY IN THE REPORT) ................. 10 5.1 MEASUREMENT PROCEDURE: ........................................................................................................ 10 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 10 5.3 MEASUREMENT EQUIPMENT USED: ............................................................................................... 10 5.4 MEASUREMENT RESULT: ............................................................................................................... 10 6. RADIATED EMISSION TEST ...................................................................................... 11 6.1 MEASUREMENT PROCEDURE...........…

Text truncated - open the document above for the full version.

Test Setup Photos
