RJ6MP110050FM Transmitter

Tekkeon, Inc.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Jul 10, 2005
Application Purpose: Original Equipment
Date of Application: Jul 10, 2005
Equipment Note: FM Transmitter
Frequency Range: 88.10000000 - 88.90000000
Company: Tekkeon, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

MP1100-50 User Guide Mobile FM Transmitter for iPod mpFM_UG_rev_FNL 3/15/05 3:17 PM Page 1 mpFM_UG_rev_FNL 3/15/05 3:17 PM Page 2 USER GUIDE Contents Overview ......................................................................................................................................2 Connecting myPower FM........................................................................................................2 Playing iPod Music on an FM Radio/Stereo....................................................................3 Troubleshooting ........................................................................................................................4 Limited Warranty ......................................................................................................................4 Customer Support ....................................................................................................................5 mpFM_UG_rev_FNL 3/15/05 3:17 PM Page 1 2 Overview myPower ™ FM—the FM transmitter designed specifically for use with myPower for iPod—lets you play your iPod music on any FM radio. Designed for life on the go, myPower FM can be used at home, in your office, or in your car. myPower FM simply snaps on to myPower for iPod. Once myPower FM is connected, just tune to any of the seven pre-set channels to listen to music from iPod directly on your FM radio or stereo. myPower FM must be attached to myPower for iPod, which is compatible with all iPods with dock connector (3G and 4G iPods, iPod mini, iPod Photo, and iPod for HP). Connecting myPower FM myPower FM simply snaps on to the bottom of myPower for iPod. As myPower FM draws minimal power from myPower for iPod, there is no need to charge myPower FM. However, the connected myPower for iPod must be charged. To connect myPower FM: 1. Move the myPower for iPod power switch to On. 2. Insert the two plugs on the top of myPower FM into the line out and USB ports on the bottom of myPower for iPod. 3. Press the two units together until they are firmly attached. to USB to Line Out mpFM_UG_rev_FNL 3/15/05 3:17 PM Page 2 4 Troubleshooting Issue The reception is not clear on the channel. Limited Warranty The product enclosed herein is warranted to be free of operational defects for a period of one year from the date of purchase. In the event of a defect in operation during the warranty period Tekkeon, Inc. will replace the defective product when the owner returns all product contents. The limited warranty will be considered void if the unit is tampered with, subject to misuse, negligence or accidental damage, has been improperly serviced, or if the security seal is removed. This warranty is limited to replacement only and shall not cover any other damages. Any product returned to Tekkeon, Inc. with no fault found will be returned to the owner at the owner’s expense. To obtain warranty coverage, please complete and submit the enclosed registration card. Disclaimer of Warranties Any user of this product does so at the user’s own risk. To the maximum extent permitted by applicable law, Tekkeon, Inc. and its suppliers provide the hardware and any support services related thereto “as is” and with all faults; and hereby disclaim all warranties and conditions, whether express, implied or statutory, including, but not limited to implied warranties of merchantability, fitness for a particular purpose, non-infringement, lack of negligence or correspondence to description, except for those warranties specifically and expressly provided in the Limited Warranty. With respect to the use of this product, in no event shall the company be liable for any loss of profit or any other commercial damage, including but not limited to special, incidental, consequential and other damages. Solution 1. Be sure that the FM channel is the same as that selected on myPower FM. 2. Select a different FM channel on your radio and myPower FM. mpFM_UG_rev_FNL 3/15/05 3:17 PM Page 4 5 USER GUIDE Customer Support If you product is in need of repair or replacement, please contact the Tekkeon Customer Support Center at: Tekkeon, Inc. c/o myPower FM 3002 Dow Avenue, #134 Tustin, CA 92780 888-787-5888 / 714-832-1266 www.tekkeon.com Tekkeon, Inc. will issue a Return Merchandise Authorization (RMA) number for all repairs or exchanges. mpFM_UG_rev_FNL 3/15/05 3:17 PM Page 5 www.tekkeon.com © 2005 Tekkeon, Inc. Revision A1 All Rights Reserved myPower™ is a trademark of Tekkeon, Inc. iPod® is a registered trademark of Apple. mpFM_UG_rev_FNL 3/15/05 3:17 PM Page 6 Federal Communications Commission(FCC) Statement This Equipment has been tested and found to comply with the limits for FCC, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and , if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Block Diagram

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:9-Mar-2005 Sheet of File:E:\\IA1000\IA1000\IA1000FM(BH1417).DdbDrawn By: 2510FM 1/1 PCB NO RevisionChanged it Drange NO: 2510FM F M D3 D0 RF OUT L/IN R/IN XOSC INPUT DC5V±0.75V

External Photos

ID Label/Location Info

FCC ID LABEL FORMAT AND LOCATION Applicant: Tekkeon Inc. FCC ID: RJ6MP110050 FCC ID: RJ6MP110050 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

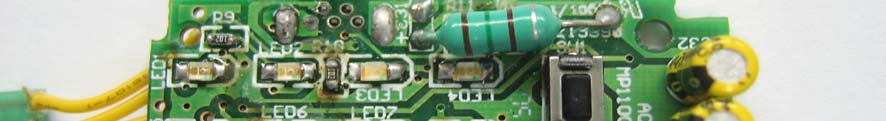

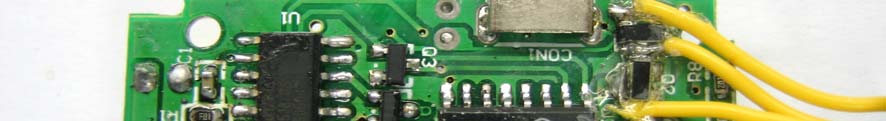

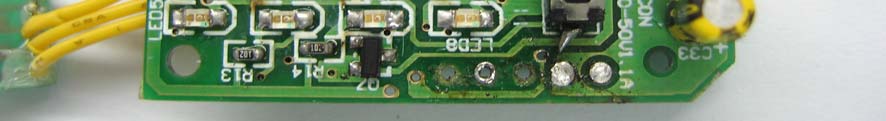

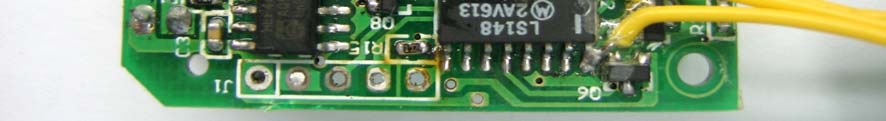

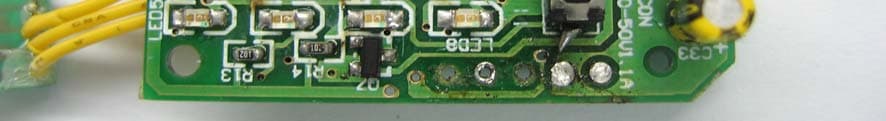

REPORT NO: ER/2005/40001 ID: RJ6MP110050 DATE: Jun. 28, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA APPENDIX 3 PHOTOGRPHS OF EUT REPORT NO: ER/2005/40001 ID: RJ6MP110050 DATE: Jun. 28, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Open View of EUT Internal View of EUT REPORT NO: ER/2005/40001 ID: RJ6MP110050 DATE: Jun. 28, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Internal of EUT – 1 Internal of EUT – 2 REPORT NO: ER/2005/40001 ID: RJ6MP110050 DATE: Jun. 28, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Internal of EUT – 3 Internal of EUT – 4 REPORT NO: ER/2005/40001 ID: RJ6MP110050 DATE: Jun. 28, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Internal of EUT – 5 Internal of EUT – 6

Operational Description

Operational Description for MP1100-50 General Characters: 1. I/P Voltage: + 5 Vdc at Pin 4 of MiniUSB 2. Transmitter frequency: 88.1M 88.3M 88.5M 88.7M 88.9M 3. Current consumption: 60±10mA 4. Frequency response: 50HZ-15KHZ 5. Transmit distance: 2-3 m Operations: Energized i-pod MiniUSB, and push the channel selector to control the pin 15, 15 & 17 of BH1417, then change the transmitter frequency CH1, CH2, 88.1M. 88.3M. 88.5M. 88.7M. 88.9M (CH1 and CH2 are reserved, no any function now), at the meantime, a sound signal input the pin 1 & 22 of BH1417 and to be amplified, then a stereo output from pin 5 to pin 9 of BH1417, finally, a RF signal output to antenna of outside building.

Schematics

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:21-Mar-2005Sheet of File:E:\\IA1000\2510FM\FM(BH1417).DdbDrawn By: R/in 1 PTC 2 LTC 3 V/2 4 MIXO 5 GND 6 PLL 7 VCC 8 BOSC 9 PVCC 12 XOSC 13 XOSC 14 D0 15 D1 16 D2 17 D3 18 PADJ 19 LTC 20 PTC 21 L/in 22 RFGND 10 RFOUT 11 U3 BH1417F Y1 7.6M C8 27P C9 27P C10 1uF C12 1uF C13 1uF C11 1uF R17 100K R16 100K R2 7.5K R3 7.5K C16 2200P C17 2200P C20 150P C19 150P C21 10uF C22 470P R4 2.2K C23 30P L3 3.5T/0.4 C24 47P C25 82P VD1 KV-1471E R7 10K Y5 1 Y1 2 Y0 3 Y2 4 Y6 5 Y7 6 Y3 7 Gnd 8 Y8 9 Y4 10 Y9 11 Cout 12 CK INH 13 CLK 14 Rest 15 Vcc 16 U1 CD4017 SW1 LED1 G LED2 G LED3 G LED4 G LED5 G LED6 G R8 1K R1 10K 1 2 3 4 5 6 Q1 8050 Q2 8050 Q3 8050 Q4 8050 Q5 8050 Q6 8050 LED7 G LED8 G Q7 8050 Q8 8050 7 8 C5 0.1uF Vc C26 30P ANT1 Q9 3356 L2 100uH/0805 R19 33K R18 47K C27 30P Vcc C7 47uF/16V C4 0.1uF L IN R IN 1 2 3 4 5 CON1 MINIUSB Vcc C3 0.1uF C14 1uF C1 1000P R5 10K R6 10K C30 330P C15 1uF R9 1K R10 1K R11 1K R12 1K R13 1K R14 1K R15 1K 0 10 1 11 2 12 3 13 4 1 5 2 6 3 7 4 EI 5 EO 15 A0 9 A1 7 A2 6 GS 14 Vcc 16 Gnd 8 U2 74LS148 12345678 hgfedcba a b c d e f g h CH1CH288.1M88.3M88.5M88.7M88.9M C6 100uF/16V L1 10uH PLL Q10 2SD2142K C29 47uF R20 100 C28 0.047uF R21 2.2K C18 2200P R23 3.3K R22 3.3K R24 20K PLL C2 1000P C33 47uF/16V C31C32 47uF/16V X2 2510FM 1/1 PCB NO RevisionChanged it X1 Drange NO: MP1100-50V1.1 LGECR-04140 S-2510FM-00-00 Error : ACON.bmp file not found. X2LGECR-05009 R25 33 Q11 AO3401 D1 1N4148 D2 1N4148 Vc Vcc g h
