RJAINNO89E-GSM1900 GPRS Terminal Equipment

Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 1 of 1 Colour Mobile Phone Dualband GSM/DCS INNO89 User’s Guide Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 2 of 2 Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 3 of 3 Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 4 of 4 1. Before You Start 1.1 Phone Layout and Icons < Icons in the main display screen > < Icons in the sub display screen > < Network status images in the sub display screen > < Event images in the sub display screen > Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 5 of 5 1.2 Keys Description [VOL-UP] [VOL-DOWN] Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 6 of 6 [NAVI-LEFT] [NAVI-RIGHT] [NAVI-LEFT] and [NAVI-RIGHT] [NAVI-UP] [NAVI-DOWN] [NAVI-UP] and [NAVI-DOWN] [NAVI-CENTRE] 1.3 Silent Mode 1.4 Using the Navigation Keys 1.5 Using the Earphone Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 7 of 7 1.6 Display Screens in the Idle Mode Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 8 of 8 2. Getting Started 2.1 How to attach the battery 2.2 How to remove the battery 2.3 How to charge the battery Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 9 of 9 2.4 How to place the SIM card 2.5 How to remove the SIM card 2.6 How to switch your phone On and Off Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 10 of 10 3. Security Codes 3.1 PIN 3.2 PUK Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 11 of 11 3.3 PIN2 3.4 PUK2 3.5 SIM Lock Code 3.6 Lock Code 3.7 Password 4. Making and Receiving a Call 4.1 Making a call Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 12 of 12 4.2 Answering a call Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 13 of 13 : indicates Group3 (User defined group 3). 4.3 Making the emergency call Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 14 of 14 4.4 Making an international call 4.5 Entering a “Pause” Character in a Dial String 4.6 Notification of Missed Call 5. In-Call Options Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 15 of 15 5.1 Putting a call on hold/unhold 5.2 Making a second call 5.3 Swapping between active calls and held calls 5.4 Answering a second incoming call • • Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 16 of 16 5.5 Adjusting the earpiece volume 5.6 Muting the microphone 5.7 Sending DTMF 5.8 Storing a number on the scratchpad 5.9 Using the SMS function 5.10 Using the loudspeaker 5.11 Making a conference call Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 17 of 17 6. Phonebook Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 18 of 18 6.1 Storing a phone number with a name : Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 19 of 19 6.2 Quick searching for a number in the phonebook 6.3 Storing a number of the recent calls to the phonebook 6.4 Speed List Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 20 of 20 6.5 Using the Phonebook options 7. Text Editing 7.1 Input Mode Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 21 of 21 Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 22 of 22 7.2 T9 English input mode Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 23 of 23 7. 3 Multi-tap input mode 0 SPACE Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 24 of 24 1 . / : ? _ - = # & @ 2 A B C Γ a b c β 3 D E F Φ d e f 4 G H I Θ g h i ì 5 J K L Ξ j k l 6 M N O Ω m n o 7 P Q R S Π Σ p q r s 8 T U V t u v 9 W X Y Z Ψ Ω w x y z * , ! ( ) ; % + * < > 7. 4 Numeric input mode Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 25 of 25 7. 5 Symbols input mode . / : @ , ? ! - _ ( ) ; & % + * # < = > $ € Γ Θ Λ Ξ Π Σ Φ Ψ Ω 8. The Menu Map Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 26 of 26 Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 27 of 27 Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 28 of 28 Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 29 of 29 Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 30 of 30 9. The Menu Functions Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 31 of 31 9.1 Messages 9.1.1 SMS 9.1.1.1 Inbox Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 32 of 32 9.1.1.2 Outbox 9.1.1.3Create Message 9.1.1.4 Template Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 33 of 33 9.1.1.5 SMS settings Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 34 of 34 9.1.1.6 Chat 9.1.2 MMS 9.1.2.1 Inbox Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 35 of 35 9.1.2.2 Outbox 9.1.2.3 Create Message The user is presented with a screen showing the first page in a blank MMS message. The screen displays the page with an informational/status bar above the message showing: . The presence of any sounds or attachments on the current page. . The size of the whole MMS in bytes or kilobytes. . The current page number/total number of pages. . . 9.1.2.4 Drafts Colour Mobile Phone Dualband INNO89 User’s Guide INNOSTREAM Confidential PAGE : 36 of 36 With this menu, you can view a list of any draft messages which have been created, but are not ready to be sent 9.1.2.5 Sent With this menu, you can view a list of sent …

Text truncated - open the document above for the full version.

Description: E-GSM900 Band GPRS Terminal Equipment / FCC ID: RJAINNO89 Description: E-GSM1900 Band GPRS Terminal Equipment / FCC ID: RJAINNO89

___________________________________________________________________________________ ETSHandelsregister:Bankverbindung: Electronic Technology Systems Dr. Genz GmbHAmtsgericht Frankfurt/Oder HRB 5151Sparkasse Oder-Spree Storkower Strasse 38cGeschäftsführung: Dr. Dietmar GenzBLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert KasparKto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH - ETS - STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Tel: 033631 888 000 FAX: 033631 888660 BZT ETS CERTIFICATION GMBH MR. DIETER GRIEP; Mr. ANDREAS HERRMANN Storkower Str. 38c 15526 Reichenwalde b. Berlin GERMANY IHR ZEICHEN / YOUR REF.IHR SCHREIBEN / YOUR INFORM.UNSER ZEICHEN / OUR REF. DATUM / DATE 2003-12-09 Subject:Application for TCB Certification Applicant: Innostream Inc. Equipment: E-GSM 1900 GPRS Terminal Equipment FCC ID: RJAINNO89 Dear Sirs, Submitted herewith, on behalf of Innostream Inc., is an application for certification under FCC Rule 2 and 24 of the following equipment: E-GSM 1900 GPRS Terminal Equipment / FCC ID: RJAINNO89 Attached are the 731Form, Confidentiality request letter, test report (TestRpt1=test data, TestRpt2=test plots), SAR1-5, FCC ID label and label location information, test setup photographs, internal and external photographs, operational description, part’s list, block diagrams, schematics, tune procedure information and user manual. In accordance with 0.459 of CFR 47 Innostream Inc. hereby requests confidentiality of all Circuit Diagrams (Schematics) and Parts List (see attached Confidentiality Request Letter) for the subject application. Should you have any questions or comments concerning the above, please contact the following e-mail addresses: [email protected] Best Regards Axel Müller Electronic Technology Systems Dr. Genz GmbH Storkower Strasse 38c 15526 Reichenwalde bei Berlin Germany e-mail: [email protected]

6F, Daewoo Telecom. Bldg. 265-3, Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyunggi-do, Korea Tel : +82-31-707-3860 / Fax :+82-31-703-7352 Home : www. Innostream.com /e-mail : [email protected] Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality RJAINNO89

6F, Daewoo Telecom. Bldg. 265-3, Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyunggi-do, Korea Tel : +82-31-707-3860 / Fax :+82-31-703-7352 Home : www. Innostream.com /e-mail : [email protected] Date: 2003. 11. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Cover Letter _ Request for the FCC Certification Innostream Inc. FCC ID: RJAINNO89 FCC Certification Gentlemen, In accordance with FCC rule, Innostream Inc. hereby requests certification. Model Name: E-GSM 1900 Band GPRS Terminal Equipment. Model No.: INNO89 Sincerely, Erin Cha Innostream Inc.

6F, Daewoo Telecom. Bldg. 265-3, Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyunggi-do, Korea Tel : +82-31-707-3860 / Fax :+82-31-703-7352 Home : www. Innostream.com /e-mail : [email protected] Date: 2003. 11. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Declaration – Tuning Procedure Innostream Inc. FCC ID: RJAINNO89 FCC Part 2 , Part 24Certification Gentlemen, There are no user accessible adjustments or tuning for this E-GSM 1900 Band GPRS Terminal Equipment. All necessary adjustments and tuning are performed during manufacture of the product. Sincerely, Erin Cha Innostream Inc.

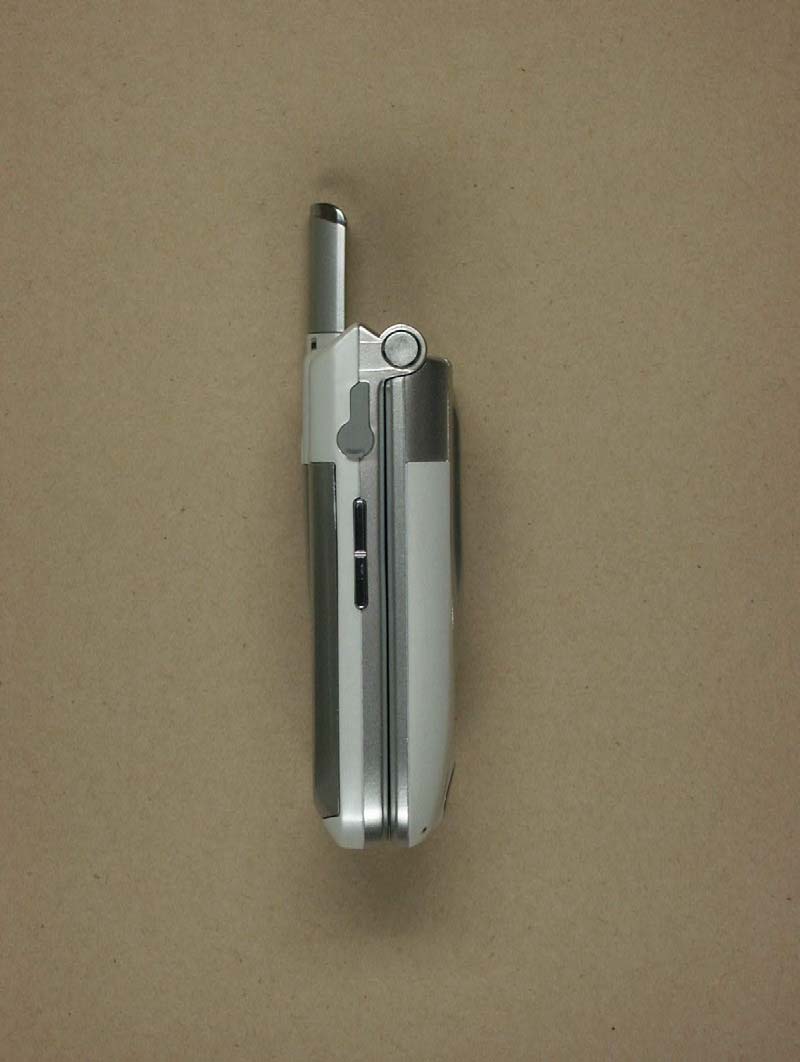

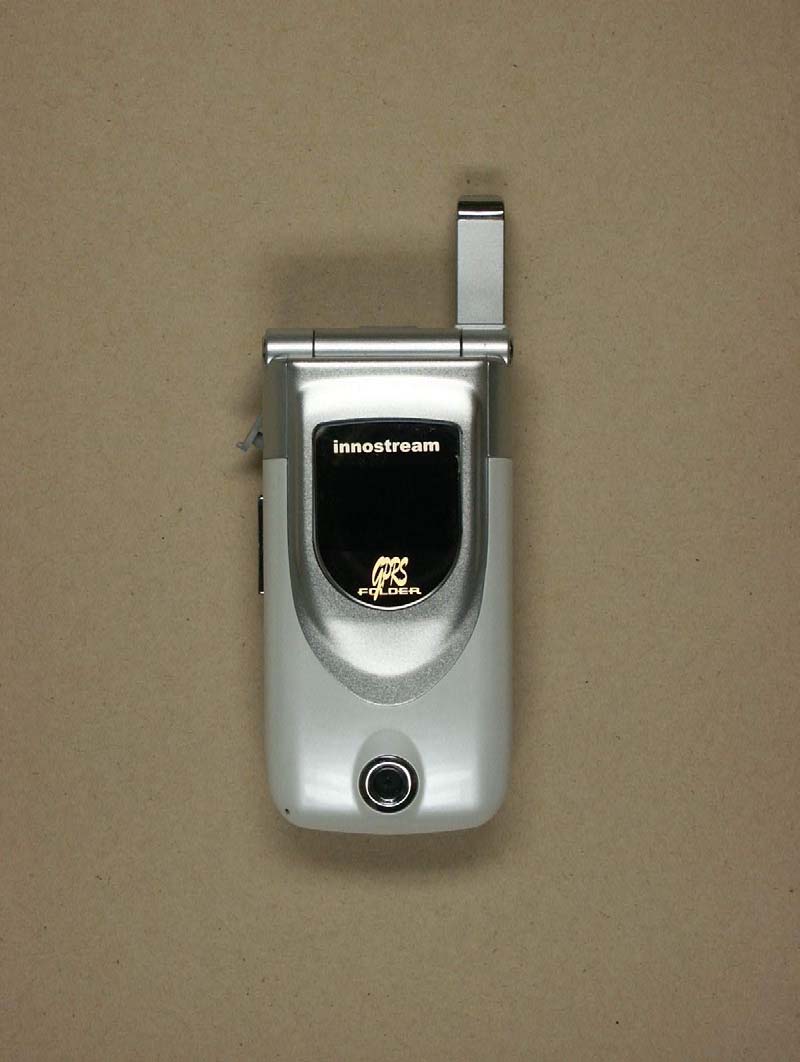

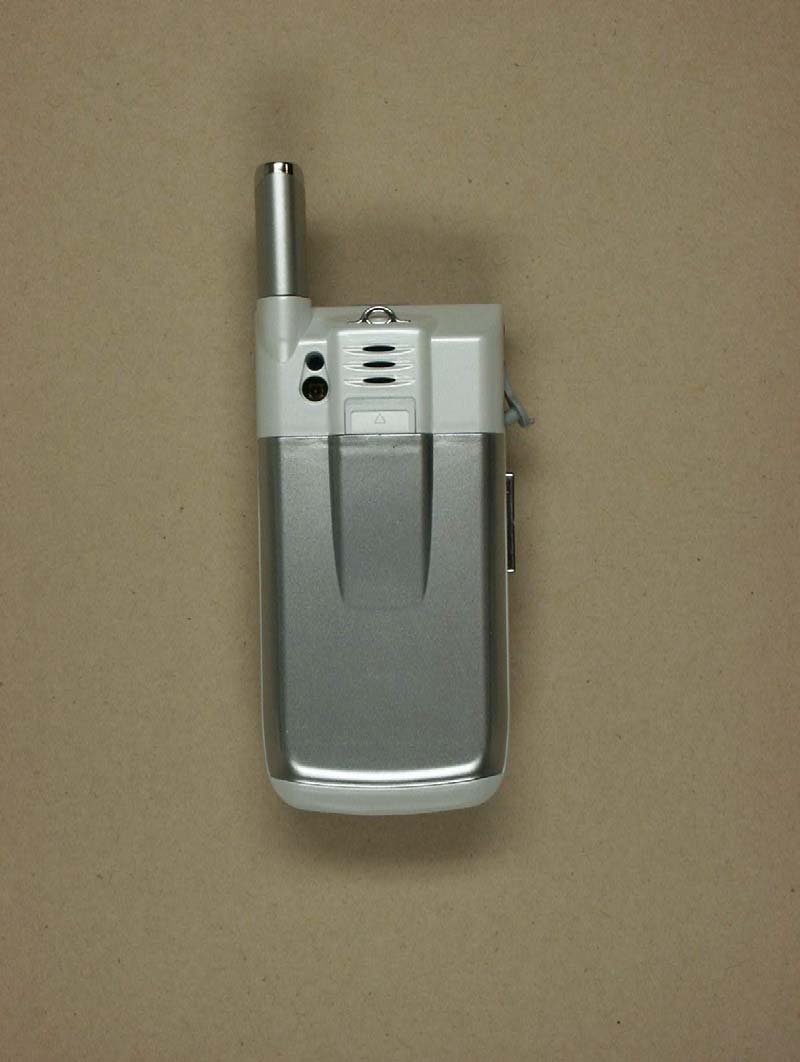

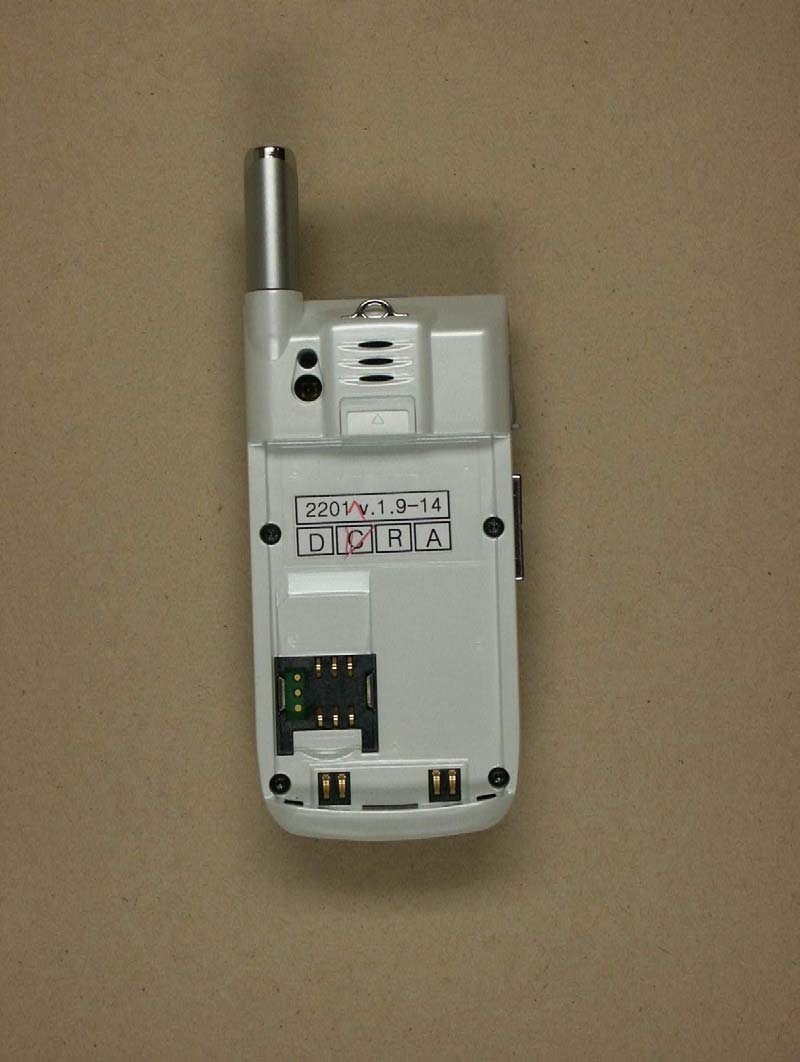

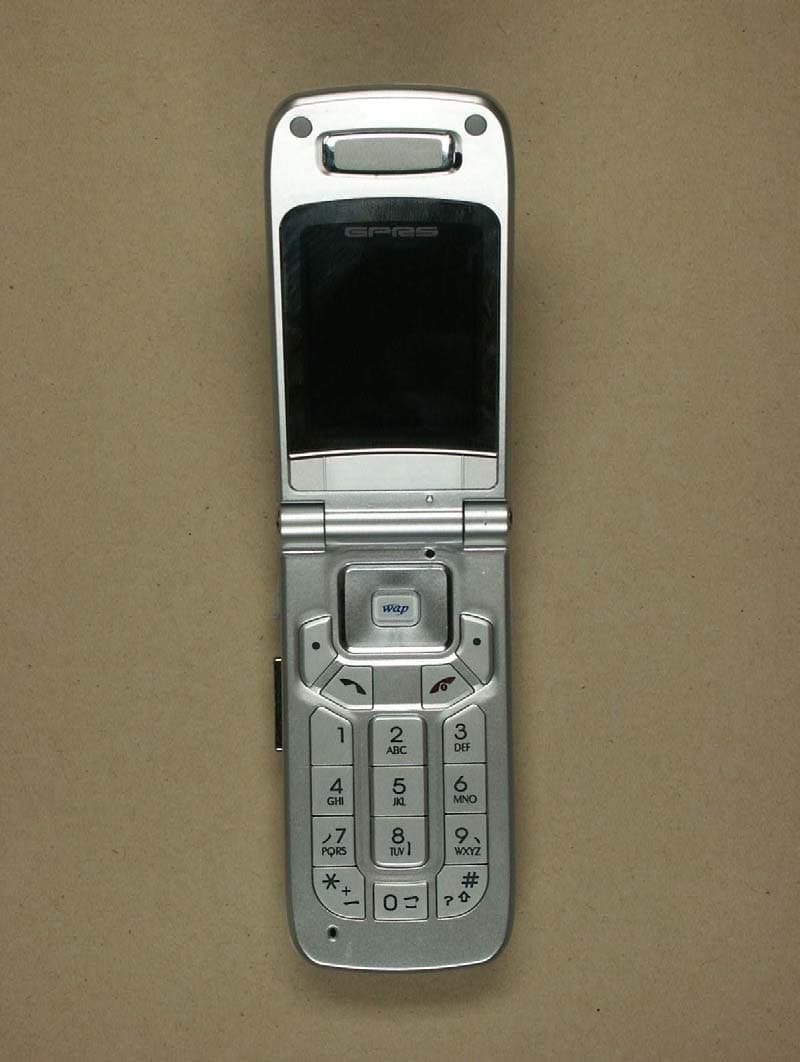

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D203100213-P-24Page 1 of 11 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D203100213-P-24Page 2 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D203100213-P-24Page 3 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D203100213-P-24Page 4 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D203100213-P-24Page 5 of 11

6F, Daewoo Telecom. Bldg. 265-3, Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyunggi-do, Korea Tel : +82-31-707-3860 / Fax :+82-31-703-7352 Home : www. Innostream.com /e-mail : [email protected] E-GSM1900 Band GPRS Terminal Equipment RJAINNO89

6F, Daewoo Telecom. Bldg. 265-3, Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyunggi-do, Korea Tel : +82-31-707-3860 / Fax :+82-31-703-7352 Home : www. Innostream.com /e-mail : [email protected] [FCC ID Label sample] FCC ID: RJAINNO89

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D203100213-P-24Page 6 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D203100213-P-24Page 7 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D203100213-P-24Page 8 of 11

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G5D203100213-S-8 SAR ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, GermanyRegistration number: G5D203100213-S-8Page 1 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4 Manufacturer 1.5Application details 1.6Test item 1.7Test results 1.8Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Definitions 2.5Measurement system description 2.6Test system specification 2.7Measurement procedure 2.8Reference points 2.9Test positions 2.10Measurement uncertainty 3Tissue and system verification 3.1Tissue verification 3.2System verification 4Test Results 5References 6Appendix ETS Dr. Genz GmbH, GermanyRegistration number: G5D203100213-S-8Page 2 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 27.11.2003N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 27.11.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G5D203100213-S-8Page 3 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax: +49 33631 888 660 1.2.2Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3Details of approval holder Name: Innostream Inc. Street: 6F, Daewoo Telecom, Bldg. 265-3, Seohyeon-dong, Bundang-gu Town: Sungnam-shi, Kyunggi-do Country: Korea Telephone: +82-31-707-3860 Fax: +82-31-703-7352 Contact: Ms. Na-jin Jeong E-Mail: [email protected] 1.4Manufacturer: (if applicable) Name: Street: Town: Country: ETS Dr. Genz GmbH, GermanyRegistration number: G5D203100213-S-8Page 4 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5Application details Date of receipt of application: 10.11.2003 Date of receipt of test item: 10.11.2003 Date of test: 14. - 24.11.2003 1.6Test item FCC ID: RJAINNO89 Description of test item: E-GSM900/GSM1800/GSM1900 Triple Band GPRS Terminal Equipment Type identification: INNO89 Serial number: without;Identical prototype Device category: PCE ( Licensed Portable Transmitter held to ear) Technical data GSM900 DCS1800 1900PCS TX Frequency range: 880,2 - 914,8 MHz 1710,2 - 1784,8 MHz 1850,2 - 1909,9 MHz RX Frequency range: 925,2 - 959,8 MHz 1805,2 - 1879,8 MHz 1930,2 - 1989,8 MHz Max. Conducted RF output power : 29,8 dBm(0,954 W) 29,2 dBm (0,831 W) 28,69 dBm (0,739 W) Power supply : 3,7 V DC rechargeable battery Antenna Tx: integral Antenna RX: integral Additional information: Tx and Rx. antenna are the same. This test sample was tested according FCC OET Bulletin 65, Supplement C, Edition 01-01 on the used (European) Frequency band. This Procedure is requested by customer. This device contains 900/1800 GSM functions that are not operational in U.S. Territories. This filing is only applicable for 1900 MHz PCS operations. 1.7Test ResultsGSM900 DCS1800 1900PCS Max. SAR Measurement Head1,580 W/kg 1,580 W/kg1,040 W/kg Max. SAR Measurement Body0,577 W/kg 0,181 W/kg0,273 W/kg This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 2002). ETS Dr. Genz GmbH, GermanyRegistration number: G5D203100213-S-8Page 5 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8Test standards Standards: - IEEE Std. 1528-200X (Draft 6.5, January 2002) FCC Rule Part(s): - FCC OET Bulletin 65, Supplement C, Edition 01-01 2Technical test 2.1Summary of test results Applicable Configuration Handset (Head)X Handset (Body)X Headset (Head) Body Worn Equipment EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(…

Text truncated - open the document above for the full version.

ETS Dr. Genz GmbH, GermanyRegistration number: G5D203100213-S-8Appendix B ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix B Measurement Plots Date/Time: 11/18/03 08:19:06 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: Dipol Valid.1900 h_250mW_18.11.2003.da4 Dipol Valid.1900 h_250mW_18.11.2003 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Program: Dipol Valid 1900 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Head 1900 MHz (σ = 1.41529 mho/m, ε r = 39.8679, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Dipol 1900 (250mW)/Area Scan (81x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 96.4 V/m Power Drift = -0.03 dB Maximum value of SAR = 11.9 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 19.1 W/kg SAR(1 g) = 10.6 mW/g; SAR(10 g) = 5.4 mW/g Reference Value = 96.4 V/m Power Drift = -0.03 dB Maximum value of SAR = 11.9 mW/g 0 dB = 11.9mW/g Date/Time: 11/19/03 09:51:34 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: Dipol Valid.1900 h_250mW_19.11.2003.da4 Dipol Valid.1900 h_250mW_19.11.2003 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Program: Dipol Valid 1900 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Head 1900 MHz (σ = 1.41529 mho/m, ε r = 39.8679, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Dipol 1900 (250mW)/Area Scan (81x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 96.5 V/m Power Drift = -0.09 dB Maximum value of SAR = 11.6 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 17.9 W/kg SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.25 mW/g Reference Value = 96.5 V/m Power Drift = -0.09 dB Maximum value of SAR = 11.3 mW/g 0 dB = 11.3mW/g Date/Time: 11/25/03 07:06:31 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: Dipol Valid. 900 (m) 250mW_25.11.2003.da4 Dipol Valid. 900 (m) 250mW_25.11.2003 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Program: Dipol Valid. 900 Muscle Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz (σ = 1.03749 mho/m, ε r = 54.4094, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.2, 6.2, 6.2); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 _ (250 mW)/Area Scan (101x161x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 55.1 V/m Power Drift = -0.02 dB Maximum value of SAR = 2.84 mW/g _ (250 mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 3.68 W/kg SAR(1 g) = 2.57 mW/g; SAR(10 g) = 1.66 mW/g Reference Value = 55.1 V/m Power Drift = -0.02 dB Maximum value of SAR = 2.77 mW/g 0 dB = 2.77mW/g Date/Time: 11/22/03 08:16:31 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: Dipol Valid.900(h)_250mW_22.11.2003.da4 Dipol Valid.900(h)_250mW_22.11.2003 DUT: Dipole 900 MHz; Type: SA AAD 090 BA; Serial: 164 Program: Dipol Valid 900 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 900 MHz (σ = 0.936426 mho/m, ε r = 41.4512, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.4, 6.4, 6.4); Calibrated: Probe not calibrated z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Dipol 900 (250mW)/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 58.5 V/m Power Drift = -0.01 dB Maximum value of SAR = 2.99 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 4.02 W/kg SAR(1 g) = 2.7 mW/g; SAR(10 g) = 1.72 mW/g Reference Value = 58.5 V/m Power Drift = -0.01 dB Maximum value of SAR = 2.89 mW/g 0 dB = 2.89mW/g Date/Time: 11/24/03 06:47:34 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: Dipol Valid.900(h)_250mW_24.11.2003.da4 Dipol Valid.900(h)_250mW_24.11.2003 DUT: Dipole 900 MHz; Type: SA AAD 090 BA; Serial: 164 Program: Dipol Valid 900 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 900 MHz (σ = 0.936426 mho/m, ε r = 41.4512, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.4, 6.4, 6.4); Calibrated: Probe not calibrated z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Dipol 900 (250mW)/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 57.2 V/m Power Drift = -0.02 dB Maximum value of SAR = 2.83 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 3.74 W/kg SAR(1 g) = 2.56 mW/g; SAR(10 g) = 1.64 mW/g Reference Value = 5…

Text truncated - open the document above for the full version.

Date/Time: 11/21/03 20:05:44 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: 1800_left_ch698_cheek.da4 1800_left_ch698_cheek DUT: E-GSM900/GSM1800/GSM1900 Triple Band GPRS Terminal Equipment; Type: -; Serial: INNO 89 Program: DCS 1800 Communication System: GSM 1800; Frequency: 1747.4 MHz;Duty Cycle: 1:8 Medium: Head 1800 MHz (σ = 1.4017 mho/m, ε r = 40.7296, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 INNO89/Area Scan (91x151x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 6.06 V/m Power Drift = -0.05 dB Maximum value of SAR = 1.35 mW/g INNO89/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.99 W/kg SAR(1 g) = 1.21 mW/g; SAR(10 g) = 0.727 mW/g Reference Value = 6.06 V/m Power Drift = -0.05 dB Maximum value of SAR = 1.34 mW/g 0 dB = 1.35mW/g Date/Time: 11/21/03 21:45:34 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: 1800_left_ch698_tilted.da4 1800_left_ch698_tilted DUT: E-GSM900/GSM1800/GSM1900 Triple Band GPRS Terminal Equipment; Type: -; Serial: INNO 89 Program: DCS 1800 Communication System: GSM 1800; Frequency: 1747.4 MHz;Duty Cycle: 1:8 Medium: Head 1800 MHz (σ = 1.4017 mho/m, ε r = 40.7296, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 INNO89/Area Scan (91x151x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 7.82 V/m Power Drift = 0.03 dB Maximum value of SAR = 0.0914 mW/g INNO89/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.122 W/kg SAR(1 g) = 0.0838 mW/g; SAR(10 g) = 0.0564 mW/g Reference Value = 7.82 V/m Power Drift = 0.03 dB Maximum value of SAR = 0.089 mW/g 0 dB = 0.0852mW/g Date/Time: 11/21/03 16:37:48 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: 1800_right_ch698_cheek.da4 1800_right_ch698_cheek DUT: E-GSM900/GSM1800/GSM1900 Triple Band GPRS Terminal Equipment; Type: -; Serial: INNO 89 Program: DCS 1800 Communication System: GSM 1800; Frequency: 1747.4 MHz;Duty Cycle: 1:8 Medium: Head 1800 MHz (σ = 1.4017 mho/m, ε r = 40.7296, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 INNO89/Area Scan (91x151x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 5.11 V/m Power Drift = 0.06 dB Maximum value of SAR = 1.59 mW/g INNO89/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 2.21 W/kg SAR(1 g) = 1.4 mW/g; SAR(10 g) = 0.771 mW/g Reference Value = 5.11 V/m Power Drift = 0.06 dB Maximum value of SAR = 1.58 mW/g 0 dB = 1.58mW/g Date/Time: 11/21/03 15:56:03 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: 1800_right_ch698_tilted.da4 1800_right_ch698_tilted DUT: E-GSM900/GSM1800/GSM1900 Triple Band GPRS Terminal Equipment; Type: -; Serial: INNO 89 Program: DCS 1800 Communication System: GSM 1800; Frequency: 1747.4 MHz;Duty Cycle: 1:8 Medium: Head 1800 MHz (σ = 1.4017 mho/m, ε r = 40.7296, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 INNO89/Area Scan (91x151x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 7.24 V/m Power Drift = -0.02 dB Maximum value of SAR = 0.0902 mW/g INNO89/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.117 W/kg SAR(1 g) = 0.0825 mW/g; SAR(10 g) = 0.0506 mW/g Reference Value = 7.24 V/m Power Drift = -0.02 dB Maximum value of SAR = 0.0888 mW/g 0 dB = 0.0879mW/g Date/Time: 11/21/03 20:54:46 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: 1800_left_ch512_cheek.da4 1800_left_ch512_cheek DUT: E-GSM900/GSM1800/GSM1900 Triple Band GPRS Terminal Equipment; Type: -; Serial: INNO 89 Program: DCS 1800 Communication System: GSM 1800; Frequency: 1710.2 MHz;Duty Cycle: 1:8 Medium: Head 1800 MHz (σ = 1.36179 mho/m, ε r = 40.8688, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 INNO89/Area Scan (91x151x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 6.2 V/m Power Drift = 0.01 dB Maximum value of SAR = 1.55 mW/g INNO89/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 2.18 W/kg SAR(1 g) = 1.38 mW/g; SAR(10 g) = 0.836 mW/g Reference Value = 6.2 V/m Power Drift = 0.01 dB Maximum value of SAR = 1.51 mW/g 0 dB = 1.45mW/g Date/Time: 11/21/03 17:14:04 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: 180…

Text truncated - open the document above for the full version.

Date/Time: 11/18/03 10:00:44 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: 1900_left_ch512_cheek.da4 1900_left_ch512_cheek DUT: E-GSM900/GSM1800/GSM1900 Triple Band GPRS Terminal Equipment; Type: -; Serial: INNO 89 Program: PCS 1900 Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8 Medium: Head 1900 MHz (σ = 1.3685 mho/m, ε r = 39.9283, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 INNO 89/Area Scan (101x161x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 8.33 V/m Power…

Text truncated - open the document above for the full version.
