RJAINNO98E-GSM850/GSM1900 Dual Band GPRS Terminal Equipment

Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential Colour Mobile Phone GSM 850/PCS 1900 Dual Band INNO 98 User’s Guide PAGE : 1 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential PAGE : 2 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential PAGE : 3 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 1. Before You Start 1.1 Phone Layout and Icons < Icons in the main display screen > < Icons in the sub display screen > < Network status images in the sub display screen > < Event images in the sub display screen > PAGE : 4 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 1.2 Keys Description [VOL-UP] [VOL-DOWN] PAGE : 5 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential [NAVI-LEFT] [NAVI-RIGHT] [NAVI-LEFT] and [NAVI-RIGHT] [NAVI-UP] [NAVI-DOWN] [NAVI-UP] and [NAVI-DOWN] [NAVI-CENTRE] 1.3 Silent Mode 1.4 Using the Navigation Keys 1.5 Using the Earphone PAGE : 6 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 1.6 Display Screens in the Idle Mode PAGE : 7 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 2. Getting Started 2.1 How to attach the battery 2.2 How to remove the battery 2.3 How to charge the battery PAGE : 8 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 2.4 How to place the SIM card 2.5 How to remove the SIM card 2.6 How to switch your phone On and Off PAGE : 9 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 3. Security Codes 3.1 PIN 3.2 PUK PAGE : 10 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 3.3 PIN2 3.4 PUK2 3.5 SIM Lock Code 3.6 Lock Code 3.7 Password 4. Making and Receiving a Call 4.1 Making a call PAGE : 11 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 4.2 Answering a call PAGE : 12 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential : indicates Group3 (User defined group 3). 4.3 Making the emergency call PAGE : 13 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 4.4 Making an international call 4.5 Entering a “Pause” Character in a Dial String 4.6 Notification of Missed Call 5. In-Call Options PAGE : 14 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 5.1 Putting a call on hold/unhold 5.2 Making a second call 5.3 Swapping between active calls and held calls 5.4 Answering a second incoming call • • PAGE : 15 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 5.5 Adjusting the earpiece volume 5.6 Muting the microphone 5.7 Sending DTMF 5.8 Storing a number on the scratchpad 5.9 Using the SMS function 5.10 Using the loudspeaker 5.11 Making a conference call PAGE : 16 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 6. Phonebook PAGE : 17 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 6.1 Storing a phone number with a name : PAGE : 18 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 6.2 Quick searching for a number in the phonebook 6.3 Storing a number of the recent calls to the phonebook 6.4 Speed List PAGE : 19 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 6.5 Using the Phonebook options 7. Text Editing 7.1 Input Mode PAGE : 20 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential PAGE : 21 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 7.2 T9 English input mode PAGE : 22 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 7. 3 Multi-tap input mode 0 SPACE PAGE : 23 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 1 . / : ? _ - = # & @ 2 A B C Γ a b c β 3 D E F Φ d e f 4 G H I Θ g h i ì 5 J K L Ξ j k l 6 M N O Ω m n o 7 P Q R S Π Σ p q r s 8 T U V t u v 9 W X Y Z Ψ Ω w x y z * , ! ( ) ; % + * < > 7. 4 Numeric input mode PAGE : 24 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 7. 5 Symbols input mode . / : @ , ? ! - _ ( ) ; & % + * # < = > $ € Γ Θ Λ Ξ Π Σ Φ Ψ Ω 8. The Menu Map PAGE : 25 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential PAGE : 26 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential PAGE : 27 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential PAGE : 28 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential PAGE : 29 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 9. The Menu Functions PAGE : 30 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 9.1 Messages 9.1.1 SMS 9.1.1.1 Inbox PAGE : 31 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 9.1.1.2 Outbox 9.1.1.3Create Message 9.1.1.4 Template PAGE : 32 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 9.1.1.5 SMS settings PAGE : 33 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 9.1.1.6 Chat 9.1.2 MMS 9.1.2.1 Inbox PAGE : 34 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 9.1.2.2 Outbox 9.1.2.3 Create Message The user is presented with a screen showing the first page in a blank MMS message. The screen displays the page with an informational/status bar above the message showing: . The presence of any sounds or attachments on the current page. . The size of the whole MMS in bytes or kilobytes. . The current page number/total number of pages. . . PAGE : 35 of 70 Colour Mobile Phone INNO 98 User’s Guide INNOSTREAM Confidential 9.1.2.4 Drafts With this menu, you can view a list of any draft messages which have been created, but are not ready to be sent 9.1.2.5 Sent With this menu, you can view a list of sent messages 9.1.2.6 Archive With this menu, you can view a list of saved/archived messages 9.1.2.7 Templates With this menu, you can view a list of messages which can be used as a starting point when creating new messages 9.1.2.8 MMS Settings PAGE : 36 of 70 Colour Mobile Phone INNO 98 …

Text truncated - open the document above for the full version.

6F, Daewoo Telecom. Bldg. 265-3, Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyunggi-do, Korea Tel : +82-31-707-3860 / Fax :+82-31-703-7352 Home : www. Innostream.com /e-mail : [email protected] Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality RJAINNO98

6F, Daewoo Telecom. Bldg. 265-3, Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyunggi-do, Korea Tel : +82-31-707-3860 / Fax :+82-31-703-7352 Home : www. Innostream.com /e-mail : [email protected] Date: 2004. 04. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Cover Letter _ Request for the FCC Certification Innostream Inc. FCC ID: RJAINNO98 FCC Certification Gentlemen, In accordance with FCC rule, Innostream Inc. hereby requests certification. Model Name: E-GSM850/GSM1900 Dual Band GPRS Terminal Equipment. Model No.: INNO98 Sincerely, Erin Cha Innostream Inc.

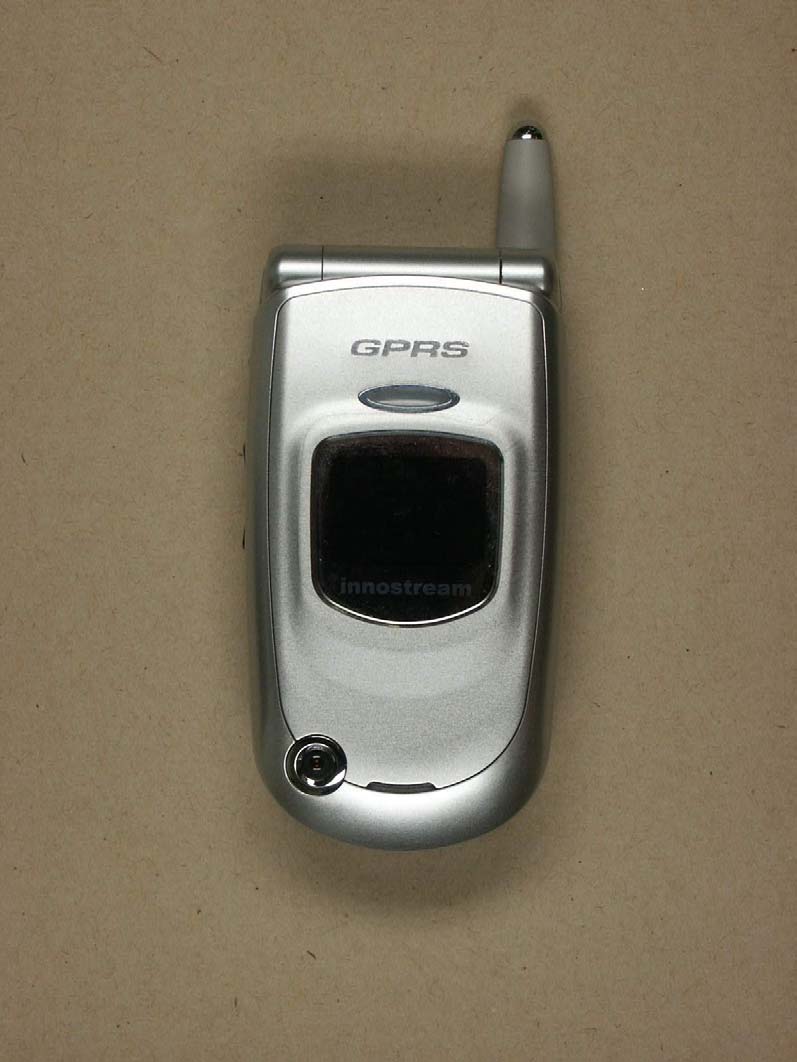

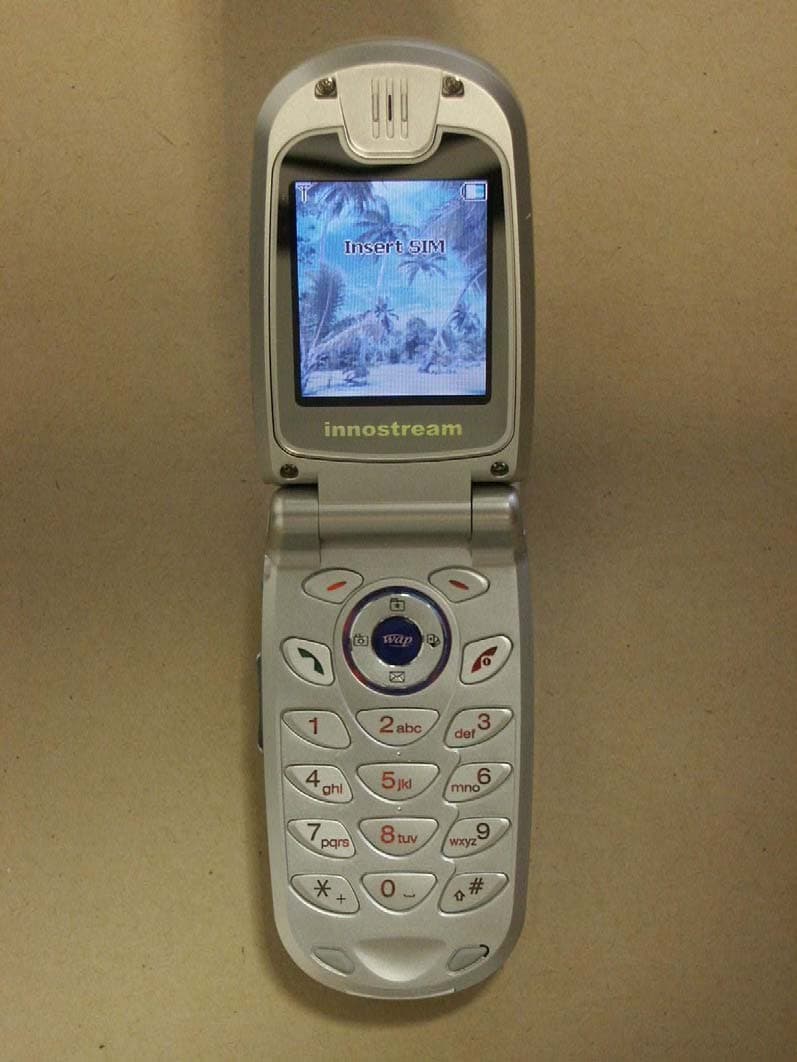

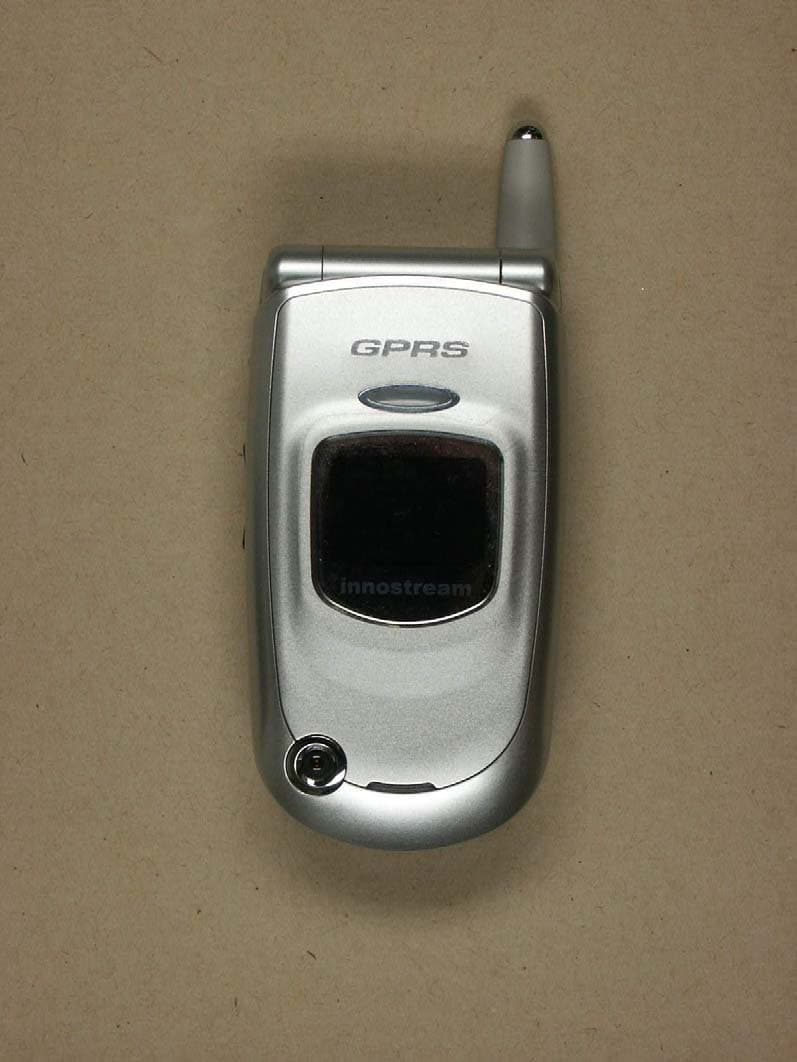

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-C-1Page 1 of 11 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-C-1Page 2 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-C-1Page 3 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-C-1Page 4 of 11

6F, Daewoo Telecom. Bldg. 265-3, Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyunggi-do, Korea Tel : +82-31-707-3860 / Fax :+82-31-703-7352 Home : www. Innostream.com /e-mail : [email protected] [FCC ID Label sample] FCC ID: RJAINNO98

6F, Daewoo Telecom. Bldg. 265-3, Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyunggi-do, Korea Tel : +82-31-707-3860 / Fax :+82-31-703-7352 Home : www. Innostream.com /e-mail : [email protected] E-GSM1900 Band GPRS Terminal Equipment RJAINNO98

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-C-1Page 5 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-C-1Page 6 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-C-1Page 7 of 11

6F, Daewoo Telecom. Bldg. 265-3, Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyunggi-do, Korea Tel : +82-31-707-3860 / Fax :+82-31-703-7352 Home : www. Innostream.com /e-mail : [email protected] Declaration concerning Antenna Specification It’s hereby declared that the product: ............ INNO 98.................... fulfills the requirement in FCC test relating to the antenna type. The ............INNO 98.............confirm to FCC recommendation with fixed helical antenna type: INNO 98 Simple wire antenna (1/4 wave antenna) Permanently attached (built into the housing) Gain of the antenna ..... dBi Frequency range ... .......MHz. : please refer to the below GSM 850 PCS 1900 TX RX TX RX 0 0 0 0 824~894 1850~1990 The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company: Innostream Inc. Address: 6F, Daewoo Telecom. Bldg. 265-3, Seohyeon-dong, Bundang-gu, Sungnam-shi, Kyunggi-do, Korea City: Sungnam-shi, Kyunggi-do ZIP / Postal code: 463-050 Country: Korea Place: KOREA Date: Feb 27, 2004 Signature:

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G5D204020024-S-8 SAR ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 1 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4 Manufacturer 1.5Application details 1.6Test item 1.7Test results 1.8Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Definitions 2.5Measurement system description 2.6Test system specification 2.7Measurement procedure 2.8Reference points 2.9Test positions 2.10Measurement uncertainty 3Tissue and system verification 3.1Tissue verification 3.2System verification 4Test Results 5References 6Appendix ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 2 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 18.03.2004N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 18.03.2004Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 3 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax: +49 33631 888 660 1.2.2Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3Details of approval holder Name: Innostream Inc. Street: 6F, Daewoo Telecom, Bldg. 265-3, Seohyeon-dong, Bundang-gu Town: Sungnam-shi, Kyunggi-do Country: Korea Telephone: +82-31-707-3860 Fax: +82-31-703-7352 Contact: Ms. Na-jin Jeong E-Mail: [email protected] 1.4Manufacturer: (if applicable) Name: Street: Town: Country: ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 4 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5Application details Date of receipt of application: 17.02.2004 Date of receipt of test item: 17.02.2004 Date of test: 18.02.-20.02.2004 1.6Test item FCC ID: RJAINNO89 Description of test item:E-GSM 850/GSM 1900 Dual Band GPRS Terminal Equipment Type identification: INNO 98 Serial number: without;Identical prototype Device category: PCB (Licensed Base Station) Technical data GSM850PCS TX Frequency range: 824,2 - 848,8 MHz1850,2 - 1909,8 MHz RX Frequency range: 869,2 - 893,8 MHz1930,2 - 1989,8 MHz Max. Conducted RF output power : 32,2 dBm (1659,59mW)28,9 dBm (776,25mW) Power supply : 3,7 V DC rechargeable battery Antenna Tx: integral Antenna RX: integral Additional information: Tx and Rx. antenna are the same. 1.7Test Results Max. SAR Measurement: 0.525 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 2002). ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 5 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8Test standards Standards: - IEEE Std. 1528-200X (Draft 6.5, January 2002) FCC Rule Part(s): - FCC OET Bulletin 65, Supplement C, Edition 01-01 2Technical test 2.1Summary of test results Applicable Configuration Handset (Head)X Handset (Body)X Headset (Head) Body Worn Equipment EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body and the environment. Other variables that may play a substantial role in possible biological effects are those that characterize the environment (e.g. ambient temperature, air velocity, relative humidity, and…

Text truncated - open the document above for the full version.

ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Appendix B ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix B Measurement Plots Date/Time: 02/18/04 06:08:44 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.900(h)_250mW_18.02.2004 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 900 MHz Medium parameters used (interpolated): f = 900 MHz; σ = 0.958 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.2, 6.2, 6.2); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 Dipol 900 (250mW)/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 60.7 V/m Power Drift = -0.01 dB Maximum value of SAR = 2.92 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 4.2 W/kg SAR(1 g) = 2.61 mW/g; SAR(10 g) = 1.71 mW/g Reference Value = 60.7 V/m Power Drift = -0.01 dB Maximum value of SAR = 2.81 mW/g 0 dB = 2.81mW/g Date/Time: 02/19/04 06:15:29 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid. 900 (m)_19.02.2004 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz Medium parameters used: f = 900 MHz; σ = 1.04 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6, 6, 6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 Dipol 900 (250mW)/Area Scan (101x161x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 56.3 V/m Power Drift = -0.001 dB Maximum value of SAR = 3.08 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 4.03 W/kg SAR(1 g) = 2.79 mW/g; SAR(10 g) = 1.83 mW/g Reference Value = 56.3 V/m Power Drift = -0.001 dB Maximum value of SAR = 3.05 mW/g 0 dB = 3.05mW/g Date/Time: 02/19/04 13:40:07 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1900 (h)_19.02.2004 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1900 MHz; σ = 1.42 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.2, 5.2, 5.2); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 Dipol 1900 (250mW)/Area Scan (81x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 91.1 V/m Power Drift = -0.001 dB Maximum value of SAR = 11.5 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 17.9 W/kg SAR(1 g) = 10.1 mW/g; SAR(10 g) = 5.24 mW/g Reference Value = 91.1 V/m Power Drift = -0.001 dB Maximum value of SAR = 11.6 mW/g 0 dB = 11.6mW/g Date/Time: 02/20/04 06:02:35 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1900 (m)_20.02.2004 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Muscle 1900 MHz Medium parameters used (interpolated): f = 1900 MHz; σ = 1.57 mho/m; ε r = 51.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5, 5, 5); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 Dipol 1900 (250mW)/Area Scan (81x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 89.8 V/m Power Drift = -0.01 dB Maximum value of SAR = 13 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 18.1 W/kg SAR(1 g) = 11.3 mW/g; SAR(10 g) = 5.92 mW/g Reference Value = 89.8 V/m Power Drift = -0.01 dB Maximum value of SAR = 12.7 mW/g 0 dB = 12.7mW/g Date/Time: 02/18/04 19:15:50 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 850_right_ch128_cheek DUT: E-GSM850/GSM1900 Dual Band GPRS Terminal Equipment; Type: -; Serial: INNO 98 Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: Head 850MHz Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.9 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.2, 6.2, 6.2); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 INNO98/Area Scan (81x141x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 7.76 V/m Power Drift = -0.0 dB Maximum value of SAR = 0.550 mW/g INNO98/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.838 W/kg SAR(1 g) = 0.513 mW/g; SAR(10 g) = 0.328 mW/g Reference Value = 7.76 V/m Power Drift = -0.0 dB Maximum value of SAR = 0.550 mW/g 0 dB = 0.550mW/g Date/Time: 02/18/04 16:07:36 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 850_right_ch189_cheek DUT: E-GSM850/GSM1900 Dual Band…

Text truncated - open the document above for the full version.

Date/Time: 02/19/04 17:05:29 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 1900_right_ch512_cheek DUT: E-GSM850/GSM1900 Dual Band GPRS Terminal Equipment; Type: -; Serial: INNO 98 Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.37 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.2, 5.2, 5.2); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 INNO98/Area Scan (81x141x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 4.86 V/m Power Drift = -0.0 dB Maximum value of SAR = 0.534 mW/g INNO98/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.771 W/kg SAR(1 g) = 0.476 mW/g; SAR(10 g) = 0.263 mW/g Reference Value = 4.86 V/m Power Drift = -0.0 dB Maximum value of SAR = 0.541 mW/g 0 dB = 0.541mW/g Date/Time: 02/19/04 14:17:02 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 1900_right_ch661_cheek DUT: E-GSM850/GSM1900 Dual Band GPRS Terminal Equipment; Type: -; Serial: INNO 98 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.4 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.2, 5.2, 5.2); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 INNO98/Area Scan (81x141x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 4.81 V/m Power Drift = 0.0 dB Maximum value of SAR = 0.540 mW/g INNO98/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.773 W/kg SAR(1 g) = 0.483 mW/g; SAR(10 g) = 0.268 mW/g Reference Value = 4.81 V/m Power Drift = 0.0 dB Maximum value of SAR = 0.551 mW/g 0 dB = 0.551mW/g Date/Time: 02/19/04 14:56:41 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 1900_right_ch661_tilted DUT: E-GSM850/GSM1900 Dual Band GPRS Terminal Equipment; Type: -; Serial: INNO 98 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.4 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.2, 5.2, 5.2); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 INNO98/Area Scan (81x141x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 5.61 V/m Power Drift = 0.005 dB Maximum value of SAR = 0.069 mW/g INNO98/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.098 W/kg SAR(1 g) = 0.063 mW/g; SAR(10 g) = 0.038 mW/g Reference Value = 5.61 V/m Power Drift = 0.005 dB Maximum value of SAR = 0.068 mW/g 0 dB = 0.059mW/g Date/Time: 02/19/04 17:39:45 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 1900_right_ch810_cheek DUT: E-GSM850/GSM1900 Dual Band GPRS Terminal Equipment; Type: -; Serial: INNO 98 Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1909.8 MHz; σ = 1.43 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.2, 5.2, 5.2); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 INNO98/Area Scan (81x141x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 4.88 V/m Power Drift = -0.0 dB Maximum value of SAR = 0.593 mW/g INNO98/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.857 W/kg SAR(1 g) = 0.525 mW/g; SAR(10 g) = 0.286 mW/g Reference Value = 4.88 V/m Power Drift = -0.0 dB Maximum value of SAR = 0.601 mW/g 0 dB = 0.601mW/g Date/Time: 02/19/04 15:44:46 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 1900_left_ch661_cheek DUT: E-GSM850/GSM1900 Dual Band GPRS Terminal Equipment; Type: -; Serial: INNO 98 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.4 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.2, 5.2, 5.2); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 INNO98/Area Scan (81x141x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 5.11 V/m Power Drift = 0.0 dB Maximum value of SAR = 0.445 mW/g INNO98/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.684 W/kg SAR(1 g) = 0.419 mW/g; SAR(10 g) = 0.239 mW/g Reference Value = 5.11 V/m Power Drift = 0.0 dB Maximum value of SAR = 0.457 mW/g 0 dB = 0.457mW/g Date/Time: 02/19/04 16:19:13 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 1900_left_ch661_tilted DUT: E-GSM850/GSM1900 Dual Band GPRS Terminal Equipment; Type: -; Serial: INNO 98 Communication System: GSM 1900; Frequency: 1880 MHz;D…

Text truncated - open the document above for the full version.

ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Appendix C ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix C Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 1 of 13 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 2 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 3 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 4 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 5 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 6 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 7 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 8 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 9 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 10 of 13 Valid 900 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 11 of 13 Valid 1900 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 12 of 13 Liquid Depth 900 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-S-8Page 13 of 13 Liquid Depth 1900

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PARTS 22 and 24 FCC ID: RJAINNO98 Test report no.: G5D204020024-P-2224 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G5D204020024-P-2224Page 1 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4General Test Procedure 3 Test Results 4 RF Power Output, FCC 2.1046 4.1 Test Procedure 4.2 Test Results 5 Radiated Power FCC 22.913, FCC 24.232 5.1 Test Procedure 5.2 Test Results 6 Modulation Deviation Limiting, FCC 2.1047, 22.915(b)(c) 6.1 Te…

Text truncated - open the document above for the full version.
