RJYP910PIR Motion Detector

Pet Immune Function This sensor adopts dual detection window design to improve detection accuracy. It was only when both two detection windows detect body movement will it trigger an alarm. While only one window will not cause an alarm. Based on this principle, pets less than 25 kgs will not be detected by the sensor. PIR-910 Pet-Immune PIR Motion Detector User Manual Introduction The motion detector is with high performance. It consists of digital dual- core fuzzy logic infrared control chip and intelligent analysis which effectively identify interference signal from body movement signals from body movement signals and reduce false alarm rate. With automatic temperature compensation and anti-turbulence technology, it easily adapts to environment changes. The detector also has the advantage of energy saving, reliability and easy installation. It is suitable for lobby, hallway detection with a detective range of 0-8m at front. With low power feedback function, user will get SMS alert about low battery if the PIR detector is connected to GSM alarm system. Product Overview LED Indication Display Meaning 1. Detection window 2. LED indicator 3. Snap joint 4. Test button 5. Bracket Working Mode Testing Mode Press the test button, the detector enters testing mode and detects once every 10 seconds. After 3minutes, the LED indicator blinks twice, and the detector switches to power saving mode. Power Saving Mode This motion detector has smart power saving function. If the detector is triggered twice within 3 minutes, it enters sleeping state immediately to save power. During this period, any movement detected does not generate an alarm. After no movement within the next 3 minutes, it goes back to working state again. Note: When the detector goes into sleeping state, the precondition of alarm is that no one moves in 3 minutes in the detection area; otherwise it will remain in the sleeping state. If the detector is in sleeping state, it is suggested to leave the room and make sure nobody moves in the detection area. The detector will go back to working state in 3 minutes. Test It is to check whether the PIR Motion Detector can work properly or not. Remove the insulation strip Press down the snap joint, open the case, and remove the insulation strip to activate batteries. After self-testing for 1 minute, it enters working state. Arm the system Make sure the alarm system is in armed state. Trigger an alarm Press the test button until an alarm is triggered. The detector is proved to be connected successfully and ready for installation. Side View Top View Detection Range Blink continuously Blink once Blink twice Blink once every 3 seconds Self testing Intrusion detected Testing mode is finished, the detector enters power-saving mode Low battery, please replace the battery as soon as possible 1 2 Infrared sensor: It detects the infrared rays released by human body motion, please don’t touch the surface and always keep it clean. Tamper switch: Once the case is opened in work mode, the tamper switch is triggered and then generates an alarm signal. Pairing to Control Panel Control panel enters paring state Make the control panel in paring state. Press the test button Press the test button on the back of the detector twice, the control panel beeps once to indicate a successful pairing. Note: If the control panel beeps twice when the above operation is done, it means the detector has been paired already. LED ON / OFF Infrared sensor Tamper switch Zone setting Infrared sensor 2m Ground Installation After making sure the detector works normally, do as follows: Choose a suitable installation location Fix the detector Fix the bracket on the wall with screws and attach the detector to the bracket. Test the PIR motion detector Press the test button at the back. It switches to the testing mode and sustains for 3 minutes. Walk in the detection scope and observe the LED. When body movement is detected, the LED blinks once. Adjust the angle Adjust the bracket angle to achieve the best detection effect. Installation Notices Mount the detector in a proper angle The installation angle affects detection sensitivity. The sensitivity is optimal when the walk direction is vertical to the infrared direction. Choose the best location and angle according to the actual situation and detection scope diagram. Don't face glass windows or doors Strong light interferes with detection sensitivity. In addition, complicated situations, such as traffic flow, stream of people, also should be avoided. Don't face or position close to heat sources Heat and cold sources, such as heat extraction units, heaters, air conditioner, microwave oven, refrigerator, which may cause false alarm, should be avoided. ON Don't face swinging objects Swinging objects may also trigger false alarm. Besides, if there are two detectors covering the save scope, adjust the locations to prevent cross- interference. Specifications Power Supply DC 3V (AA 1.5V LR6 Battery x 2 pcs) Static Current ≤ 90uA Alarm Current ≤ 9.5mA Detection Scope 8m/110° Pet Immunity ≤ 25kgs Transmitting Distance ≤ 80m (Open area/ no interference) Radio Frequency 315MHz (±75KHz) Housing Material ABS plastic Operation Condition Temperature: -10°C~+55°C Relative Humidity: ≤80% (non-condensing) Detector Dimensions (L x W x H) 108 x 52 x 36.8 mm Bracket Dimensions (L x W x H) 52 x 30 x 26.5 mm Ver: PIR-910-EN-1405-V6.0 2014 Chuango. All rights reserved. Mount the detector to a location close to the entry or exit The detector aims at preventing intrusion. Detecting human movement at the entry or exit is critical for security. It is recommended to mount it at the height of 2m from the ground. Note: If pet-immune function is applied, please do not adjust the angle up or down, but keep it parallel with the wall. FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must acc…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Chuango Security Technology Corporation May 08, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Chuango Security Technology Corporation hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product name: PIR Motion Detector Model No.: PIR-910, MD9100 FCC ID: RJYP 910 We affirm that between SIEMIC and Chuango Security Technology Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Ken Li/ CEO Contact address: 6-17, Overseas Students Pioneer Park, No.108, Jiangbin East Road, Economic & Technological Development Zone, Fuzhou 350015, China. Contact telephone: 008659122290811 Email: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] FCC Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Chuango Security Technology Corporation FCC Confidentiality Request Letter May 08,2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: RJYP910 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Ken Li/ CEO Contact address: 6-17, Overseas Students Pioneer Park, No.108, Jiangbin East Road, Economic & Technological Development Zone, Fuzhou 350015, China. Contact telephone: 008659122290811 Email: [email protected]

Chuango Security Technology Corporation Statement FCC ID: RJYP910 Model number: PIR-910, MD9100 We hereby state that these models are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Sincerely, Sincerely, Client’s signature Client’s name / title : Ken Li/ CEO Contact address: 6-17, Overseas Students Pioneer Park, No.108, Jiangbin East Road, Economic & Technological Development Zone, Fuzhou 350015, China. Contact telephone: 008659122290811 Email: [email protected]

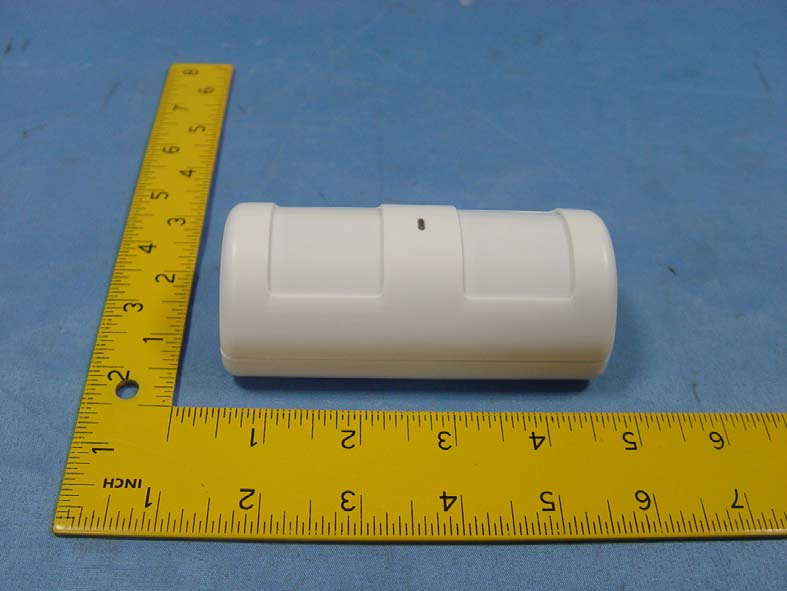

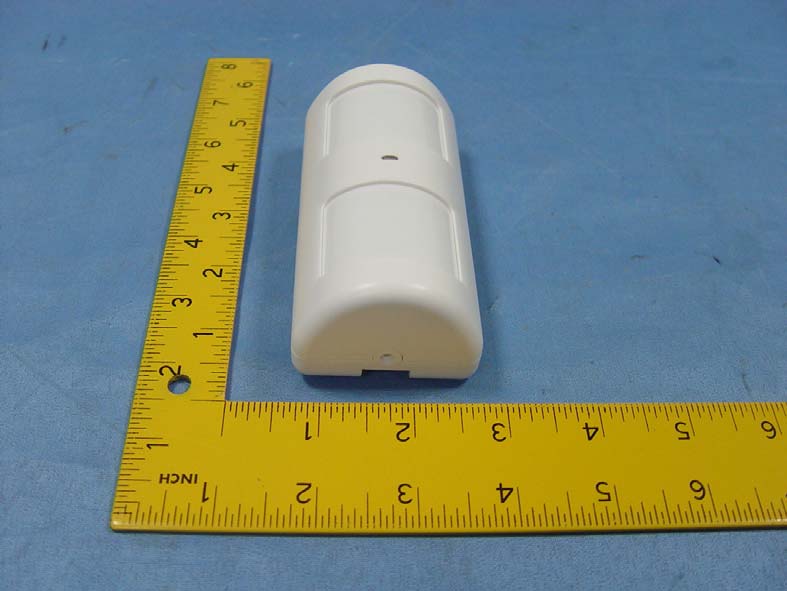

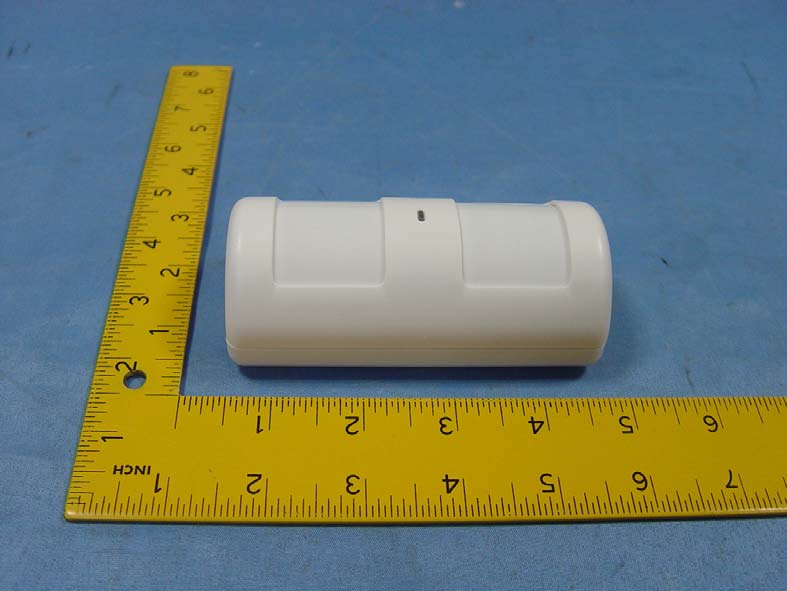

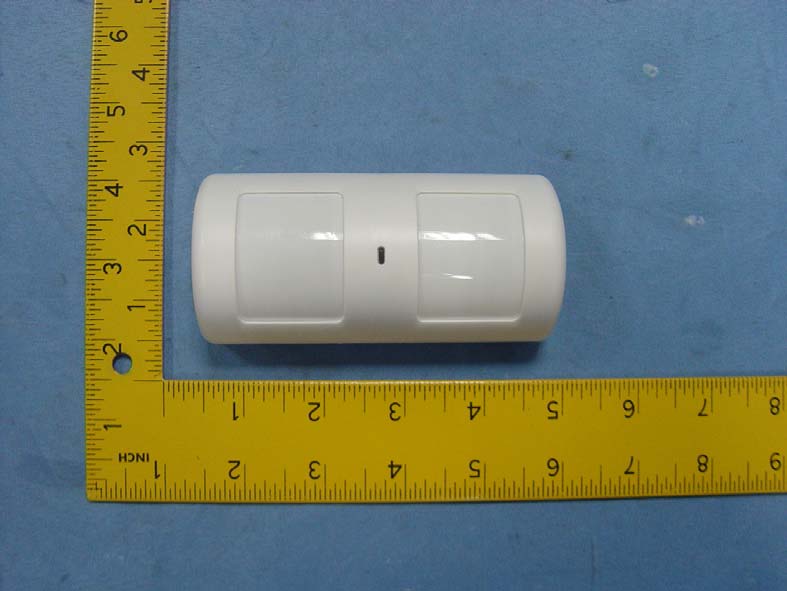

External Photos

Label and label location

Internal Photos Antenna

Report No.: ATE20140705 Page 1 of 28 FCC ID: RJYP910 ACCURATE TECHNOLOGY CO., LTD APPLICATION CERTIFICATION On Behalf of Chuango Security Technology Corporation PIR Motion Detector Model No.: PIR-910, MD9100 FCC ID: RJYP910 Prepared for : Chuango Security Technology Corporation Address : 6-17, Overseas Students Pioneer Park, No.108, Jiangbin East Road, Economic & Technological Development Zone, Fuzhou 350015, China. Prepared by : ACCURATE TECHNOLOGY CO., LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20140705 Date of Test : May 05-15, 2014 Date of Report : May 15, 2014 Report No.: ATE20140705 Page 2 of 28 FCC ID: RJYP910 ACCURATE TECHNOLOGY CO., LTD TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Description of Test Facility ......................................................................................................................5 1.3. Measurement Uncertainty.........................................................................................................................5 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 6 3. SUMMARY OF TEST RESULTS................................................................................................... 7 4. THE FIELD STRENGTH OF RADIATION EMISSION ............................................................ 8 4.1. Block Diagram of Test Setup....................................................................................................................8 4.2. The Field Strength of Radiation Emission Measurement Limits..............................................................9 4.3. Configuration of EUT on Measurement ...................................................................................................9 4.4. Operating Condition of EUT ....................................................................................................................9 4.5. Test Procedure ........................................................................................................................................10 4.6. The Field Strength of Radiation Emission Measurement Results ..........................................................11 5. 20DB OCCUPIED BANDWIDTH ................................................................................................ 13 5.1. Block Diagram of Test Setup..................................................................................................................13 5.2. The Bandwidth of Emission Limit According To FCC Part 15 Section 15.231(c) ................................13 5.3. EUT Configuration on Measurement .....................................................................................................13 5.4. Operating Condition of EUT ..................................................................................................................13 5.5. Test Procedure ........................................................................................................................................13 5.6. Measurement Result ...............................................................................................................................14 6. RELEASE TIME MEASUREMENT............................................................................................ 15 6.1. Block Diagram of Test Setup..................................................................................................................15 6.2. Release Time Measurement According To FCC Part 15 Section 15.231(e) ..........................................15 6.3. EUT Configuration on Measurement .....................................................................................................15 6.4. Operating Condition of EUT ..................................................................................................................15 6.5. Test Procedure ........................................................................................................................................15 6.6. Measurement Result ...............................................................................................................................16 7. AVERAGE FACTOR MEASUREMENT .................................................................................... 17 7.1. Block Diagram of Test Setup..................................................................................................................17 7.2. Average factor Measurement according to ANSI C63.4-2009...............................................................17 7.3. EUT Configuration on Measurement .....................................................................................................17 7.4. Operating Condition of EUT ..................................................................................................................17 7.5. Test Procedure ........................................................................................................................................17 7.6. Measurement Result ...............................................................................................................................18 8. ANTENNA REQUIREMENT........................................................................................................ 19 8.1. The Requirement ....................................................................................................................................19 8.2. Antenna Construction ................................................…

Text truncated - open the document above for the full version.

Test photo
