RK7130-02Bluetooth handsfree car-kit

Operating Manual 129 8001 1.00 US English EGO FLASH Funkwerk Dabendorf reserves the right to modifi cations in the course of technological progress and deviations from the delivery scope! All rights reserved! Reproduction, in whole or in part, is only permitted with the prior written consent of Funkwerk Dabendorf GmbH! List of contents 1 LIST OF CONTENTS 3 2 LIST OF ILLUSTRATIONS 6 3 INTRODUCTION / FOREWORD 7 4 SAFETY NOTES 8 5 SCOPE OF DELIVERY/PACKAGE CONTENTS 9 6 INSTALLATION INSTRUCTIONS 10 6.1 Required confi guration 10 6.1.1 Vehicle 10 6.1.2 Mobile phone 10 6.1.3 Muting (radio mute switch) 10 6.1.4 Convertingting the EGO FLASH into an already-installed Funkwerk hands-free car kit 10 6.1.5 Add-on speakers / Car audio telephone connection 11 6.1.6 Car audio line-in 11 6.2 Installation locations 11 6.2.1 Checking cable lengths 11 6.2.2 Selection of site for installing the electronics box 11 6.2.3 Selection of site for installing the microphone 12 6.2.4 Selection of site for installing the control unit with integrated display 13 6.3 Installation 13 6.3.1 Mounting the electronics box 13 6.3.2 Mounting the microphone 14 6.3.3 Mounting the control unit with integrated display 14 6.4 Connection scheme 15 6.5 Installation of the ISO connecting cable 17 6.5.1 Checking the mute inputs 17 1 2 | 3 6.5.2 Checking the installation 19 6.5.3 Additional external speakers 19 6.6 Connecting the components to the electronics box 20 7 OPERATING INSTRUCTIONS 22 7.1 Features 22 7.1.1 Overview of features 22 7.2 Symbols 23 7.2.1 Key functions 23 7.2.2 Symbols in the status bar 24 7.2.3 Speller symbols 24 7.2.4 Symbols for menu options 25 7.3 Speller 25 7.4 Getting started 26 7.4.1 About Bluetooth ® technology 26 7.4.2 On / Off function 27 7.4.3 Enter Bluetooth ® PIN 27 7.4.4 Hands-free mode 27 7.4.5 Automatic coupling 28 7.5 The menus 28 7.5.1 User management 31 7.5.2 Call 32 7.5.3 Contacts list 36 7.5.4 Call lists 37 7.5.5 Voicemail 37 7.5.6 SMS 38 7.5.7 Music player 38 7.5.8 Dictation function 39 7.5.9 Settings 40 7.5.10 Voice control 43 EGO FLASH 8 SOFTWARE UPDATE 49 9 SERVICE 50 10 SPARE PARTS AND ACCESSORIES 52 11 TECHNICAL DATA 54 12 CERTIFICATION 54 13 CONFORMITY STATEMENT 55 14 HOTLINE 57 4 | 5 EGO FLASH List of illustrations Fig. 01 Scope of delivery 9 Fig. 02 Signal orientation of Bluetooth ® antenna 11 Fig. 03 Installation location for electronics box 12 Fig. 04 Installation location for microphone 12 Fig. 05 Installation dimensions of electronics box 13 Fig. 06 Connecting the Mini-ISO-connector 16 Fig. 07 Installation procedure 17 Fig. 08 Type-dependent pin allocation 18 Fig. 09 Plug wiring scheme 18 Fig. 10 Connection system 18 Fig. 11 a/b Changing power supply wiring 19 Fig. 12 Connecting external loudspeakers 20 Fig. 13 Connecting the electronics box 21 Fig. 14 Status bar 24 2 Introduction / foreword Congratulations on your new EGO! Whether you’re browsing through your contacts list, reading SMS messages or selecting music for playback – EGO FLASH is a practical all-rounder with a razor-sharp OLED display and intuitive controls. Its handy size and sleek design make it a must-have accessory for your car. The installation of your EGO FLASH in your car requires specialized knowledge and skills. We therefore recommend that the installation be performed by a qualifi ed professional. Before installation in your car, please make sure that your mobile phone is fully compatible with EGO FLASH. If you are uncertain, please consult your dealer or a qualifi ed workshop. Our service team will also be happy to help you with any information you may require. Further information on compatibility between EGO FLASH and various mobile phones can be found on our website. 3 6 | 7 Safety notes 1. Incorrect installation – Incorrect installation may lead to damage to the units and/or your car! Specialized knowledge and skills are required for installing the system. We strongly recommend that the system be installed by a qualifi ed professional. 2. Risk of injury – Unsuitable installation locations may become a source of injury in an accident situation, or may inhibit the correct functioning of essential safety equipment. Please carefully read the notes in the „Installation“ chapter carefully! 3. Risk of injury/material damage – the removal of vehicle lining with sharp or pointed objects may lead to injuries or material damage. 4. Road safety risk – Diverted attention can lead to dangerous situations in traffi c. Even when using hands-free phone systems, your complete attention must be paid to the current traffi c conditions. It is always advisable to avoid phone calls while driving in diffi cult traffi c situations! 5. Damage to airbags – An incorrect installation location may cause damage to, or inhibit the correct function of, your airbags. Do not install the components within the deployment area of the airbags! 6. Insulation damage – Damaged insulation can lead to equipment and wiring damage. The cables and leads may not be under tension when installed. Install the cables and leads in such a way as to avoid pinching or abrasion. 7. Polarity and shorting damage – Cables connected with reversed polarity, or in such a way as to produce a short circuit, can lead to serious damage to your equipment. Before commencing installation, make sure that the car battery is disconnected. 8. Damage to essential vehicle components – Essential vehicle components or wiring can be damaged when drilling mounting holes or screwing in self-threading screws. Please make sure there is always suffi cient space behind the screw holes and drilled holes! 9. Interference with on-board electronics – Despite the extreme protection against interference, incorrect installation can lead to interference with the vehicle electronic systems. Please read the vehicle manufacturer’s notes to this effect! 10. Appropriate use – The EGO FLASH is intended exclusively for use in vehicles with Bluetooth ® mobile phones and A2DP devices. 11. Damage caused by i…

Text truncated - open the document above for the full version.

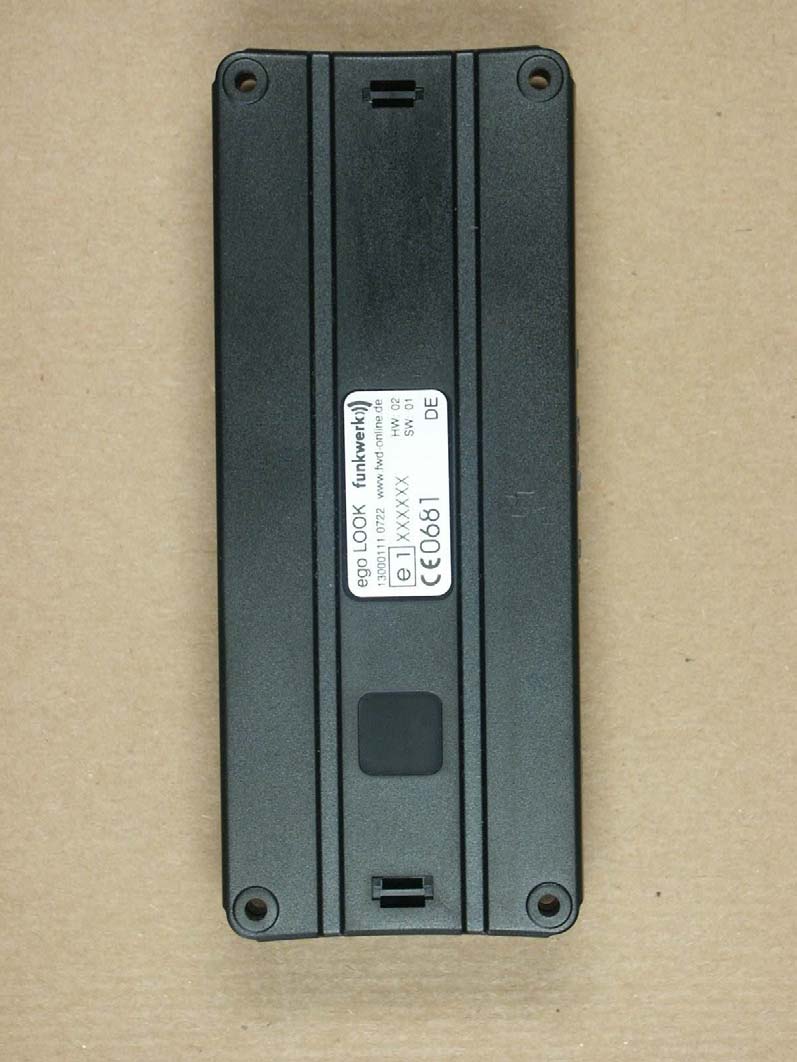

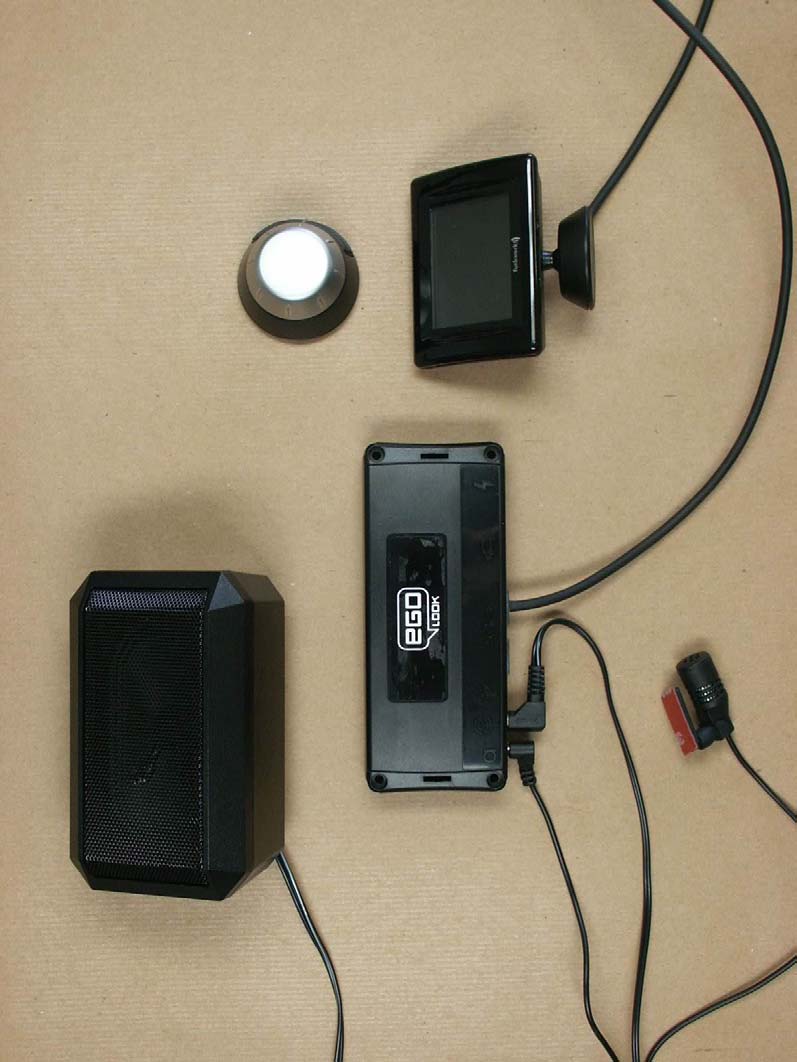

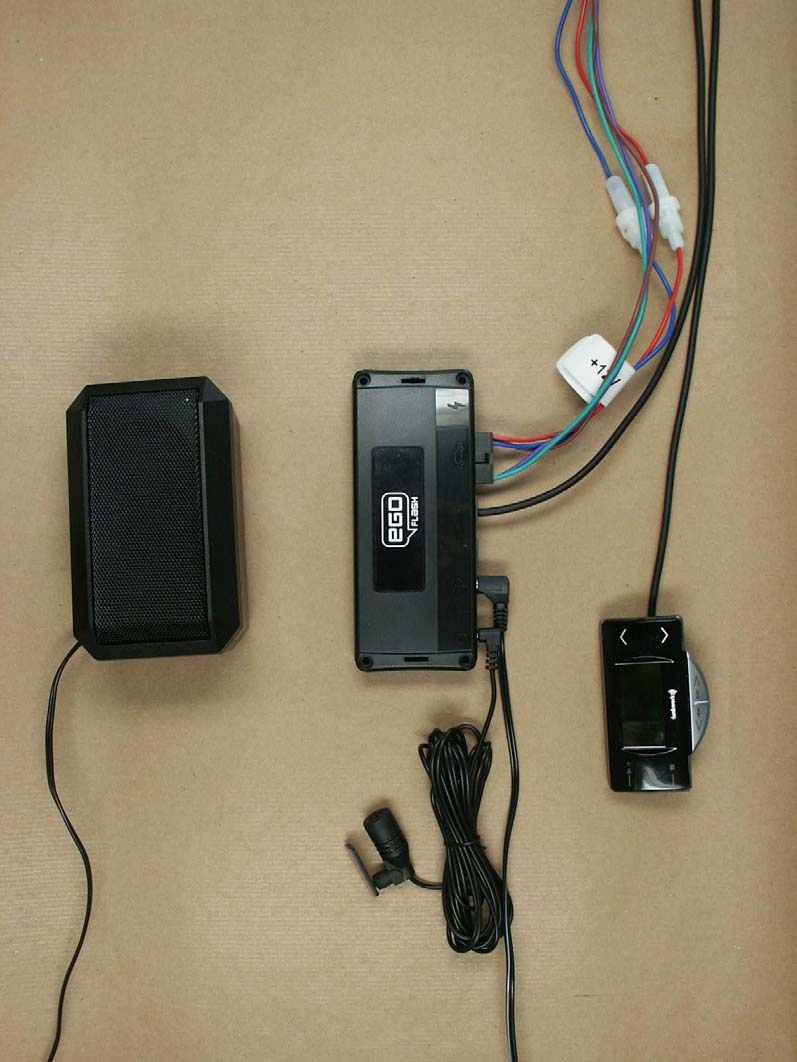

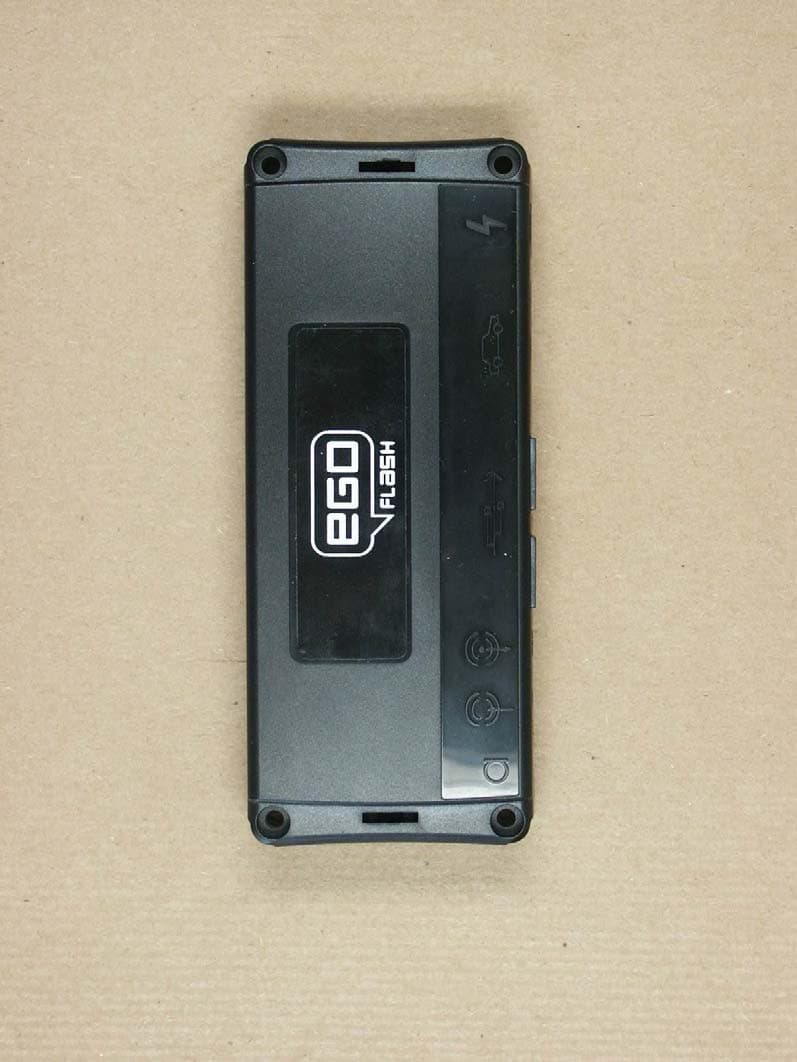

ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 1 of 15 Appendix A. Pictures EGO Look ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 2 of 15 ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 3 of 15 ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 4 of 15 ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 7 of 15 EGO Flash ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 8 of 15 ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 9 of 15 ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 10 of 15

ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 5 of 15 EGO Look ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 6 of 15 ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 11 of 15 EGO Flash ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 12 of 15

Index 00 Rev.-Nr. 2896 Rev.-date 23.04.07 Processor Schürmann ego FLASH (Taranis level 2) Page 1 Date 23.04.07 chk./sgd. Pauli/ 129 0012 1 of 3 This document is the property of Funkwerk Dabendorf GmbH. It may be neither copied nor made available to a third party without our prior written consent. Anyone found to be in violation will be held liable for damages. All rights reserved, also in the event of the issue of a patent or utility patent. Functional Description of "ego FLASH" Handsfree System The "ego FLASH" handsfree system supports communication with a Bluetooth-compatible mobile phone. Furthermore, audio devices that support the A2DP Bluetooth profile can be operated using the "ego FLASH". The handsfree system is directly connected to the audio system and the on-board vehicle power supply. The handsfree system is controlled via a wired control unit and is connected with the telephone using a Bluetooth radio communication. There are two basic options for the connection to the vehicle (illustration 1 and illustration 2). Illustration 1 Index 00 Rev.-Nr. 2896 Rev.-date 23.04.07 Processor Schürmann ego FLASH (Taranis level 2) Page 2 Date 23.04.07 chk./sgd. Pauli/ 129 0012 1 of 3 This document is the property of Funkwerk Dabendorf GmbH. It may be neither copied nor made available to a third party without our prior written consent. Anyone found to be in violation will be held liable for damages. All rights reserved, also in the event of the issue of a patent or utility patent. B l u e t o o t h - l i n k Illustration 2 The "ego FLASH" handsfree system consists of an electronics box and a control unit with an integrated display unit. The electronics box of the handsfree system has the following connection options (see illustration 3): • 2.5 mm stereo jack for feeding in the microphone signal (G) • 3.5 mm stereo jack for feeding in an external stereo audio signal (I) • 3.5 mm stereo jack for outputting the audio data of the handsfree system (H) (calls, music, ringtones, etc.) • 14-pin Molex Micro-Fit connector for connecting the handsfree system to the vehicle (power, audio) (K) • 4-pin Molex Micro-Fit connector for connecting an optional cradle (L) • 2 x RJ11 connectors (I 2 C interface) for connecting the control unit and optional accessories (J) Index 00 Rev.-Nr. 2896 Rev.-date 23.04.07 Processor Schürmann ego FLASH (Taranis level 2) Page 3 Date 23.04.07 chk./sgd. Pauli/ 129 0012 1 of 3 This document is the property of Funkwerk Dabendorf GmbH. It may be neither copied nor made available to a third party without our prior written consent. Anyone found to be in violation will be held liable for damages. All rights reserved, also in the event of the issue of a patent or utility patent. The required supply voltage (3.3 V, 8 V, 5 V) is provided in the "Power supply" section of the circuit. There are two different channels over which the external raw voltage can be supplied to the handsfree system: 1. via the direct connection to the vehicle through the 14-pin Molex Micro-Fit connector (connection design in illustration 1), or 2. via the mute box available as an option (connection design in illustration 2). Block diagram: Illustration 3 The BlackFin DSP (B) is the central controller and function unit of the electronics box. Both flash and RAM are installed in this for the implementation of the program sequence. The BlackFin implements the communication and control of the Bluetooth module (A), the AC97 audio codec and the TDA1519 audio amplifier. The DSP also contains means of communication with the control unit. The BC04 Bluetooth chip (A: see description data sheet, appendix 1) creates the interface to the telephone via Bluetooth radio communication. The AC97 audio codec (E) assists in the management of the different audio signals of the "ego FLASH" handsfree system. With the connection design without an external amplifier box, the amplification of the audio signals to the vehicle is implemented by the TDA1519 audio amplifier (F). The control unit is used to control the handsfree system and display the functions. The controller of the control unit is a STR7 microcontroller (N). This evaluates the buttons (O) and is responsible for controlling the OLED display (M). It also implements the I 2 C communication with the electronics box. The control unit is supplied with voltage, which is converted into the appropriate component voltages by the "Power supply" (P) section of the circuit, via the electronics box.

Index 00 Rev.-Nr. 2898 Rev.-date 03.05.07 Processor Schürmann ego LOOK (Taranis level 3) Page 1 Date 06.09.07 chk./sgd. Pauli/ 130 0012 1 of 4 This document is the property of Funkwerk Dabendorf GmbH. It may be neither copied nor made available to a third party without our prior written consent. Anyone found to be in violation will be held liable for damages. All rights reserved, also in the event of the issue of a patent or utility patent. Functional Description of "ego LOOK" Handsfree System The "ego LOOK" handsfree system supports communication with a Bluetooth-compatible mobile phone. Furthermore, audio devices that support the A2DP Bluetooth profile can be operated using the "ego LOOK". The handsfree system is directly connected to the audio system and the on-board vehicle power supply. The handsfree system is controlled via an ISM radio control unit and is connected with the telephone using Bluetooth radio communication. There are two basic options for the connection to the vehicle (illustration 1 and illustration 2). B l u e t o o t h - l i n k I S M - r a d i o c o m m u n i c a t i o n Illustration 1 Index 00 Rev.-Nr. 2898 Rev.-date 03.05.07 Processor Schürmann ego LOOK (Taranis level 3) Page 2 Date 06.09.07 chk./sgd. Pauli/ 130 0012 1 of 4 This document is the property of Funkwerk Dabendorf GmbH. It may be neither copied nor made available to a third party without our prior written consent. Anyone found to be in violation will be held liable for damages. All rights reserved, also in the event of the issue of a patent or utility patent. B l u e t o o t h - l i n k I S M - r a d i o c o m m u n i c a t i o n Illustration 2 The "ego LOOK" handsfree system consists of an electronics box, a radio control unit and a TFT display. The electronics box of the handsfree system has the following connection options (see illustration 3): • 2.5 mm stereo jack for feeding in the microphone signal (G) • 3.5 mm stereo jack for feeding in an external stereo audio signal (I) • 3.5 mm stereo jack for outputting the audio data of the handsfree system (H) (calls, music, ringtones, etc.) • 14-pin Molex Micro-Fit connector for connecting the handsfree system to the vehicle (power, audio) (K) • 4-pin Molex Micro-Fit connector for connecting an optional cradle (L) • 2 x RJ11 connectors (I 2 C interface) for connecting the display and optional accessories (J) Index 00 Rev.-Nr. 2898 Rev.-date 03.05.07 Processor Schürmann ego LOOK (Taranis level 3) Page 3 Date 06.09.07 chk./sgd. Pauli/ 130 0012 1 of 4 This document is the property of Funkwerk Dabendorf GmbH. It may be neither copied nor made available to a third party without our prior written consent. Anyone found to be in violation will be held liable for damages. All rights reserved, also in the event of the issue of a patent or utility patent. The required supply voltage (3.3 V, 8 V, 5 V) is provided in the "Power supply" (C) section of the circuit. There are two different channels over which the external raw voltage can be supplied to the handsfree system: 1. via the direct connection to the vehicle through the 14-pin Molex Micro-Fit connector (connection design in illustration 1), or 2. via the mute box available as an option (connection design in illustration 2). Block diagram: Illustration 3 The BlackFin DSP (B) is the central controller and function unit of the electronics box. Both flash and RAM are installed in this for the implementation of the program sequence. The BlackFin implements the communication and control of the Bluetooth module (A), the AC97 audio codec and the TDA1519 audio amplifier. The DSP also contains means of communication with the control unit. The BC04 Bluetooth chip (A: see description data sheet, appendix 1 ) creates the interface to the telephone via Bluetooth radio communication. The AC97 audio codec (E) assists in the management of the different audio signals of the "ego LOOK" handsfree system. With the connection design without an external amplifier box, the amplification of the audio signals to the vehicle is implemented by the TDA1519 audio amplifier (F). The button functions are transferred to DSP via the ISM receiver (R). The ISM module in configured according to software exclusively as a receiver. There is a screen which functions as a display unit. This is controlled by an ARM9 controller from the ST company (N). The required supply voltages are produced via the power supply (P) Index 00 Rev.-Nr. 2898 Rev.-date 03.05.07 Processor Schürmann ego LOOK (Taranis level 3) Page 4 Date 06.09.07 chk./sgd. Pauli/ 130 0012 1 of 4 This document is the property of Funkwerk Dabendorf GmbH. It may be neither copied nor made available to a third party without our prior written consent. Anyone found to be in violation will be held liable for damages. All rights reserved, also in the event of the issue of a patent or utility patent. section of the circuit. A TFT display (M) is used for the graphical representation. The display unit also contains a reset button with which the electronics box can be reset. An ISM radio control unit is used as an input unit. This is controlled by an AtTiny microcontroller (U). This receives the signals from the buttons and the rotary encoder (V) and transmits these to the electronics box (ISM receiver) (R) via an ISM chip from the Nordic company (S). In the first 10 seconds after switching the "ego LOOK" on, press the two buttons simultaneously for at least one second. If both buttons are pressed the LED is illuminated and the registration protocol is sent by the control unit to the ECU. With it the ISM receiver becomes for the code of this control unit enable.

ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES PARTS 15.247 IC RADIO STANDARDS RSS-210 Issue 7 FCC ID: RK7130-02 IC: 4774A-13002 Model Name: EGO Look / EGO Flash Test report no.: G0M20707-1508-P-15 Certificate #1983.01 ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 1 of 33 TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General test procedure 2.5 Test results 3 Transmitter parameters 3.1 RF power output conducted 3.2 RF power output radiated (EIRP) 3.3 20 dB bandwidth 3.4 Time of occupancy (dwell time) 3.5 Number of hopping frequencies 3.6 Carrier frequency separation 3.7 Spurious emission conducted 3.8 Spurious emission radiated 3.9 Band-edge compliance 3.10 AC power line conducted emission 4 Receiver parameters 4.1 Radiated emission APPENDIX ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 2 of 33 1 General information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. Tester: 14.08.2007 D. Hoppe Date ETS-Lab. Name Signature Technical responsibility for area of testing: 14.08.2007 N. Kaspar Date ETS Name Signature ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 3 of 33 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 ACCREDITED COMPETENT BODY BNETZA-REGISTRATION NUMBER: BNETZA-ZS-026/96 FCC FILED TEST LABORATORY: REG. NO. 96970 INDUSTRY CANADA FILED TEST LABORATORY R EG. NO.: IC 3470 A2LA ACCREDITED C ERTIFICATE NUMBER: #1983.01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) 1.3 Details of approval holder Name : Funkwerk Dabendorf GmbH Street : Märkische Strasse Town : 15806 Dabendorf Country : Germany Telephone : 03377 316-0 /-142 Contact : Herrn Bodo Nickel E-Mail : [email protected] ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 4 of 33 1.4 Application details Date of receipt of application : 02.07.2007 Date of receipt of test item : 02.07.2007 Date of test : 05.07.2007 1.5 Test item Description of test item : Bluetooth Handsfree Car Kit Type identification : EGO Look / EGO Flash Serial number : without Photos : See annex A. Technical data Frequency band : 2.4 - 2.4835 GHz Frequency Ch A : 2402 MHz Frequency Ch B : 2441 MHz Frequency Ch C : 2480 MHz Transmitter Vnom Vnom –15 % Vnom +15 % Power (ch A) : Conducted: 0.68 dBm Conducted: 0.60 dBm Conducted: 0.58 dBm Power (ch B) : Conducted: 0.08 dBm Conducted: 0.07 dBm Conducted: 0.04 dBm Power (ch C) : Conducted: 0.03 dBm Conducted: 0.02 dBm Conducted: -0.01 dBm Antenna Type : internal antenna Antenna Gain : 0 dBi Power supply : 13.2 V DC Operating mode : duplex Type of modulation : FHSS Host device : none ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 5 of 33 Classification : Fixed Device Mobile Device (Human Body distance > 20 cm) Portable Device (Human Body distance < 20 cm) Manufacturer: (if applicable) Name : Funkwerk Dabendorf GmbH Street : Märkische Strasse Town : 15806 Dabendorf Country : Germany Additional information: The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronization procedure and other parameters are determined by Bluetooth Core Specification. According to attached declaration of manufacturer this device don’t work in master inquiry mode. So we have only one frequency hopping system and the hopping sequence of the master inquiry mode is not verified. ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 6 of 33 1.6 Test standards Technical standard: FCC Parts: 15.247 IC Standards: RSS 210 Issue 6 Annex 8.1 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 ° C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 13.2 V DC Extreme conditions parameters: : test voltage - extreme min.: 11.0 V DC (Vnom – 15%) max: 15.0 V DC (Vnom + 15%) ETS Product Service AG Registration number: G0M20707-1508-P-15 Page 7 of 33 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP R & S ETS 0003 Diode Power Sensor NRV-Z2 R & S ETS 0004 Spektrum- and Network- Analyzer FSMS 26 R & S ETS 0005 RF amplifier matrix…
