Funkwerk Dabendorf GmbH FCC ID: RK7USA-MMC-DC Maerkische Strasse IC: 4774A-USAMMCDC D-15806 Dabendorf Germany Page 1 of 4 pages 850 / 1900 MHz DUAL BAND COMPENSER MODEL USA-MMC-DC 205 0111 1 USER MANUAL 1 GENERAL The 850 / 1900 MHz Dual Band Compenser model USA-MMC-DC 205 0111 1 is a bi-directional, dual band RF amplifier used in conjunction with either a dual band or a standard single band mobile phone. It’s designed to compensate for signal attenuation in both transmit and receive paths due to cable losses employed in automotive OEM installations. This helps to improve call quality in weak coverage areas and reduce dropped calls in between cell sites. The Compenser is designed for digital (GSM/GPRS, W-CDMA, EDGE and CDMA) modes. WARNING The Compenser must NOT be used for TDMA and/or the analog (AMPS) mode! STATEMENT according to FCC rules CFR, Title 47, Part 15, Section 15.19: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi- tions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause unde- sired operation. Funkwerk Dabendorf GmbH FCC ID: RK7USA-MMC-DC Maerkische Strasse IC: 4774A-USAMMCDC D-15806 Dabendorf Germany Page 2 of 4 pages 2 INSTALLATION To meet the FCC’s and IC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user or nearby persons and the antenna. The antenna must not be co-located or operating in conjunction with any other antenna or transmitter. WARNING All installations are done at the OEM factory. No end-user installation or accessible part is involved. Any unauthorized changes or modifications not expressly approved by the party responsible for compliance could void user’s authority to operate this equipment. 3 I/O CONNECTION Mobile port: FAKRA RF type connector, cod. D, female Antenna port: FAKRA RF type connector, cod. D, male DC input and On/Off control: 4-pin automotive connector 4 SPECIFICATIONS FCC ID RK7USA-MMC-DC FCC Rule Parts 22H & 24E IC Certification Number 4774A-USAMMCDC IC Radio Standards Specification RSS-129 for 850MHz CDMA RSS-132 for 850MHz GSM/GPRS, EDGE and W-CDMA RSS-133 for 1900MHz GSM/GPRS, EDGE, W-CDMA and CDMA Operating Frequency Uplink (Tx) 824 ... 849 MHz & 1850 ... 1910 MHz Downlink (Rx) 869 ... 894 MHz & 1930 ... 1990 MHz Funkwerk Dabendorf GmbH FCC ID: RK7USA-MMC-DC Maerkische Strasse IC: 4774A-USAMMCDC D-15806 Dabendorf Germany Page 3 of 4 pages Mode of Transmission Digital Data Source External Type of Modulation GSM/GPRS, W-CDMA, EDGE, CDMA (digital) Type of Information Telephony & Data Input and Output Impedance 50 Ohms Harmonics & Spurious according to FCC and IC specifications Stability Any RF load condition DC Supply Voltage 10.8 ... 15.6 V Current Draw (switched off) 0.1 mA OFF I≤ Current Draw (quiescent) 140 mA220 mA Q I≤≤ Current Draw (peak) 2.0 A p I≤ Operating Temperature: -20 ... 55 C (-4 ... 131 °F) Storage Temperature: -40 ... 90 C (-40 ... 194 °F) Maximum Output Power: Modulation Type Frequency Range /MHz Emission Designator max. Output Power /Watts max. Output Power /dBm 824.2 ... 848.8 244KGXW 1.384 31.41 GSM/GPRS 1850.2 ... 1909.8 245KGXW 0.908 29.58 826.6 ... 846.4 4M18F9W 0.428 26.31 W-CDMA 1852.6 ... 1907.4 4M15F9W 0.590 27.71 824.2 ... 848.8 245KG7W 1.820 32.6 EDGE 1850.2 ... 1909.8 245KG7W 0.951 29.78 824.7 ... 848.31 1M27F9W 0.855 29.32 CDMA 1851.25 ... 1908.75 1M29F9W 0.769 28.86 Table 1: Maximum Output Power Power Output listed in Table 1 is conducted. Funkwerk Dabendorf GmbH FCC ID: RK7USA-MMC-DC Maerkische Strasse IC: 4774A-USAMMCDC D-15806 Dabendorf Germany Page 4 of 4 pages The antenna installation and operating configurations of this Compenser, including antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of FCC Rules CFR (Code of Federal Regulations) Title 47, Part 2, §2.1091. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or opera- ting in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure com- pliance.

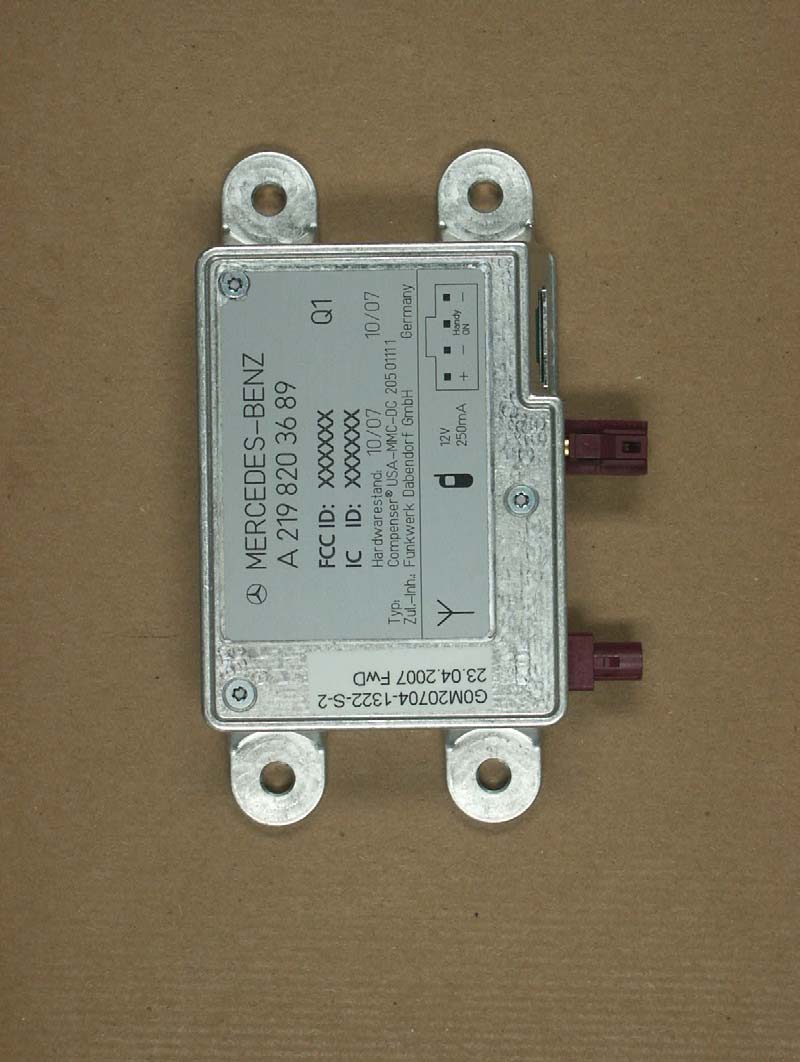

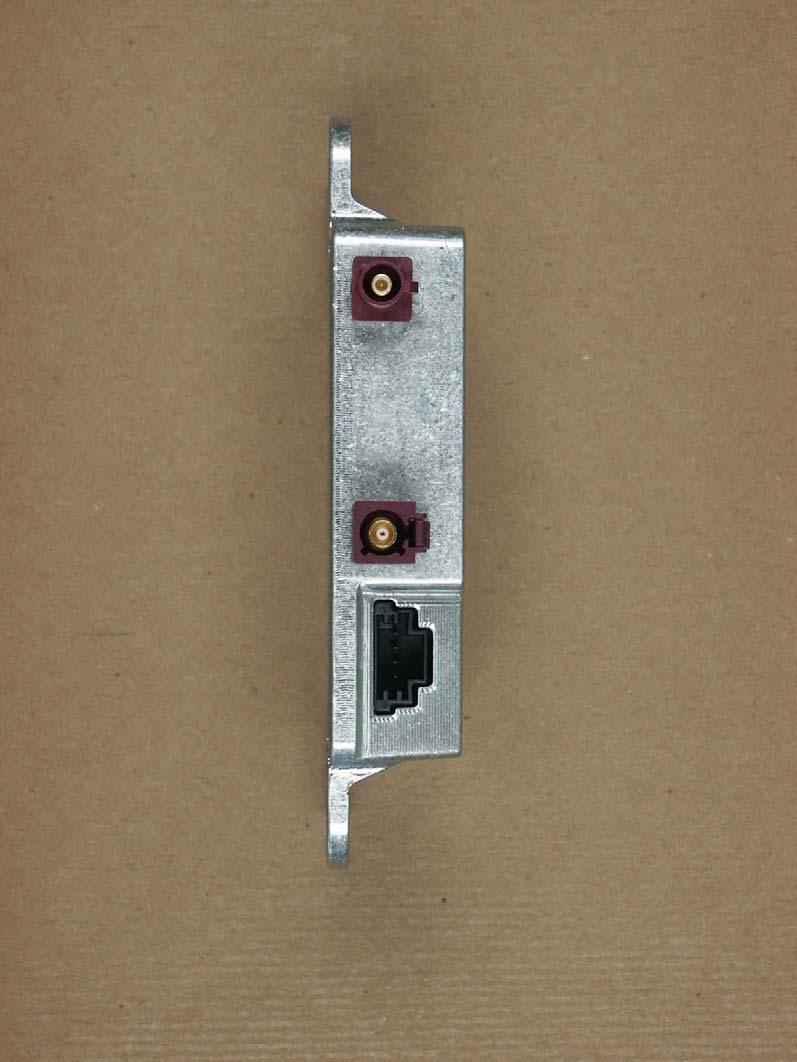

ETS Product Service AG, Germany Registration number: G0M20704-1323-C-1 Page 1 of 9 Appendix A. Pictures ETS Product Service AG, Germany Registration number: G0M20704-1323-C-1 Page 2 of 9 ETS Product Service AG, Germany Registration number: G0M20704-1323-C-1 Page 3 of 9

ETS Product Service AG, Germany Registration number: G0M20704-1323-C-1 Page 4 of 9 ETS Product Service AG, Germany Registration number: G0M20704-1323-C-1 Page 5 of 9 ETS Product Service AG, Germany Registration number: G0M20704-1323-C-1 Page 6 of 9

Funkwerk Dabendorf GmbH FCC ID: RK7USA-MMC-DC Maerkische Strasse D-15806 Dabendorf Germany 850 / 1900 MHz DUAL BAND COMPENSER MODEL USA-MMC-DC 205 0111 1 TUNING PROCEDURE The 850/1900 MHz Dual Band Compenser model USA-MMC-DC 205 0111 1 do not require any tuning and do not exhibit any tuning elements accessible by the user. Warning: All installations are done at the OEM factory. No end-user installation or accessible part is involved. Any unauthorized changes or modifications not expressly approved by the party responsible for compliance could void user’s authority to operate this equipment.

___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH RF Exposure Calculation Applicant: Funkwerk Dabendorf GmbH FCC ID: RK7USA-MMC-DC The internal antenna used for this mobile transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. A safety statement concerning minimum separation distances from enclosure of the USA-MMC-DC will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate Max conducted power can be drawn from the test report no. G0M20704-1323-C-1, G0M20704-1323-C-2, G0M20704-1323-C-3 and G0M20704-1323-C-4 For transmitter operating in the 824-849 MHz range, paragraph 1.1310 Table 1 limits maximum permissible exposure (MPE) to 0.549 mW/cm² for uncontrolled environments and 2.75 mW/cm² for controlled environments. For transmitter operating in the 1850-1910 MHz range, paragraph 1.1310 Table 1 limits maximum permissible exposure (MPE) to 1 mW/cm² for uncontrolled environments and 5 mW/cm² for controlled environments. The far field on-axis power flux density (W/m²) is calculated using the following formula: S = Power density (mW/cm²) ERP = effective radiated power (mW) EIRP = isotropically radiated power (mW) r = Distance in cm Calculations ___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH

ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES PARTS 22H and 24E IC RADIO STANDARDS RSS 129 and RSS 133 for CDMA FCC ID: RK7USA-MMC-DC Model Name: USA-MMC-DC Test report no.: G0M20704-1323-C-3 Certificate #1983.01 ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG, Germany Registration number: G0M20704-1323-C-3 Page 1 of 36 TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General test procedure 2.5 Test results 3 Transmitter parameters 3.1 RF power output conducted 3.2 RF power output radiated (ERP, EIRP) 3.3 Occupied bandwidth, emission bandwidth 3.4 Frequency stability 3.5 Spurious emission conducted (antenna terminal) 3.6 Spurious emission radiated 3.7 Block edge compliance 3.8 AC power line conducted emission 4 Receiver parameters 4.1 Radiated emission APPENDIX ETS Product Service AG, Germany Registration number: G0M20704-1323-C-3 Page 2 of 36 1 General information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. Tester: 05.07.2007 W. Meng Date ETS-Lab. Name Signature Technical responsibility for area of testing: 05.07.2007 N. Kaspar Date ETS Name Signature ETS Product Service AG, Germany Registration number: G0M20704-1323-C-3 Page 3 of 36 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG Storkower Strasse 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 ACCREDITED COMPETENT BODY BNETZA-REGISTRATION NUMBER: BNETZA-ZS-026/96 FCC FILED TEST LABORATORY: REG. NO. 96970 INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED CERTIFICATE NUMBER: #1983.01 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) 1.3 Details of approval holder Name : Funkwerk Dabendorf GmbH Street : Märkische Strasse Town : 15806 Dabendorf Country : Germany Telephone : 03377 316-0 /-142 Fax : 03377 316-134 Contact : Herrn Bodo Nickel E-Mail : 03377 316-0 /-142 ETS Product Service AG, Germany Registration number: G0M20704-1323-C-3 Page 4 of 36 1.4 Application details Date of receipt of application : 23.04.2007 Date of receipt of test item : 23.04.2007 Date of test : 16.05.2007 - 01.06.2007 1.5 Test item Description of test item : Compenser Type identification : USA-MMC-DC Serial number : without Photos : See annex A. Technical data Frequency range Tx – Cellular 850 : 824.7 - 848.30 MHz Frequency range Tx - PCS : 1851.25 - 1908.75 MHz Frequency range Rx - Cellular 850 : 869.7 - 893.3 MHz Frequency range Rx - PCS : 1931.25 - 1988.75 MHz Antenna Type : external antenna (manufacturer declaration) Antenna Gain : -2 dBi (manufacturer declaration) Power supply : 13.5 V DC Operating mode : duplex Type of modulation : CDMA Emission : F9W Manufacturer: (if applicable) Name : Street : Town : Country : ETS Product Service AG, Germany Registration number: G0M20704-1323-C-3 Page 5 of 36 1.6 Test standards Technical standard : FCC Parts: 22H, 24E, 2, 15 IC Standards: RSS 129, RSS 133 Additional information : Because of using the CDMA 850 as an alternative technology in 850 MHz band and the speciality of the test sample, , not all test cases of FCC Part 22 and RSS-129 are required. This test report covers the test which are related to CDMA radio technology . Operation in others bands or with other radio technologies are subject of other independent test reports. 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 ° C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa ETS Product Service AG, Germany Registration number: G0M20704-1323-C-3 Page 6 of 36 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP R & S ETS 0003 Diode Power Sensor NRV-Z2 R & S ETS 0004 Spektrum- and Network- Analyzer FSMS 26 R & S ETS 0005 RF amplifier matrix RSU-ETS-CTR6 ETS ETS 0006 HP-Filter H1G04G01 Microwave ETS 0007 Horn antenna AT 4004 ar ETS 0008 Antenna Loop antenna Siemens ETS 0009 Comb Generator Emitter CGE 02 York EMC Services ETS 0011 Antenna (van Veen/Frame) HM020Z3 R & S ETS 0012 Biconical Antenna HK 116 R & S ETS 0013 LPD Antenna HL 223 R & S ETS 0014 Log Periodical Antenna HL 025 R & S ETS 0015 Log Periodical Antenna HL 025 R & S ETS 0016 Precision antenna kit VHAP Schwarzbeck ETS 0017 Precision antenna kit UHAP Schwarzbeck ETS 0018 Horn antenna BBHA 9120 D Schwarzbeck ETS 0019 Horn antenna BBHA 9120 D Schwarzbeck ETS 0…

Text truncated - open the document above for the full version.

ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES PARTS 22H and 24E IC RADIO STANDARDS RSS 132 and RSS 133 for EDGE enabled GSM device FCC ID: RK7USA-MMC-DC Model Name: USA-MMC-DC Test report no.: G0M20704-1323-C-2 Certificate #1983.01 ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG, Germany Registration number: G0M20704-1323-C-2 Page 1 of 36 TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General test procedure 2.5 Test results 3 Transmitter parameters 3.1 RF power output conducted 3.2 RF power output radiated (ERP, EIRP) 3.3 Occupied bandwidth, emission bandwidth 3.4 Frequency stability 3.5 Spurious emission conducted (antenna terminal) 3.6 Spurious emission radiated 3.7 Block edge compliance 3.8 AC power line conducted emission 4 Receiver parameters 4.1 Radiated emission APPENDIX ETS Product Service AG, Germany Registration number: G0M20704-1323-C-2 Page 2 of 36 1 General information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. Tester: 25.06.2007 M. Schlaps Date ETS-Lab. Name Signature Technical responsibility for area of testing: 25.06.2007 N. Kaspar Date ETS Name Signature ETS Product Service AG, Germany Registration number: G0M20704-1323-C-2 Page 3 of 36 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG Storkower Strasse 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 ACCREDITED COMPETENT BODY BNETZA-REGISTRATION NUMBER: BNETZA-ZS-026/96 FCC FILED TEST LABORATORY: REG. NO. 96970 INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED CERTIFICATE NUMBER: #1983.01 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) 1.3 Details of approval holder Name : Funkwerk Dabendorf GmbH Street : Märkische Strasse Town : 15806 Dabendorf Country : Germany Telephone : 03377 316-0 /-142 Fax : 03377 316-134 Contact : Herrn Bodo Nickel E-Mail : 03377 316-0 /-142 ETS Product Service AG, Germany Registration number: G0M20704-1323-C-2 Page 4 of 36 1.4 Application details Date of receipt of application : 23.04.2007 Date of receipt of test item : 23.04.2007 Date of test : 23.05.2007 - 25.06.2007; 1.5 Test item Description of test item : Compenser Type identification : USA-MMC-DC Serial number : without Photos : See annex A. Technical data Frequency range Tx - GSM 850 : 824.2 - 848.80 MHz Frequency range Tx - PCS : 1850.2 - 1909.8 MHz Frequency range Rx - GSM 850 : 869.2 - 893.8 MHz Frequency range Rx - PCS : 1930.2 - 1989.8 MHz Antenna Type : external antenna Antenna Gain : -2 dBi (manufacturer declaration) Power supply : 13.5 V DC Operating mode : duplex Type of modulation : 8-PSK (EGPRS) Emission : G7W Manufacturer: (if applicable) Name : Street : Town : Country : ETS Product Service AG, Germany Registration number: G0M20704-1323-C-2 Page 5 of 36 1.6 Test standards Technical standard : FCC Parts: 22H, 24E, 2, 15 IC Standards: RSS 132, RSS 133 Additional information : Because of using the GSM 850 as an alternative technology in 850 MHz band, not all test cases of FCC Part 22 are required. This test report covers the test which are related to EDGE radio technology in GSM 850 band and PCS band only. Operation in others bands or with other radio technologies are subject of other independent test reports. 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 ° C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa ETS Product Service AG, Germany Registration number: G0M20704-1323-C-2 Page 6 of 36 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP R & S ETS 0003 Diode Power Sensor NRV-Z2 R & S ETS 0004 Spektrum- and Network- Analyzer FSMS 26 R & S ETS 0005 RF amplifier matrix RSU-ETS-CTR6 ETS ETS 0006 HP-Filter H1G04G01 Microwave ETS 0007 Horn antenna AT 4004 ar ETS 0008 Antenna Loop antenna Siemens ETS 0009 Comb Generator Emitter CGE 02 York EMC Services ETS 0011 Antenna (van Veen/Frame) HM020Z3 R & S ETS 0012 Biconical Antenna HK 116 R & S ETS 0013 LPD Antenna HL 223 R & S ETS 0014 Log Periodical Antenna HL 025 R & S ETS 0015 Log Periodical Antenna HL 025 R & S ETS 0016 Precision antenna kit VHAP Schwarzbeck ETS 0017 Precision antenna kit UHAP Schwarzbeck ETS 0018 Horn antenna BBHA 9120 D Schwarzbeck ETS 0019 Horn antenna BBHA 9120 D Schwarzbeck ETS 0020 Antenna DP 21 MEB ETS 002…

Text truncated - open the document above for the full version.

ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES PARTS 22H and 24E IC RADIO STANDARDS RSS 132 and RSS 133 for GPRS FCC ID: RK7USA-MMC-DC Model Name: USA-MMC-DC Test report no.: G0M20704-1323-C-4 Certificate #1983.01 ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG, Germany Registration number: G0M20704-1323-C-4 Page 1 of 36 TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General test procedure 2.5 Test results 3 Transmitter parameters 3.1 RF power output conducted 3.2 RF power output radiated (ERP, EIRP) 3.3 Occupied bandwidth, emission bandwidth 3.4 Frequency stability 3.5 Spurious emission conducted (antenna terminal) 3.6 Spurious emission radiated 3.7 Block edge compliance 3.8 AC power line conducted emission 4 Receiver parameters 4.1 Radiated emission APPENDIX ETS Product Service AG, Germany Registration number: G0M20704-1323-C-4 Page 2 of 36 1 General information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. Tester: 03.07.2007 W. Meng Date ETS-Lab. Name Signature Technical responsibility for area of testing: 03.07.2007 N. Kaspar Date ETS Name Signature ETS Product Service AG, Germany Registration number: G0M20704-1323-C-4 Page 3 of 36 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG Storkower Strasse 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 ACCREDITED COMPETENT BODY BNETZA-REGISTRATION NUMBER: BNETZA-ZS-026/96 FCC FILED TEST LABORATORY: REG. NO. 96970 INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED CERTIFICATE NUMBER: #1983.01 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) 1.3 Details of approval holder Name : Funkwerk Dabendorf GmbH Street : Märkische Strasse Town : 15806 Dabendorf Country : Germany Telephone : 03377 316-0 /-142 Fax : 03377 316-134 Contact : Herrn Bodo Nickel E-Mail : 03377 316-0 /-142 ETS Product Service AG, Germany Registration number: G0M20704-1323-C-4 Page 4 of 36 1.4 Application details Date of receipt of application : 23.04.2007 Date of receipt of test item : 23.04.2007 Date of test : 16.05.2007 - 25.06.2007 1.5 Test item Description of test item : Compenser Type identification : USA-MMC-DC Serial number : without Photos : See annex A. Technical data Frequency range Tx - GSM 850 : 824.2 - 848.80 MHz Frequency range Tx - PCS : 1850.2 - 1909.8 MHz Frequency range Rx - GSM 850 : 869.2 - 893.8 MHz Frequency range Rx - PCS : 1930.2 - 1989.8 MHz Antenna Type : external antenna (manufacturer declaration) Antenna Gain : -2 dBi (manufacturer declaration) Power supply : 13.5 V DC Operating mode : duplex Type of modulation : GMSK (GSM modulation) Emission : GPRS, Multi-slot class 10GXW Manufacturer: (if applicable) Name : Street : Town : Country : ETS Product Service AG, Germany Registration number: G0M20704-1323-C-4 Page 5 of 36 1.6 Test standards Technical standard : FCC Parts: 22H, 24E, 2, 15 IC Standards: RSS 132, RSS 133 Additional information : Because of using the GPRS 850 as an alternative technology in 850 MHz band, not all test cases of FCC Part 22 are required. This test report covers the test which are related to GPRS radio technology . Operation in others bands or with other radio technologies are subject of other independent test reports. 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 ° C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa ETS Product Service AG, Germany Registration number: G0M20704-1323-C-4 Page 6 of 36 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP R & S ETS 0003 Diode Power Sensor NRV-Z2 R & S ETS 0004 Spektrum- and Network- Analyzer FSMS 26 R & S ETS 0005 RF amplifier matrix RSU-ETS-CTR6 ETS ETS 0006 HP-Filter H1G04G01 Microwave ETS 0007 Horn antenna AT 4004 ar ETS 0008 Antenna Loop antenna Siemens ETS 0009 Comb Generator Emitter CGE 02 York EMC Services ETS 0011 Antenna (van Veen/Frame) HM020Z3 R & S ETS 0012 Biconical Antenna HK 116 R & S ETS 0013 LPD Antenna HL 223 R & S ETS 0014 Log Periodical Antenna HL 025 R & S ETS 0015 Log Periodical Antenna HL 025 R & S ETS 0016 Precision antenna kit VHAP Schwarzbeck ETS 0017 Precision antenna kit UHAP Schwarzbeck ETS 0018 Horn antenna BBHA 9120 D Schwarzbeck ETS 0019 Horn antenna BBHA 9120 D Schwarzbeck ETS 0020 Antenna DP 21 MEB ET…

Text truncated - open the document above for the full version.

ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES PARTS 22H and 24E IC RADIO STANDARDS RSS 132 and RSS 133 for UMTS FCC ID: RK7USA-MMC-DC Model Name: USA-MMC-DC Test report no.: G0M20704-1323-C-1 Certificate #1983.01 ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG, Germany Registration number: G0M20704-1323-C-1 Page 1 of 36 TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General test procedure 2.5 Test results 3 Transmitter parameters 3.1 RF power output conducted 3.2 RF power output radiated (ERP, EIRP) 3.3 Occupied bandwidth, emission bandwidth 3.4 Frequency stability 3.5 Spurious emission conducted (antenna terminal) 3.6 Spurious emission radiated 3.7 Block edge compliance 3.8 AC power line conducted emission 4 Receiver parameters 4.1 Radiated emission APPENDIX ETS Product Service AG, Germany Registration number: G0M20704-1323-C-1 Page 2 of 36 1 General information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. Tester: 25.06.2007 M. Schlaps Date ETS-Lab. Name Signature Technical responsibility for area of testing: 25.06.2007 N. Kaspar Date ETS Name Signature ETS Product Service AG, Germany Registration number: G0M20704-1323-C-1 Page 3 of 36 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG Storkower Strasse 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 ACCREDITED COMPETENT BODY BNETZA-REGISTRATION NUMBER: BNETZA-ZS-026/96 FCC FILED TEST LABORATORY: REG. NO. 96970 INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED CERTIFICATE NUMBER: 1983.01 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) 1.3 Details of approval holder Name : Funkwerk Dabendorf GmbH Street : Märkische Strasse Town : 15806 Dabendorf Country : Germany Telepho…

Text truncated - open the document above for the full version.
