RLS-STAVL1007INTELLITRAC

Systems & Technology Corp. © 2010 This document contains confidential, restricted, and proprietary information. The document has been prepared for the exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in part, without the prior, written consent of an authorized officer of S&T. I I n n t t e e l l l l i i T T r r a a c c A A 1 1 - - l l i i t t e e S S e e r r i i e e s s U U s s e e r r G G u u i i d d e e Version: V0.1 Date: 26 May 2010 Status: Preliminary Systems & Technology Corp. © 2010 This document contains confidential, restricted, and proprietary information. The document has been prepared for the exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in part, without the prior, written consent of an authorized officer of S&T. General notes With respect to any damages arising in operation with the described product or this document, S&T shall be liable according to the General Conditions on which the delivery of the described product and this document are based. This product is not intended for use in life support appliances, devices or systems where a malfunction of the product can reasonably be expected to result in personal injury. S&T customers using or selling this product for use in such applications do so at their own risk and agree to fully indemnify S&T for any damages resulting from illegal use or resale. Information in this document is subject to change without notice at any time. Copyright notice Copying of this document and giving it to others and the use or communication of the contents thereof, are forbidden without express authority. Offenders are liable to the payment of damages. © Systems & Technology Corp. All rights reserved IntelliTrac A1-lite Series User Guide Systems & Technology Corp. © 2010 This document contains confidential, restricted, and proprietary information. The document has been prepared for the exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in part, without the prior, written consent of an authorized officer of S&T. T T a a b b l l e e O O f f C C o o n n t t e e n n t t s s 1. Introduction............................................................................................................................. 1 1.1 Scope ........................................................................................................................................ 1 1.2 About IntelliTrac A1-lite ................................................................................................................ 2 1.3 Hardware Architecture ................................................................................................................. 3 1.4 Related Documents ..................................................................................................................... 4 2. Basic Operations ..................................................................................................................... 4 2.1 Hardware Installation ................................................................................................................... 4 2.2 Connectors Pins Assignment ....................................................................................................... 6 2.3 Device Configurations .................................................................................................................. 7 2.4 Communication Settings ............................................................................................................ 11 2.5 GPS Tracking Configurations..................................................................................................... 13 2.6 Firmware Upgrade ..................................................................................................................... 15 3. Technical Specification for IntelliTrac A1-lite................................................................... 16 4. About Systems & Technology Corporation ........................................................................ 17 IntelliTrac A1-lite Series User Guide Systems & Technology Corp. © 2010 This document contains confidential, restricted, and proprietary information. The document has been prepared for the exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in part, without the prior, written consent of an authorized officer of S&T. - 1 - 1 1 . . I I n n t t r r o o d d u u c c t t i i o o n n Thank you for your purchasing IntelliTrac A1-lite GPS Vehicle Tracking device. The benefits are:
Improve Safety
Ensure Security
Good efficiency on Fleet management and Dispatch solution
Asset and resource management
Economic operation and improving productivity
Keep the Journey record for future analysis or accident report
Where is the Car? When it will arrive? What is its speed now? 1.1 Scope The purpose of this document is to describe how to getting started with the IntelliTrac A Series devices. The document contains basic device configuration. For advanced users, please refer to the IntelliTrac A Series Protocol Document for detailed information. IntelliTrac A1-lite Series User Guide Systems & Technology Corp. © 2010 This document contains confidential, restricted, and proprietary information. The document has been prepared for the exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in part, without the prior, written consent of an authorized officer of S&T. - 2 - 1.2 About IntelliTrac A1-lite The IntelliTrac A1-lite GPS Unit wirelessly transmits location, peripheral, and vehicle control data to a control center. Location data, including speed, direction, mileage, and altitude, is provided by an onboard GPS receiver. Wireless transmission is achieved using an onboard GSM/GPRS mo…

Text truncated - open the document above for the full version.

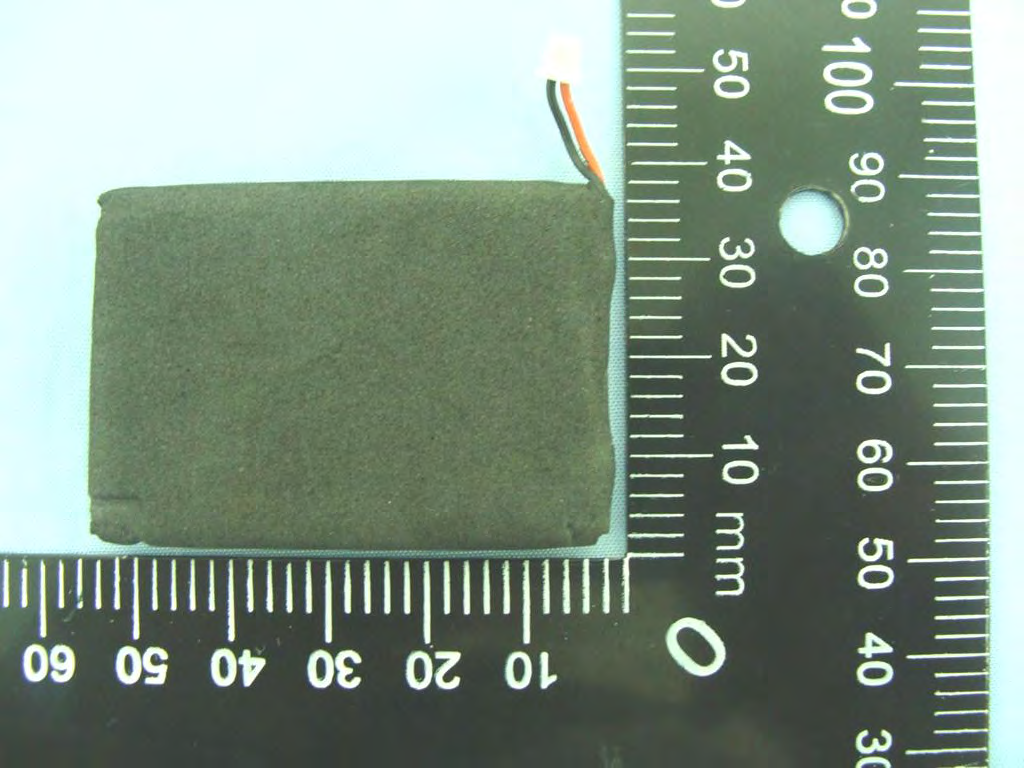

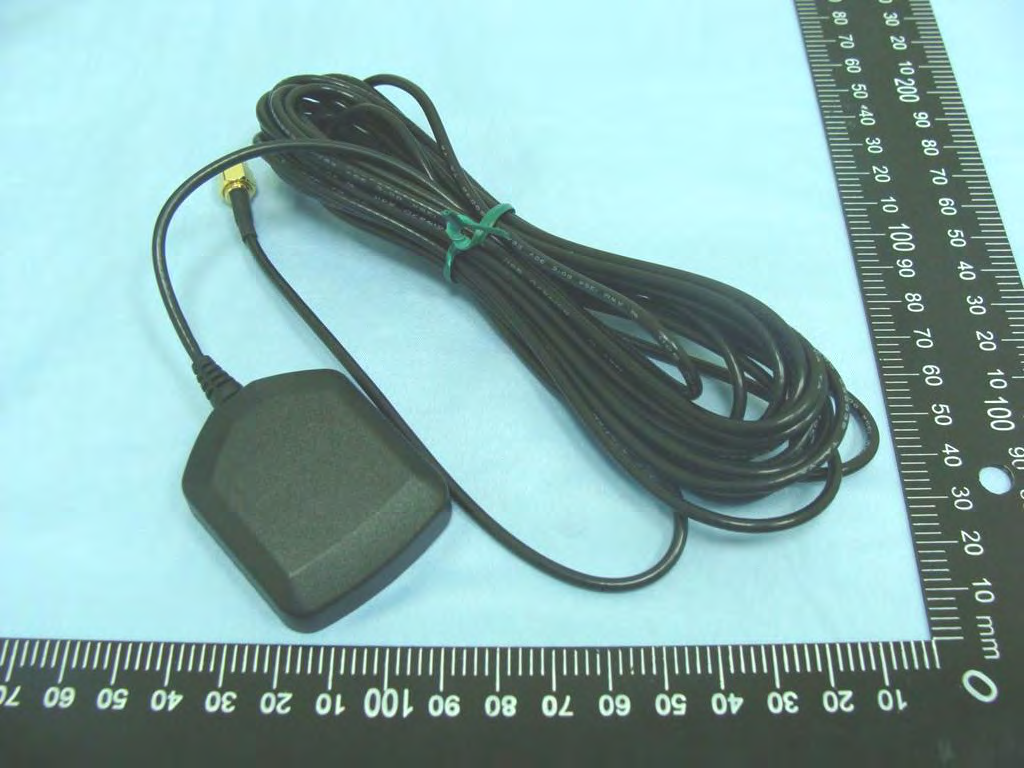

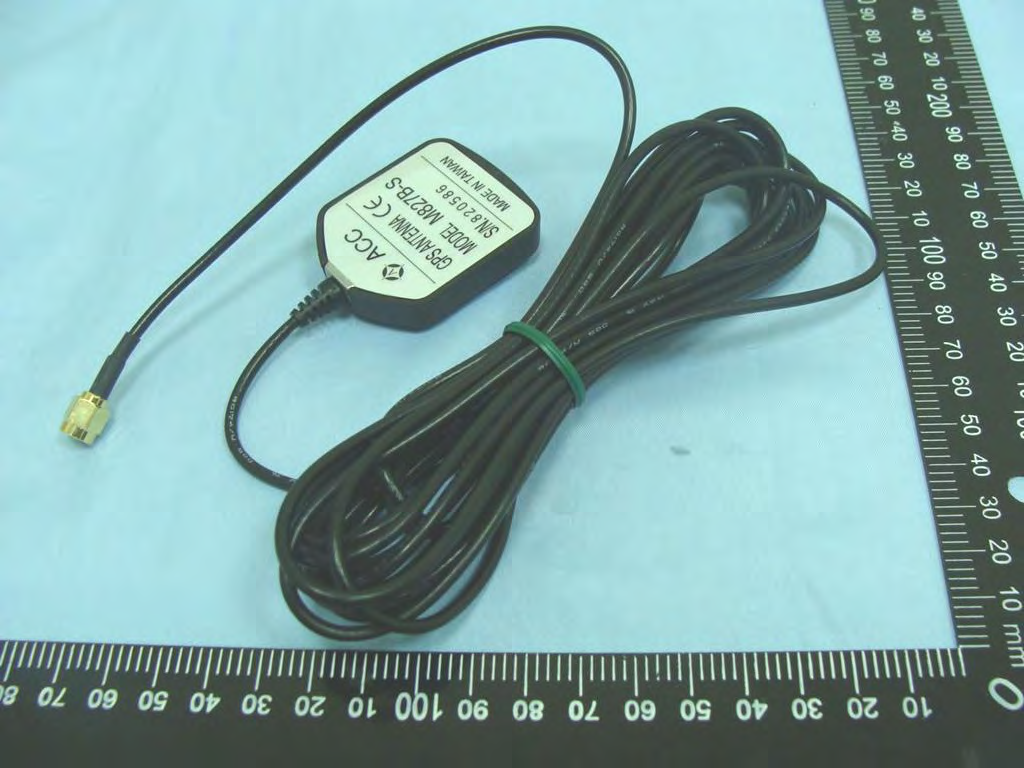

Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 1 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 1. External Photograph of EUT Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 2 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 3 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 4 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 5 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 6 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 720510 Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 7 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 List of Accessory: Specification of Accessory Battery Brand Name EIZON Model Name LP068B-900 Power Rating 3.7Vdc, 900mAh Type Li-ion GPS Antenna Brand Name ACC Model Name M827B-S Signal Line Type 5.0 meter non-shielded cable without ferrite core RS-232 Cable Signal Line Type 1.5 meter shielded cable without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 8 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 9 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 10 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 11 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 12 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 13 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 14 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 720510

Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 15 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 3. Internal Photograph of EUT Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 16 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 17 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 18 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 19 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 20 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 21 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 GPS Antenna <Rx only> Photographs of EUT Report No.: EP021013 Model Name: A1-Lite SPORTON INTERNATIONAL INC. Page Number : 22 of 22 TEL : 886-3-327-3456 Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 720510 WWAN Antenna <Tx/Rx>

SPORTON INTERNATIONAL INC. Page Number : 1 of 8 TEL : 886-3-327-3456 Report Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 RF Exposure Evaluation Report Report No. : FA021013 RF Exposure Evaluation Report APPLICANT : SYSTEMS & TECHNOLOGY CORP. EQUIPMENT : IntelliTrac BRAND NAME : IntelliTrac MODEL NAME : A1-Lite FCC ID : RLS-STAVL1007 FILING TYPE : Certification STANDARD : OET Bulletin 65 Supplement C (Edition 01-01) We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with FCC OET Bulletin 65 Supplement C (Edition 01-01). The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 8 TEL : 886-3-327-3456 Report Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 RF Exposure Evaluation Report Report No. : FA021013 Table of Contents REVISION HISTORY .......................................................................................................................................... 3 1. INTRODUCTION .......................................................................................................................................... 4 2. ADMINISTRATION DATA ........................................................................................................................... 6 2.1 Testing Laboratory ............................................................................................................................. 6 2.2 Applicant ............................................................................................................................................ 6 2.3 Manufacturer ...................................................................................................................................... 6 3. GENERAL INFORMATION ......................................................................................................................... 7 3.1 Description of Device Under Test (DUT) ........................................................................................... 7 4. RF EXPOSURE EVALUATION ................................................................................................................... 8 4.1 Radio Frequency Radiation Exposure Evaluation ............................................................................. 8 SPORTON INTERNATIONAL INC. Page Number : 3 of 8 TEL : 886-3-327-3456 Report Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 RF Exposure Evaluation Report Report No. : FA021013 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA021013 Rev. 01 Initial issue of report Mar. 22, 2010 SPORTON INTERNATIONAL INC. Page Number : 4 of 8 TEL : 886-3-327-3456 Report Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 RF Exposure Evaluation Report Report No. : FA021013 1. Introduction The report has been prepared on behalf of SYSTEMS & TECHNOLOGY CORP. IntelliTrac to show compliance with the RF Exposure.  Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows:  Fixed installation: Fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters.  Mobile Devices: A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091.  Portable Devices: A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the IntelliTrac A1-Lite is being done as a mobile device and the MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: SPORTON INTERNATIONAL INC. Page Number : 5 of 8 TEL : 886-3-327-3456 Report Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 RF Exposure Evaluation Report Report No. : FA021013  Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize su…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 36 TEL : 886-3-327-3456 Report Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 FCC RF Test Report Report No. : FG021013 FCC RF Test Report APPLICANT : SYSTEMS & TECHNOLOGY CORP. EQUIPMENT : IntelliTrac BRAND NAME : IntelliTrac MODEL NAME : A1-Lite FCC ID : RLS-STAVL1007 STANDARD : FCC 47 CFR Part 2, 22(H), 24(E) CLASSIFICATION : PCS Licensed Transmitter (PCB) Tx/Rx FREQUENCY RANGE : GSM850 : 824.2 ~ 848.8 MHz / 869.2 ~ 893.8 MHz GSM1900 : 1850.2 ~ 1909.8 MHz / 1930.2 ~ 1989.8 MHz MAX. ERP/EIRP POWER : GSM850 (GSM) : 1.29 W GSM1900 (GSM) : 0.18 W EMISSION DESIGNATOR : 244KGXW The product was received on Feb. 10, 2010 and completely tested on Mar. 12, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 36 TEL : 886-3-327-3456 Report Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 FCC RF Test Report Report No. : FG021013 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Test Mode.......................................................................................................................................... 7 2.2 Connection Diagram of Test System ................................................................................................ 8 3 TEST RESULT ............................................................................................................................................. 9 3.1 Conducted Output Power Measurement ........................................................................................... 9 3.2 Effective Radiated Power and Effective Isotropic Radiated Power Measurement ......................... 11 3.3 Occupied Bandwidth Measurement ................................................................................................ 14 3.4 Band Edge Measurement ................................................................................................................ 17 3.5 Conducted Emission Measurement ................................................................................................ 20 3.6 Field Strength of Spurious Radiation Measurement ....................................................................... 26 3.7 Frequency Stability Measurement ................................................................................................... 32 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 35 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 36 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 36 TEL : 886-3-327-3456 Report Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 FCC RF Test Report Report No. : FG021013 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FG021013 Rev. 01 Initial issue of report Mar. 22, 2010 SPORTON INTERNATIONAL INC. Page Number : 4 of 36 TEL : 886-3-327-3456 Report Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 FCC RF Test Report Report No. : FG021013 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 §2.1046 N/A Conducted Output Power N/A PASS 3.2 §22.913(a)(2) RSS-132(4.4) SRSP-503(5.1.3) Effective Radiated Power < 7 Watts PASS - 3.2 §24.232(c) RSS-133 (6.4) SRSP-510(5.1.2) Equivalent Isotropic Radiated Power < 2 Watts PASS - 3.3 §2.1049 §22.917(a) §24.238(a) N/A Occupied Bandwidth N/A PASS - 3.4 §2.1051 §22.917(a) §24.238(a) RSS-132 (4.5.1) RSS-133 (6.5.1) Band Edge Measurement < 43+10log 10 (P[Watts]) PASS - 3.5 §2.1051 §22.917(a) §24.238(a) RSS-132 (4.5.1) RSS-133 (6.5.1) Conducted Emission < 43+10log 10 (P[Watts]) PASS - 3.6 §2.1053 §22.917(a) §24.238(a) RSS-132 (4.5.1) RSS-133 (6.5.1) Field Stren…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : B1 of B2 TEL : 886-3-327-3456 Report Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 FCC RF Test Report Report No. : FG021013 Appendix B. Setup Photographs <Radiated Emission> Front View Rear View SPORTON INTERNATIONAL INC. Page Number : B2 of B2 TEL : 886-3-327-3456 Report Issued Date : Mar. 22, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RLS-STAVL1007 FCC RF Test Report Report No. : FG021013 Remote View
