RMK-NVQZIGB1Wireless Data Acquisition System

Rhein Tech Laboratories, Inc. Client: TMI-USA, Inc. 360 Herndon Parkway Model # : NVQRADIOZIGB1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: RMK-NVQZIGB1/10839A-NVQZIGB1 http://www.rheintech.com Report #: 2013010 Page 42 of 46 Appendix K: Manual Please refer to the following pages. User’s guide Radio NanoVACQ 2.4 GHz TO/FORM/104701.ed1 TO/NL3/NVQ/DOC/NVQ_RADIO/EN.ed1 FCC page 1 / 10 Main specifications : - dimensions : D.31 x H.45 mm - volume : 34cc - weight : 120 g - m emory : 48 000 acquisitions ÷ number of channels TMI-ORION Parc de Bellegarde, Bât. C 1, chemin de Borie F-34170 CASTELNAU LE LEZ Tél. : + (33) 4.99.52.67.10 Fax : + (33) 4.99.52.67.19 USER’S GUIDE Radio NanoVACQ 2.4GHz [NVQ-2.4GHz] Quality control Radio Data logger User’s guide Radio NanoVACQ 2.4 GHz TO/FORM/104701.ed1 TO/NL3/NVQ/DOC/NVQ_RADIO/EN.ed1 FCC page 2 / 10 Main specifications : - dimensions : D.31 x H.45 mm - volume : 34cc - weight : 120 g - m emory : 48 000 acquisitions ÷ number of channels TMI-ORION Parc de Bellegarde, Bât. C 1, chemin de Borie F-34170 CASTELNAU LE LEZ Tél. : + (33) 4.99.52.67.10 Fax : + (33) 4.99.52.67.19 USER’S GUIDE Radio NanoVACQ 2.4GHz [NVQ-2.4GHz] Table of contents 1. General description of the Radio NanoVacq 2.4 GHz ________________ 3 2. Precautions of use ___________________________________________ 4 3. Disconnecting device _________________________________________ 4 4. Electrical Safety Data Sheet ___________________________________ 5 5. NanoVACQ Radio 2.4 GHz ____________________________________ 5 6. Radio Receiver 2.4 GHz - ZigBeeBase ___________________________ 5 7. Detailed description of the Radio NanoVACQ 2.4 GHz ______________ 6 8. General ___________________________________________________ 6 9. Mechanical resistance ________________________________________ 6 10. Antenna ___________________________________________________ 7 11. Caution about the NanoVACQ temperature _______________________ 7 12. Use the Radio Receiver 2.4 GHz ________________________________ 8 13. USB port connexion _________________________________________ 8 14. Long distance communication via RS485 _________________________ 9 15. Communication by Ethernet port _______________________________ 9 All the pictures shown in this guide are not contractual. User’s guide Radio NanoVACQ 2.4 GHz TO/FORM/104701.ed1 TO/NL3/NVQ/DOC/NVQ_RADIO/EN.ed1 FCC page 3 / 10 Main specifications : - dimensions : D.31 x H.45 mm - volume : 34cc - weight : 120 g - m emory : 48 000 acquisitions ÷ number of channels TMI-ORION Parc de Bellegarde, Bât. C 1, chemin de Borie F-34170 CASTELNAU LE LEZ Tél. : + (33) 4.99.52.67.10 Fax : + (33) 4.99.52.67.19 USER’S GUIDE Radio NanoVACQ 2.4GHz [NVQ-2.4GHz] 1. General description of the Radio NanoVacq 2.4 GHz The Radio NanoVACQ 2.4 GHz is a wireless data logger equipped with one or multiple sensors. The design features the following: the ability to transmit data, thanks to the radio communication, (temperature, pressure, humidity,..) in real time and beside the ability to record data in side the memory. The used frequency band is located in the 2.4 GHz (industrial equipment) ISM band (scientific or medical). The Radio NanoVACQ 2.4 GHz is designed to be exposed to temperatures ranging from -80 to +150°C and is fully waterproof to immersion; it may be exposed to some pressure up to 15 bars. The logger body is made of 316L stainless steel. The Radio NanoVACQ 2.4 GHz body is 31 mm diameter. Its height may vary from 45 to 135 mm according to the temperature range and the battery pack used. The Radio NanoVACQ 2.4 GHz antenna, that can be unplugged from the base, is 50 mm long and is insulated. It allows wireless data transmission. The User would use the Software Qlever to set the parameters of the NanoVACQ 2.4GHz. When programming, the user would select the desired operating mode: - Transmitting data without recording inside the memory, - Recording data without transmitting, - Both transmitting data by radio & recording inside the memory. The Radio NanoVACQ 2.4 GHz is wireless because it has its own battery pack specially designed for this purpose and easily replaceable (only batteries provided by TMI-Orion can be used). User’s guide Radio NanoVACQ 2.4 GHz TO/FORM/104701.ed1 TO/NL3/NVQ/DOC/NVQ_RADIO/EN.ed1 FCC page 4 / 10 Main specifications : - dimensions : D.31 x H.45 mm - volume : 34cc - weight : 120 g - m emory : 48 000 acquisitions ÷ number of channels TMI-ORION Parc de Bellegarde, Bât. C 1, chemin de Borie F-34170 CASTELNAU LE LEZ Tél. : + (33) 4.99.52.67.10 Fax : + (33) 4.99.52.67.19 USER’S GUIDE Radio NanoVACQ 2.4GHz [NVQ-2.4GHz] The Radio NanoVACQ 2.4 GHz system generally includes: - The Radio NanoVACQ 2.4 GHz with a new battery pack and its transmitting antenna, - An interface for PC communication, - A radio receiver and its antenna, - An operating software, - An opening wrench, - The NanoVACQ calibration file, - A calibration certificate, - A transport case (optional). RS485 option : - RS232 to RS485 converter cable with RJ11 card, - 110V/220V adapter for radio receiver (RS485 or Ethernet only). 2. Precautions of use The Radio NanoVACQ 2.4 GHz and the Radio Receiver 2.4 GHz are specific materials that should be used in a restricted access area only, with users who have carrefully read every precautions of use written in the manuals. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2…

Text truncated - open the document above for the full version.

11491 Sunset Hills Road Suite 310 TMI-USA INC. Reston , VA 20190 T ~ I www.tmigi.com (703) 668-0114 Fax: (703) 668-0118 ATTESTATION lETTER Reston 02/08/2013 The statement in the user manual regarding restricted access stems from a European certification requirement concerning electrical safety. This statement does not apply in any way to the transmitter. Guillaume Favre V.P. of Operations

Rhein Tech Laboratories, Inc. Client: TMI-USA, Inc. 360 Herndon Parkway Model # : NVQRADIOZIGB1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: RMK-NVQZIGB1/10839A-NVQZIGB1 http://www.rheintech.com Report #: 2013010 Page 33 of 46 Appendix B: Agency Authorization Letter Please refer to the following page.

Rhein Tech Laboratories, Inc. Client: TMI-USA, Inc. 360 Herndon Parkway Model # : NVQRADIOZIGB1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: RMK-NVQZIGB1/10839A-NVQZIGB1 http://www.rheintech.com Report #: 2013010 Page 34 of 46 Appendix C: FCC Confidentiality Request Letter Please refer to the following page.

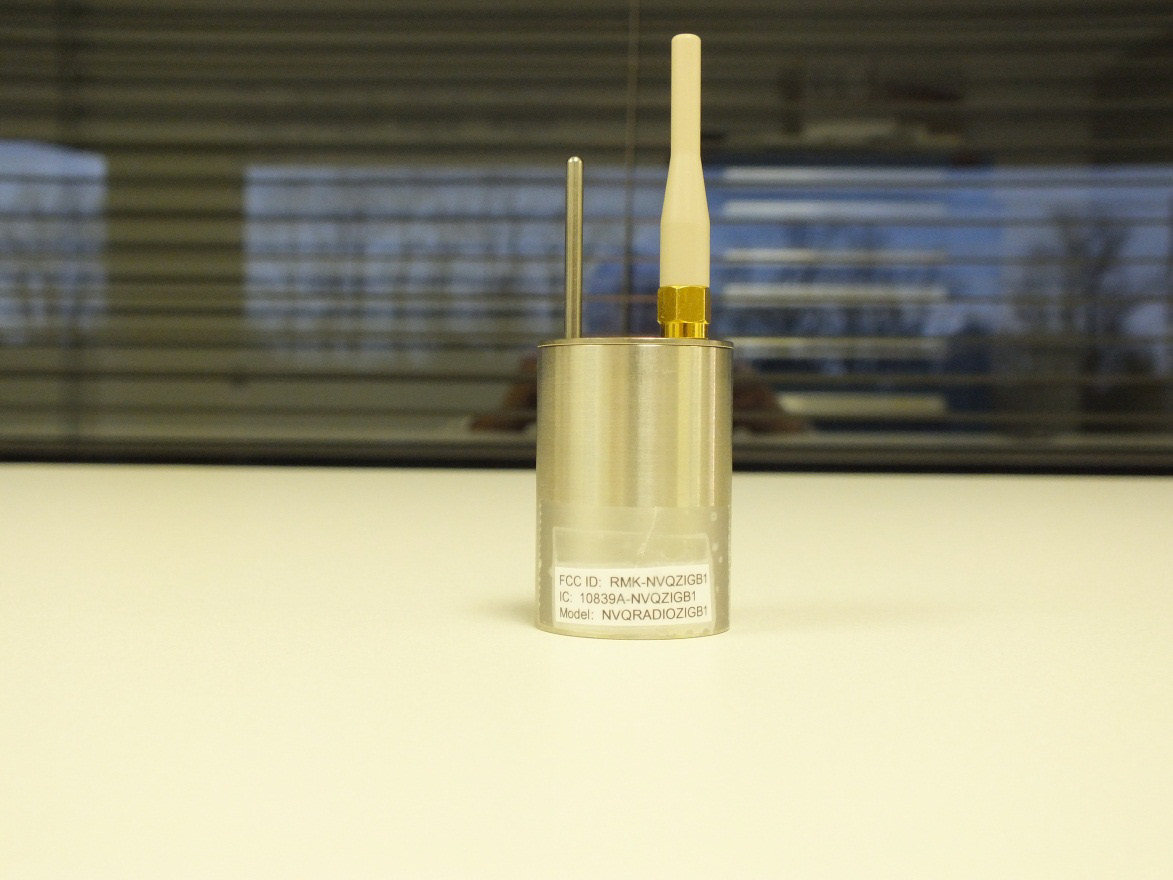

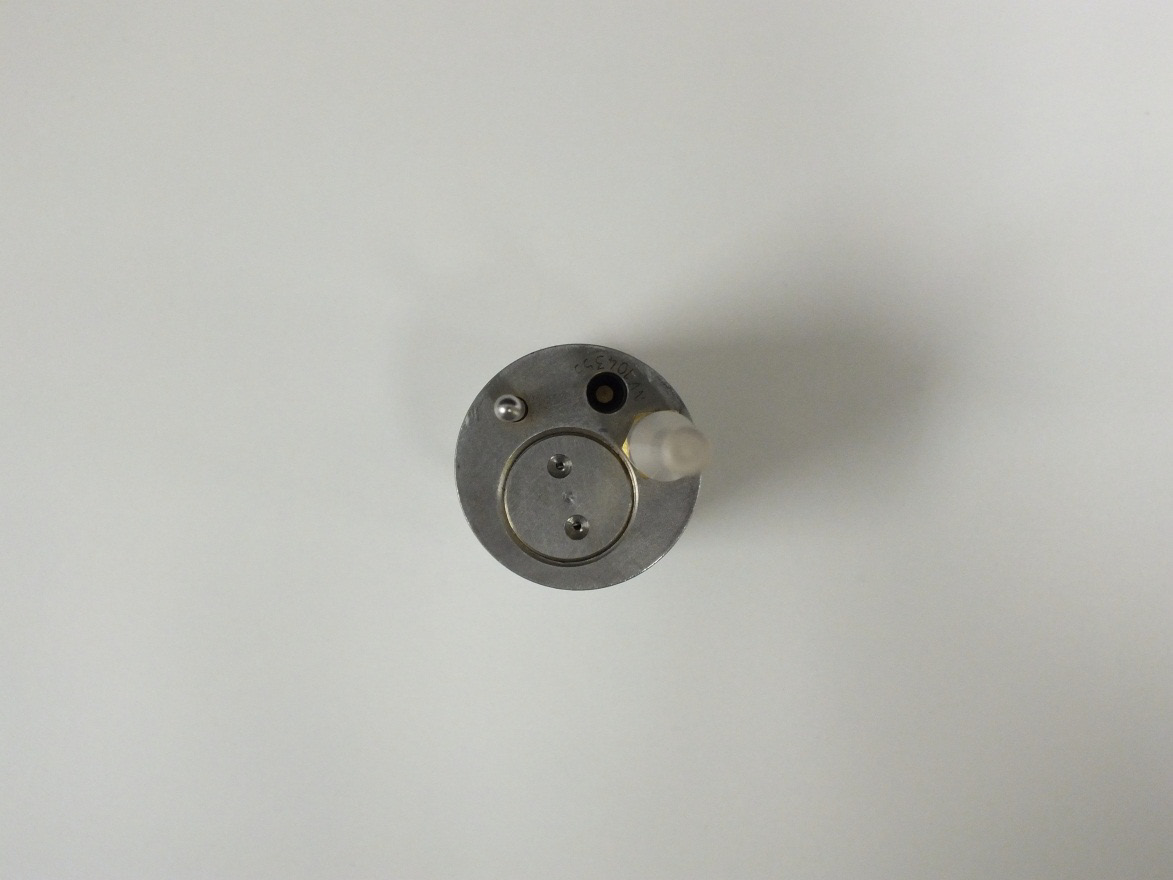

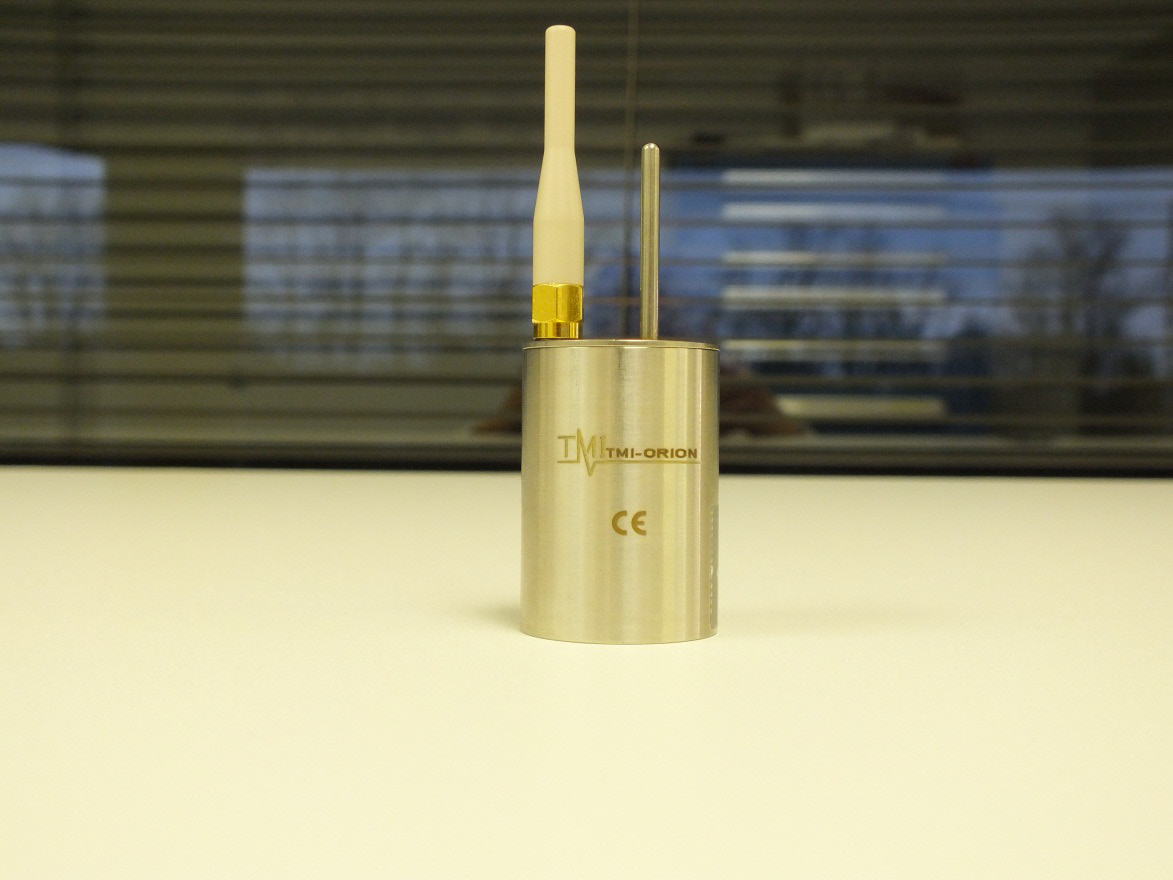

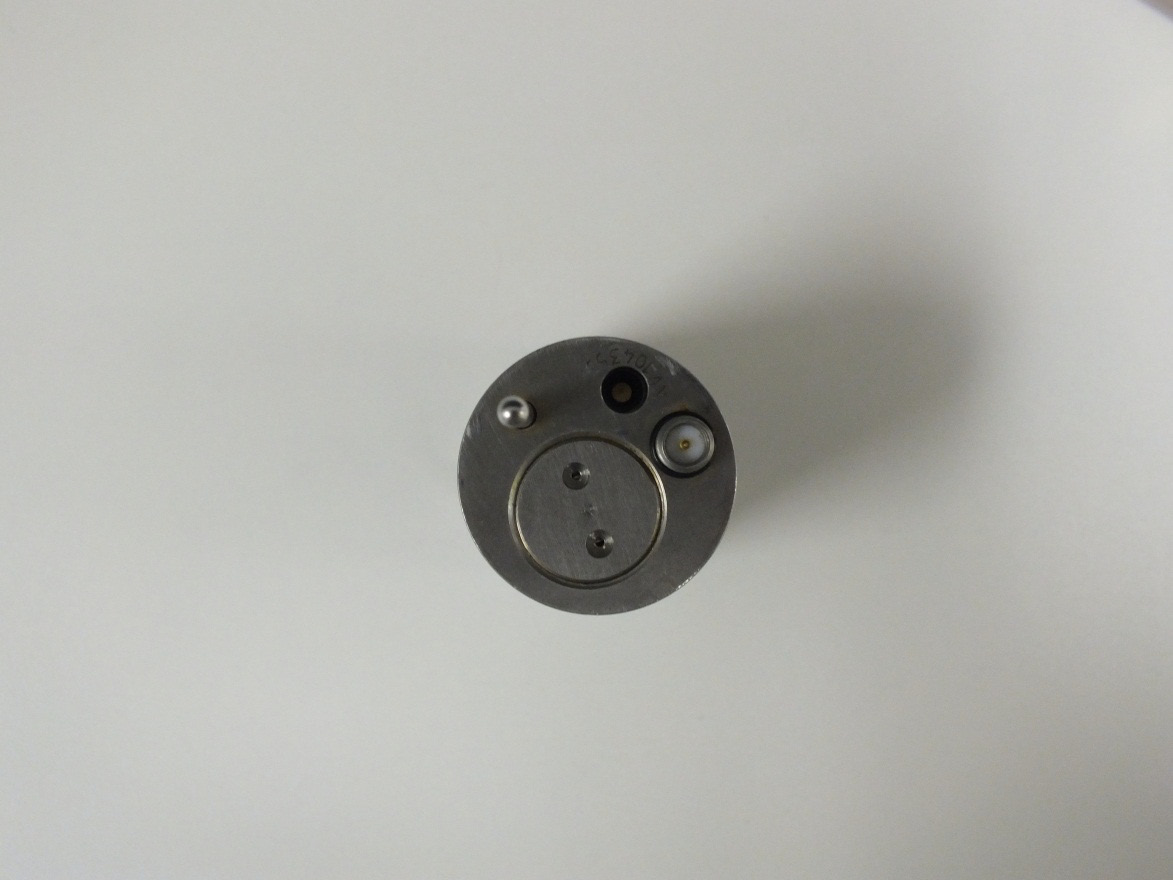

Rhein Tech Laboratories, Inc. Client: TMI-USA, Inc. 360 Herndon Parkway Model # : NVQRADIOZIGB1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: RMK-NVQZIGB1/10839A-NVQZIGB1 http://www.rheintech.com Report #: 2013010 Page 45 of 46 Appendix M: External Photographs Please refer to the following pages. NANOVACQ RADIO 2.4 GHZ Figure 1: Logger Front View Figure 2: Logger Back View Figure 3: Logger with Antenna Top View Figure 4: Logger without Antenna Top View Figure 5: Logger Bottom View

Rhein Tech Laboratories, Inc. Client: TMI-USA, Inc. 360 Herndon Parkway Model # : NVQRADIOZIGB1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: RMK-NVQZIGB1/10839A-NVQZIGB1 http://www.rheintech.com Report #: 2013010 Page 38 of 46 Appendix G: ID Label and Label Location Please refer to the following page. ID Label Sample This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. this device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. FCC ID: RMK-NVQZIGB1 IC: 10839A-NVQZIGB1 Model: NVQRADIOZIGB1 ID Label Location ID Label Location

Rhein Tech Laboratories, Inc. Client: TMI-USA, Inc. 360 Herndon Parkway Model # : NVQRADIOZIGB1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: RMK-NVQZIGB1/10839A-NVQZIGB1 http://www.rheintech.com Report #: 2013010 Page 46 of 46 Appendix N: Internal Photographs Please refer to the following pages. Figure 1: Memory Board Top View Figure 2: Memory Board Bottom View Figure 3: Radio Board Top View Figure 4: Radio Board Bottom View Figure 5: Battery Board Top View Figure 6: Battery Board Bottom View Figure 7: Final Assembly of the Circuit Boards in Data Logger with Battery Case Removed Battery board Radio board Memory board

Rhein Tech Laboratories, Inc. Client: TMI-USA, Inc. 360 Herndon Parkway Model # : NVQRADIOZIGB1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: RMK-NVQZIGB1/10839A-NVQZIGB1 http://www.rheintech.com Report #: 2013010 Page 32 of 46 Appendix A: FCC Part 1.1307, 1.1310, 2.1091, 2.1093; IC RSS-Gen: RF Exposure No RF Exposure Evaluation Required if power is below the following threshold: Tunable Range f(GHz) Low f(GHz) High Center of Tunable Band (GHz) 60/f SAR Limitation (mW) 2.405 2.480 2.443 24.6 Maximum measured transmitter power: Pout Conducted (mW) Maximum Antenna Gain (numeric) Pout EIRP (mW) 1.7 1.3 2.0 Threshold at which no RF exposure evaluation is 24.6 mW. Maximum TX Power is 1.7 mW conducted and 2 mW EIRP. Conclusion: No RF exposure evaluation is required since the maximum Transmitter Pout (both conducted and EIRP) is well below the FCC threshold.

Rhein Tech Laboratories, Inc. Client: TMI-USA, Inc. 360 Herndon Parkway Model # : NVQRADIOZIGB1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: RMK-NVQZIGB1/10839A-NVQZIGB1 http://www.rheintech.com Report #: 2013010 Page 43 of 46 Appendix L: Test Photographs Photograph 1: Radiated Testing – Front View Rhein Tech Laboratories, Inc. Client: TMI-USA, Inc. 360 Herndon Parkway Model # : NVQRADIOZIGB1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: RMK-NVQZIGB1/10839A-NVQZIGB1 http://www.rheintech.com Report #: 2013010 Page 44 of 46 Photograph 2: Radiated Testing – Rear View
