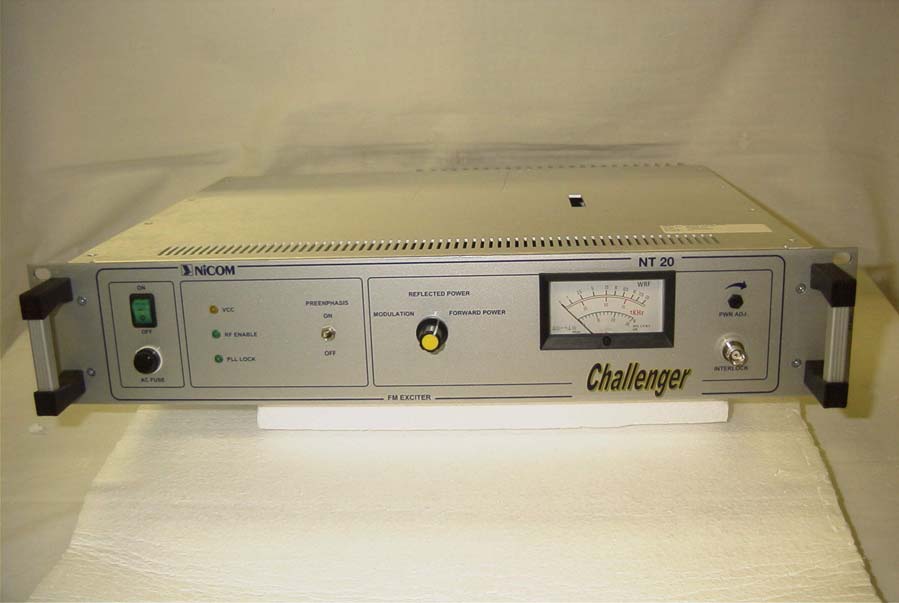

RMYNT20FP03BROADCAST TRANSMITTER

NT20 FREQUENCY TUNING PROCEDURE On top of unit you will find a small rectangular cut out that allows you to reach a rotary switch systems. This device has been conceived to make frequency changes quick and easy. As shown in the figure there are 4 rotary switches, each one has a specific function. The first one, from top to bottom, is to set the MHz x 10 (ie: 91 MHz = 9; 100 MHz = A) The second one sets the MHz x 1 (ie: for 91 MHz you would need to set this switch on 1) The third one sets the KHz x 100 (ie: for 91.5 MHz this switch would be set on 5) The fourth one sets the KHz x 10 –usually left on 0. Here are some examples to better understand the procedure: If you need to program a frequency of 98.1 MHz, these are the settings: 1) Set first switch on number 9 2) Set second switch on 8 3) Set third switch on 1 4) Leave fourth switch on 0 If you need to program a frequency of 102.7 Mhz, you would do the following: 1) Set first switch on A (because this is the symbol that equals 10) 2) Set second switch on 2 3) Set third switch on 7 4) Leave fourth switch on 0 If you would like you can cover the cut out with a sticker once you have set your frequency.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: NiCOM USA, INC. FCC ID: RMYNT20FP03 REPORT #: N\Nicom\1598UT3\1598UT3TestReport.doc COVER SHEET Test Report Product Name: FM EXCITER TRANSMITTER FCC ID: RMYNT20FP03 Applicant: NiCOM USA, INC. 2626 SOUTHPORT WAY SUITE B NATIONAL CITY, CA 91950 Date Receipt: DECEMBER 2, 2003 Date Tested: DECEMBER 18, 2003 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: NiCOM USA, INC. FCC ID: RMYNT20FP03 REPORT #: N\Nicom\1598UT3\1598UT3TestReport.doc TABLE OF CONTENTS APPLICANT: NiCOM USA, INC. FCC ID: RMYNT20FP03 TABLE OF CONTENTS LIST TEST REPORT CONTAINING: PAGE 1.........GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2.........TECHNICAL DESCRIPTION & RF POWER OUTPUT PAGE 3.........MODULATION CHARACTERISTICS AUDIO FREQUENCY RESPONSE GRAPH PAGE 4.........OCCUPIED BANDWIDTH PAGE 5-7.......OCCUPIED BANDWIDTH PLOTS PAGE 8.........SPURIOUS EMISSION AT ANTENNA TERMINALS PAGE 9.........METHOD OF MEASURING SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 10-12.....FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 13........METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 14........POWER LINE CONDUCTED INTERFERENCE PAGE 15........POWER LINE CONDUCTED PLOTS PAGE 16........FREQUENCY STABILITY PAGE 17-18.....EQUIPMENT LIST EXHIBITS INCLUDING: BLOCK DIAGRAM SCHEMATIC PARTS LIST USERS MANUAL LABEL SAMPLE & LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS TUNING PROCEDURE OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: NiCOM USA, INC. FCC ID: RMYNT20FP03 REPORT #: N\Nicom\1598UT3\1598UT3TestReport.doc Page 1 of 18 GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033 NiCOM USA, INC. will manufacture the FCC ID: RMYNT20FP03 in quantity, for use under FCC RULES PART 73.801, LOW POWER FM BROADCAST STATIONS (LPFM). 2.1033(c)(4) TECHNICAL_DESCRIPTION Type of Emission: 75KF3E Bn = 2M + 2DK M = 15000 D = 22KHz (Peak Deviation) K = 1 Bn = 2(15K) + 2(22K)(1) = 75K ALLOWED AUTHORIZED BANDWIDTH = 75 kHz. 2.1033 (c)(5) Frequency Range: 88 - 108MHz 2.1033 (c)(6) Power Range and Controls: The EUT can be adjusted from 2 Watt up to the maximum of the rated power. 2.1033 (c)(7) Maximum Output Power Rating: 30 Watts into 50 ohms resistive load. 2.1033 (c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY INPUT POWER: 24(V) @ 2(A) = 48 W 2.1033 (c)(9) Tune-up procedure. The tune-up procedure is given in the Exhibits. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram and the block diagrams are included as part of the attached exhibits. 2.1033(c)(11) Photographs or drawings of the identification label & its location are included as part of the exhibits. 2.1033(c)(12) Photographs of both the externals & internals are included as part of the exhibits. 2.1033(c)(13) Digital Modulation is NOT used in this EUT. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: NiCOM USA, INC. FCC ID: RMYNT20FP03 REPORT #: N\Nicom\1598UT3\1598UT3TestReport.doc Page 2 of 18 2.1033(c)(14) Data required by ¶ 2.1046 Through ¶ 2.1057 is submitted below. 2.1046 RF_power_output. 73.267 (b)(2) RF power is measured by Direct Method power using TIA/EIA STANDARD 603. OUTPUT POWER: 20 Watts TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: NiCOM USA, INC. FCC ID: RMYNT20FP03 REPORT #: N\Nicom\1598UT3\1598UT3TestReport.doc Page 3 of 18 2.1047(a)(b) Modulation characteristics: AUDIO_FREQUENCY_RESPONSE The audio frequency response was measured in accordance with TIA/EIA Specification 603. The audio frequency response curve is shown below. Audio Frequency Response -2 +18 -0 +2 +4 +6 +8 +10 +12 +14 +16 d B 60 30k100 200 5001k2k5k10k 20k Hz 2.1047(a)(b) AUDIO_LOW_PASS_FILTER The audio low pass filter is NA for this EUT. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: NiCOM USA, INC. FCC ID: RMYNT20FP03 REPORT #: N\Nicom\1598UT3\1598UT3TestReport.doc Page 4 of 18 2.1049 73.317(b-d) OCCUPIED BANDWIDTH: Any emission appearing on the frequency removed from the carrier between 120kHz and 240kHz inclusive must be attenuated at least 25 dB below the level of the un- modulated carrier. Compliance with this requirement will be deemed to show occupied bandwidth to be 240kHz or less. Any emission appearing on the frequency removed from the carrier by more than 240 kHz and up to and including 600 kHz must be attenuated at least 35 dB below the level of the un- modulated carrier. Any emission appearing on the frequency removed from the carrier by more than 600 kHz must be attenuated at least 43 + 10 Log(P) dB below the level of the un-modulated carrier, or 80 dB, whichever is the lesser attenuation. OCCUPIED BANDWIDTH MEASUREMENT REQUIREMENT: PART 73: 200kHz EMISSION BANDWIDTH. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: NiCOM USA, INC. FCC ID: RMYNT20FP03 REPORT #: N\Nicom\1598UT3\1598UT3TestReport.doc Page 5 of 18 OCCUPIED BANDWIDTH – 50 Hz TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: NiCOM USA, INC. FCC ID: RMYNT20FP03 REPORT #: N\Nicom\1598UT3\1598UT3TestReport.doc Page 6 of 18 OCCUPIED BANDWIDTH – 1kHz TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424…
