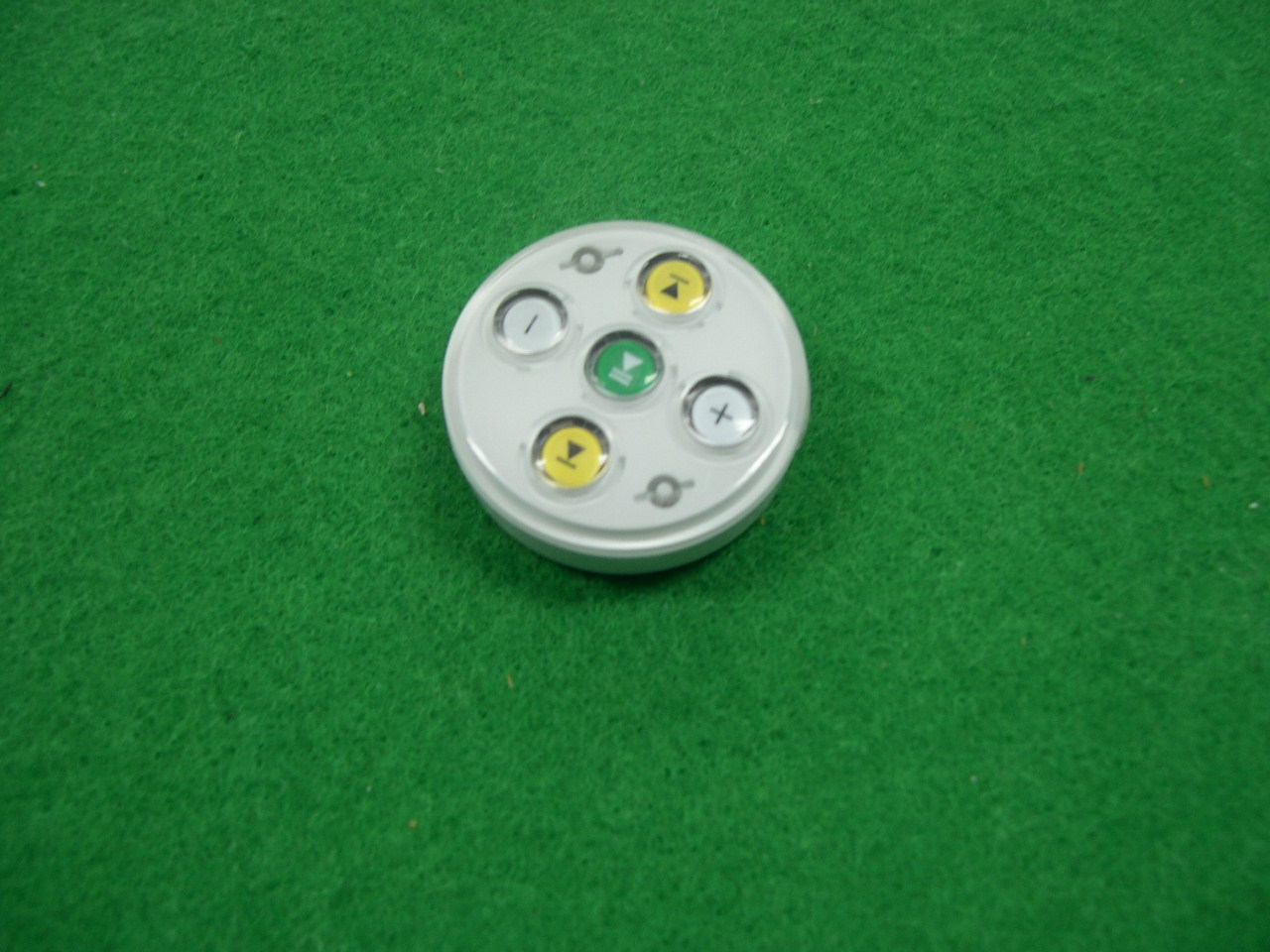

RNII610488030RTWIRELESS TRANSMITTER

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

FCC ID Label Sample for FCCID: RNII610488030RT_ FCC ID:RNII610488030RT

THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: ESEL INTERNATIONAL CO., LTD. FCC ID: RNII610488030RT REPORT #:THRU-603002 COVER SHEET Test Report Product Name: WIRELESS TRANSMITTER FCC ID: RNII610488030RT Applicant: ESEL INTERNATIONAL CO., LTD. RM 15-17, 5/F, CARDINAL IND. BLDG. NO. 17 ON LOK MUN ST., FANLING N.T. HONG KONG Date Receipt: 17/03/2006 Date Tested: 20/03/2006 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: ESEL INTERNATIONAL CO., LTD. FCC ID: RNII610488030RT REPORT #:THRU-603002 TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT: ESEL INTERNATIONAL CO., LTD. FCC ID: RNII610488030RT TEST REPORT CONTAINING: PAGE 1-2...........TEST EQUIPMENT LIST PAGE 3.............TEST PROCEDURE CONTD. PAGE 4-5...........RADIATION INTERFERENCE TEST DATA PAGE 6-8...........CALCULATION OF DUTY CYCLE PAGE 9-10..........OCCUPIED BANDWIDTH EXHIBIT INCLUDING: BLOCK DIAGRAM SCHEMATIC PARTS LIST INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: ESEL INTERNATIONAL CO., LTD. FCC ID: RNII610488030RT REPORT #:THRU-603002 Page 1 of 10 Test Equipment List No Description Manufacturer Model No. Serial No. Due Cal. 1 Test Receiver Rohde & Schwarz ESVS10 830489/001 2006.04.23 2 Test Receiver Rohde & Schwarz ESHS 10 825832/014 2006.08.25 3 Test Receiver Rohde & Schwarz ESVS 10 826008/014 2006.05.24 4 Spectrum Analyzer Hewlett Packard 8566B 2311A02394 2006.04.23 5 Spectrum Display Hewlett Packard 85662A 2542A12429 2006.04.23 6 Quasi-peak Adapter Hewlett Packard 85650A 2521A00887 2006.04.23 7 RF Preselector Hewlett Packard 85685A 2648A00504 2006.04.23 8 Preamplifer Hewlett Packard 8449B 3008A00375 2006.04.23 9 Preamplifer Hewlett Packard 8447F 3113A05367 2006.04.23 10 Preamplifer Hewlett Packard 8447F 2805A02570 2006.12.12 Preamplifer A.H. Systems PAM-0118 164 2007.01.17 11 Biconical Antenna Eaton Corp. 94455-1 0977 2006.04.01 12 Biconical Antenna EMCO 3104C 9111-2468 2006.06.07 13 Log Periodic Antenna EMCO 3146 2051 2006.04.01 14 Log Periodic Antenna EMCO 3146 8901-2320 2006.03.28 15 Horn Antenna A.H. Systems SAS-571 414 2006.03.17 Horn Antenna A.H. Systems SAS-571 781 2007.01.07 16 Loop Antenna Rohde & Schwarz HFH2-Z2.335.4711.52 826532/006 2006.01.31 17 Dipole Antenna Rohde & Schwarz VHAP 574 2006.12.12 18 Dipole Antenna Rohde & Schwarz VHAP 575 2006.12.12 19 Dipole Antenna Rohde & Schwarz UHAP 546 2006.12.12 20 Dipole Antenna Rohde & Schwarz UHAP 547 2006.12.12 21 Signal Generator Rohde & Schwarz SMS 872165/100 2006.04.23 22 Signal Generator Rohde & Schwarz SMX 825459/030 2006.05.20 23 Spectrum Monitor Rohde & Schwarz EZM 862304/007 None 24 Panorama Monitor Rohde & Schwarz EPN 883707/207 None 25 Spectrum Analyzer Advantest Corp. R3261C 61720208 2006.04.23 26 Spcetrum Analyzer Hewlett Packard 8591A 3205A02641 2007.01.27 27 LISN EMCO 3825/2 9111-1912 2006.12.12 28 LISN Solar 8012-50-R-24 8379121 2006.04.25 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: ESEL INTERNATIONAL CO., LTD. FCC ID: RNII610488030RT REPORT #:THRU-603002 Page 2 of 10 29 LISN Kyoritsu KNW-242 8-923-2 2006.04.25 30 Plotter Hewlett Packard 7475A 2210A02802 None 31 Modulation Analyzer Hewlett Packard 8901B 3438A05094 2006.04.23 32 Frequency Counter Tektronic CMC251 TW52489 2006.04.23 33 Temperature & Humidity Chamber TABAI EZPEC CORP.MC711P 112000492 2006.0827 34 Antenna Mast EMCO 1070-3 9109-1617 None 35 Turn Table EMCO 1080-1,2 9203-1762 None 36 Positioning Controller EMCO 1090 9111-1054 37 Antenna Power Supply Rohde & Schwarz HZ-9 920127 None 38 Pulse Limiter Rohde & Schwarz ESH3-Z2 881052 None 39 Coaxial Take-up Reel EMCO 100817 9109-1684 None THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: ESEL INTERNATIONAL CO., LTD. FCC ID: RNII610488030RT REPORT #:THRU-603002 Page 3 of 10 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of ThruLab & ENGINEERING. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 12.6’C with a humidity of 56%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table. The table used for radiated measurements is capable of continuous rotation. The spectrum was scanned from 30 MHz to 10th harmonic of the fundamental. Peak readings were taken in three (3) orthogonal planes and the highest readings were converted to average readings based on the duration of "ON" time. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m …

Text truncated - open the document above for the full version.
