RNKDS-2060Wireless Optical Mouse

Me/2000/XP ry PCS new AA alkaline batteries he mouse upper cover and pull the (Please see the reference picture) es correctly according to the polarity ooves. ers forward, when you hear ”crack” ws the battery cover is locked or, please use the USB to PS/2 adaptor nector before your computer start-up. nect the receiver directly with the USB ere is a little far between the case and , suggest you use an extended USB case and the receiver, so you can place orking surface conveniently. ID Setup 1. Please move the mouse near to the receiver 2. Press the ID button of the receiver by your hand, the receiver light begin to flash 3. Press the ID button of the mouse bottom with some hard and acuate object within 10 seconds, the receiver light will flash very fast, a few seconds later it will be on which shows it is successfully to finish the digital transmission between the mouse and the receiver. You may start to use it. 4. Working distance: within 1-2 meters. ÔÙ° ́·¢ÉäÆ÷ μÄ° ́Å¥ ÏÈ° ́½ÓÊÕÆ÷ μÄID° ́Å¥ Attention Please 1. Please don’t make the mouse far away from the receiver in order to work more smoothly. 2. You’d better use the mouse on the white desk, in this way the batteries can be used longer time. Please remove the batteries if the mouse will not be used for a long time. 3. This mouse with save power sleeping functions, please press any key or scroll the wheel to wa k 4. If you want to take off the m the ID switch of the mouse b take on the power,please clic 5. The optical mouse will notw any reflecting surface, 3D m 6. No need to check the digital change the batteries, if mo r above way to re-operate. Caution Any changes or modification party responsible for complian operate the equipment. Note Note: This equipment has bee the limits for a Class B digital FCC Rules. These limits are d protection against harmful inte This equipment generates, use energy and, if not installed an instructions, may cause harm f communications. However, th will not occur in a particular in First press the button of the receiver Then press the button of the mouse

DS-2060 TX Block Diagram Antenna RF Generator X2 oscillatio n 27.045MHZ MCU X1 oscillatio n 76.8K DC-DC Steup Optical sensor X3 oscillatio n 18MHZ Key &Encoder C A B TX 27.045MHZ DS-2060 RX Block Diagram Detector MCU Y2 oscillation 6.0MHZ EEPROM Connector Indication Antenna Local Generator Y1 oscillatio n 26.59MHZ Connect key

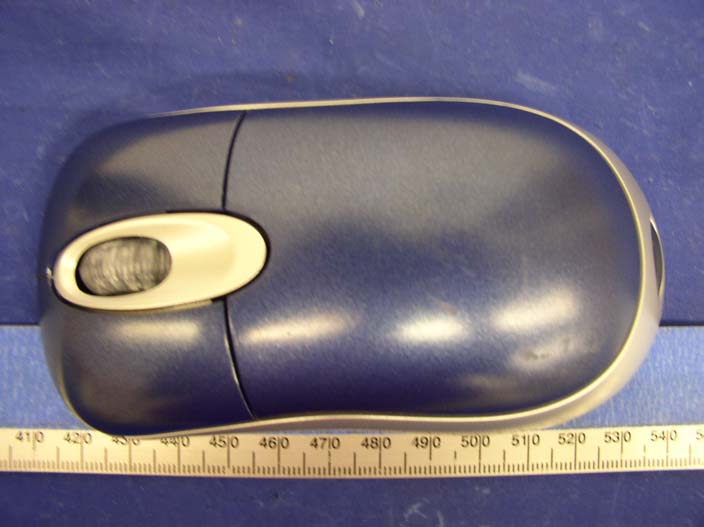

Eastern Times Technology Co., Ltd FCC ID: RNKDS-2060 EXHIBIT C - EUT PHOTOGRAPHS Chassis - Top View Chassis - Bottom View

EXHIBIT A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications: Text is black in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing and shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT Chassis Rear of EUT/FCC ID Label Proposed Location FCC ID: RNKDS-2060 This device complies with Part 15 of the FCC Operation is subject to the following two (1) this device may not cause harmful interference, and this device must accept any interference received, interference that may cause undesired 2.1875" 1.0"

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Chassis – Cover Off View EUT – Component View 1 EUT – Solder View 1 EUT- Component View 2 EUT – Solder View 2 EUT – Component View 3 EUT – Solder View 3

Circuit ‘s operation Description for DS-2060 This circuit is mainly consisted of convertor IC（U4）， IC（U3）,MCU IC（U2）. IC U4 provides the circuit with a stable 3Vvolts d.c and U3 provide the circuit with a stanble 4 V . to keep the circuit working.。when the mouse is moving on the desktop, photoelectric processor IC-U1collect optical signals reflected by the desktop，and transfer them into the MCU IC-U2 ， then processed and managed. By MCU ， together, they are sent to the FSK circuit 。 In the MCU IC-U2,there is internal RF Generator，the electric signals out from MCU will be generated, and output the data from 8# feet of U2 ， and radiate the signal to outside 。 MCU will provide and generate a code from the 22# feet of IC-U2 when you press the ID button，at the same time ,MCU will storage this code, and keeping the ID code unchanged until out of power 。 The MCU IC-U2 have two functions of sleep and wake up. For saving up the capacity of power, the circuit will keep sleeping model when the mouse has stopped on the desktop for a fixture time; you can press any key or wheel switch to let it work again.

DS-2060 TX SCH 1 2 34 A BC D 4 3 2 1 D CB A Title Number Revision Size A4 Date: 29-Sep-2004 Sheet of File: F:\yuheping\RD\2060\2060.ddb Drawn By: PCBANT EN R1 L1 L2 D1 C1C2 C3 ID C4 C7 C10 C11 X1 C12 PD RML + C17 C16 SCLK SDIO C21 R8 + C20 X3 LED PD VDD REFB 8 REFA 7 XY_LED 6 YA 5 YB 4 XB 3 XA 2 SCLK 1 OSC_IN 9 GND 10 OSC_OUT 11 GND 12 VDD 13 R_BIN 14 PD 15 SDIO 16 U1 SDIO SCLK LBUT 7 MBUT 6 RBUT 5 VDD 4 OSC2 3 VSS 2 OSC1 1 RFOUT 8 ORFIN0 9 ORFIN1 10 ORFO 11 TXD 12 PD 13 WA 14 WB 15 Z1IN 16 Z2IN 17 SDIO 18 SCLK 19 BATL 20 TYPE 21 TXCB 22 BBUT 23 FBUT 24 SVD_IN 25 DCVR 26 VL 27 VL_NM 28 U2 C5 C8 X2 C9 C6 -+ VBAT1 L3 + C14 C13 VBT L4 VSS 1 OUT 2 LX 3 U3 VDD D2 + C19 C18 VSS 1 OUT 2 LX 3 U4 VBT vcc Touch Pad 2060TX C22 C15 Eastern Times MOUSE BOM modle ： DS-2060 Prepared By ： Yu - H e p i n g Modified Date ： 2004-08-03 Checked By: 页码 : 2-1 No. component name model quartity remark 1 PCB 1.6×45×44mm 1.6×73×50mm 1 2 IC A2051 DIP16pin 1 U1 3 IC MA60H221-s7K SSOP28pin 1 U2 4 IC RH5RH401PR SOT-89 1 U3 5 IC ELM9330AP SOT-89 1 U4 6 LED HLMP-ED80-KP000 1 LED 7 code H=9mm 1 EN 8 audion MA729 0805 2 D1 ，D2 9 crystal frequency genrator 76.8KHZ 1 X1 10 crystal frequency genrator 27.042MHz 1 X2 11 crystal frequency genrator 18MHZ 1 X3 12 electrolyte capacitance 1.8uH 1/4W 1 L1 13 electrolyte capacitance 0.82uH 1/4W 1 L2 14 electrolyte capacitance 270uH S-CC0608 2 L3 ， L4 15 resistance 4.7M 0603 1 R1 16 resistance 15K 0603 1 R8 17 lacker capacitance 22 pF 0603 3 C1，C2， C10 18 lacker capacitance 104 0603 5 C3，C13，C15，C16， C18 ， 19 lacker capacitance 33 pF 0603 3 C4，C5 ，C11 20 lacker capacitance 103 0603 2 C6 ， C22 21 lacker capacitance 75pF 0603 1 C7 22 lacker capacitance NC 0 C8 23 lacker capacitance 15pF 1 C9 24 lacker capacitance 22pF 1 C12 25 lacker capacitance 104 1 C21 26 electrolyte capacitance 10uF/25V 4×7mm 1 C20 27 electrolyte capacitance 220uF/16V 5×7mm 3 C14 ， C17 ， C19 28 switch 3Pin 3 L.M.R

Note: The test report is specially limited to the above company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.227 EMI MEASUREMENT AND TEST REPORT For Eastern Times Technology Co., Ltd BUILDING 5, PENGHUA INDUSTRY PARK, HEPING ROAD (W), LONGHUA TOWN, SHENZHEN, P. R. CHINA FCC ID: RNKDS-2060 This Report Concerns: Original Report Equipment Type: Wireless Optical Mouse, Transmitter Test Engineer: Jerry Wang Report No.: R0408095 Report Date: 2004-08-21 / 2004-09-29 Reviewed By: Hang Tan Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732-9164 Eastern Times Technology Co., Ltd FCC ID: RNKDS-2060 Report # R0408095Rpt.doc Page 2 of 12 FCC 15.227 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 SCHEMATICS AND BLOCK DIAGRAM............................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 TEST SETUP CONFIGURATION......................................................................................................................................4 SUMMARY OF TEST RESULTS ...............................................................................................................................5 §15.203 - ANTENNA REQUIREMENT......................................................................................................................6 STANDARD APPLICABLE..............................................................................................................................................6 §15.205, §15.209, §15.227(B) - RADIATED EMISSIONS TEST ..............................................................................7 MEASUREMENT UNCERTAINTY....................................................................................................................................7 EUT SETUP..................................................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................8 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 SUMMARY OF TEST RESULTS.......................................................................................................................................9 RADIATED EMISSIONS TEST RESULT DATA.................................................................................................................9 §15.227(B) - OUT OF BAND EMISSION .................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST RESULT.............................................................................................................................................................11 Eastern Times Technology Co., Ltd FCC ID: RNKDS-2060 Report # R0408095Rpt.doc Page 3 of 12 FCC 15.227 Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The Eastern Times Technology Co., Ltd ’s product, FCC ID: RNKDS-2060 or the "EUT" as referred to in this report is a transmitter of a Wireless Optical Mouse. The EUT measures approximately 120mm L x 55mmW x 33mm H. * The test data gathered are from production sample, serial number: ET294362, provided by the manufacturer. Objective This Type approval report is prepared on behalf of Eastern Times Technology Co., Ltd in accordance with Part 2, Subpart J, and Part 15, Subparts A, B and C of the Federal Communication Commissions rules. The objective to determine compliance with FCC rules, sec 15.203, 15.205, 15.209 and sec 15.227. Related Submittal(s)/Grant(s) No Related Submittals. Test Methodology All measurements contained in this report were conducted with ANSI C63.4-2001, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electr…
