RNKDS-2131Wireless Mouse

2131-B TX Block Diagram Antenna FM Modulator 27.045MHZ±3KHZ MCU X1 oscillation 76.8KHZ DC-DC Steup Optical sensor X3 oscillation 18MHZ Key &Encoder C A B TX 27.045MHZ RF Amplifier RF Generator X2 27.042MHZ

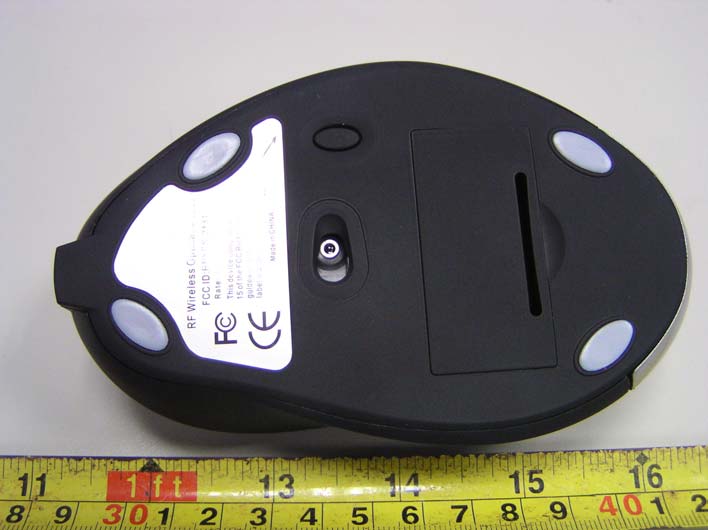

External Photos EUT-Top View EUT-Bottom View

ID Label Label FCC ID: RNKDS-2131

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location

Internal Photos EUT – Uncovered View EUT – PCB(1) Top View EUT – PCB(1) Bottom View EUT – PCB(2) Top View EUT – PCB(2) Bottom View

Circuit ‘s Operation Description for 2131-B The main circuit of the mouse transmitter compose by optical IC, MCU and RF department of U2. Inner of U2, L2, D1 and others provide the 3V steady working pressure for circuit, X1 provide the time for system. X2 and inner circuit of the U2 compose RF modulation circuit. when the mouse remove on the desk,U1 can tested this remove and transmitted the data to U2, U2 can received the key’s and coder’s information at the same time. All the message from the eighth of U2 and antenna radio to the free space after coding. SW-ID is connect switch,U2 can radio a message code communication with SW-ID when you press it.D4 is low pressure indicator light ,the light will flash it if you use the mouse when the battery is low pressure and remind you the battery energy is exhaust. The K1 switch can automatically switch to the working state. The system will sleeping if you press K1 when low pressure of U2.

2131-B Technical Specification 1 Keys Three Buttons, one 360° wheel 2 Key stoke life time Left/right/middle keys1000000 cycles Wheel switch 1000000 cycles 3 Contact methodmicro switch/wheel switch 4 Movement detect modeoptical ICAngilent 5 Resolution 800DPI 6 ID code  256 different security code 7 RF transmission mode: 1channel FSK transmission 27.045MHZ±3KHZ 8Batteries 2xAAA size 9Operating distance 0.8min normal environment 10Power comsumption test conditions: 30mAactive 12mAsleepmode1 6mA sleepmode2 250uA (sleepmode 2 11Battery life >22hours 12. System requirement: Win98/WinMe /Win2000/WinXP 13Mechanical dimension: L98mm W52mm H43mm 14Plastic Material:ABS 15Net weight 65g(no RX and Battery) 16Storage temperature -40~55 17Working temperature 0~40 18Operating humidity 40~90%

2131-B TX SCH 1 2 3 4 A BC D 4 3 2 1 D CB A -+ VBAT AAA*2 R1 4M7 L2220uH D1MA729 +C24 220U C23104 C122PC222P C4104 C16 33P X1 76.8K PD VBT DCVRSVDIN D43mm R5560 C1033P C91P X2 27.042MHz C815p R13*15K R14*33KDCVR C22104P X3 18.432MHz D3XY_LED R1010R C21104P PD VD3 Y1Y2 C1810PC1910P X1X2Y1Y2 L11.8uHC1775p C1430P**C151p**C1375P X1X2 VDD 8 VSS 7 VSS 6 NC 5 OSCIN 4 OSCOUT 3 LED 2 VSS_LED 1 VREFA 9 VREFB 10 YA 11 YB 12 XA 13 XB 14 NC 15 NC 16 NC 17 SCLK 18 SDIO 19 PD 20 U1PAN301ASI-204 SW_LSW_MSW_R VD3VD3VD3 VD3 SW_EN SW ENCODER SW_ID LBUT 7 MBUT 6 RBUT 5 VDD 4 OSC2 3 VSS 2 OSC1 1 RFOUT 8 ORFIN0 9 ORFO 10 TXD 11 PD 12 WA 13 WB 14 Z1IN 15 Z2IN 16 X2IN 17 X1IN 18 BATL 19 Y1IN 20 Y2IN 21 TXCB 22 BBUT 23 FBUT 24 SVDIN 25 DCVR 26 VL 27 VL_NM 28 U2MA6221-Q17K K1 SW3 R1233K C20104P R8 10k R710kR610k R2 10k R3560 R4560 Q2TL431 Q18050 R178K2R1851K R152K2 VCC 1 D- 2 D+ 3 GND 4 CJP1USB-connector CH+ CH+ F1300mA R00 2R2*

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.227 EMI MEASUREMENT AND TEST REPORT For EASTERN TIMES TECHNOLOGY CO.,LTD. BUILDING 5, PENGHUA INDUSTRY PARK, HEPING ROAD(W), LONGHUA TOWN, SHENZHEN, GUANG DONG, CHINA. FCC ID: RNKDS-2131 April 11, 2006 This Report Concerns: Original Report Equipment Type: Wireless Mouse Test Engineer: Simon Mo Report No.: RSZ06032101 Test Date: March 29 2006 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 EASTERN TIMES TECHNOLOGY CO., LTD FCC ID: RNKDS-2131 Report # RSZ06032101 Page 2 of 14 FCC PART 15.227 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 SCHEMATICS AND BLOCK DIAGRAM............................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 C ONFIGURATION OF T EST S ETUP .................................................................................................................................5 B LOCK D IAGRAM OF T EST S ETUP ................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 §15.205, §15.209, §15.227(A) - RADIATED EMISSIONS TEST ..............................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP........................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY............................................................................................................................................9 TEST DATA..................................................................................................................................................................9 PLOT(S) OF TEST DATA..............................................................................................................................................10 §15.227(B) - OUT OF BAND EMISSION .................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST DATA................................................................................................................................................................13 EASTERN TIMES TECHNOLOGY CO., LTD FCC ID: RNKDS-2131 Report # RSZ06032101 Page 3 of 14 FCC PART 15.227 Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The EASTERN TIMES TECHNOLOGY CO.,LTD.’s product, model number: DS-2131 or the "EUT" as referred to in this report is a Wireless Mou…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated Emission-Front View Radiated Emission-Rear View
