RNKDS-2101Mini RF Wireless Optical Mouse

No need driver The Steps of Install Battery 1. Please prepare for two PCS new AAA alkaline batteries 2. Press the button of the mouse upper cover and pull the battery cover rearward (Please see the reference picture) 3. Please insert the batteries correctly according to the polarity marks of the battery grooves. 4. Pull the battery covers forward, when you hear “crack” sound, which shows the battery cover is locked successfully. Pr ess and pul l out t he bat t er y cover Put 2 bat t er y and cl ose t he cover Attention Please 1. Please don’t make the mouse far away from the receiver in order to work more smoothly. 2. You’d better use the mouse on the white desk, in this way the batteries can be used in a longer time. Please remove the batteries if the mouse will not be used for a long time. .3. This mouse with saving power sleeping functions, please press any key or scroll the wheel to wake up the mouse when it is sleeping. 4If you want to take off the mouse power, please continue to press the ID switch of the mouse bottom over 3 seconds. If you want to take on the power, please click the ID switch once again. 5The optical mouse will not work freely on a smooth desk, glass, and any reflecting surface, 3D mouse pad. Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit differe n from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician fo help.

DS-2101 TX Block Diagram Antenna RF Generator X1 oscillatio n 27.042MHZ MCU X2 oscillatio n 76.8KHZ DC-DC Steup Optical sensor X4 oscillatio n 18MHZ Key &Encoder C A B TX 27.045MHZ FM Modulator 27.045MHZ±3KHZ RF Amplifier

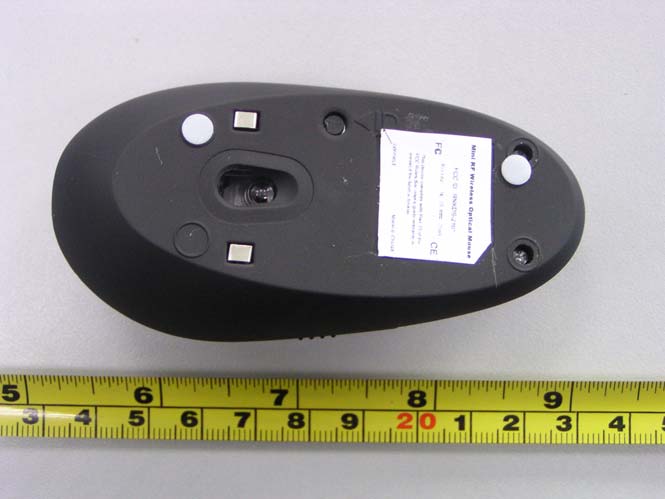

External Photos

ID Label Label

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos

Circuit ‘s operation Description for DS-2101 TX DS-2101 TX is a wireless mouse project ware, major from step-up chip U1, tiny processor and radio wave produce ware U2, optical chip U3 forms. Battery BAT passes through the built-in electronic switch of L, D1 and the 27 feet of U2, is step-up to make steady 3 V and by C12 strain wave, the 4 feet that enter U2 make U2 work. 3 feet and the 1 of U2 are outside to receive crystal X2 , produce the clock signal of 76.8 KHZ for system. 5, 6, 7 feet difference receive left in 3 right buttons, press the voltage of 3 V enter U2 inside can know the button of which one have been pressed. 16 and 17 feet have received encoder, when encoder turns , make 16 or 17 feet get the voltage of 3 V to enter inside in turn know encoder turn information. 22 feet have set ID switch, press 22 feet get the voltage foot ammunition U2 inside of 3 V project ID signal. 10 and 11 feet produce the vibration of 27.042 MHZ mainly with X2, the signal process owned of U2 that taken over passes through C5 after coding by 12 feet to carry out frequency modulation, produce central frequency 27.045 MHZ, is undertaking frequency the modulation signal of 3 KHZ, in this 9 signal input feet, department carries out radio frequency to enlarge , exports through 8 feet, by C11, L3, C13 and C16, after C17 etc. match , add to PCB antenna to project to space. Battery voltage from R5, R4 divides to press, enter 25 foot detection battery voltages, when voltage passes to low, 20 foot export signals make D5 twinkle. R3 and R2 divide for the voltage of 3 V to press, enter 26 feet to carry out the detection of stabilized voltage. Battery BAT passes through L2, D2 the step-up voltage that 4 V controls from C7 strain wave, the 13 feet that enter U3 make it work , the 7 foot built-in voltage regulators of 3.3 V of U3, C14, C12 carry out voltage strain wave, 9 and 11 feet are outside to receive crystal X4 , produce internal clock, 6 feet is drive give out light the foot of diode D4, the sampling resistance that 14 feet receives can decide the biggest current of D4. When the light of D4 reflects when shooting to top of a table, enters U3, built-in optical induction partially automatic detection and calculation mouse move speed and direction, and pass through this data 1, 16 foot biographies give chip U2, U2 at the same time projects this data modulation by antenna to go out. C +, C - is besides receive the port that charges , D3 is used to prevent reverse current.

ET TECH BOM MODEL ： 2101-A ver ： A0 date ： 2004-07-31 No： ET-04210101 By ： YUHEPING QR-09 8 No component name model quartity remark 1 PCB 1.6 × 67 × 33mm 1 2101-A TX 2 IC A2051 DIP16pin 1 U3 3 IC MA6221-s7K SSOP28pin 1 U2 4 IC RH5RH501A-T1 SOT-89 1 U1 5 LED HLMP-ED80-KP000 1 D4 6 LENS HDNS-2100 1 7 SWITCH MTS2-70 2 R ， L 8 SWITCH DSD-ST 1 M 9 ID SWITCH TS60-43PSM160 1 ID 10 encoder H=7mm 1 EN 11 DIODE MA729 0805 2 D1 ， D2 12 DIODE 1N5817 1206 1 D3 13 LED 3mm red 1 D5 14 crystal frequency genrator 27 ． 042MHZ 16pF SMD 1 X1 15 crystal frequency genrator 76 ． 8KHZ DIP 1 X2 16 crystal frequency genrator 18.00MHz DIP 1 X4 17 inductance 1.8uH 1210 1 L3 18 inductance 220uH RL0406-221K 2 L1 ， L2 19 resistance 4.7M 0603 1 R1 20 resistance 91K 0603 1 R2 21 resistance 220K 0603 1 R3 22 resistance 680K 0603 1 R4 23 resistance 1M6 0603 1 R5 24 resistance 15K 0603 1 R6 25 resistance 560R 0603 1 R7 26 capacitance 220uF/ 6v Btype （ 1210 ） 2 C2 ， C7 27 capacitance 20pF 0603 1 C3 ET TECH BOM MODEL ： 2101-A ver ： A0 date ： 2004-07-31 No： ET-04210101 By ： YUHEPING QR-09 8 28 capacitance 30pF 0603 1 C5 29 capacitance 104 0603 3 C6 ， C8 ， C12 30 capacitance 22pF 0603 2 C9 ， C10 31 capacitance 33pF 0603 1 C11 32 capacitance 75pF 0603 1 C13 33 capacitance 10uF 1206 1 C14 34 capacitance 47pF 0603 1 C15 35 capacitance 22pF 0603 1 C16

1 2 34 A BC D 4 3 2 1 D CB A Title Number Revision Size A4 Date: 1-Apr-2005 Sheet of File: F:\yuheping\RD\2101A\2101A.ddb Drawn By: PCBANT EN R1 L3 D1 C9C10 C6 ID C11 C13 C16 C15 X2 C17 PD RML + C2 SCLK SDIO C12 R6 + C14 X4 D4 PD VDD REFB 8 REFA 7 XY_LED 6 YA 5 YB 4 XB 3 XA 2 SCLK 1 OSC_IN 9 GND 10 OSC_OUT 11 GND 12 VDD 13 R_BIN 14 PD 15 SDIO 16 U3 SDIO SCLK LBUT 7 MBUT 6 RBUT 5 VDD 4 OSC2 3 VSS 2 OSC1 1 RFOUT 8 ORFIN0 9 ORFIN1 10 ORFO 11 TXD 12 PD 13 WA 14 WB 15 Z1IN 16 Z2IN 17 SDIO 18 SCLK 19 BATL 20 TYPE 21 TXCB 22 BBUT 23 FBUT 24 SVD_IN 25 DCVR 26 VL 27 VL_NM 28 U2 C5 C4 X1 C3 -+BAT L1 VBT L2 VSS 1 OUT 2 LX 3 U1 VDD D2 + C7 VCC vcc 2101-A TX R5R4 R3R2 D5 R7 D3 C+C- C8

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.227 EMI MEASUREMENT AND TEST REPORT For EASTERN TIMES TECHNOLOGY CO., LTD BUILDING 5, PENGHUA INDUSTRY PARK, HEPING ROAD (W), LONGHUA TOWN, SHENZHEN, CHINA FCC ID: RNKDS-2101 March 31, 2005 This Report Concerns: Original Report Equipment Type: Transmitter, Mini RF Wireless Optical Mouse Test Engineer: Lisa Zhu Report No.: RSZ04123103 Test Date: January 11, 2005 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 EASTERN TIMES TECHNOLOGY CO., LTD FCC ID: RNKDS-2101 Report # RSZ04123103 Page 2 of 12 FCC PART 15.227 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 BLOCK DIAGRAM/SCHEMATICS...................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 §15.205, §15.209, §15.227(A) - RADIATED EMISSIONS TEST ..............................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 TEST RECEIVER SETUP.................................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY............................................................................................................................................9 TEST DATA................................................................................................................................................................10 DUTY CYCLE.............................................................................................................................................................11 §15.227(B) - OUT OF BAND EMISSION .................................................................................................................12 EASTERN TIMES TECHNOLOGY CO., LTD FCC ID: RNKDS-2101 Report # RSZ04123103 Page 3 of 12 FCC PART 15.227 Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The EASTERN TIMES TECHNOLOGY CO., LTD’s product, model number: DS-2101 or the "EUT" as referred to in this report is a Transmitter of Mini RF Wireless Optical Mouse Transmitter. The EUT is measured approximately 9.1cm L x 4.6cm W x 3.0cm H. rated input voltage: DC 3V battery. * The test data gathered are from production sample, serial number: 2009050000001, provided by the manufacturer. Objective This Type approval report is prepared on behalf of EASTERN TIMES TECHNOLOGY CO., LTD in accordance with Part 2, Subpart J, and Part 15, Subparts A , B and C of the Federal Communication Commissions rules. The objective is to determine compliance with FCC rules, sec 15.203, 15.205, 15.209 and sec 15.227. Related Submittal(s)/Grant(s) No Related Submittals. Tes…

Text truncated - open the document above for the full version.

Te s t S e t u p P h o t o s Radiated Emission - Front View Radiated Emission - Rear View
