RNX16975AR1RC Toy

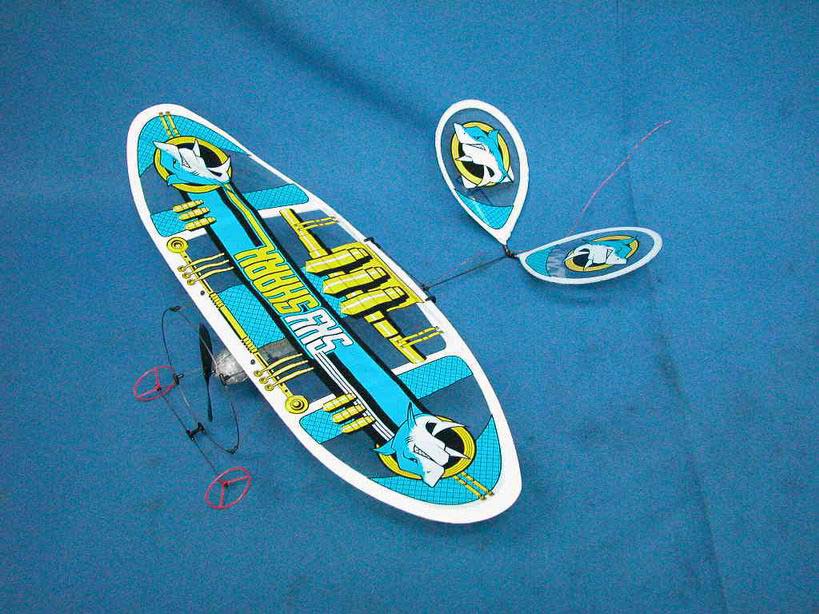

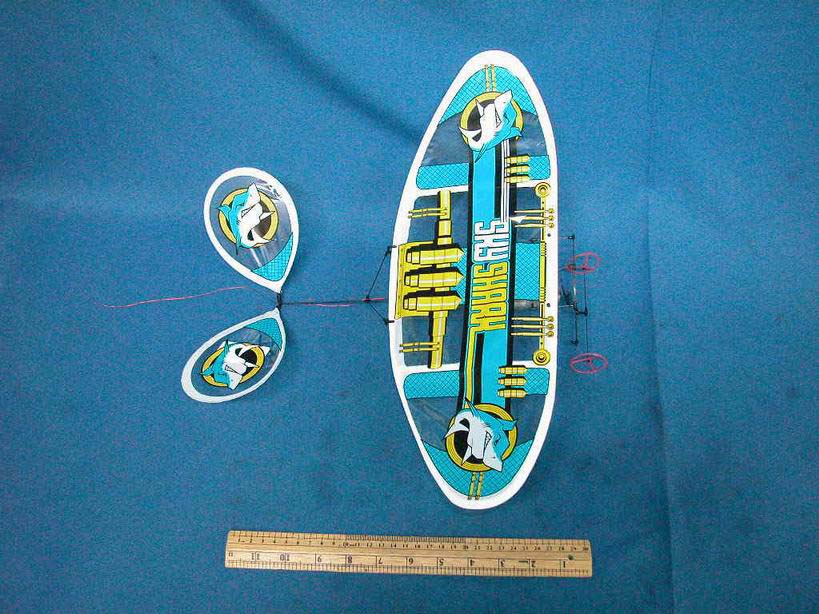

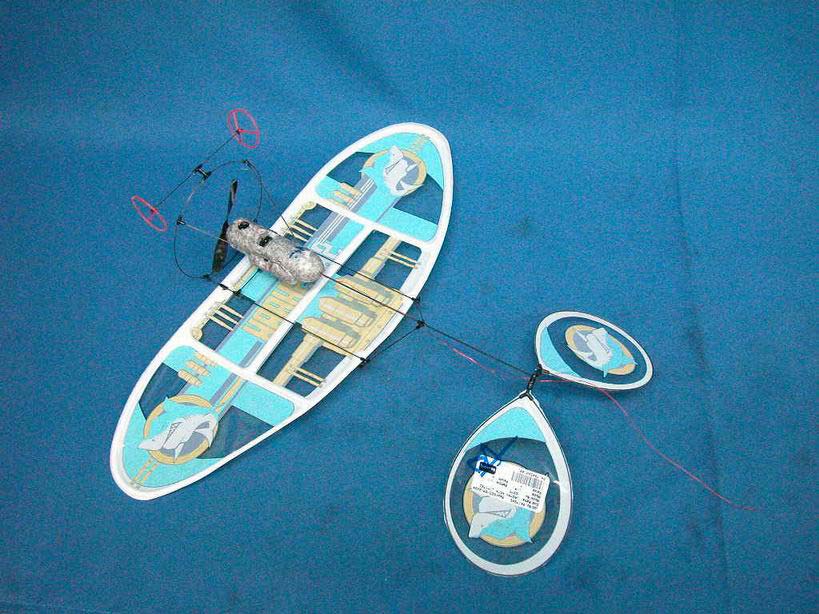

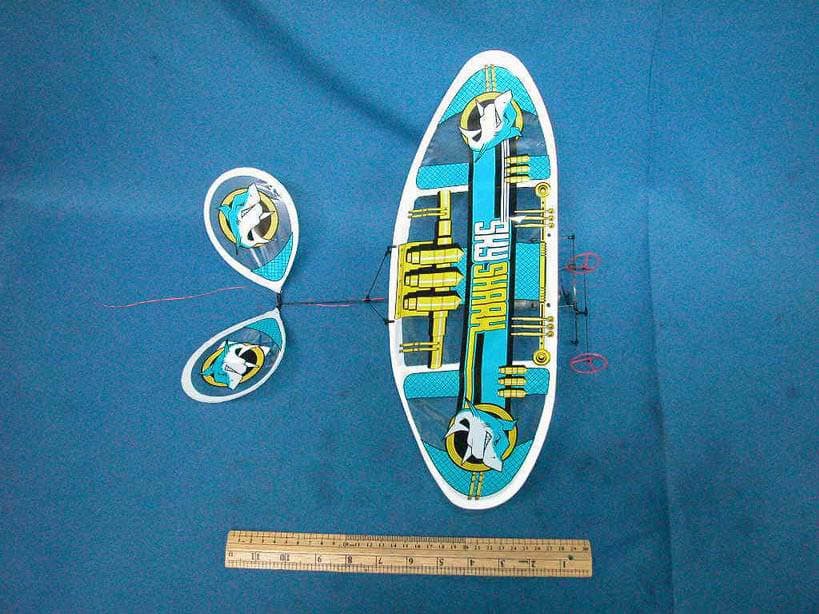

FCC ID: RNX16975AR1 Ophoto1 Ophoto2 FCC ID: RNX16975AR1 Ophoto3 Ophoto4

FCC ID: RNX16975AR1 Iphoto1 Iphoto2 FCC ID: RNX16975AR1 Iphoto3 Iphoto4

FCC ID: RNX16975AR1 Technical Description : The brief circuit description is listed as follows : - L3, C2, C3, Q1 and associated circuit act as Super- regenerative Receiver. - JP1 3T-RX02 and associated circuit act as Signal Amplifier and Decoder. - Q2, Q3 and associated circuit act as Motor Driver. Antenna Used : A permanent wire antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : RNX16975AR1 Jasman Asia Limited Application For Certification (FCC ID: RNX16975AR1) Superregenerative Receiver Sample Description : VrRoom Zoom The Ultimate Indoor RC Airplane Model : 16975 Additional Model : 16977 Asst. No.: #16978, 16979 0417945 BC/at October 14, 2004 INTERTEK TESTING SERVICES FCC ID: RNX16975AR1 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: RNX16975AR1 ii MEASUREMENT/TECHNICAL REPORT Jasman Asia Limited - MODEL: 16975 FCC ID: RNX16975AR1 October 14, 2004 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Superregenerative Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for intentional radiator Report prepared by: Billy Chow Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: RNX16975AR1 iii Table of Contents 1.0 General Description................................................................................................. 2 1.1 Product Description............................................................................................... 2 1.2 Related Submittal(s) Grants .................................................................................. 2 1.3 Test Methodology ................................................................................................. 3 1.4 Test Facility .......................................................................................................... 3 2.0 System Test Configuration ...................................................................................... 5 2.1 Justification........................................................................................................... 5 2.2 EUT Exercising Software ...................................................................................... 5 2.3 Support Equipment List and Description................................................................ 5 2.4 Equipment Modification......................................................................................... 6 2.5 Special Accessories.............................................................................................. 6 3.0 Emission Results..................................................................................................... 8 3.1 Field Strength Calculation ..................................................................................... 9 3.2 Radiated Emission Configuration Photograph ..................................................... 10 3.3 Radiated Emission Data...................................................................................... 11 4.0 Equipment Photographs ........................................................................................ 14 5.0 Product Labelling................................................................................................... 16 6.0 Technical Specifications........................................................................................ 18 7.0 Instruction Manual ................................................................................................. 20 8.0 Miscellaneous Information.................................................................................... 22 8.1 Stabilization Waveform........................................................................................ 23 8.2 Emissions Test Procedures................................................................................. 24 8.2 Emissions Test Procedures (cont'd) .................................................................... 25 INTERTEK TESTING SERVICES FCC ID: RNX16975AR1 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Stabilization Waveform superreg.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: RNX16975AR1 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: RNX16975AR1 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a receiver for a RC Airplane operating at 49.860 MHz. The EUT is powered by a 4.2V rechargeable battery pack. The EUT has a power switch. After switching “ON” the EUT, it can be controlled to fly in a circular path with different speeds, when the user presses the sliding switch on the controller, and releases the switch to let the airplane gliding in a straight flight path. When the EUT is low battery, it can be recharged by the corresponding battery charger. The Model: 16977 is the same as the tested Model: 16975 in hardware and software aspect. The models are difference in colour an…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Front View Back View
