RNX20002RC Toy

123456 A B C D 6 54321 D C B A Title NumberRevisionSize B Date:24-Jun-2005Sheet of FileDrawn By: Encoder Circuit IC1 Main Motor Encoded Signal Oscillator and FM Modulation Circuit (Q1/D3/Y1/R2/C4/C20/C6/R3/R11) (Q2/C8/C19/TF1) Frequency Doubler Power Filter Q4/L1/R5/R12 C21/TF2/C22 Tail Motor RW1 RW2 Carrier Frequency:24.930Mhz 9.0V Battery 5.0V Voltage Regulator Q3/D1/C10/C11/R6/R8 49.860Mhz Control Control Amplifier Circuit Circuit Block Diagram of Transmitter Circuit - 49.860MHz Antenna Company Name : Jasman Asia Limited ProductNumber : 20002 ProductName: FLIGHT FACTORY SPIN BLADE RC INDOOR HELICOPTER

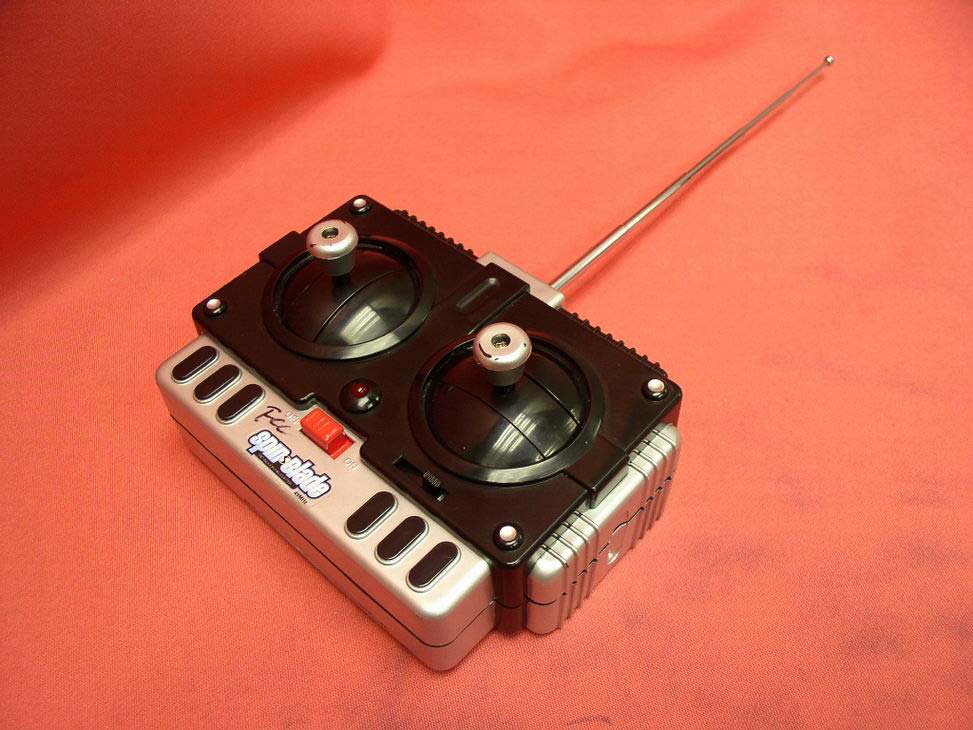

FCC ID: RNX20002 Ophoto1 Ophoto2 FCC ID: RNX20002 Ophoto3 Ophoto4

FCC ID: RNX20002 Iphoto1 Iphoto2 FCC ID: RNX20002 Iphoto3 Iphoto4 FCC ID: RNX20002 Iphoto5 Iphoto6

FCC ID: RNX20002 Technical Description : The brief circuit description is listed as follows : - C21, C22 and TF2 act as Filter Circuit. - Q4 and associated circuit act as Power Amplifier. - Q2, TF1, C8, C19 and associated circuit act as Frequency Doubler (49.860 MHz). - Q1, Y1, D3 and associated circuit act as 24.930 MHz Oscillator and Modulator (FM). - IC1 and associated circuit act as Encoder. - Q3, D1 and associated circuit act as Voltage Regulator. - RW1 and RW2 act as Control Keys. Antenna Used : An extendable antenna has been used.

123456 A B C D 6 54321 D C B A Title NumberRevisionSize B Date:24-Jun-2005Sheet of File:Drawn By: C4 100p C15 4700p C3 20P C5 100p C14 0.1u C6 0.01u C20 47P C22 22p C21 120p C13 150p R1 10K R2 100K R11 330R R12 33R R5 56K R10 510R R3 100R R4 56K TF1 5T L2 3.3UH L1 1.2UH C7 0.01u C9 220UF/10V D1 5V6 Q2 1815 Q1 1815 Q4 8050D Y1 24.930MHz ANTENNA D3 MV2105 9V Battery TF2 2.0uh PO/INTO 1 RST 2 P1.1 3 P1.0 4 VSS 5 P4.3/AIN3 6 P4.2/AIN2 7 P4.1/AIN1 8 P4.0/AIN0 9 VDD 10 P5.4/TCO/PWM0 11 P5.3 12 P5.2 13 P5.1 14 P5.0 15 XOUT 16 XIN 17 VPP 18 IC1 1702A RW2 10K RW1 10K C1 20P C2 20P R7 2K2 C17 20P R9 20K D2 1N4148 C18 0.1uF C16 0.1uF C19 0.1uF C12 100P C8 Q3 8050 R8 10R R6 1K C10 220UF/10V C11 220UF/10V RW3 5K RW4 5K R13 680R LEDR15 47K TAP1 TAP2 R14 27K 00 Indoor Copter #20002 Transmitter 49.860Mhz Company Name : Jasman Asia Limited ProductNumber : 20002 ProductName: FLIGHT FACTORY SPIN BLADE RC INDOOR HELICOPTER 20p Remark: 1. TAP1 and TAP2 are test point PAD on PCB 2. RW3 and RW4 are fine tune resistors in production. 0.58uH -0.87uH 0.2uH -0.26uH 1T 49.860MHz R16 330R

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : RNX20002 Jasman Asia Limited Application For Certification (FCC ID: RNX20002) Transmitter Sample Description : Flight Factory Spin Blade RC Indoor Helicopter Model : 20002 Asst. No. : 20000 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-2004] 0519060 WL/at September 7, 2005 INTERTEK TESTING SERVICES FCC ID: RNX20002 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: RNX20002 ii MEASUREMENT/TECHNICAL REPORT Jasman Asia Limited - MODEL: 20002 FCC ID: RNX20002 September 7, 2005 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-1- 2004 Edition] provision. Report prepared by: Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: RNX20002 iii Table of Contents 1.0 General Description.................................................................................................2 1.1 Product Description..............................................................................................2 1.2 Related Submittal(s) Grants.................................................................................2 1.3 Test Methodology................................................................................................3 1.4 Test Facility.........................................................................................................3 2.0 System Test Configuration .....................................................................................5 2.1 Justification..........................................................................................................5 2.2 EUT Exercising Software.....................................................................................5 2.3 Special Accessories.............................................................................................5 2.4 Equipment Modification........................................................................................6 2.5 Support Equipment List and Description...............................................................6 3.0 Emission Results .....................................................................................................8 3.1 Field Strength Calculation....................................................................................9 3.1 Field Strength Calculation (cont’d)......................................................................10 3.2 Radiated Emission Configuration Photograph....................................................11 3.3 Radiated Emission Data.....................................................................................12 4.0 Equipment Photographs .......................................................................................16 5.0 Product Labelling ..................................................................................................18 6.0 Technical Specifications.......................................................................................20 7.0 Instruction Manual .................................................................................................22 8.0 Miscellaneous Information....................................................................................24 8.1 Measured Bandwidth.........................................................................................25 8.2 Emission Test Procedures ................................................................................26 8.2 Emission Test Procedures (Cont’d)....................................................................27 INTERTEK TESTING SERVICES FCC ID: RNX20002 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: RNX20002 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: RNX20002 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for a RC Indoor Helicopter operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by a 9V battery. The EUT has an ON/OFF switch, two control sticks and a trimmer. After switched ON the EUT, the left control stick is used to control the RC Indoor Helicopter lifting up and lifting down. The right control stick is used to control the helicopter turning cl…

Text truncated - open the document above for the full version.

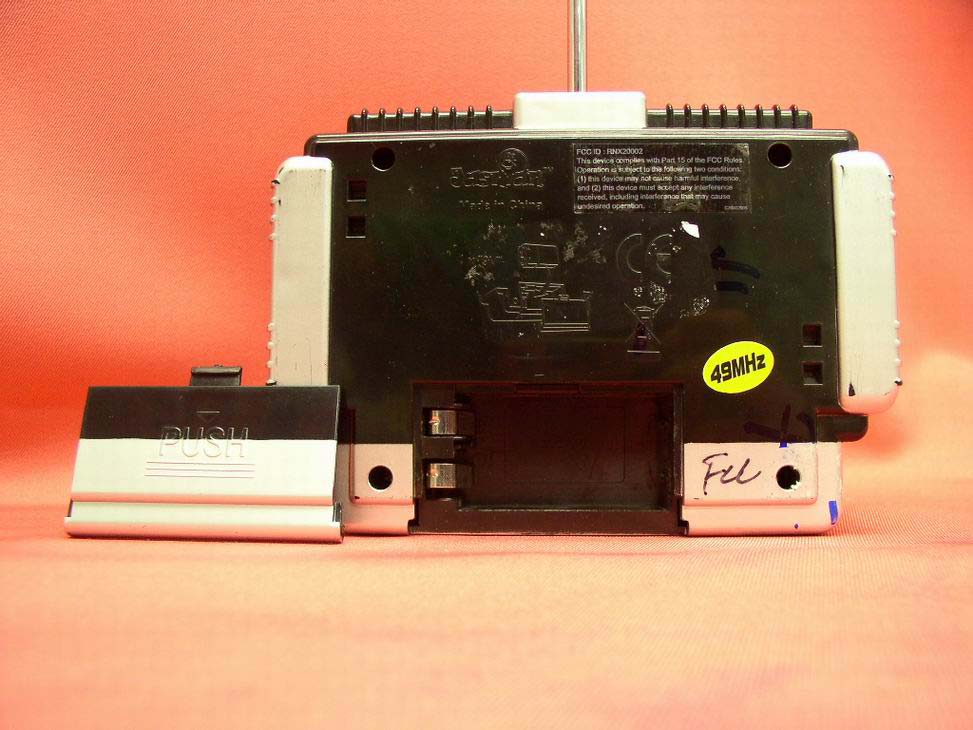

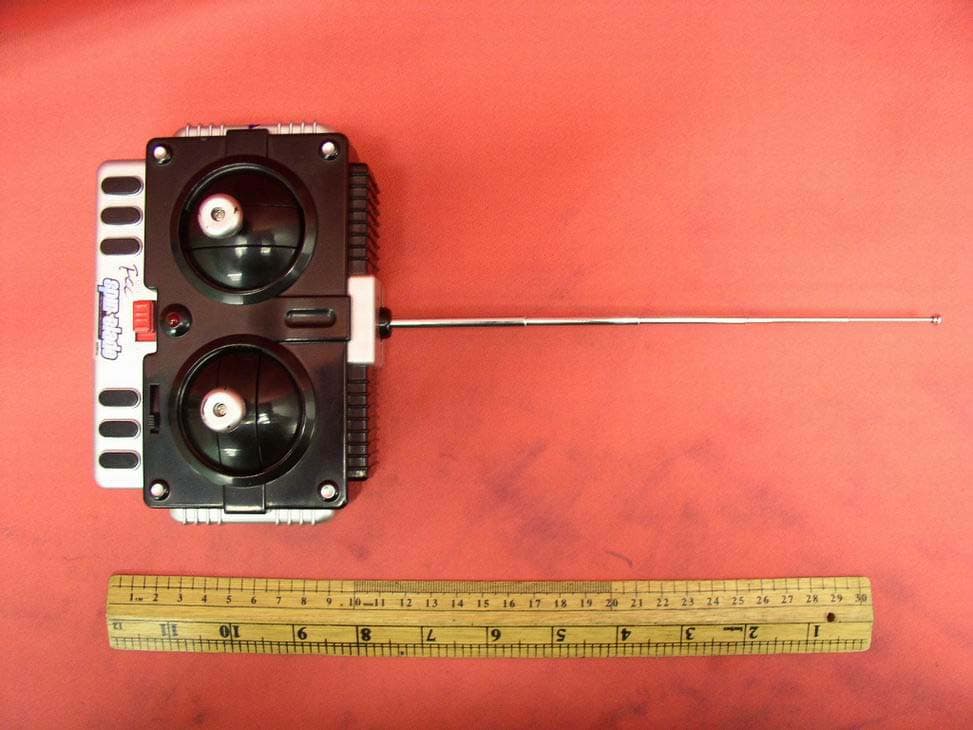

INTERTEK TESTING SERVICES Front View Back View
