RO540004A001Spot Radio Frequency Location System -Master Radio

Spot RFLS User's Manual November 6, 2006 1155 Kas Drive, Suite 200 Richardson, TX 75081 (972) 479-9898 Phone (972) 479-9625 Fax [email protected] Spot RFLS User's Manual Page 2 11/6/2006 Table of Contents 1 Safety Information...................................................................................................... 4 2 Spot System Description............................................................................................ 5 3 Using the Web-Based Interface ................................................................................. 8 3.1 Login ............................................................................................................................. 8 3.2 My Account ................................................................................................................. 10 3.3 List Tags ..................................................................................................................... 11 3.4 Log Out ....................................................................................................................... 15 Appendix A – Master Radio FCC Compliance Information............................................ 16 Appendix B – Beacon FCC Compliance Information..................................................... 17 Appendix C – Tag FCC Compliance Information .......................................................... 18 Appendix D – Antenna Specification ............................................................................. 19 Spot RFLS User's Manual Page 3 11/6/2006 List of Figures Figure 1 — Spot RFLS Block Diagram ......................................................................................................... 6 Figure 2 — Spot Engine Administration Login Window ................................................................................ 8 Figure 3 — Spot Engine Administration Welcome Window.......................................................................... 9 Figure 4 — My Account Window................................................................................................................. 10 Figure 5 — List Tags Window ..................................................................................................................... 11 Figure 6 — Tags > Maps Window............................................................................................................... 12 Figure 7 — Tags > History Window ............................................................................................................ 13 Figure 8 — Sample Tag Location History ................................................................................................... 14 Figure 9 — Log Out Window....................................................................................................................... 15 Spot RFLS User's Manual Page 4 11/6/2006 1 Safety Information In order to comply with FCC Radio Frequency (RF) exposure limits, Spot RFLS antennas must be located no closer to the human body than the distances specified below: • Master Radio: 4.41 cm • Beacon: 0.097 cm • Tag: 0.06 cm The Master Radio is intended for indoor use only unless used in an appropriately rated environmental enclosure. The Master Radio’s antenna, power supply, and data cables must be indoors at all times. Data cables must be terminated indoors with certified equipment (i.e. switch, hub, etc.) if outdoor communication is desired. Spot RFLS User's Manual Page 5 11/6/2006 2 Spot System Description This document describes the use of the Spot RFLS, a Radio Frequency (RF) Tag Location System used for real-time and historical location tracking of high-value human and equipment assets. Major sections of this document include the following topics: • A basic description of the Spot System and its proper use • Safety information • User interface description • FCC ID numbers and compliance statements Spot RFLS User's Manual Page 6 11/6/2006 A block diagram of Spot RFLS is shown below: Tag Radio Master Radio Tag Radio Beacon Radio Beacon Radio Beacon Radio Beacon Radio Master Radio External Location Data Interface (API) Browser-Based Administration Inventory Management System Patient Monitoring System Time and Attendance System Hospital Systems End Users Spot Engine (Network Controller) SpotIt Presentation Server Figure 1 — Spot RFLS Block Diagram Spot RFLS User's Manual Page 7 11/6/2006 Spot uses a system of Master Radios and Beacons to locate and track the position of Tags. Tag location and history information is made available to other systems and applications through the External Location Data Interface (also called API) and also through a browser-based interface. The Spot System is made up of the following components. • Spot Engine: o An appliance that controls the overall operation of the Spot System and delivers Tag location information via a web-based interface o Other application servers can retrieve Tag location information through the Engine’s External Location Data Interface (API) CAUTION! Never operate a Master Radio without an antenna or RF load. • Master Radios: o Relay information from Beacons and Tags to the Spot Engine o Are powered via their Ethernet network connections o Require no direct user operation • Beacons: o Communicate with the Tags based on commands from the Master Radios o Are battery-powered, designed for low current consumption to maximize battery life o Require no direct user operation • Tags: o Receive transmissions from Beacons o Transmit Beacon reports to Master Radios that Spot uses to compute location o Are optimized for low power consumption to maximize battery life. Power consumption can be optimized for tracking mobile or fixed assets. Spot RFLS User's Manual Page 8 11/6/2006 3 Using the Web-Based Interface The user-level interface of the Spot System is accessed through a web browser. It provides a basic level of access to the Spot System through the Spot Engine…

Text truncated - open the document above for the full version.

Title Master Radio Block Diagram Product Code 40004A001 RS-232 10/100BASE-TX DATA BUS CLK (62.5 MHz) FPGA 50 MHz RF TRANSCEIVER DATA BUS CLK (5 MHz) 16 MHz PA LNA 2.4 GHz 2.4 GHz CPU N-Type Connector 62.5 MHz

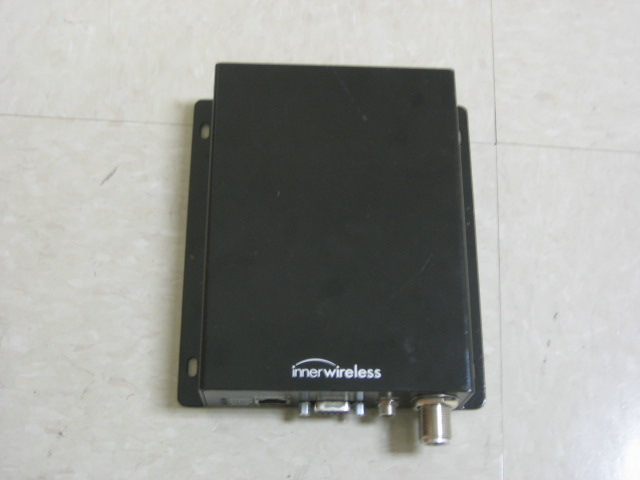

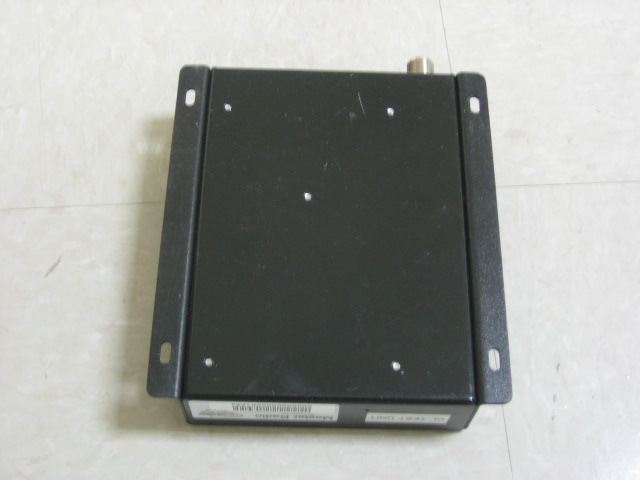

External Photographs Master Radio – 40004A001

FCC ID Label Format and Location This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID.: RO540004A001 Master Radio Made in the USA Underside of unit 3.0” Approx 2.0” Approx

Operational Description Master Radio – 40004A001 The Master Radio is part of a radio frequency (RF) location system that uses the 2.4GHz Industrial, Scientific, and Medical (ISM) band. The system uses IEEE 802.15.4 compliant transceivers with a maximum throughput of 250Kbps. All transceivers use the direct sequence spread spectrum (DSSS) technique with Offset-Quadrature Phase Shift Keying (O-QPSF) modulation. The system can operate on any one of the sixteen ISM channels defined by IEEE 802.15.4. The Master Radio can be powered by either an AC/DC adapter or a Power-Over- Ethernet (PoE) connection. All RF carrier frequencies and modulation timing is derived from a 16MHz crystal connected to the RF transceiver. A power amplifier and low-noise amplifier are provided to extend the range of the Master Radio. The Master Radio supports connection to a monopole antenna using an N-type connector. Refer to the User’s Manual for further information.

FCC ID: RO540004A001 Report Number 3104706DAL-008 Page 1 of 39 EMISSIONS TEST REPORT Report Number: 3104706DAL-008 Project Number: 3104706 Testing performed on the Spot RFLS Location System - Master Radio Model: 40004A001 FCC ID: RO540004A001 To FCC Part 15 Subpart C 15.247 Industry Canada’s RSS-210 Issue 6 September 2005, Annex 8 FCC Part 15 Subpart B and ICES-003 Issue 4 February 2004 For InnerWireless, Inc. Test Performed by: Test Authorized by: Intertek – ETL SEMKO 420 N Dorothy Drive, Richardson, TX 75081 USA Wavetrix 801 Presidential Drive, Richardson, TX 75081 USA Prepared by: Date: November 3, 2006 Sudesh Kamble Reviewed by: Date: November 20, 2006 Roland W. Gubisch This report is for the exclusive use of Intertek’s Client and is provided pursuant to the agreement between Intertek and its Client. Intertek’s responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. FCC ID: RO540004A001 Report Number 3104706DAL-008 Page 2 of 39 TABLE OF CONTENTS 1 JOB DESCRIPTION ..........................................................................................................................................3 1.1 CLIENT INFORMATION..................................................................................................................................3 1.2 EQUIPMENT UNDER TEST..............................................................................................................................3 1.3 TEST PLAN REFERENCE................................................................................................................................3 1.4 TEST CONFIGURATION..................................................................................................................................4 1.4.1 Block Diagram.........................................................................................................................................4 1.4.2 Cables ......................................................................................................................................................4 1.4.3 Support Equipment & Equipment Under Test: ........................................................................................4 1.5 MODE(S) OF OPERATION:..............................................................................................................................5 1.6 FLOOR STANDING EQUIPMENT: ....................................................................................................................5 1.7 MODIFICATIONS REQUIRED FOR COMPLIANCE: ............................................................................................5 2 TEST SUMMARY ..............................................................................................................................................6 3 REVISION SUMMARY ....................................................................................................................................7 4 SAMPLE CALCULATIONS.............................................................................................................................8 4.1 MEASUREMENT UNCERTAINTY.....................................................................................................................9 5 SITE DESCRIPTION.......................................................................................................................................10 6 TEST RESULTS ...............................................................................................................................................11 6.1 TEST: TRANSMITTER OUTPUT POWER AND EIRP, AND HUMAN RF EXPOSURE..........................................11 6.2 TEST: OCCUPIED BANDWIDTH....................................................................................................................14 6.3 TEST: ANTENNA PORT CONDUCTED SPURIOUS EMISSIONS.........................................................................18 6.4 TEST: RADIATED SPURIOUS EMISSIONS......................................................................................................24 6.4.1 Setup Photos ..........................................................................................................................................29 6.5 TEST: PEAK POWER SPECTRAL DENSITY....................................................................................................31 6.6 TEST: BAND EDGE COMPLIANCE................................................................................................................34 6.7 TEST: AC LINE-CONDUCTED SPURIOUS EMISSIONS...................................................................................36 6.7.1 Setup Photos ..........................................................................................................................................39 FCC ID: RO540004A001 Report Number 3104706DAL-008 Page 3 of 39 1 Job Description 1.1 Client Information This EUT has been tested at the request of: Company: InnerWireless, Inc. 1155 Kas Drive, Richardson, TX 75081 USA Contact: Mr. James McCoy Telephone: Fax: (972) 201-2522 (972) 479-9625 1.2 Equipment Under Test Equipment Type: Master Radio Model Number(s): 40004A00…

Text truncated - open the document above for the full version.

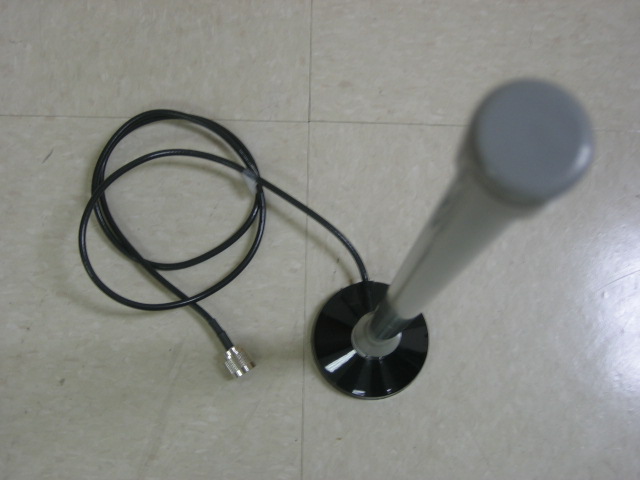

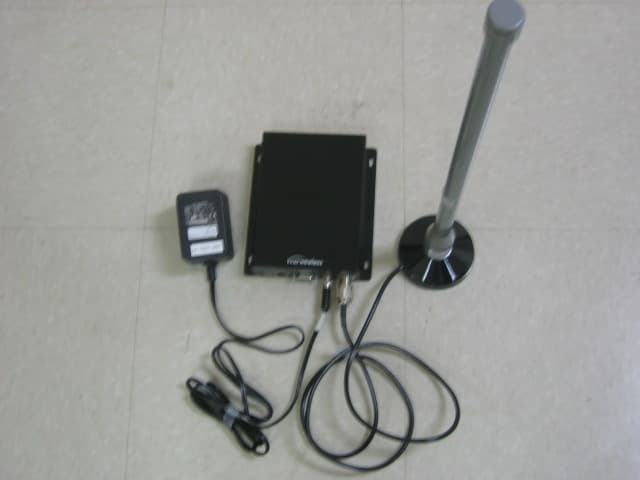

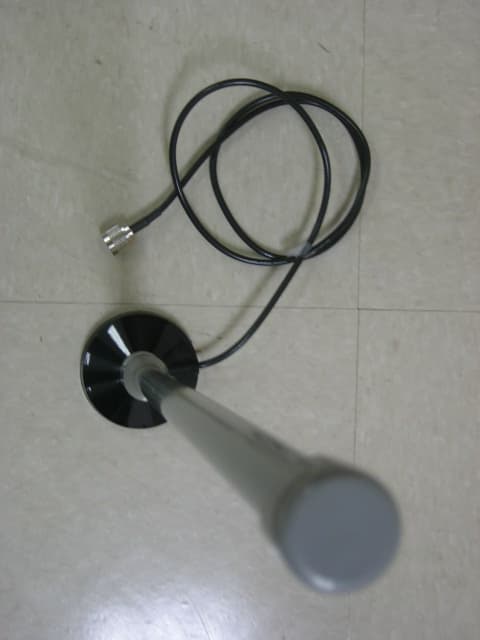

Setup Photos
