RODSI489TABLE LAMP

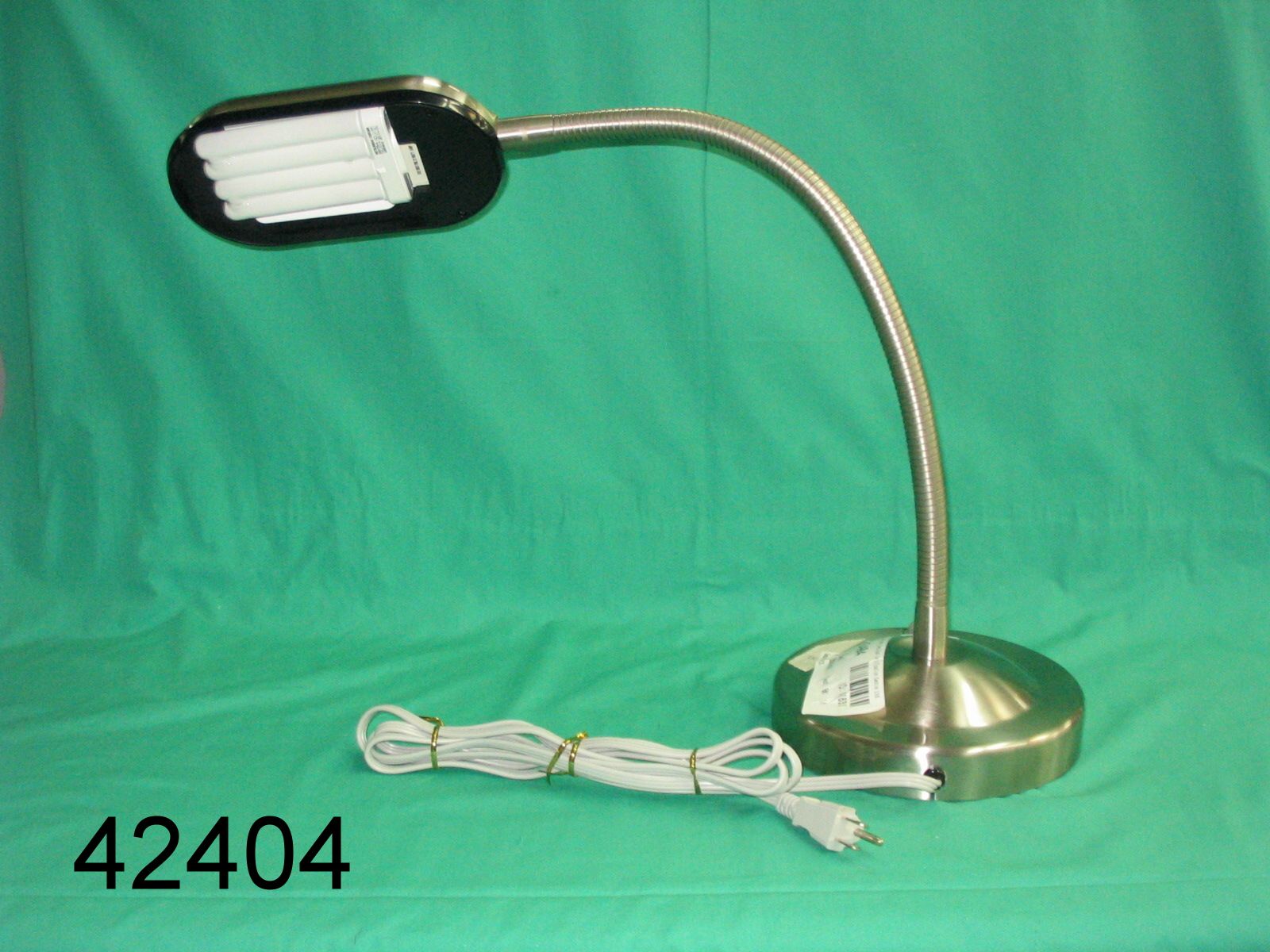

F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 42404/5/600F FCC – Test Report No. 42404/5/600F Date: 2005-06-07 Page 2 of 12 FCC listed testlab acc. to Section 2.948 of the FCC - Rules Product : Table Lamp Product Class : Part 18 Consumer Device Model : SI489 Brand name : Sharper Image Design Applicant : SUN LUEN ELECTRICAL MFG. CO. LTD. FCC – Test Report No. 42404/5/600F Date: 2005-06-07 Page 3 of 12 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure (> 30MHz) 8. Radiated Emission Testprocedure (9kHz-30MHz) 9. Interference Radiation (Datasheet) 10. Interference Voltage (Datasheet) 11. Interference Voltage (Datasheet) 12. Notes for Voltage Measurement FCC – Test Report No. 42404/5/600F Date: 2005-06-07 Page 4 of 12 LABORATORY - REPORT APPLICANT: ADDRESS: SUN LUEN ELECTRICAL MFG. CO. LTD. 22/F., Wang Fai Ind. Bldg. 29 Luk Hop St. San Po Kong, Kowloon HONG KONG DATE OF SAMPLE RECEIVED: 2005-05-30 DATE OF TESTING: 2005-06-01 DESCRIPTION OF SAMPLE: Product: Table Lamp Product class: Part 18 Consumer Device Model number: SI489 Brand name: Sharper Image Design Rating: AC 120V 60Hz 27W INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 18 – Industrial, Scientific, and Medical Equipment RESULTS: See the attached test sheets CONCLUSIONS: From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. Note : The conducted emissions test (if applicable) has considered the limits in Section 18.307 adopted under FCC 02-157 (ETDocket 98-80). The product may be marketed after July 11, 2005, and is not affected by the 18.123 transition provisions. _____________________________ Authorized Signature Remark: Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests FCC – Test Report No. 42404/5/600F Date: 2005-06-07 Page 5 of 12 Summary of Test Results Interference Radiation: Test result: N.A. Test data: See attached data sheet Interference Voltage: Test result: O.K. Test data: See attached data sheet PHOTOGRAPH OF THE SAMPLE FCC – Test Report No. 42404/5/600F Date: 2005-06-07 Page 6 of 12 TEST EQUIPMENT LIST Equipment Manufacturer Model Serial No. Remark Test Receiver Rohde & Schwarz ESH 3 863497/015 150KHz – 30MHz Test Receiver Rohde & Schwarz ESH 3 892580/006 9KHz – 30MHz Test Receiver Rohde & Schwarz ESVP 860688/022 25MHz – 1,000 MHz Test Receiver Rohde & Schwarz ESVP 863512/012 25MHz – 1,000 MHz Test Receiver Rohde & Schwarz ESHS30 839667/002 9KHz – 30MHz Test Receiver Rohde & Schwarz ESVS30 828525/006 25MHz – 1000MHz Spectrum Analyzer with Q. Peak Advantest R3132 140101852 9KHz – 3GHz Spectrum Analyzer with Q. Peak Tektronix 2712 B023006 0.15MHz – 1000MHz Interface for Spectrum 2712 Tektronix TD3F14A -- -- Impulse Limiter Rohde & Schwarz ESH-3-Z2 -- -- Artificial Mains Network (LISN) Schwarzbeck NSLK 8127 8127312 2 x 10A, 50Ω, 50μH 9KHz-30MHz Artificial Mains Network (LISN) Schwarzbeck NSLK 8127 8127309 2 x 10A, 50Ω, 50μH 9KHz-30MHz Antenna System Schwarzbeck BBA 9106 / UHALP 9107 -- 30MHz – 1000MHz Antenna Mast System Schwarzbeck AM9104 -- Max. 4 meters height Loop Antenna Rohde & Schwarz HFH2-Z2 871336/48 9KHz-30MHz Turntable with Controller Drehtisch DT312 -- φ120 cm FCC – Test Report No. 42404/5/600F Date: 2005-06-07 Page 7 of 12 Radiated Emission Test Procedure (> 30MHz) Test receiver ESVP R & S Equipment under test (on turntable) Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 FCC – Test Report No. 42404/5/600F Date: 2005-06-07 Page 8 of 12 Radiated Emission Test Procedure ( 9kHz – 30MHz) Test distance : 3 m Loop antenna HFH2-Z2 Rohde & Schwarz Test Receiver ESH3 Rohde & Schwarz Equipment under test (on turntable) FCC – Test Report No. 42404/5/600F Date: 2005-06-07 Page 9 of 12 Radiation Measurement Data According to Section 18.309, for products with operation frequency below 1.705 MHz, field strength measurements are conducted up to 30MHz. No field strength limits is specified in Section 18.305 for measurements below 30MHz. In view of the above, since the test model is operated at 88 kHz, no field strength measurement is required. 2 ISM 1/2 Interference Voltage Test 450KHz - 30MHzDate : 2005-06-07 Acc: FCC Part 18 (18.307)Page 10 of 12 IECC Ref:42404/5/600F Model:SI489 Test Equipment Applicant:SUN LUEN ELECTRICAL MFG. CO. LTD. Receiver: Rohde & Schwarz ESH 3 Schwarzbeck NNLA 8119 Sampel No.:1 Set under test:Table Lamp Connected sets: - Operating mode:Lowest light intensity Measurement:Line Measurement: B Equipment Frequency (MHz) Test Result (Quasi-Peak) dB(μV) Limit (Quasi-Peak) dB(μV) 0.45<2548 0.492548 0.613248 1<2548 3.273648 53048 10.713048 14.423448 17.23948 20.274148 23.913848 28.053548 303548 The measurements indicate that the test unit meets the FCC requirements. 2 ISM 1/2 Interference Voltage Test 450KHz - 30MHzDate : 2005-06-07 Acc: FCC Part 18 (18.307)Page 11 of 12 IECC Ref:42404/5/600F Model:SI489 Test Equipment Applicant:SUN LUEN ELECTRICAL MFG. CO. LTD. Receiver: Rohde & Schwarz ESH 3 Schwarzbeck NNLA 8119 Sampel No.:1 Set under test:Table Lamp Connected sets: - Operating mode:Lowest light intensity Measurement:Neutral Measurement: B Equipment Frequency (MHz) Test Result (Quasi-Peak) dB(μV) Limit (Quasi-Peak) dB(μV) 0.45<2548 0.492648 0.613348 1<2548 3.243248 5<2548 10.593048 14.843348 17.23548 21.584048 243748 28.053148 302948 The measurements indicate that the test unit meets the FCC requirements. FCC – Test Report No. 42404/5/600F Date: 2005-06-07 Page 12 of 12 Notes for Voltage Measurement 1. LISN (Line Impedance Stab…
