ROW-N37603U03WLAN 11n USB 2T2R module

CDW-N37603U-03 DATASHEET Software： Customer Approve Date CHINA DRAGON TECHNOLOGY LIMITED B4 Bidg.haosan NO.1 Industry Park,Shajing street,B Shenzheng.China TEL：(86 755) 81449957 FAX：(86 755) 81449967 E-mail: [email protected] Http://www.cdtech.cn Design Check Approve Version Date V1.2 2021.06.01 SPECIFCATION CHINA DRAGON TECHNOLOGY LIMITED Page 1 WiFi Module CDW-N37603U-03 Reversion History： Version Date Modification 1.0 2020.10.09 1.1 2021.05.14 PCBA physical photo 1.1 2021.06.01 PCBA physical photo CHINA DRAGON TECHNOLOGY LIMITED Page 2 WiFi Module CDW-N37603U-03 1. Overview The CDW-N37603U-03 is a highly integrated Wi-Fi single chip which supports 300 Mbps PHY rate. It fully complies with IEEE 802.11n and IEEE 802.11 b/g standards, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. Intelligent MAC design deploys a high efficient DMA engine and hardware dataprocessing accelerators which offloads the host processor. The CDW-N37603U-03 is designed to support standard based features in the areas of security, quality of service and international regulations, giving end users the greatest performance any time and in any circumstance. 2. Features  IEEE 802.11 b/g/n compliant  2T2R mode with support of 300Mbps PHY rate  Greenfield, mixed mode, legacy modes support  Support MCC(multi channel concurrent)  Frame aggregation  WiFi Positioning(802.11v/ TOD)  BW5/10 narrow band(Rx +2.5dBm), extending coverage  WoWLAN via GPIO(client mode), Support Host Sleep(AP mode)  Airtime Fairness(QoS)  Meet ETSI EN 300 328 V1.8.1 test plan(mandatory for EU in 2014/E)  Integrated LNA, PA, and T/R switch  IEEE 802.11 d/h/k support  Security support for WFA WPA/WPA2 personal, WPS2.0, WAPI  Supports 802.11w protected management frames  QoS support of WFA WMM, WMM PS  Supports Wi-Fi Direct  Per packet transmit power control  Wake on WLAN CHINA DRAGON TECHNOLOGY LIMITED Page 3 WiFi Module CDW-N37603U-03 3. Block Diagram I n t e r f a c e M T 7 6 0 3 U M a t c h i n g X T A L 4 0 M H Z V C C 3 . 3 V U S B 2 . 0 W I F I T X / R X M a t c h i n g A n t e n n a 0 A n t e n n a 1 W I F I T X / R X I O 4. DC Characteristics symbol Parameter Minimum Typical Maximum Units V33USB 3.3Vsupply voltage 3.0 3.3 3.6 V VD12DE 1.2Vsupply voltage 1.10 1.2 1.32 V VD16DE 1.6Vsupply voltage 1.50 1.6 1.66 V IDD5.0 5.0V rating TX current -- -- 330 mA IDD5.0 5.0V rating RX current -- -- 200 mA IDD33 3.3V rating current -- -- 600 mA CHINA DRAGON TECHNOLOGY LIMITEDPage 4 WiFi Module CDW-N37603U-03 5.General Specification Model CDW-N37603U-03 Product Name WLAN 11n USB 2T2R module Major Chipset MT7603UN Antenna IFA antenna*2 Antenna Gain 2.3dBi Modulation Method 802.11b:CCK,DQPSK,DBPSK 802.11g:64QAM,16QAM,QPSK,BPSK 802.11n:BPSK,QPSK,16QAM,64QAM Frequency Band 2412-2462MHz for 802.11b/g/n20BW 2422-2452 MHz for 802.11n-40BW Channels 802.11b/g/n-20MHz:11, n-40MHz:7 Max. Frequency Deviation 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6Mbps 802.11n Up to 150Mbps Test Tone deviation +/-75kHz Interface USB 2.0 Operating Temperature -20~ + 70° C Storage Temperature -40 ~+ 85 °C Humidity 5 to 90 % maximum (non-condensing) 6.Electrical Characteristics Feature Description WLAN Standard IEEE 802.11b/g/n WiFi compliant Frequency Range 2412~2462 MHz Number of Channels 2.4GHz：Ch1 ~ Ch11 Modulation 802.11b : DQPSK, DBPSK, CCK 802.11 g/n : OFDM /64-QAM,16-QAM, QPSK, BPSK Output Power 802.11b /11Mbps : 17dBm ± 2 dB @ EVM ≤ -15dB 802.11g /54Mbps : 15 dBm ± 2 dB @ EVM ≤ -25dB 802.11n /MCS7 HT20 : 14 dBm ± 2 dB @ EVM ≤ -28dB 02.11n /MCS7 HT40 : 13 dBm ± 2 dB @ EVM ≤ -28dB CHINA DRAGON TECHNOLOGY LIMITED Page 5 WiFi Module CDW-N37603U-03 Receive Sensitivity (11b,20MHz) @8% PER - 1Mbps PER @ -93 dBm, typical - 2Mbps PER @ -91 dBm, typical - 5.5Mbps PER @ -87 dBm, typical - 11Mbps PER @ -85 dBm, typical Receive Sensitivity (11g,20MHz) @10% PER - 6Mbps PER @ -90 dBm, typical - 9Mbps PER @ -89 dBm, typical - 12Mbps PER @ -88 dBm, typical - 18Mbps PER @ -85 dBm, typical - 24Mbps PER @ -82 dBm, typical - 36Mbps PER @ -79 dBm, typical - 48Mbps PER @ -74 dBm, typical - 54Mbps PER @ -72 dBm, typical Receive Sensitivity (11n,20MHz) @10% PER - MCS=0 PER @ -90 dBm, typical - MCS=1 PER @ -87 dBm, typical - MCS=2 PER @ -85 dBm, typical - MCS=3 PER @ -81 dBm, typical - MCS=4 PER @ -78 dBm, typical - MCS=5 PER @ -73 dBm, typical - MCS=6 PER @ -72 dBm, typical - MCS=7 PER @ -70 dBm, typical Receive Sensitivity (11n,40MHz) @10% PER - MCS=0 PER @ -87 dBm, typical - MCS=1 PER @ -84 dBm, typical - MCS=2 PER @ -82 dBm, typical - MCS=3 PER @ -79 dBm, typical - MCS=4 PER @ -75 dBm, typical - MCS=5 PER @ -71 dBm, typical - MCS=6 PER @ -69 dBm, typical - MCS=7 PER @ -68 dBm, typical Maximum Input Level 802.11b : -10 dBm 802.11g/n : -20 dBm Antenna Reference CHINA DRAGON TECHNOLOGY LIMITED Page 6 WiFi Module CDW-N37603U-03 7. Pin Description and PCB size NO. Symbol Description 1 WOW Wake up 2 GND Ground connected 3 UDP USB positive differential data lines 4 UDM USB negative differential data lines 5 3.3V Power supply 3.3V is required 6 RST_N Reset 7 GND Ground connected 8 RF0 NC 9 GND Ground connected 10 GND Ground connected 11 RF1 NC 12 GND Ground connected CHINA DRAGON TECHNOLOGY LIMITED Page 7 WiFi Module CDW-N37603U-03 8. Modular photo Correspo nding to the material specifications suppliers Crystal 40Mhz JWT，FK,TXC IC MT7603U MTK PCBA VER N37603U-03 A,O PCBA physical photo TOP BOTTOM LxWxH：17.7 x 27.0 x 2.4mm ±0.2mm CHINA DRAGON TECHNOLOGY LIMITEDPage 8 WiFi Module CDW-N37603U-03 9.Recommended Reflow Profile Referred PC/JEDEC standard. Peak Temperature : <250°C Number of Times : 2 times CHINA DRAGON TECHNOLOGY LIMITEDPage 9 WiFi Module CDW-N37603U-03 ESD CAUTION The CDW-N37603U-03 is ESD (electrostatic discharge) sensitive device and may be damaged with ESD or spike voltage.…

Text truncated - open the document above for the full version.

CHINA DRAGON TECHNOLOGY LIMITED 2021.06.19 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR Trademark: N/A MODEL : CDW-N37603U-03 FCC ID: ROW-N37603U03 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Liu Xiaodong /Manager Contact information / address: B4 Bidg. haosan No.1 lndustry Park, Shajing street, B Shenzhen, China

CHINA DRAGON TECHNOLOGY LIMITED 2021.06.19 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Liu Xiaodong / Manager Contact information / address: B4 Bidg. haosan No.1 lndustry Park, Shajing street, B Shenzhen, China

CHINA DRAGON TECHNOLOGY LIMITED FCC Modular Approval Request Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021/06/24 Subject; Modular Transmitter Application Company name: CHINA DRAGON TECHNOLOGY LIMITED FCC ID: ROW-N37603U03 Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID: ROW-N37603U03 has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes, It has a shield The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes, This module have buffered modulation/data inputs . The module must contain power supply regulation on the module. Yes,The module have power supply regulation. The supply voltage is DC 3.3V. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). Yes, the module contains a permanently attached antenna The module must demonstrate compliance in a stand-alone configuration. Yes, The report lists all the tests. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). Yes,The host system have label in a visible area indicated the following texts: "Contains FCC ID: ROW-N37603U03 The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes, This module meets the requirements of FCC part 15C(15.247).it specifically establish the 6dB Bandwidth,, Peak Output Power, Radiated Spurious Emission, Power Spectral Density, Restricted Band of Operation and Band Edge (Out of Band Emissions) Measurement CHINA DRAGON TECHNOLOGY LIMITED FCC Modular Approval Request The module must comply with RF exposure requirements Yes,This module complies with FCC RF radiation exposure limits set forth for an uncontrolled environment, This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body." This module is designed to comply with the FCC statement, FCC ID is: ROW-N37603U03 Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of requirements and Checklist.Refer to the KDB for description of the complete requirements; KDB Ref Sect Requirements of KDB 996369 D03 User Manual Page Number reference 2.2 List of applicable FCC rules Page 13 2.3 Summarize the specific operational use conditions Page 13 2.4 Limited module procedures Page 13 2.5 Trace antenna designs Page 14 2.6 RF exposure considerations Page 15 2.7 Antennas Page 15 2.8 Label and compliance information Page 15 2.9 Information on test modes and additional testing requirements Page 15 2.10 Additional testing, Part 15 Subpart B disclaimer Page 16 Name: Liu Xiaodong Date: 2021/06/24 Title: Manager Signature of applicant :

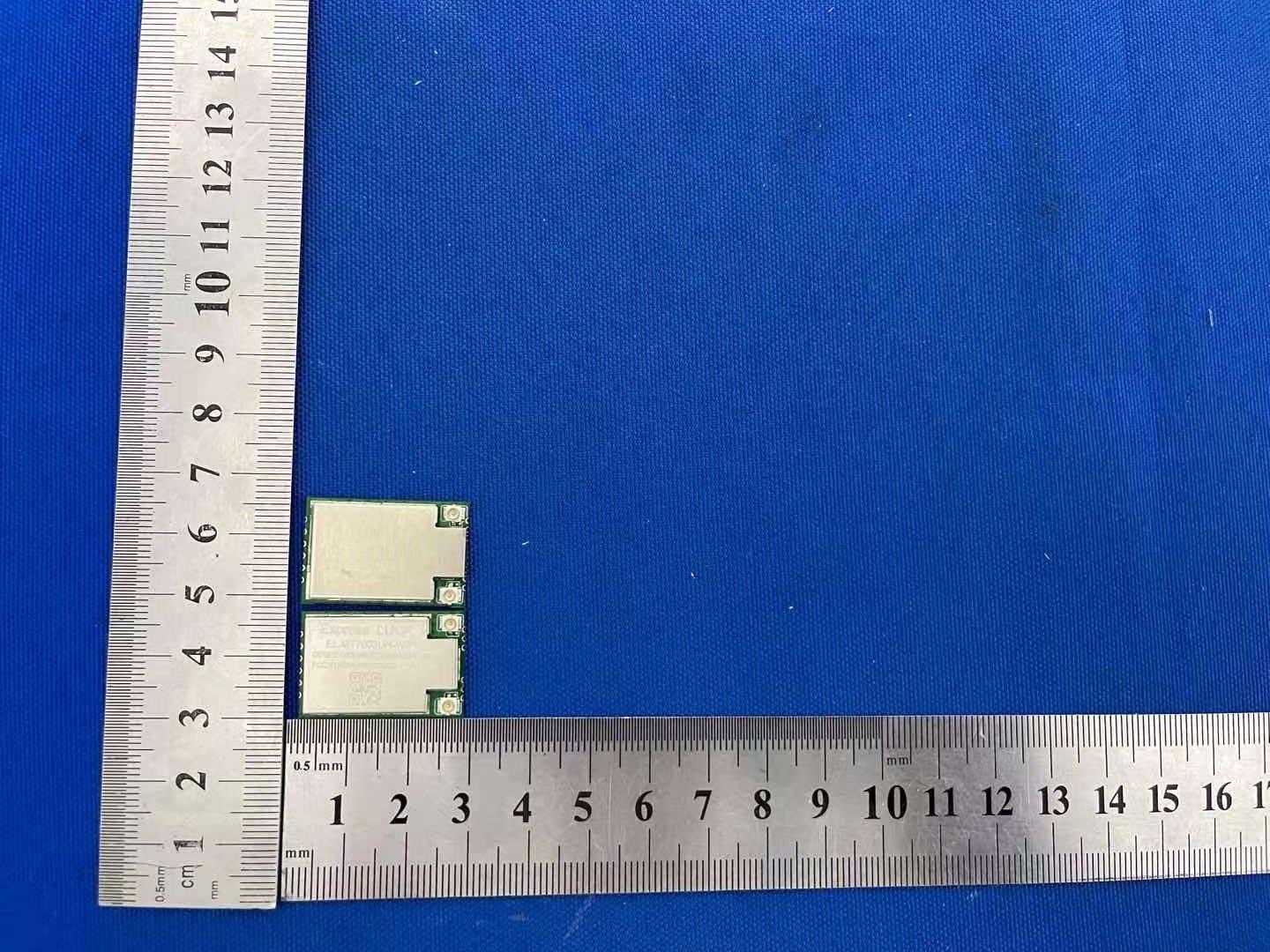

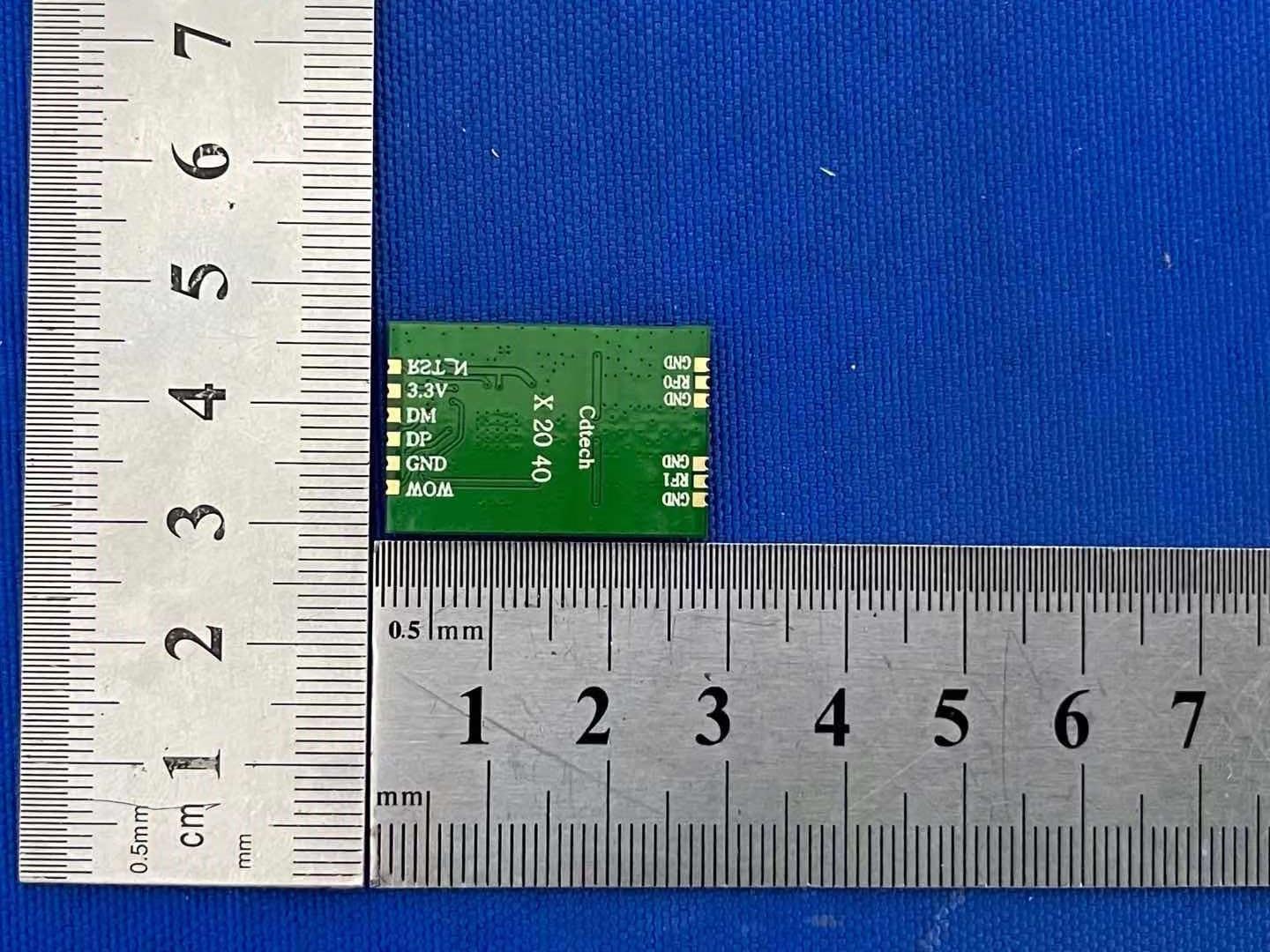

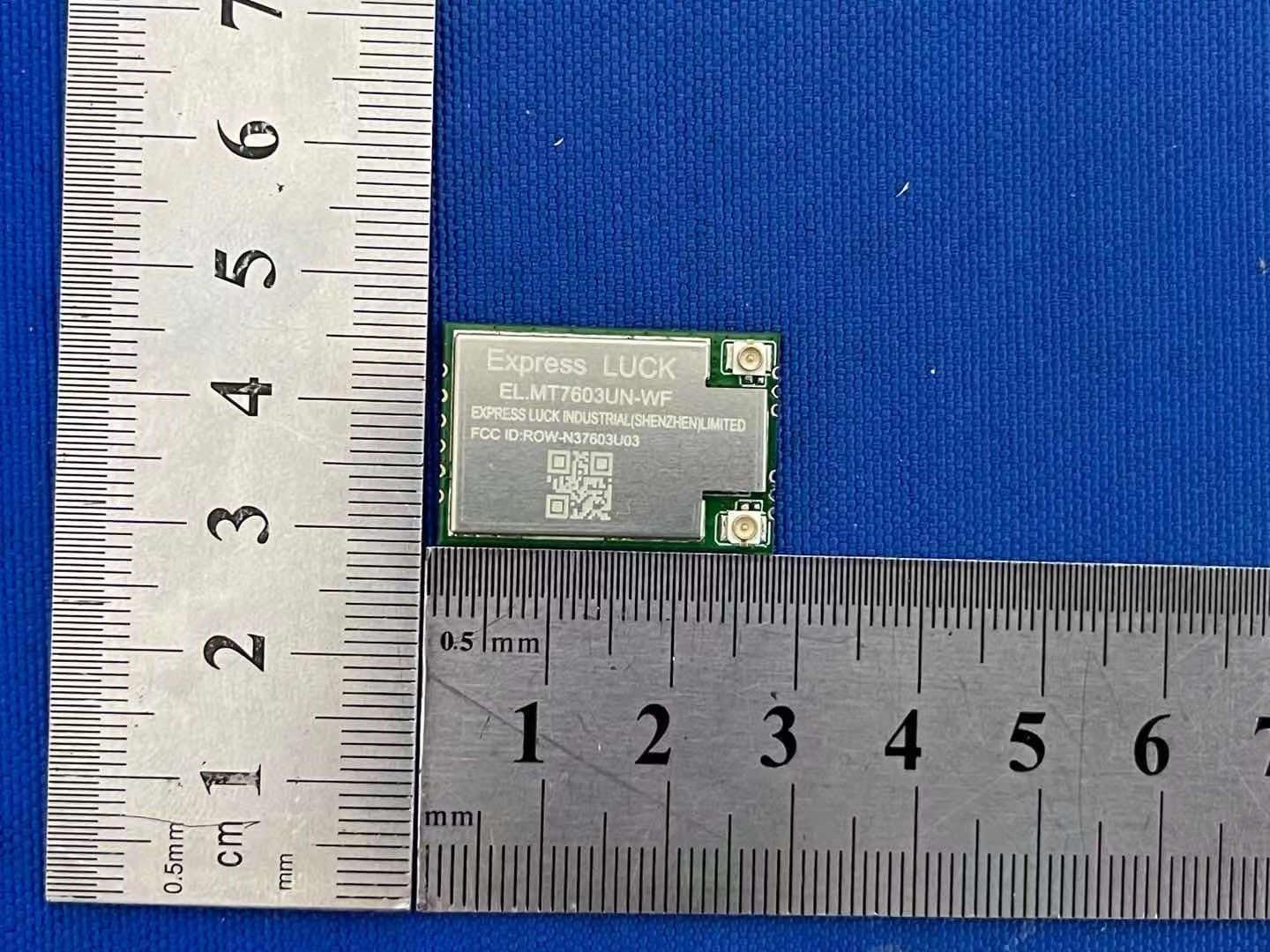

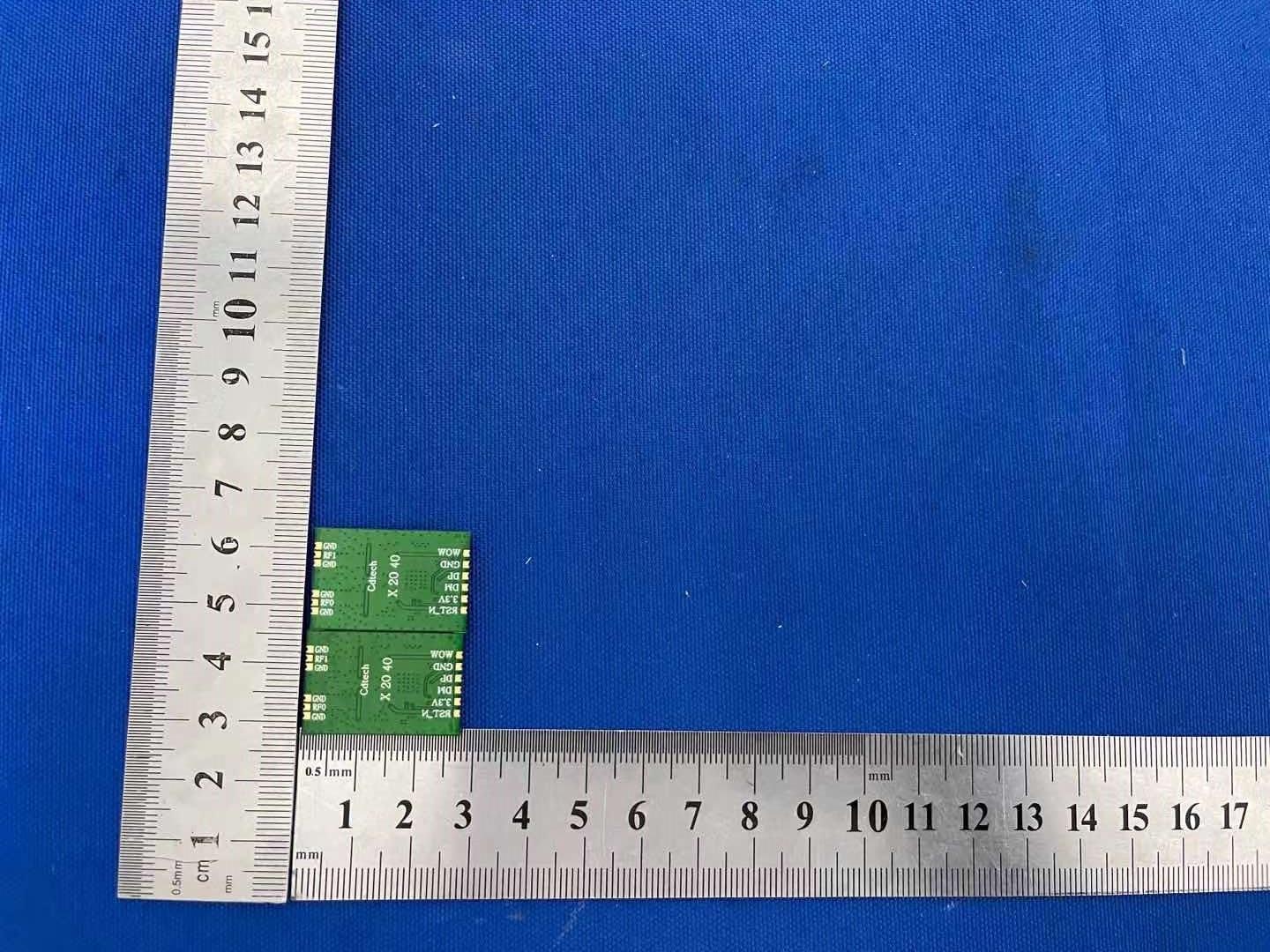

FCC ID: ROW-N37603U03 Model :CDW-N37603U-03 External Photos Antenna A Antenna B

Label & label location Size:20*10mm FCC ID:ROW-N37603U03 Label location

.

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: ROW-N37603U03 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Tune up Produce power Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/cm2) Limit (mW/ cm2) Result 802.11n20 (2.4G Hz WIFI) 18±1 19 79.43 3.40 (5.31dBi) 0.537 1 Pass

No.：BCTC/RF-EMC-005 Page: 1 of 70 Edition：A.3 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2105480474E Applicant: CHINA DRAGON TECHNOLOGY LIMITED Product Name: WLAN 11n USB 2T2R module Model/Type reference: CDW-N37603U-03 Tested Date: 2021-05-27 to 2021-05-31 Issued Date: 2021-05-31 Report No.: BCTC2105480474E No.：BCTC/RF-EMC-005 Page: 2 of 70 Edition：A.3 FCC ID: ROW-N37603U03 Tested by: Approved by: Sam zeng/Project Handler Zero Zhou/Reviewer The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: WLAN 11n USB 2T2R module Trademark: N/A Model/Type reference: CDW-N37603U-03 Prepared For: CHINA DRAGON TECHNOLOGY LIMITED Address: B4 Bidg. haosan No.1 lndustry Park, Shajing street, B Shenzhen, China Manufacturer: CHINA DRAGON TECHNOLOGY LIMITED Address: B4 Bidg. haosan No.1 lndustry Park, Shajing street, B Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2021-05-27 Sample tested Date: 2021-05-27 to 2021-05-31 Issue Date: 2021-05-31 Report No.: BCTC2105480474E Test Standards FCC Part15.247 ANSI C63.10:2013 KDB 662911 D01 v02r01 558074 D01 15.247 Meas Guidance v05r02 Test Results PASS Report No.: BCTC2105480474E No.：BCTC/RF-EMC-005 Page: 3 of 70 Edition：A.3 Table of Contents Page 1 .VERSION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 3.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 3.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3.5.1TEST FACILITY 12 3.5.2 RADIATION TEST EQUIPMENT 12 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 TEST PROCEDURE 19 4.2.3 DEVIATION FROM TEST STANDARD 19 4.2.4 TEST SETUP 20 4.2.5 EUT OPERATING CONDITIONS 21 4.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 22 4.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 23 4.2.8 TEST RESULTS 25 4.3 RADIATED BAND EMISSION MEASUREMENT 29 4.3.1 TEST REQUIREMENT: 29 4.3.2 TEST PROCEDURE 29 4.3.3 DEVIATION FROM TEST STANDARD 30 4.3.4 TEST SETUP 30 4.3.5 EUT OPERATING CONDITIONS 30 5 . POWER SPECTRAL DENSITY TEST 33 5.1 APPLIED PROCEDURES / LIMIT 33 Report No.: BCTC2105480474E No.：BCTC/RF-EMC-005 Page: 4 of 70 Edition：A.3 Table of Contents Page 5.1.1 TEST PROCEDURE 33 5.1.2 DEVIATION FROM STANDARD 33 5.1.3 TEST SETUP 33 5.1.4 EUT OPERATION CONDITIONS 33 5.1.5 TEST RESULTS 34 6 . BANDWIDTH TEST 42 6.1 APPLIED PROCEDURES / LIMIT 42 6.1.1 TEST PROCEDURE 42 6.1.2 DEVIATION FROM STANDARD 42 6.1.3 TEST SETUP 42 6.1.4 EUT OPERATION CONDITIONS 42 6.1.5 TEST RESULTS 43 7 . PEAK OUTPUT POWER TEST 51 7.1 APPLIED PROCEDURES/LIMIT 51 7.1.1 TEST PROCEDURE 51 7.1.2 DEVIATION FROM STANDARD 51 7.1.3 TEST SETUP 51 7.1.4 EUT OPERATION CONDITIONS 51 7.1.5 TEST RESULTS 52 8 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 53 8.1 APPLICABLE STANDARD 53 8.2 TEST PROCEDURE 53 8.3 DEVIATION FROM STANDARD 53 8.4 TEST SETUP 53 8.5 EUT OPERATION CONDITIONS 53 9 . DUTY CYCLE OF TEST SIGNAL 62 9.1 STANDARD REQUIREMENT 62 9.2 FORMULA: 62 10 . ANTENNA REQUIREMENT 65 10.1 STANDARD REQUIREMENT 65 10.2 EUT ANTENNA 65 11 . EUT PHOTOGRAPHS 66 12 . EUT TEST SETUP PHOTOGRAPHS 68 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Report No.: BCTC2105480474E No.：BCTC/RF-EMC-005 Page: 5 of 70 Edition：A.3 1.VERSION Report No. Issue Date Description Approved BCTC2105480474E 2021-05-31 Original Valid Report No.: BCTC2105480474E No.：BCTC/RF-EMC-005 Page: 6 of 70 Edition：A.3 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (d) 15.209 Radiated Spurious Emission PASS 15.247 (e) Power Spectral Density PASS 15.205 Restricted Band of Operation PASS 15.247 (d) Band Edge (Out of Band Emissions) PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.: BCTC2105480474E No.：BCTC/RF-EMC-005 Page: 7 of 70 Edition：A.3 2.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 3m chamber Radiated spurious emission(30MHz-1GHz) U=4.3dB 2 3m chamber Radiated spurious emission(9KHz-30MHz) U=3.7dB 3 3m chamber Radiated spurious emission(1GHz-18GHz) U=4.5dB 4 3m chamber Radiated spurious emission(18GHz-40GHz) U=3.34dB 5 Conducted Emission (150kHz-30MHz) U=3.20dB 6 Conducted Adjacent channel power U=1.38dB 7 Conducted output power uncertainty Above 1G U=1.576dB 8 Conducted output power uncertainty below 1G U=1.28dB 9 humidity uncertainty U=5.3% 10 Temperature uncertainty U=0.59°C Report No.: BCTC2105480474E No.：BCTC/RF-EMC-005 Page: 8 of 70 Edition：A.3 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Model/Type reference: CDW-N37603U-03 Model differences: N/A Hardware Version: N/A Software Version: N/A Operation Frequency: 802.11b/g/n20MHz:2412~2462 MHz 802.11n40MHz:2422~2452 MHz Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6Mbps 802.11n Up to 300Mbps Type of Modulation: WIFI: OFDM/DSSS Number Of Channel 8…

Text truncated - open the document above for the full version.

Report No.: BCTC2105480474E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 1 of 2 1. EUT TEST SETUP PHOTOGRAPHS Spurious emissions Report No.: BCTC2105480474E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 2 Conducted emissions ※※※※※ END OF REPORT ※※※※※
