RPRVMP407Digital Audio Player with Bluetooth Interface

3 Features 2 Contents  Features and Set-up Precautions ................................................4Package Contents and Descriptions ..........6LCD/Battery Recharging ............................7Connecting to a PC ....................................8  Basic Operations Power ON/OFF/Playback .........................11Volume Control/Interval Repeat ...............12Bookmarks ...............................................13EQ Mode / Navigation ..............................14FM Radio..................................................15 FM Recording...........................................16 Voice Recording .......................................17External Input Recording..........................18How to Use Programs ..............................19  Menu Structure and How to useEach Menu MENU Structure .......................................20MODE.......................................................21SYSTEM...................................................22CONTROL ................................................24DISPLAY ..................................................28SOUND ....................................................30How to upgrade Firmware . .......................31  How to Use IMAGE EDITOR .....32  How to use LyricsED ....................38  Specifications ....................................40  MP3, WMA Playback Store and play Microsoft WMA/MP3 files.  FM Receiving and Recording Receive FM transmissions and record FMsound into MP3 file format.  High-Quality MP3 Voice Recording Save and play back voice signals into MP3files of the highest sound quality.  MP3 Recording from External Audio Input Signals Convert and save audio signals from all typesof analogue audio devices into MP3 files with-out using a PC.  Lyrics Editor Provides an Lyrics Editing Program and dis-plays three-line lyrics.  96X64 dot 2-Color (Orange/Blue) 16 gray OLED Uses OLED which can display high definitionimage files and moving picture frames.  Convenient Firmware Upgrade Download upgrade files, restart the player, andfiles are automatically upgraded. This functionenables you to always use the latest Functions.  Variable Bit Rate Setting You can adjust audio recording quality by chang-ing bit rates for voice recording or line-in record-ing according to place or time. This functionenables you to use the memory effectively.  Speed Control Control the playback speed - fast or slow.  IMAGE EDITOR Program Provides an Image Editor Program to edit imagefiles and moving image frame files at will  Built-in Rechargeable Li-polymer Battery Easily recharge the battery through the USBof a PC, or external outlet. No need to pur-chase extra batteries.  Bluetooth - Display Caller ID.- Pairing for up to 3 Bluetooth enabled devices. - Supports both Headset and Handsfree profiles. - Low Power Consumption. Features SF2000B-VMP407(eng) 9/2/04 11:37 AM Page 2 4 Precautions 5 Read and Understand all the instructions to avoid injury to yourself and damage to theequipment. Please check the following if any problems occur while using the device. 1. Not working and nothing appearson the LCD. - Recharge the built-in battery. - Check if files are saved in the memory. - Check if the volume is set to "0". - Check if the earphone jack is properly inserted. - Check if "Hold" is locked. - Check if the product is con- nected to a PC. - Check the USB extension cable connection betweenDevice and PC. 2. No sound during playback. 3. Buttons don’t work. 4. Unable to down- load files. Safety Precautions1. Listening to music at a high volume for long periods of time may damage your hearing.2. Do not repair, disassemble, or alter the product yourself.3. Do not use the product where it is prohibited to use electronics devices (i.e. in an airplane)4. It is dangerous to drive a car, motorcycle, or bike while using your headset/earphones. (It may cause an accident if you turn up the volume of the earphones while walking on streets, especially whileusing pedestrian crossings.) 5. Be careful not to let the player’s neck-strap get caught in doors or other obstacles.❈ Optimal Conditions for Use • Temperature: 5 ̊ C ~ 35 ̊ C (23°F ~ 95°F) • Humidity: 10%~75% Do not expose to extremelyhigh temperatures (over35°C/95°F), low tempera-tures (below -5°C/23°F),direct sunlight , inside a car,dusty areas, or high-humidi-ty area such as bathrooms. To clean, use a dry soft cloth.Do not use any solvents, ben-zene, or thinners.(Such materials may damagethe surface or affect the color ofthe product.) Do not let any foreign matterget into the product. If water orany other liquid is spilt into theproduct, stop using it and con-tact a servicecenter. Do not apply excessive pres-sure to the LCD. Do not disas-semble, repair, or convert theproduct yourself. The companyis not responsible for the loss offiles caused by damage, repairor any other reasons. Be aware that this product mayaffect Credit Cards and anyother magnetic cards due tothe magnetic device inside. Troubleshooting SF2000B-VMP407(eng) 9/2/04 11:37 AM Page 4 7 LCD / Charging Battery 6 Package Contents and Descriptions Necklace type earphone Line in Cable Carrying Case (Option) Bluetooth Manual Manual USB Cable Main Unit Installation CD MicrophoneLCDDirection,Selection Button/ MENU ButtonLED (Charge /OperationIndicator) Power, Play/PauseButtonEQ / Bookmark ButtonInterval Repeat /Record Button /SEND (Bluetooth)HOLD Switch USB PlugUSB CoverRESET Button Line-in Jack Earphone Jack  Current Song Number  Total Stored Songs  Playback Time Indicator  Remaining BatteryIndicator  Folder Title Display  File Name and ID3TagInformation Display  EQ Mode Indicator Level Meter Playback Mode Indicator Sampling Frequency Bit Rate Display File Format Display  Folder Type Display  Mode Type Displayand HOLD Indicator Using the PC link Using the adapter • Turn the computer power on and connect the VIODIO to theUSB port of computer. • The Battery Charging LED on themain unit lights up during charg…

Text truncated - open the document above for the full version.

S · CAM Co., Ltd. DECODING MP3/WMA/ASF Graphic LCD Earphone Jack KEY FUNCTION CODEC Flash Memory 128 MB STEP DOWN Li-Pol BATT. 2.8V FM RADIO (OPTION) LINE IN Jack MIC CELL USB JACK Charger IC BLOOTH MODULE ANTENNA 12MHz 32.768KHz CIRCUIT Block Diagram VCC VCC 2.8V LDOLDO - Battery Input- Input Voltage range (3.1/3.7/4.2)Operating voltage(3.1/3.7/4.2)

137-891 서울특별시 서초구 양재동 110-1 3 th & 4 th F1, A-min B/D 110-1, Yangjae-dong, 아민빌딩 3, 4 층 Seocho-gu, Seoul 137-891, Korea 전화:02-573-2620 팩스: 02-573-2503 Tel: 82-2-573-2620 Fax: 82-2-573-2503 http://www.seecode.com SEECODE 3 rd Floor, Amin Bldg., 110-1, Yangjae-dong, Seocho-gu, Seoul 137-891, Korea Tel : +82-2-573-2620 / Fax : +82-2-573-2503 http://www.seecode.com Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Seoul, August 16, 2004 REQUEST FOR CONFIDENTIALITY, FCC ID: RPRVMP407 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: • Schematic drawing • Bill of Materials The above materials contain trade secrets and proprietary information not customarily released to the public. Public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Kim Youhg-Hwi, Engineer, SEECODE Co., Ltd. SEECODE Co., Ltd.

137-891 서울특별시 서초구 양재동 110-1 3 th & 4 th F1, A-min B/D 110-1, Yangjae-dong, 아민빌딩 3, 4 층 Seocho-gu, Seoul 137-891, Korea 전화:02-573-2620 팩스: 02-573-2503 Tel: 82-2-573-2620 Fax: 82-2-573-2503 http://www.seecode.com SEECODE 3 rd Floor, Amin Bldg., 110-1, Yangjae-dong, Seocho-gu, Seoul 137-891, Korea Tel : +82-2-573-2620 / Fax : +82-2-573-2503 http://www.seecode.com Chief, Equipment Approval Services Federal Communications Commission PO Box 358315 Pittsburg, PA 15251-5315 Seoul, August 16, 2004 Authorization Letter Dear Sir or Madam: We, SEECODE Co., Ltd., hereby authorize TÜV Rheinland Korea Ltd. 2F., Sehwa Bldg. 157-16 Samsung-dong, Gwangnam-Gu, Seoul 135-090, R.O.K. To act as our agent and to process and sign on our behalf for equipment authorization under FCC Part 15, Subpart C. This authorization is applicable for the product: VIODIO (VMP407 ) with FCC ID: RPRVMP407. Sincerely, Kim Young-Hwi Engineer, SEECODE Co., Ltd. SEECODE Co., Ltd.

TÜV Rheinland Product Safety GmbH Label Information and Location 13003249 Rev 1.1 1/1 1. Label Location 2. BASE Label

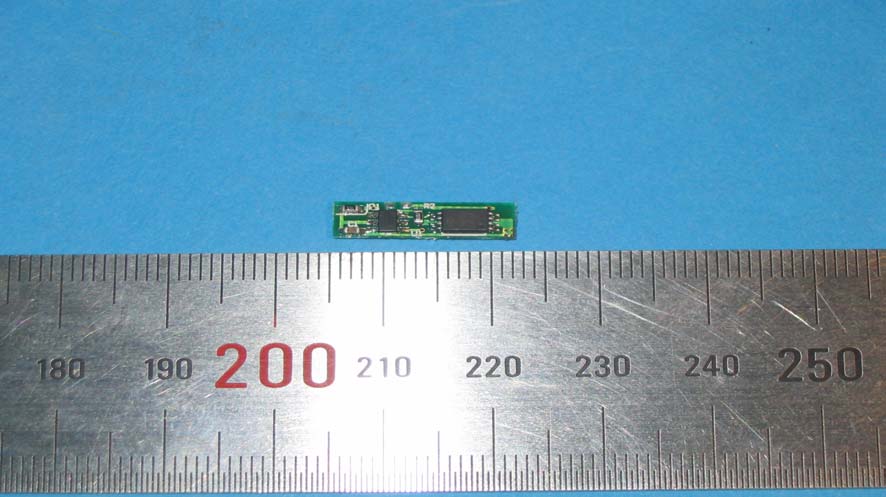

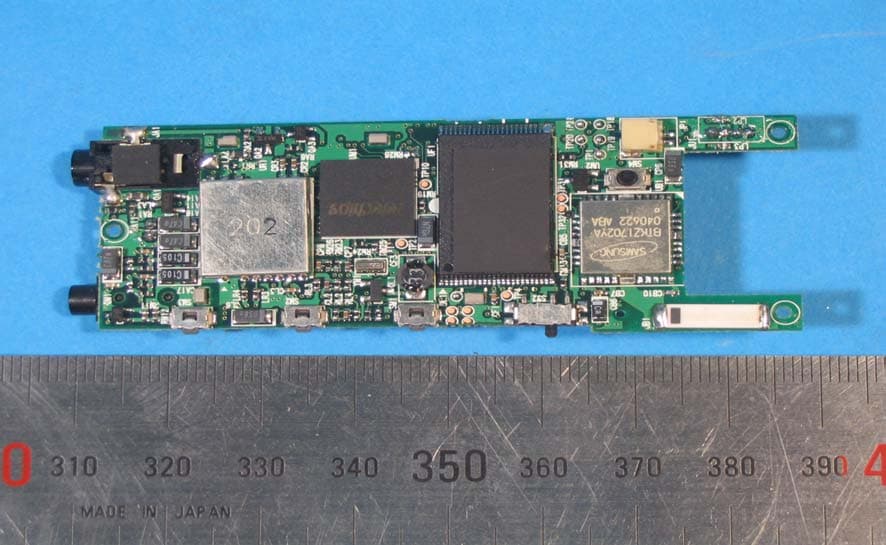

TÜV Rheinland Product Safety GmbH Internal Photos 13003249 Revision No : 1.2 Page: 1 of 3 1. Internal view 1.1 Inside View TÜV Rheinland Product Safety GmbH Internal Photos 13003249 Revision No : 1.2 Page: 2 of 3 1.2 PCP Top View 1.3 PCP Bottom View TÜV Rheinland Product Safety GmbH Internal Photos 13003249 Revision No : 1.2 Page: 3 of 3 1.4 Battery Assembly view 1.5 Top PCB view of Battery Assembly 1.6 Bottom PCB view of Battery Assembly

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln EUT operational and EUT description 13003249 Rev 1.1 Seite 1 von 2 Page 1 of 2 B B l l u u e e t t o o o o t t h h M M P P 3 3 P P l l a a y y e e r r V V i i o o d d i i o o T T M M - - A A p p p p e e a a r r a a n n c c e e ( ( M M o o d d e e l l N N o o : : V V M M P P 4 4 0 0 7 7 ) ) Front Back - Features : --- MP3 Player & Bluetooth Headset --- Direct encoding function Patent pending built-in USB plug- battery charge, firmware upgrade, file up/dn Supports MP3 & WMA Multi-functional multimedia - MP3 player/Bluetooth headset/FM radio/Voice recorder/Line in recorder Rechargeable battery- 2~3 hours charging time, 15 hours playing time Compliant with Bluetooth V1.1 Supports both handsfree & headset profile - Usage : User can get downloaded the MP3, WMA file and enjoying the music via this unit. In case of Bluetooth mobile phone user, it can be paired with this unit and used as a Bluetooth headset. When there is an incoming call while listening to the music, user just can press the REC button and answer a call. And the user can get back to the music again after ending a call. Moreover, voice recording function is available. TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Prüfbericht - Nr.: Test Report No.: 13002912 001 Seite 2 von 2 Page 2 of 2 - Product Specification : 1. Voltage range : 3.0V minimum, 3.7V normal, 4.2V maximum 2. Operating temperature : -10 min, 20 normal, 50 max (unit : degree Celsius) 3. RF Modulation Method : GFSK 4. Frequency Range : 2.4GHz - 2.4835GHz 5. Uses FHS with 79 channels. 5. Antenna : Chip type antenna with maximum gain of 2.2dBi

TÜV Rheinland Product Safety GmbH SAR Declaration 13003249 Revision No : 1.1 Page: 1 of 1 To : Federal Communications Commission SAR Declaration 1. Regulations According to § 15.247(b)(5) Systems operating under the provisions of this Section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. 2. SAR Calculation This device is a Headset equipment using Bluetooth Technologies. Therefore the distance between radiating parts of device and human body is more than 2cm typically. The maximum output power of the device measured at the antenna connector is -4.09dBm and the maximum antenna gain is 2.2 dBi. Therefore the maximum radiated power is –1.89 dBm EIRP which equals 0.65mW The maximum power in 2cm distance can be calculated as follows: S= EIRP/( 4л R 2 ) = 0.65/( 4л* 4 ) = 0.013 mW/cm 2 which is far below the MPE limits of 1 mW/cm 2 Therefore the device meets the requirements of the clause 1 regulations. August 20,2004 TUV Rheinland Korea Ltd. Uon-Chae Song

TÜV Rheinland Product Safety GmbH REPROT NO : 13003249 Revision No : 1.1 Page: 1 of 47 FCC Part 15 TEST REPORT August 20, 2004 TUV Rheinland Korea Ltd. TÜV Rheinland Product Safety GmbH REPROT NO : 13003249 Revision No : 1.1 Page: 2 of 47 TEST REPROT CERTIFICATION Applicant : SEECODE Co., Ltd. Adderss : 3rd Floor, Amin Bldg., 110-1 Yangjae-dong, Seocho-gu, Seoul, Korea EUT Name : VIODIO Model No. : VMP407 Serial No. : Engineering Sample FCCID : RPRVMP407 Testing location : LG Innotek Co.,Ltd. 133, Gongdan-dong, Gumi-City , Gyeongbuk 730-703, R.O.K Applied specification : FCC Part 15 , ANSI C63.4-2001 Test result : The above mentioned test item passed. Tested by : Gui-Lim Woo Date Signature Reviewed by : Uon-Chae Song Date Signature I HEREBY CERTIFY THAT the data shown in this report were made in accordance with the procedures given in the applied specification and I assume full responsibility for accuracy and completeness of these data. Note : This test report relates to the a. m. test item. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. August 20, 2004 August 20, 2004 TÜV Rheinland Product Safety GmbH REPROT NO : 13003249 Revision No : 1.1 Page: 3 of 47 Contents 1. General Information -------------------------------------------------------------------5 1.1 Product Description ---------------------------------------------------------------------5 1.2 Project data---------------------------------------------------------------------------------5 1.3 Applicant-------------------------------------------------------------------------------------5 1.4 Manufacturer--------------------------------------------------------------------------------5 2. EUT Information---------------------------------------------------------------------------6 2.1 General EUT Information--------------------------------------------------------------6 2.2 Center Frequency of Tested Channel---------------------------------------------6 2.3 Test Environment------------------------------------------------------------------------6 2.4 Accessories and Ancillary Equipment--------------------------------------------6 3. Testing Facilities --------------------------------------------------------------------------7 4. EUT Description and Operational Description-----------------------------------7 4.1 General Description----------------------------------------------------------------------7 4.2 Product Function and Intended use------------------------------------------------7 5. Test Set-up-----------------------------------------------------------------------------------8 5.1 Principle of configuration-------------------------------------------------------------8 5.2 Operational Modes-----------------------------------------------------------------------8 5.3 Applied Specification-------------------------------------------------------------------8 6. Test Report Summary--------------------------------------------------------------------9 7. Test Results---------------------------------------------------------------------------------10 7.1 Antenna Connector Requirements-------------------------------------------------10 7.2 AC C ONNECTED EMISSION----------------------------------------------------------------11 7.3 Carrier Frequency Separation-------------------------------------------------------12 7.4 Time of Occupancy(Dwell time)----------------------------------------------------14 7.5 20dB Bandwidth-------------------------------------------------------------------------16 7.6 Number of Hopping Frequencies Requirements-----------------------------20 7.7 Pseudorandom Frequency Hopping Sequence and Equal Hopping Frequency use Requirements ----------------------------------------22 TÜV Rheinland Product Safety GmbH REPROT NO : 13003249 Revision No : 1.1 Page: 4 of 47 7.8 Receiver Input Bandwidth Requirements-------------------------------------23 7.9 Peak Output Power ------------------------------------------------------------------24 7.10 Band-edge Compliance------------------------------------------------------------28 7.11 Spurious Conducted emissions -----------------------------------------------32 7.12 Spurious Radiated emissions --------------------------------------------------43 8. List of Test and Measurement Instruments -----------------------------46 9. Complementary Materials------------------------------------------------------------47 TÜV Rheinland Product Safety GmbH REPROT NO : 13003249 Revision No : 1.1 Page: 5 of 47 1. General Information 1.1 Product Description Product Name : VIODIO Product ID : VMP407 Serial No. : N/A FCC ID : RPRVMP407 1.2 Project data Receipt of EUT : August 4, 2004 Date of Test : August 9, 2004 Data of report : August 20, 2004 1.3 Applicant Company Name : SEECODE Co., Ltd. Address : 3rd Floor, Amin Bldg., 110-1 Yangjae-dong, Seocho-gu, Seoul, Korea Contact Person : Young-Hwi Kim 1.4 Manufacturer Company Name : SEECODE Co., Ltd. Address : 3rd Floor, Amin Bldg., 110-1 Yangjae-dong, Seocho-gu, Seoul, Korea Contact Person : Young-Hwi Kim TÜV Rheinland Product Safety GmbH REPROT NO : 13003249 Revision No : 1.1 Page: 6 of 47 2. EUT Information 2.1 General EUT Information Type Transmitter Receiver FCC Classification FHSS Sequence Spread Spectrum ( FHSS) FHSS Sequence Spread Spectrum ( FHSS) Frequency Range 2402 – 2480 MHz 2402 – 2480 MHz Number of Channels 79 79 Channel Separation 1MHz 1MHz Type of Antenna Chip Multilayer Antenna Chip Multilayer Antenna Power Supply DC 3.7V Polymer Lithium DC 3.7V Polymer Lithium 2.2 Center Frequency of Tested Channel Frequency Tx ( MHz ) Rx ( MHz) Lowest 2402 2402 Middle 2441 2441 Highest 2480 2480 2.3 Test Environment Temperature 20ºC Relative Humidity 30 ~ 60% Voltage DC 3.7V 2.4 Accessories and Ancillary Equipment Equipment Model No. Serial Number Maker Laptop PC PS428L-OE142 30014068J Toshiba TÜV Rheinland Product S…

Text truncated - open the document above for the full version.

TÜV Rheinland Product Safety GmbH Test setup photos 13003249 Revision No : 1.0 Page: 1 of 5 1 Test set-up 1.1 Radiated test setup TÜV Rheinland Product Safety GmbH Test setup photos 13003249 Revision No : 1.0 Page: 2 of 5 1.2 Spurious Radiated Emissions 1.2.1 Radiated test ( 30 MHz ~ 1GHz ) TÜV Rheinland Product Safety GmbH Test setup photos 13003249 Revision No : 1.0 Page: 3 of 5 1.2.2 Radiated test ( 1 GHz ~ 13GHz ) TÜV Rheinland Product Safety GmbH Test setup photos 13003249 Revision No : 1.0 Page: 4 of 5 1.2.3 Radiated test ( 13 GHz ~ 18GHz ) TÜV Rheinland Product Safety GmbH Test setup photos 13003249 Revision No : 1.0 Page: 5 of 5 1.2.4 Radiated test ( 18 GHz ~ 25GHz )
