RPRVSH411Bluetooth Headset

SEECODE DOC VER 20041229.0.93.AIDfduj7839fduTHDOCTHOIO - 876YUIF Bluetooth ® Headset VIM a User’s Guide SEECODE DOC VER 20041229.0.93.AIDfduj7839fduTHDOCTHOIO - 876YUIF Disclaimer MODEL : VSH411 The headset described in this guide is approved to be compliant with the Bluetooth ® Specification and its profiles. is a trademark owned by Bluetooth SIG. All brand names are the property of their respective owners. FCC ID RPRVSH411 * Section 15.19 Labelling requirements This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. * Section 15.21 Information to user The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. SEECODE DOC VER 20041229.0.93.AIDfduj7839fduTHDOCTHOIO - 876YUIF * IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. SEECODE DOC VER 20041229.0.93.AIDfduj7839fduTHDOCTHOIO - 876YUIF Table of Contents D ISCLAIMER ............................................................................................. 2 I. INTRODUCTION........................................................................5 II. GETTING STARTED................................................................7 I N THE PACKAGE ....................................................................................... 7 O VERVIEW ................................................................................................ 7 C HARGING THE BATTERY .......................................................................... 8 W EARING THE HEADSET ............................................................................ 9 S WITCHING THE HEADSET ON OR OFF ......................................................... 9 T AKING THE HEADSET INTO USE FOR THE FIRST TIME ............................... 10 III. USING THE HEADSET ........................................................12 M AKING A CALL ...................................................................................... 12 R EDIALING THE LAST DIALED NUMBER .................................................... 12 V OICE D IALING ....................................................................................... 12 E NDING A CALL ....................................................................................... 13 A NSWERING A CALL ................................................................................ 13 A DJUSTING THE EARPHONE VOLUME ....................................................... 13 T RANSFERRING THE CALL FROM THE HEADSET TO THE PHONE .................. 14 T RANSFERRING THE CALL FROM THE PHONE TO THE HEADSET .................. 14 IV. FOR ADVANCED USERS.....................................................15 H EADSET CONNECTION STATES ............................................................... 15 C ONNECTING AND DISCONNECTING TWO DEVICES .................................... 17 M ORE ABOUT PAIRING PROCEDURE ......................................................... 18 R EMOVING ALL PAIRED INFORMATION FROM YOUR HEADSET ................... 18 V. SPECIFICATION.....................................................................20 SEECODE DOC VER 20041229.0.93.AIDfduj7839fduTHDOCTHOIO - 876YUIF I. Introduction The VSH411 headset is a wireless headset based on Bluetooth® technology. Bluetooth® technology is a standard for short range radio communications. Your Bluetooth® phone and headset do not need to be in a line of sight. The two devices only need to be within a maximum of 10 meters of each other, although the connection can be subject to interference from obstacles, such as walls, or from other electronic devices. The VSH411 is a Bluetooth® headset that supports two profiles: The Headset and the Hands-Free profile. It can be used with any compatible Bluetooth devices, such as mobile phones, PDAs, that support the Headset or Hands-Free profile. (Here, "Profile" means a set of Bluetooth commands that a Bluetooth device uses for controlling another Bluetooth devices.) Your VSH411 will allow you to receive, make a call, SEECODE DOC VER 20041229.0.93.AIDfduj7839fduTHDOCTHOIO - 876YUIF adjust volume, without touching your mobile device. SEECODE DOC VER 20041229.0.93.AIDfduj7839fduTHDOCTHOIO - 876YUIF 2 5 1 II. Getting started In the package The VSH411 Bluetooth® headset package contains : the headset, a charging cable, two changeable upper deco housings in different colors and this manual. Overview 3 4 7 6 SEECODE DOC VER 20041229.0.93.AIDfduj7839fduTHDOCTHOIO - 876YUIF Earphone Volume down button Charger connector Ear hook Microphone Volume up button Talk / Power button and the LED indicator Charging the battery To charge the battery, simply connect the charger cable to the headset. And then, connect the charger to an AC wall outlet. While charging, the LED indicator light is shown. When the battery gets to a significantly low level, it starts to beep a low-battery tone periodically. Eventually the headset is turned off unless you charge the battery. Notice : Right after you bought the headset, the battery charge would be low. Before using the headset for the first time, it is recommended for you to charge the battery. SEECODE DOC VER 20041229.0.93.AIDfduj7839fduTHDOCTHOIO - 876YUIF Wearing the headset You can put on the VSH411 Bluetooth ® headset on either ear. To change the orientation of the earhook, detach the earhook from the body part. To detach it, hold the headset firmly and pull the earhook away from the post around the earphone. Turn it over and replace on that post. To wear the headset, extend the ea…

Text truncated - open the document above for the full version.

SEECODE Co., Ltd. Qualified Bluetooth Group 3rd, 4th Floor, Amin Bldg., 110-1, Yangjae-dong, Seocho-gu, Seoul 137-891, Korea Tel : +82-2-573-2620 / Fax : +82-2-573-2503 http://www.seecode.com SEECODE Co., Ltd. SEECODE Co., Ltd. 3 rd Floor, Amin Bldg., 110-1, Yangjae-dong, Seocho-gu, Seoul 137-891, Korea Tel : +82-2-573-2620 / Fax : +82-2-573-2503 Chief, Equipment Approval Services Federal Communications Commission PO Box 358315 Pittsburg, PA 15251-5315 Seoul, March 14, 2005 Authorization Letter Dear Sir or Madam: We , SEECODE Co., Ltd. , hereby authorize TÜV Rheinland Korea Ltd. 2F., Sehwa Bldg. 157-16 Samsung-dong, Gwangnam-Gu, Seoul 135-090, R.O.K. to act as our agent and to process and sign on our behalf for equipment authorization under FCC Part 15, Subpart C. This authorization is applicable for the product: VIM (VSH411 ) with FCC ID: RPRVSH411. Sincerely, Kim Younghwi System Software Engineer, SEECODE Co., Ltd.

SEECODE Co., Ltd. Qualified Bluetooth Group 3rd, 4th Floor, Amin Bldg., 110-1, Yangjae-dong, Seocho-gu, Seoul 137-891, Korea Tel : +82-2-573-2620 / Fax : +82-2-573-2503 http://www.seecode.com SEECODE Co., Ltd. SEECODE Co., Ltd. 3 rd Floor, Amin Bldg., 110-1, Yangjae-dong, Seocho-gu, Seoul 137-891, Korea Tel : +82-2-573-2620 / Fax : +82-2-573-2503 Federal Communications Commission, Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Seoul, March 14, 2005 Request for Cconfidentiality, FCC ID : RPRVSH411 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematic drawing Bill of Materials Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. Public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Kim Younghwi, System Software Engineer, SEECODE Co., Ltd.

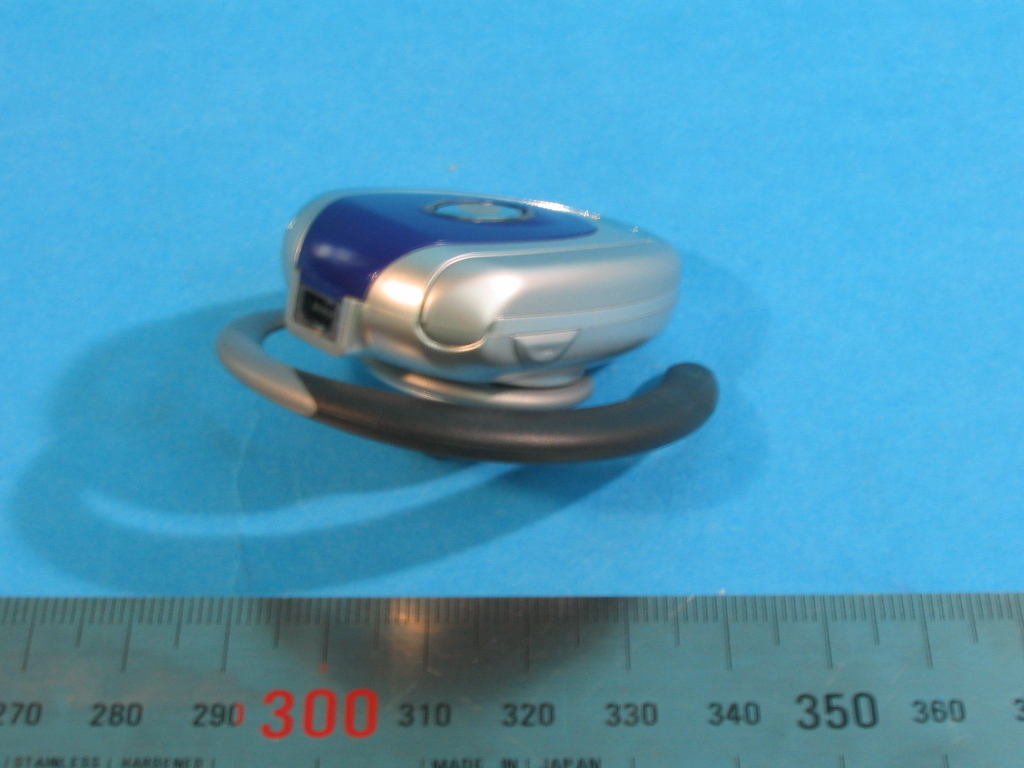

TÜV Rheinland Product Safety GmbH External Photos 13003703 Revision No : 1.1 Page: 1 of 2 * External view 1. Front side 2. Right side view TÜV Rheinland Product Safety GmbH External Photos 13003703 Revision No : 1.1 Page: 2 of 2 3. Rear side 4. Left side view

TÜV Rheinland Product Safety GmbH FCC Label and Location 13003703 Revision No : 1.0 Page: 1 of 1 * FCC Label and Location 10mm 6 mm

TÜV Rheinland Product Safety GmbH Internal Photos 13003703 Revision No : 1.1 Page: 1 of 3 * Internal view 1. Internal TÜV Rheinland Product Safety GmbH Internal Photos 13003703 Revision No : 1.1 Page: 2 of 3 2. PCP Top View 3. PCP Bottom View TÜV Rheinland Product Safety GmbH Internal Photos 13003703 Revision No : 1.1 Page: 3 of 3 4. Top Side for Battery PCB 5. Bottom Side for Battery PCB

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln EUT operational and EUT description 13003703 Seite 1 von 2 Page 1 of 2 1 General EUT Information Type Transmitter Receiver FCC Classification FHSS Sequence Spread Spectrum ( FHSS) FHSS Sequence Spread Spectrum ( FHSS) Frequency Range 2402 – 2480 MHz 2402 – 2480 MHz Number of Channels 79 79 Channel Separation 1MHz 1MHz Type of Antenna Chip Antenna Chip Antenna Power Supply DC 3.7 V Lithum Polymer Battery DC 3.7 V Lithum Polymer Battery 2 Center Frequency of Tested Channel Frequency Tx ( MHz ) Rx ( MHz) Lowest 2402 2402 Middle 2441 2441 Highest 2480 2480 3. EUT Specification Item Value Operating Temperature 0 ~ 60 Storage Temperature -20 ~ 80 Power Consumption Max 42mA Operating Voltage 3.5Vdc ~ 4.2Vdc, 3.7Vdc normal Standby Time 200 hours Talking Time 3.3 hours Carrier Frequency 2402MHz to 2480MHz(USA, Europe) Modulation Method GFSK, 1Mbps, 0.5BT Gaussian Transmission Power Typical 1.0 dBm Frequency Hopping 1600hops/sec, 1MHz channel space Bluetooth Core Spec 1.1 Supporte Bluetooth Profile Headset, Handsfree TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln EUT operational and EUT description 13003703 Seite 2 von 2 Page 2 of 2 4. EUT Description This product is Bluetooth headset, which is small size and low cost. You can use the heaset with any bluetooth enabled mobile phone. 5. Major Features (Software) - Pairing, - Pairing up to 3 devices. - Make a Call on Mobile - Answer an incoming call on Mobile - Answer an outgoing call on Heaset - Audio transfer to the Headset - Audio transfer to the Mobile - LED Indication which shows you the state of the dongle. 6. Major Features (Hardware) - Bluetooth Spec. v1.1 Complaint - Class 2 Level Output Power (Max. 4dBm) - Support Bluetooth headset profile version 1.1. - Low Power Consumption - Wide talking range up to 10 meters. - Pairable with up to 3 different mobile phone. - Voltage range : 3.5V minimum, 3.7V normal, 4.2V maximum - Operating temperature : 0 min, 20 normal, 60 max (unit : degree Celsius) - RF Modulation Method : GFSK - Uses FHS with 79 channels. - Antenna : Chip type antenna . - DH1 is the longest supported Packet for the device

TÜV Rheinland Product Safety GmbH REPROT NO : 13003703 Revision No : 1.1 Page: 1 of 48 FCC Part 15 TEST REPORT April 1, 2005 TUV Rheinland Korea Ltd. TÜV Rheinland Product Safety GmbH REPROT NO : 13003703 Revision No : 1.1 Page: 2 of 48 TEST REPROT CERTIFICATION Applicant : SEECODE Co., Ltd. Adderss : 3rd Floor, Amin Bldg., 110-1 Yangjae-dong, Seocho-gu, Seoul, Korea EUT Name : VIM Model No. : VSH411 Serial No. : Engineering Sample FCCID : RPRVSH411 Testing location : LG Innotek Co.,Ltd. 133, Gongdan-dong, Gumi-City , Gyeongbuk 730-703, R.O.K Applied specification : FCC Part 15 , ANSI C63.4-2003 Test result : The above mentioned test item passed. Tested by : Gye-Woog Lee Date Signature Reviewed by : Uon-Chae Song Date Signature I HEREBY CERTIFY THAT the data shown in this report were made in accordance with the procedures given in the applied specification and I assume full responsibility for accuracy and completeness of these data. Note : This test report relates to the a. m. test item. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. April 1,2005 April 1,2005 TÜV Rheinland Product Safety GmbH REPROT NO : 13003703 Revision No : 1.1 Page: 3 of 48 Contents 1. GENERAL INFORMATION................................................................................................. 5 1.1 PRODUCT DESCRIPTION............................................................................................... 5 1.2 PROJECT DATA............................................................................................................ 5 1.3 APPLICANT................................................................................................................. 5 1.4 MANUFACTURER......................................................................................................... 5 2. EUT INFORMATION........................................................................................................ 6 2.1 GENERAL EUT INFORMATION....................................................................................... 6 2.2 CENTER FREQUENCY OF TESTED CHANNEL................................................................... 6 2.3 T EST ENVIRONMENT.................................................................................................... 6 2.4 ACCESSORIES AND ANCILLARY EQUIPMENT.................................................................. 6 3. TESTING FACILITIES....................................................................................................... 7 4. EUT DESCRIPTION AND OPERATIONAL DESCRIPTION....................................................... 7 4.1 GENERAL DESCRIPTION............................................................................................... 7 4.2 MAJOR FEATURES (SOFTWARE) ................................................................................... 7 4.3 MAJOR FEATURES (HARDWARE) .................................................................................. 7 5. T EST SET-UP................................................................................................................. 8 5.1 PRINCIPLE OF CONFIGURATION..................................................................................... 8 5.2 OPERATIONAL MODES................................................................................................. 8 5.3 A PPLIED SPECIFICATION.............................................................................................. 8 6. T EST REPORT SUMMARY............................................................................................... 9 7. TEST RESULTS............................................................................................................ 10 7.1 ANTENNA CONNECTOR REQUIREMENTS...................................................................... 10 7.2 AC C ONNECTED EMISSION........................................................................................ 11 7.3 CARRIER FREQUENCY SEPARATION............................................................................ 12 7.4 TIME OF OCCUPANCY(DWELL TIME) ............................................................................ 14 7.5 20DB BANDWIDTH..................................................................................................... 16 TÜV Rheinland Product Safety GmbH REPROT NO : 13003703 Revision No : 1.1 Page: 4 of 48 7.6 NUMBER OF HOPPING FREQUENCIES REQUIREMENTS.................................................. 20 7.7 PSEUDORANDOM FHS AND EQUAL HOPPING FREQUENCY USE REQUIREMENTS............. 22 7.8 RECEIVER INPUT BANDWIDTH REQUIREMENTS............................................................. 23 7.9 PEAK OUTPUT POWER............................................................................................... 24 7.10 BAND-EDGE COMPLIANCE........................................................................................ 28 7.11 SPURIOUS CONDUCTED EMISSIONS........................................................................... 32 7.12 SPURIOUS RADIATED EMISSIONS.............................................................................. 43 8. LIST OF TEST AND MEASUREMENT INSTRUMENTS.......................................................... 46 9. COMPLEMENTARY MATERIALS...................................................................................... 48 9.1 ID LABEL AND LOCATION INFORMATION...................................................................... 48 9.2 OPERATIONAL DESCRIPTION...................................................................................... 48 9.3 TEST SETUP PHOTOS................................................................................................. 48 9.4 INTERNAL PHOTOS.................................................................................................... 48 9.5 EXTERNAL PHOTOS................................…

Text truncated - open the document above for the full version.

TÜV Rheinland Product Safety GmbH Test setup photos 13003703 Revision No : 1.1 Page: 1 of 5 * Test set-up 1. Radiated Set up TÜV Rheinland Product Safety GmbH Test setup photos 13003703 Revision No : 1.0 Page: 2 of 5 2 Spurious Radiated Emissions 2.1 Radiated test ( 30 MHz ~ 1GHz ) TÜV Rheinland Product Safety GmbH Test setup photos 13003703 Revision No : 1.0 Page: 3 of 5 2.2 Radiated test ( 1 GHz ~ 13GHz ) TÜV Rheinland Product Safety GmbH Test setup photos 13003703 Revision No : 1.0 Page: 4 of 5 2.3 Radiated test ( 13 GHz ~ 18GHz ) TÜV Rheinland Product Safety GmbH Test setup photos 13003703 Revision No : 1.0 Page: 5 of 5 2.4 Radiated test ( 18 GHz ~ 25GHz )
