RPZAIR85031033Keyboard

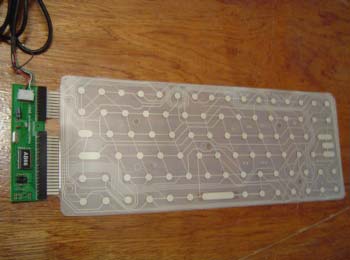

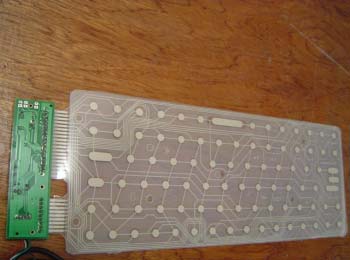

Top view of EUT Bottom view of EUT

Report Number: SZ0310027 FCC ID: RPZAIR85031033 December 15, 2003 LAB CODE: 200577-0 Page 1of 27 Rev. 00 FCC CLASS B COMPLIANCE REPORT for Electromagnetic Emissions of THE VIRTUALLY INDESTRUCTIBLE KEYBOARD ID Number : RPZAIR85031033 Trade Name : GRANDTEC Model Number : FLX-500U Serial Number : N/A Report Number : SZ0310027 Date : December 15, 2003 Prepared for : DOBBS-STANFORD CORPORATION 2715 ELECTRONIC LANE DALLAS TEXAS 75220 USA Prepared by : COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO.6 JINAO INDUSTRIAL PARK, NO.35 JUKENG ROAD, DASHUIKENG VILLAGE,GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL:86-755-28055000 FAX:86-755-28055221 Report Number: SZ0310027 FCC ID: RPZAIR85031033 December 15, 2003 LAB CODE: 200577-0 Page2 Rev. 00 TABLE OF CONTENTS DESCRIPTION PAGE VERIFICATION OF COMPLIANCE 3 SYSTEM DESCRIPTION 4 PRODUCT INFORMATION 5 SUPPORT EQUIPMENT 6 SECTION 1 FCC (LINE CONDUCTED & RADIATED EMISSION) 7 MEASUREMENT PROCEDURE & LIMIT (LINE CONDUCTED EMISSION TEST) 7 MEASUREMENT PROCEDURE & LIMIT (RADIATED EMISSION TEST) 10 SUMMARY DATA 13 TEST FACILITY 16 TEST EQUIPMENT LIST 17 BLOCK DIAGRAM OF TEST SETUP 18 APPENDIX 1 PHOTOGRAPHS (TEST SETUP OF LINE CONDUCTED EMISSION) 19 APPENDIX 2 PHOTOGRAPHS (TEST SETUP OF RADIATED EMISSION) 21 APPENDIX 3 PHOTOS OF EUT 23 APPENDIX 4 SPECTRUM PLOT OF L1 AND L2 25 Report Number: SZ0310027 FCC ID: RPZAIR85031033 December 15, 2003 LAB CODE: 200577-0 Page3 Rev. 00 VERIFICATION OF COMPLIANCE Equipment Under Test: THE VIRTUALLY INDESTRUCTIBLE KEYBOARD Trade Name: GRANDTEC Model Number: FLX-500U Serial Number: N/A Applicant: DOBBS-STANFORD CORPORATION 2715 ELECTRONIC LANE DALLAS TEXAS 75220 USA Manufacturer: SHENZHEN JINGHONG CONDUCTIVE RUBBER FACTORY 287 GUSHU ONE ROAD, GUSHUU, XIXIANG, BAOAN, SHENZHEN, P.R.C. Type of Test: FCC Class B (Certification) Measurement Procedure: ANSI C63.4: 1992 File Number: SZ0310027 Date of test: October 24~November 05, 2003 Deviation: None Condition of Test Sample: Normal The above equipment was tested by Compliance Certification Services (Shenzhen) Inc. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, Subpart B and the measurement procedure according to ANSI C63.4. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Approved by Authorized Signatory: David Sun / Q.A. Manager Report Number: SZ0310027 FCC ID: RPZAIR85031033 December 15, 2003 LAB CODE: 200577-0 Page4 Rev. 00 SYSTEM DESCRIPTION EUT Test Program: 1. Notepad was loaded and executed in Windows 2000 mode. 2. EUT key “H” continuously to PC, and monitor is full of “H” patterns on the screen. 3. Test program sequentially exercised printer and modem, then sent “H” patterns to them individually. 4. Keep test program running throughout the test. Report Number: SZ0310027 FCC ID: RPZAIR85031033 December 15, 2003 LAB CODE: 200577-0 Page5 Rev. 00 PRODUCT INFORMATION Housing Type: Plastic EUT Power Rating: DC 5V Power During Test: AC 120V/60Hz changed into DC 5V by PC PS/2: Shielded, 1.70m USB Cable: Shielded, 1.65m OSC/Clock Frequencies: 6MHz I/O Port of EUT: I/O Port Type Q’TY Tested with PS/2 1 1 USB 1 1 1) Difference between model numbers as below: Model Number Trade Name 1 N/A N/A Report Number: SZ0310027 FCC ID: RPZAIR85031033 December 15, 2003 LAB CODE: 200577-0 Page6 Rev. 00 SUPPORT EQUIPMENT No. Equipment Model # Serial # Trade Name Data Cable Power Cord FCC ID 1. PC PC5 N/A C&C N/A Unshielded 1.8m DoC 2. MODEM SUPERFAX6.0 9013593 ACCEX Shielded 1.8m Unshielded 1.8m IFAXDM1414 3. MONITOR CPD-G220 2404330 SONY Shielded 1.5 m Unshielded 1.8m DoC 4. PRINTER P310B C41344000NK02520275EPSON Shielded 1.5m Unshielded 1.8m DoC 5. MOUSE MUS9JN 298792-001 COMPAQ Shielded 1.5m N/A DoC **Note: All the above equipment/cables were placed in worse case positions to maximize emission signals during emission test. Grounding: Grounding was in accordance with the manufacturer’s requirements and conditions for the intended use. Report Number: SZ0310027 FCC ID: RPZAIR85031033 December 15, 2003 LAB CODE: 200577-0 Page7 Rev. 00 SECTION 1 FCC (LINE CONDUCTED & RADIATED EMISSION) MEASUREMENT PROCEDURE (PRELIMINARY LINE CONDUCTED EMISSION TEST) 1) The equipment was set up as per the test configuration to simulate typical actual usage per the user’s manual. When the EUT is a tabletop system, a wooden table with a height of 0.8 meters is used and is placed on the ground plane as per ANSI C63.4 (see Test Facility for the dimensions of the ground plane used). When the EUT is a floor-standing equipment, it is placed on the ground plane which has a 3-12 mm non-conductive covering to insulate the EUT from the ground plane. 2) Support equipment, if needed, was placed as per ANSI C63.4. 3) All I/O cables were positioned to simulate typical actual usage as per ANSI C63.4. 4) The EUT received DC power from PC, and PC received AC power through a Line Impedance Stabilization Network (LISN) which supplied power source and was grounded to the ground plane. 5) All support equipments received AC power from a second LISN supplying power, if any. 6) The EUT test program was started. Emissions were measured on each current carrying line of the EUT using a spectrum Analyzer / Receiver connected to the LISN powering the EUT. The LISN has two monitoring points: Line 1 (Hot Side) and Line 2 (Neutral Side). Two scans were taken: one with Line 1 connected to Analyzer / Receiver and Line 2 connected to a 50 ohm load; the second scan had Line 1 connected to a 50 ohm load and Line 2 connected to the Analyzer / Receiver. 7) Analyzer / Receiver scanned from 150kHz to 30MHz for emissions in each of the test modes. 8) During the above scans, the emissions were maximized by cable manipulation. 9) The following test mode…

Text truncated - open the document above for the full version.

LINE CONDUCTED EMISSION TEST SZ0310027 SZ0310027 RADIATED EMISSION TEST SZ0310027 SZ0310027
